Product information "KS-081 35 E03"

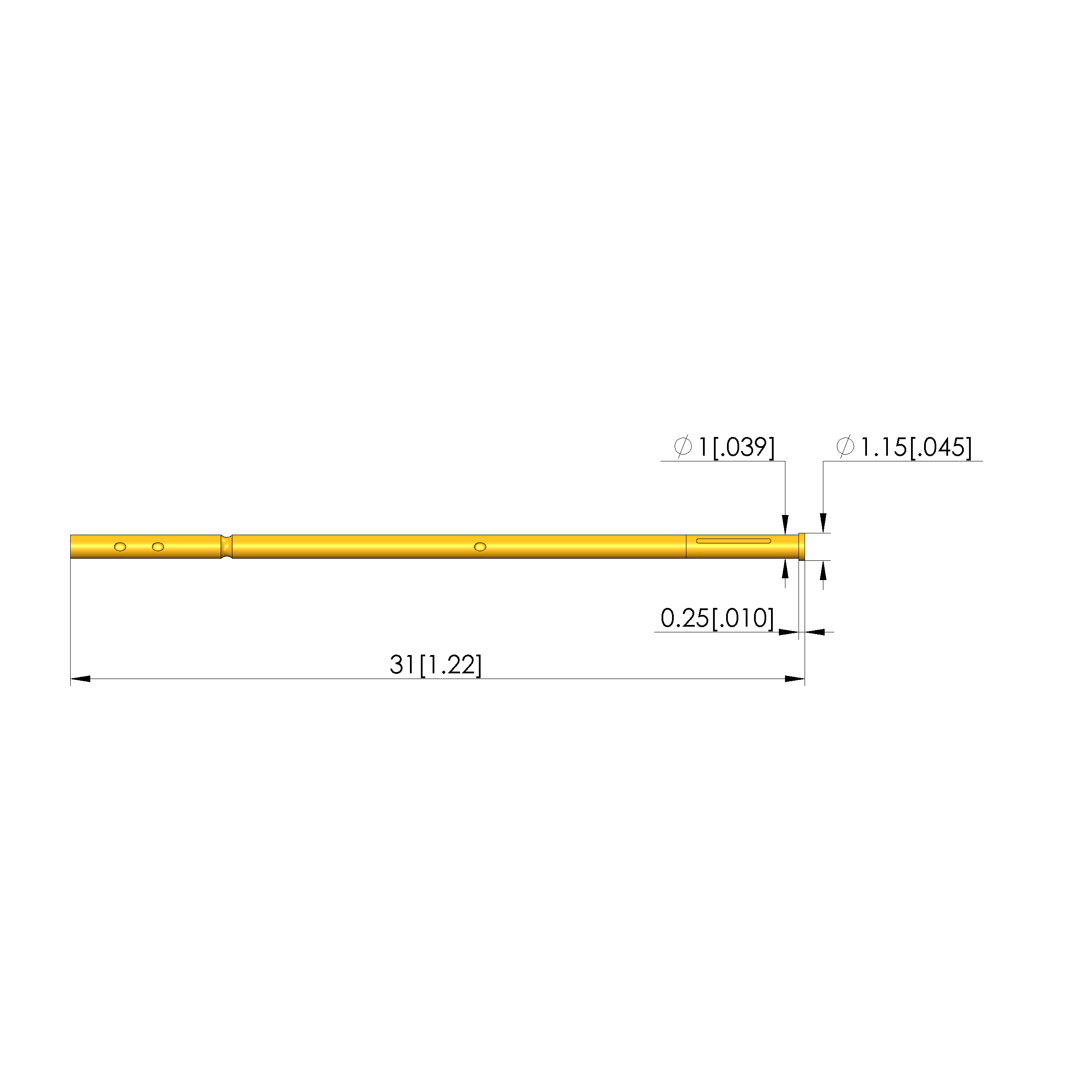

| Collar diameter: | 1.15 mm [.045 in] |
|---|---|
| Collar height: | 0.25 mm [.009 in] |
| Knurl: | No |
| Mounting hole in CEM1: | 0.99 – 1 mm [.038 – .039 in] |
| Mounting hole in FR4: | 0.99 – 1 mm [.038 – .039 in] |
| Outer diameter: | 1 mm [.039 in] |
| Press ring: | No |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-081 |
| Sub-series: | KS-081 press-in version |
| Surface area: | Gold |
| Total length: | 31 mm [1.22 in] |
| Type of receptacle connection: | Plug / open |
| Vacuum-tight: | No |
Login
Other products in this series:
Technical data
General data
- Press ring: No
- Surface area: Gold
- Product group: Receptacles (KS)
- Collar diameter: 1.15 mm [.045 in]
- Type of receptacle connection: Plug / open
- Knurl: No
- Sub-series: KS-081 press-in version
- Series: KS-081
- RoHS-compliant: Yes
- Collar height: 0.25 mm [.009 in]
- Vacuum-tight: No
Mounting hole
- Mounting hole in FR4: 0.99 – 1 mm [.038 – .039 in]
- Mounting hole in CEM1: 0.99 – 1 mm [.038 – .039 in]
Mechanical data
- Outer diameter: 1 mm [.039 in]
- Total length: 31 mm [1.22 in]
