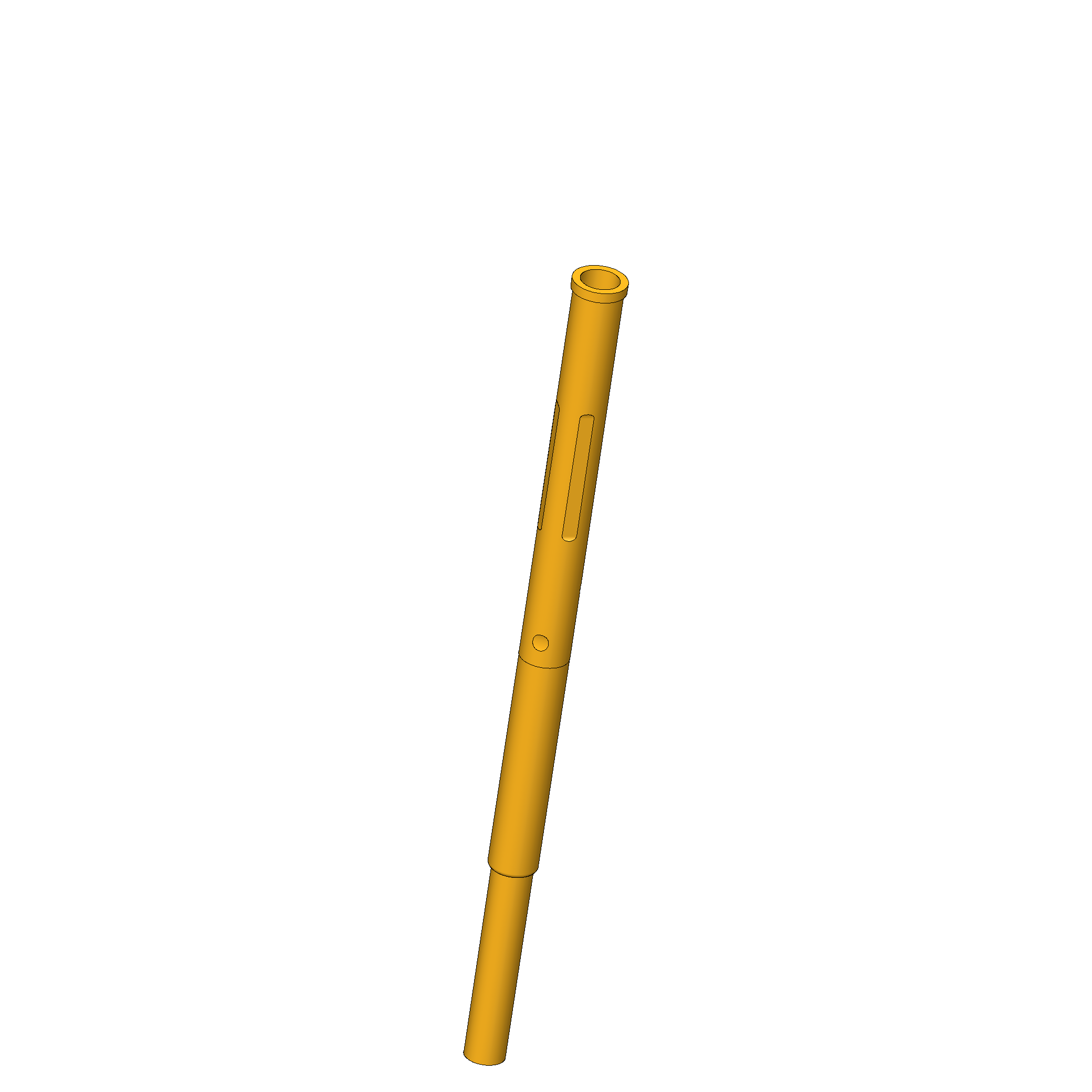

Product information "KS-079 35"
| Collar diameter: | 1.05 mm [.041 in] |
|---|---|
| Collar height: | 0.2 mm [.007 in] |
| Knurl: | No |
| Mounting hole in CEM1: | 0.94 – 0.95 mm [.037 – .037 in] |
| Mounting hole in FR4: | 0.94 – 0.95 mm [.037 – .037 in] |
| Outer diameter: | 0.95 mm [.037 in] |
| Press ring: | No |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-079 |
| Sub-series: | KS-079 press-in version |
| Surface area: | Gold |
| Total length: | 16.5 mm [.649 in] |
| Type of receptacle connection: | Plug / open |
| Vacuum-tight: | No |
Login
Other products in this series:
Technical data
General data
- Product group: Receptacles (KS)
- Series: KS-079
- Sub-series: KS-079 press-in version
- Type of receptacle connection: Plug / open
- Press ring: No
- Surface area: Gold
- Collar diameter: 1.05 mm [.041 in]
- Collar height: 0.2 mm [.007 in]
- Knurl: No
- Vacuum-tight: No
- RoHS-compliant: Yes

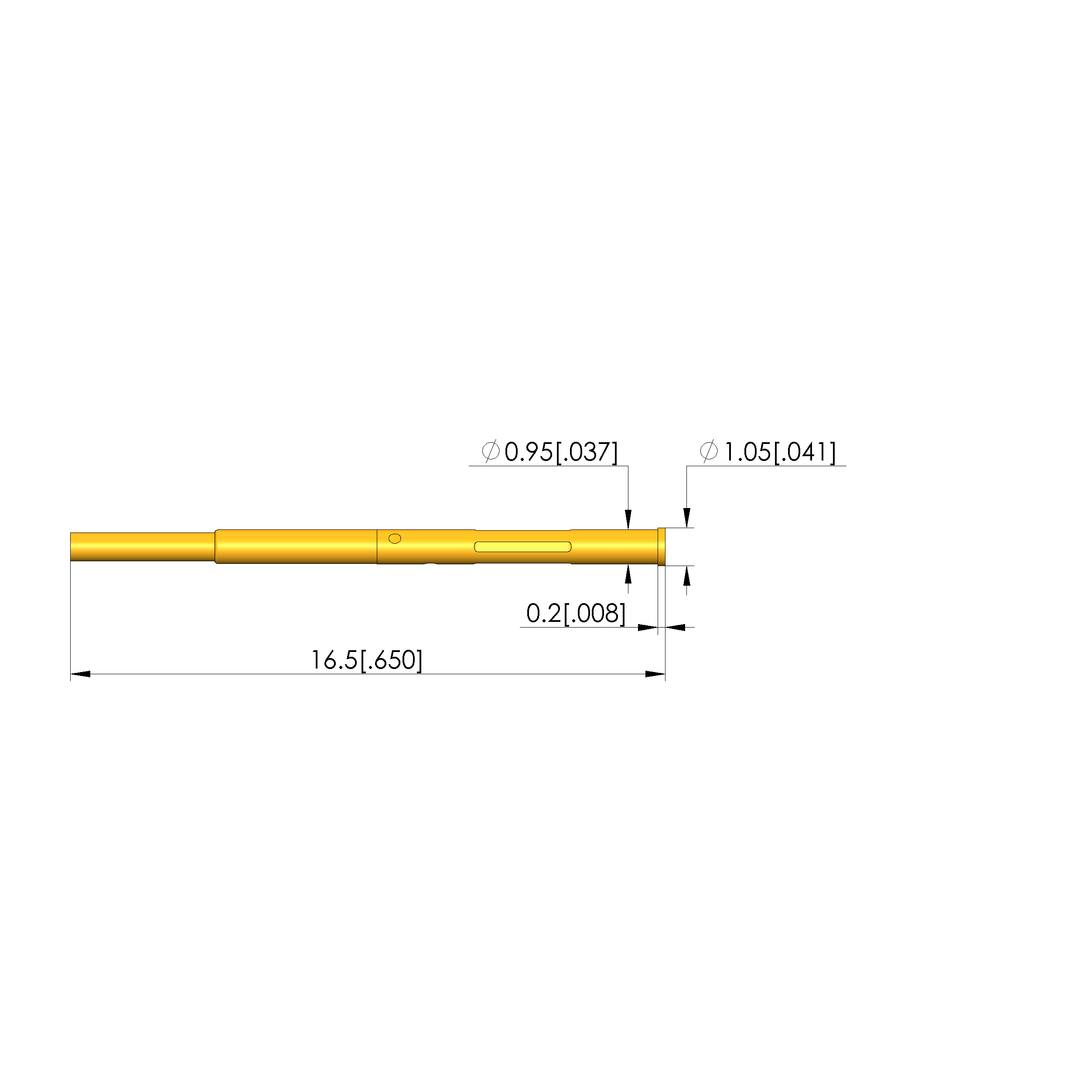

Mechanical data
- Total length: 16.5 mm [.649 in]
- Outer diameter: 0.95 mm [.037 in]
Mounting hole
- Mounting hole in CEM1: 0.94 – 0.95 mm [.037 – .037 in]
- Mounting hole in FR4: 0.94 – 0.95 mm [.037 – .037 in]
