Product information "KS-075 30 E03"

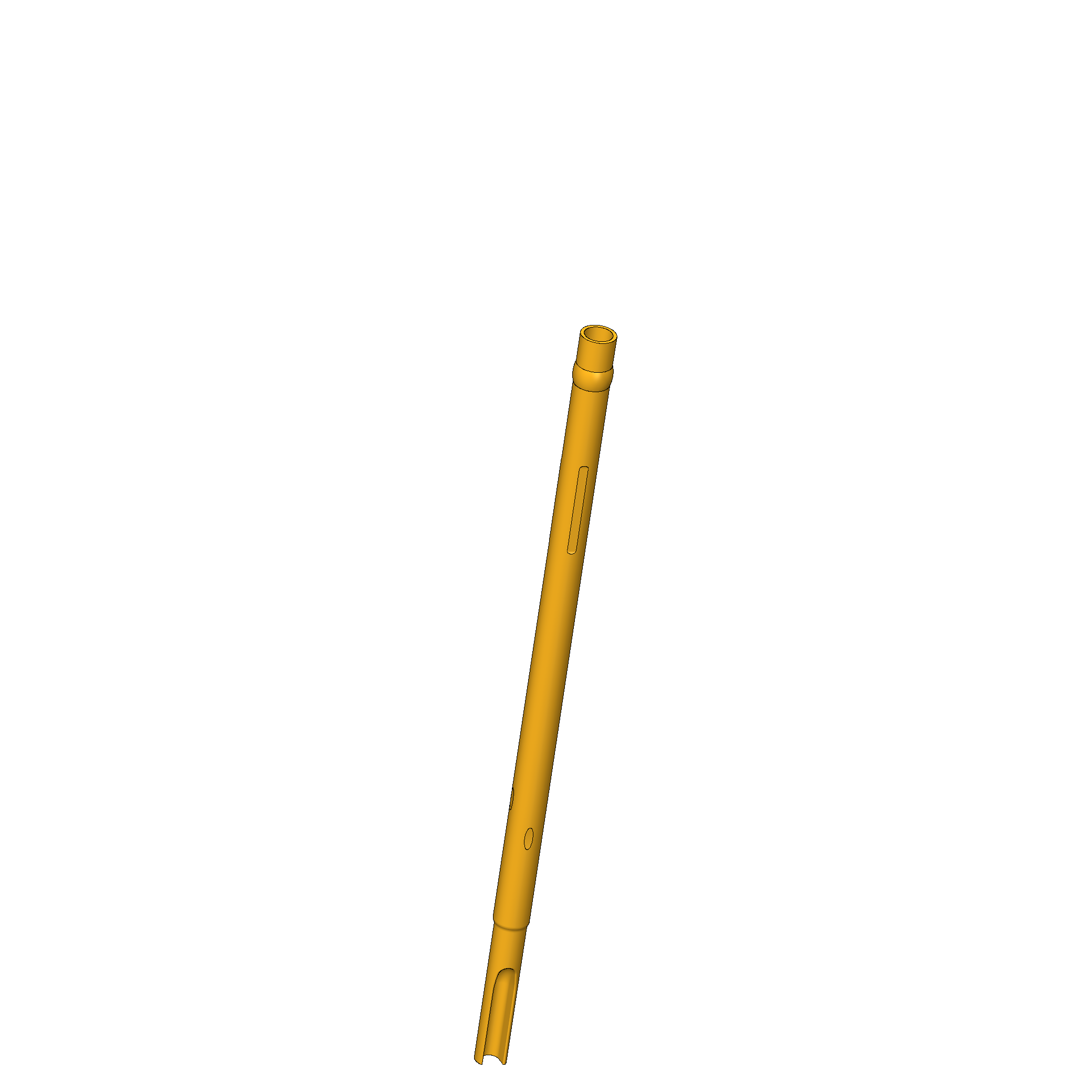

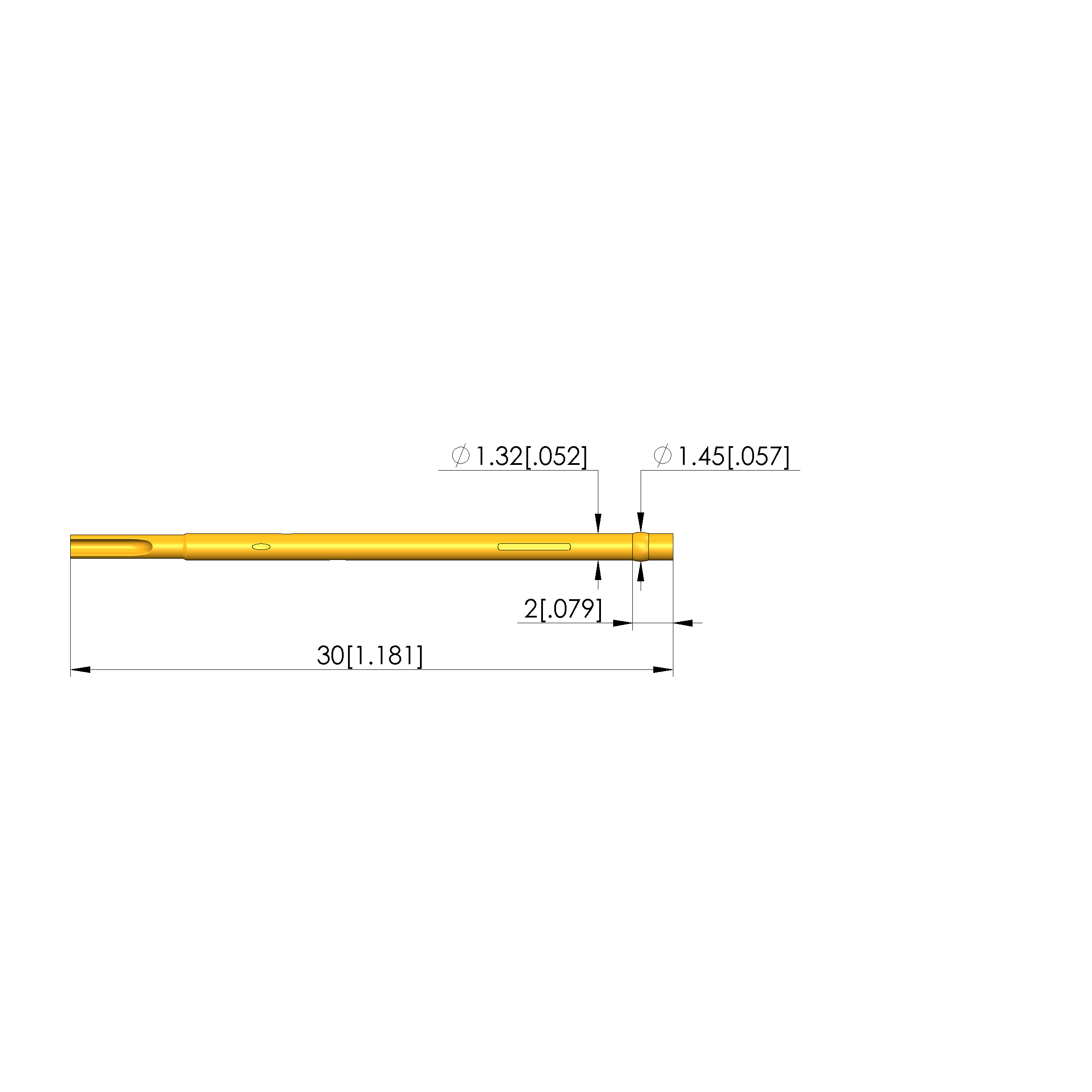

| Collar diameter: | 1.47 mm [.057 in] |
|---|---|
| Collar height: | 2 mm [.078 in] |
| Knurl: | No |
| Mounting hole in CEM1: | 1.3 – 1.32 mm [.051 – .051 in] |
| Mounting hole in FR4: | 1.31 – 1.33 mm [.051 – .052 in] |
| Mounting hole with press ring in CEM1: | 1.39 – 1.4 mm [.054 – .055 in] |
| Mounting hole with press ring in FR4: | 1.39 – 1.4 mm [.054 – .055 in] |
| Outer diameter: | 1.32 mm [.051 in] |
| Press ring: | Yes |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-075 |
| Sub-series: | KS-075 press-in version |
| Surface area: | Gold |
| Total length: | 30 mm [1.18 in] |
| Type of receptacle connection: | Solder |
| Vacuum-tight: | No |
Login
Other products in this series:
Technical data
General data
- Collar diameter: 1.47 mm [.057 in]
- Series: KS-075
- Surface area: Gold
- Press ring: Yes
- Product group: Receptacles (KS)
- Sub-series: KS-075 press-in version
- Type of receptacle connection: Solder
- Knurl: No
- Collar height: 2 mm [.078 in]
- RoHS-compliant: Yes
- Vacuum-tight: No
Mechanical data
- Outer diameter: 1.32 mm [.051 in]
- Total length: 30 mm [1.18 in]
Mounting hole
- Mounting hole in CEM1: 1.3 – 1.32 mm [.051 – .051 in]
- Mounting hole with press ring in FR4: 1.39 – 1.4 mm [.054 – .055 in]
- Mounting hole with press ring in CEM1: 1.39 – 1.4 mm [.054 – .055 in]
- Mounting hole in FR4: 1.31 – 1.33 mm [.051 – .052 in]
