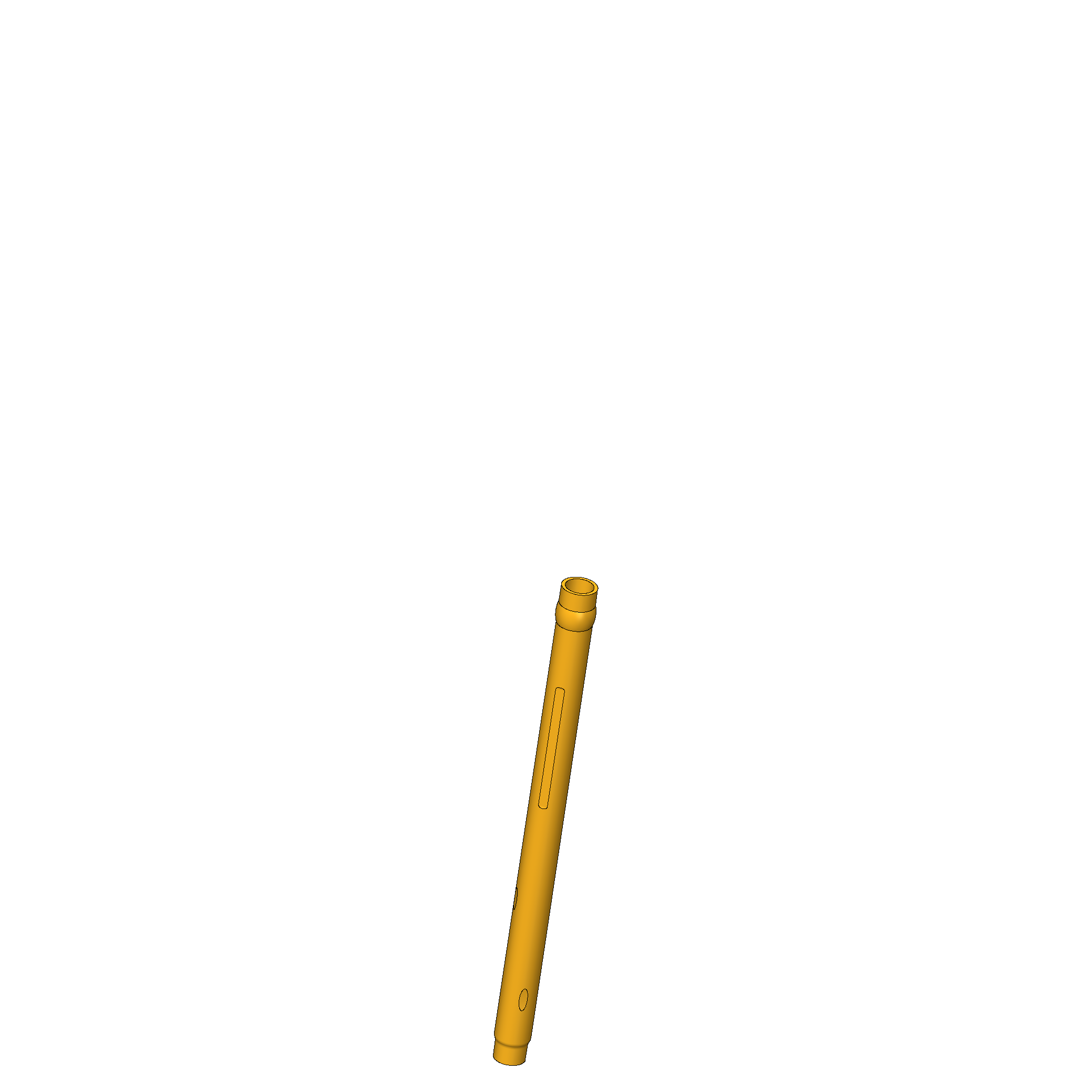

Product information "KS-075 35 K"
| Collar diameter: | 1.45 mm [.057 in] |
|---|---|
| Collar height: | 1.5 mm [.059 in] |
| Knurl: | No |
| Mounting hole in CEM1: | 1.3 – 1.32 mm [.051 – .051 in] |
| Mounting hole in FR4: | 1.31 – 1.33 mm [.051 – .052 in] |
| Mounting hole with press ring in CEM1: | 1.39 – 1.4 mm [.054 – .055 in] |
| Mounting hole with press ring in FR4: | 1.39 – 1.4 mm [.054 – .055 in] |
| Outer diameter: | 1.32 mm [.051 in] |
| Press ring: | Yes |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-075 |
| Sub-series: | KS-075 35 K press-in version |
| Surface area: | Gold |
| Total length: | 19.5 mm [.767 in] |
| Type of receptacle connection: | Plug / open |
| Vacuum-tight: | No |
Login
Other products in this series:
Technical data
General data
- Product group: Receptacles (KS)
- Series: KS-075
- Sub-series: KS-075 35 K press-in version
- Type of receptacle connection: Plug / open
- Press ring: Yes
- Surface area: Gold
- Collar diameter: 1.45 mm [.057 in]
- Collar height: 1.5 mm [.059 in]
- Knurl: No
- Vacuum-tight: No
- RoHS-compliant: Yes
Mounting hole
- Mounting hole in CEM1: 1.3 – 1.32 mm [.051 – .051 in]
- Mounting hole in FR4: 1.31 – 1.33 mm [.051 – .052 in]
- Mounting hole with press ring in CEM1: 1.39 – 1.4 mm [.054 – .055 in]
- Mounting hole with press ring in FR4: 1.39 – 1.4 mm [.054 – .055 in]

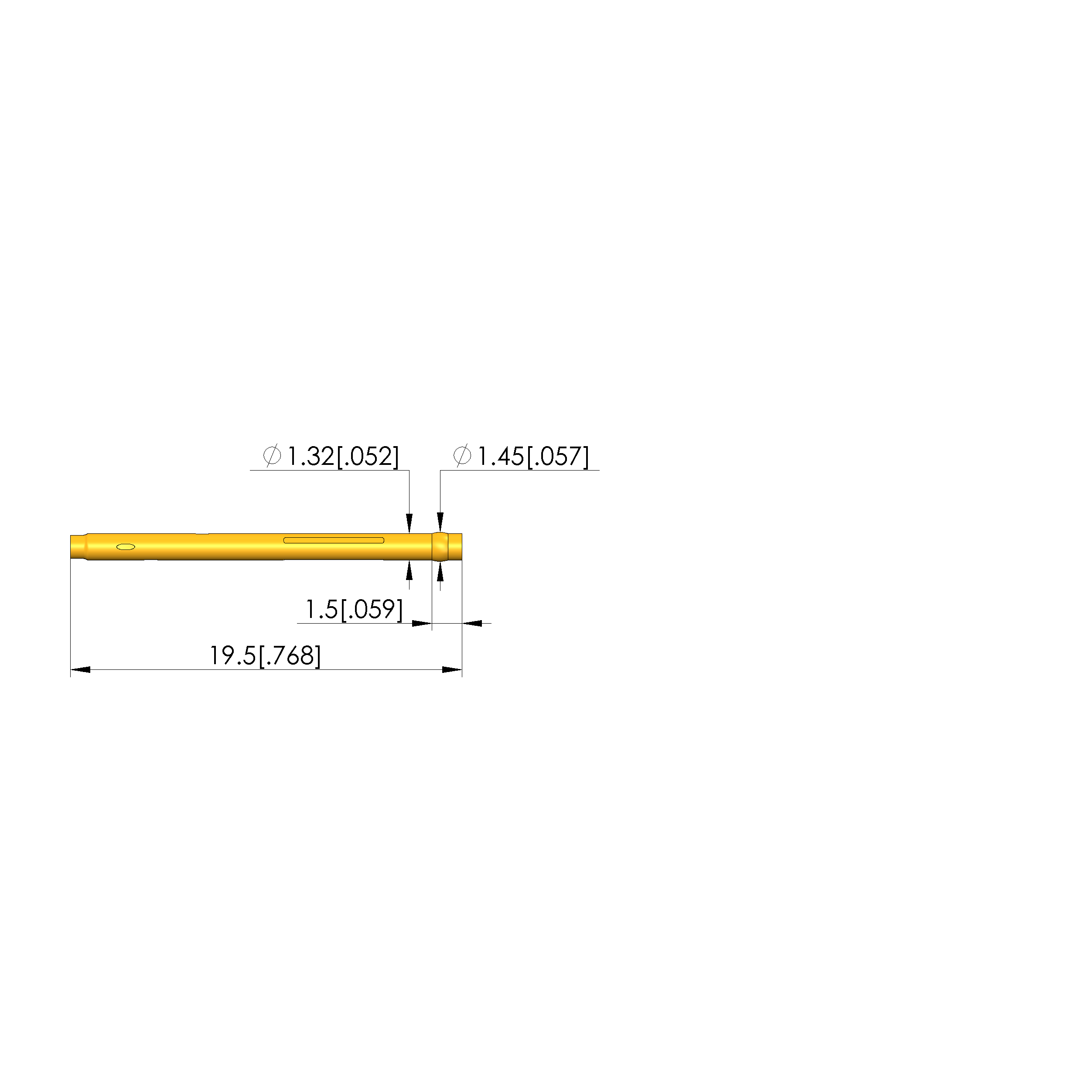

Mechanical data
- Total length: 19.5 mm [.767 in]
- Outer diameter: 1.32 mm [.051 in]
