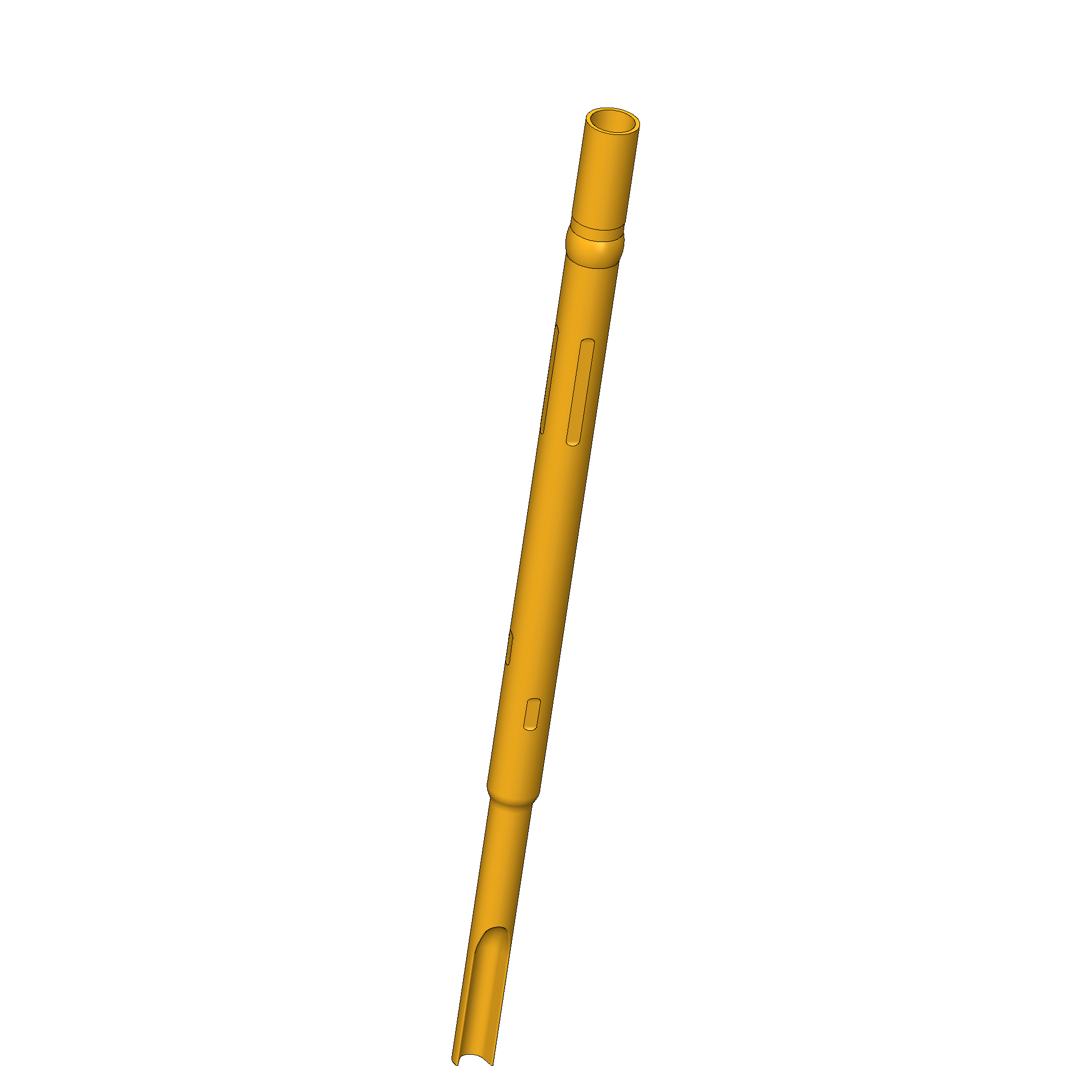

Product information "KS-069 30 G"
| Collar diameter: | 0.94 mm [.037 in] |
|---|---|
| Collar height: | 2.54 mm [.1 in] |
| Knurl: | No |
| Mounting hole in CEM1: | 0.86 – 0.92 mm [.033 – .036 in] |
| Mounting hole in FR4: | 0.86 – 0.92 mm [.033 – .036 in] |
| Mounting hole with press ring in CEM1: | 0.86 – 0.92 mm [.033 – .036 in] |
| Mounting hole with press ring in FR4: | 0.86 – 0.92 mm [.033 – .036 in] |
| Outer diameter: | 0.86 mm [.033 in] |
| Press ring: | Yes |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-069 |
| Sub-series: | KS-069 press-in version |
| Surface area: | Gold |
| Total length: | 17.5 mm [.688 in] |
| Type of receptacle connection: | Solder |
| Vacuum-tight: | No |
Login
Other products in this series:
Technical data
Mounting hole
- Mounting hole in CEM1: 0.86 – 0.92 mm [.033 – .036 in]
- Mounting hole in FR4: 0.86 – 0.92 mm [.033 – .036 in]
- Mounting hole with press ring in CEM1: 0.86 – 0.92 mm [.033 – .036 in]
- Mounting hole with press ring in FR4: 0.86 – 0.92 mm [.033 – .036 in]
General data
- Product group: Receptacles (KS)
- Series: KS-069
- Sub-series: KS-069 press-in version
- Type of receptacle connection: Solder
- Press ring: Yes
- Surface area: Gold
- Collar diameter: 0.94 mm [.037 in]
- Collar height: 2.54 mm [.1 in]
- Knurl: No
- Vacuum-tight: No
- RoHS-compliant: Yes

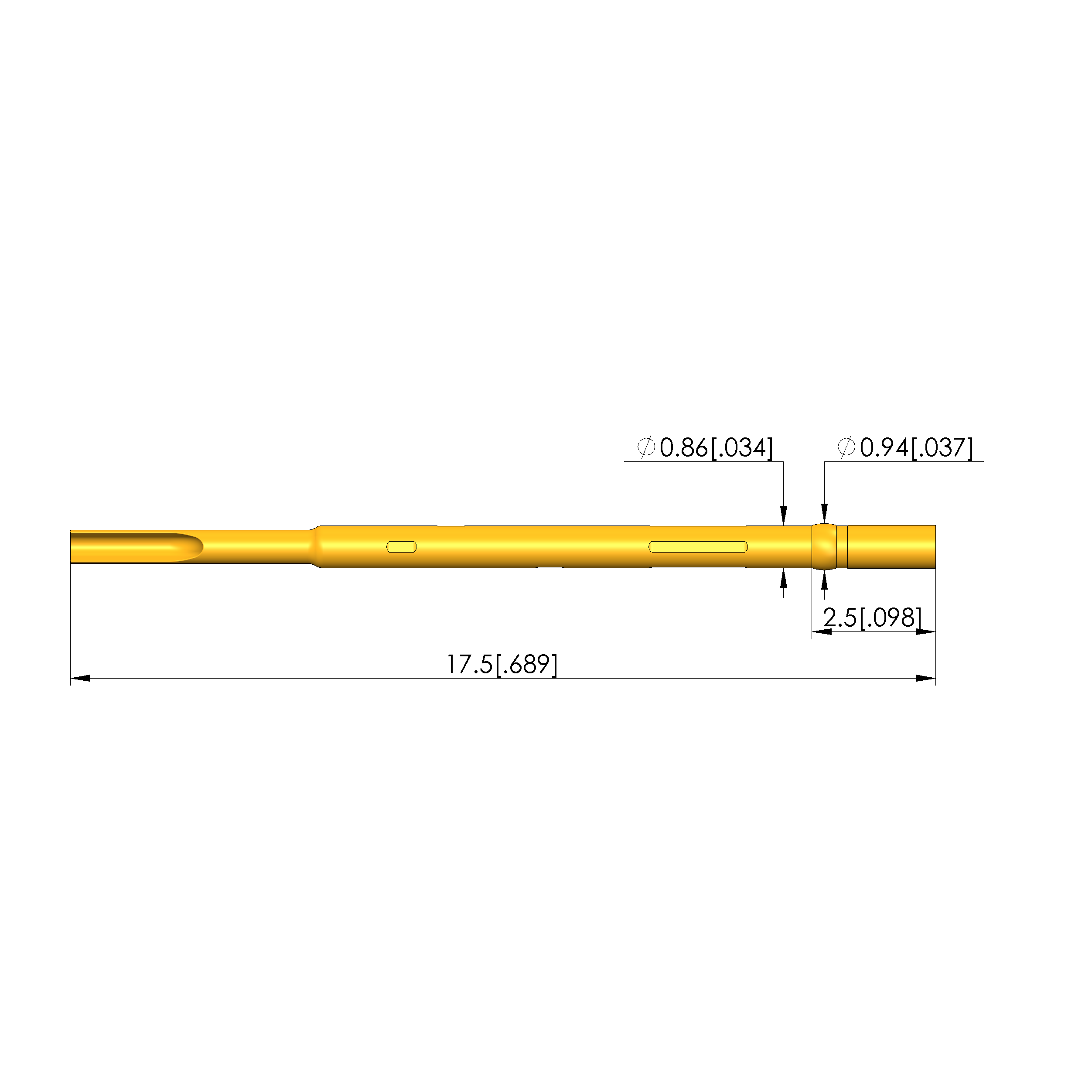

Mechanical data
- Total length: 17.5 mm [.688 in]
- Outer diameter: 0.86 mm [.033 in]
