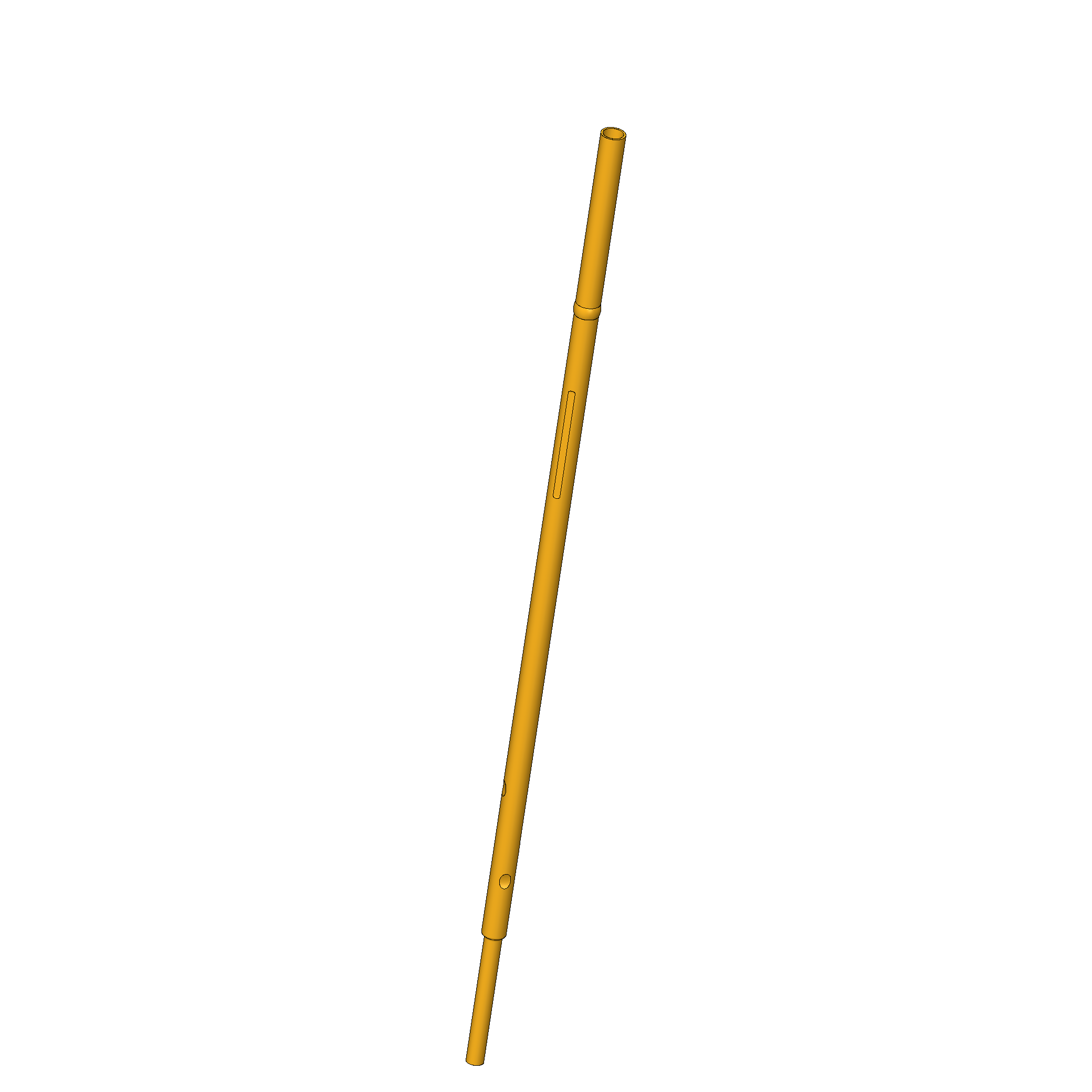

Product information "KS-050 E08"
| Collar diameter: | 1.04 mm [.04 in] |
|---|---|
| Collar height: | 7.9 mm [.311 in] |
| Knurl: | No |
| Mounting hole in CEM1: | 0.98 – 1 mm [.038 – .039 in] |
| Mounting hole in FR4: | 0.98 – 1 mm [.038 – .039 in] |
| Mounting hole with press ring in CEM1: | 0.98 – 1 mm [.038 – .039 in] |
| Mounting hole with press ring in FR4: | 0.98 – 1 mm [.038 – .039 in] |
| Outer diameter: | 0.95 mm [.037 in] |
| Press ring: | Yes |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-050 |
| Sub-series: | KS-050 press-in version |
| Surface area: | Gold |
| Total length: | 40.6 mm [1.59 in] |
| Type of receptacle connection: | Plug / open |
| Vacuum-tight: | No |
Login
Other products in this series:
Technical data
Mounting hole
- Mounting hole in CEM1: 0.98 – 1 mm [.038 – .039 in]
- Mounting hole with press ring in FR4: 0.98 – 1 mm [.038 – .039 in]
- Mounting hole with press ring in CEM1: 0.98 – 1 mm [.038 – .039 in]
- Mounting hole in FR4: 0.98 – 1 mm [.038 – .039 in]
General data
- Product group: Receptacles (KS)
- Series: KS-050
- RoHS-compliant: Yes
- Surface area: Gold
- Press ring: Yes
- Type of receptacle connection: Plug / open
- Knurl: No
- Sub-series: KS-050 press-in version
- Collar height: 7.9 mm [.311 in]
- Vacuum-tight: No
- Collar diameter: 1.04 mm [.04 in]

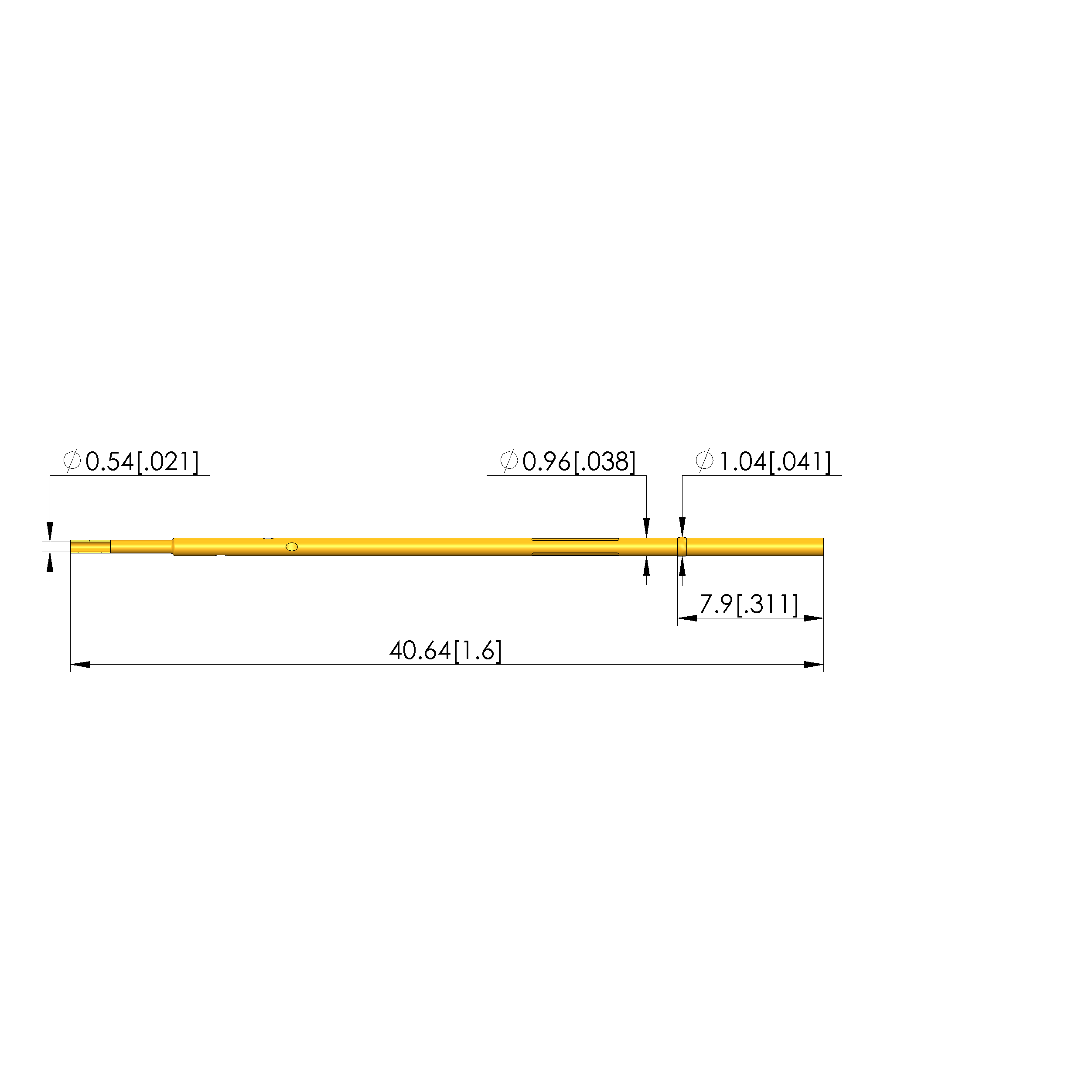

Mechanical data
- Total length: 40.6 mm [1.59 in]
- Outer diameter: 0.95 mm [.037 in]
