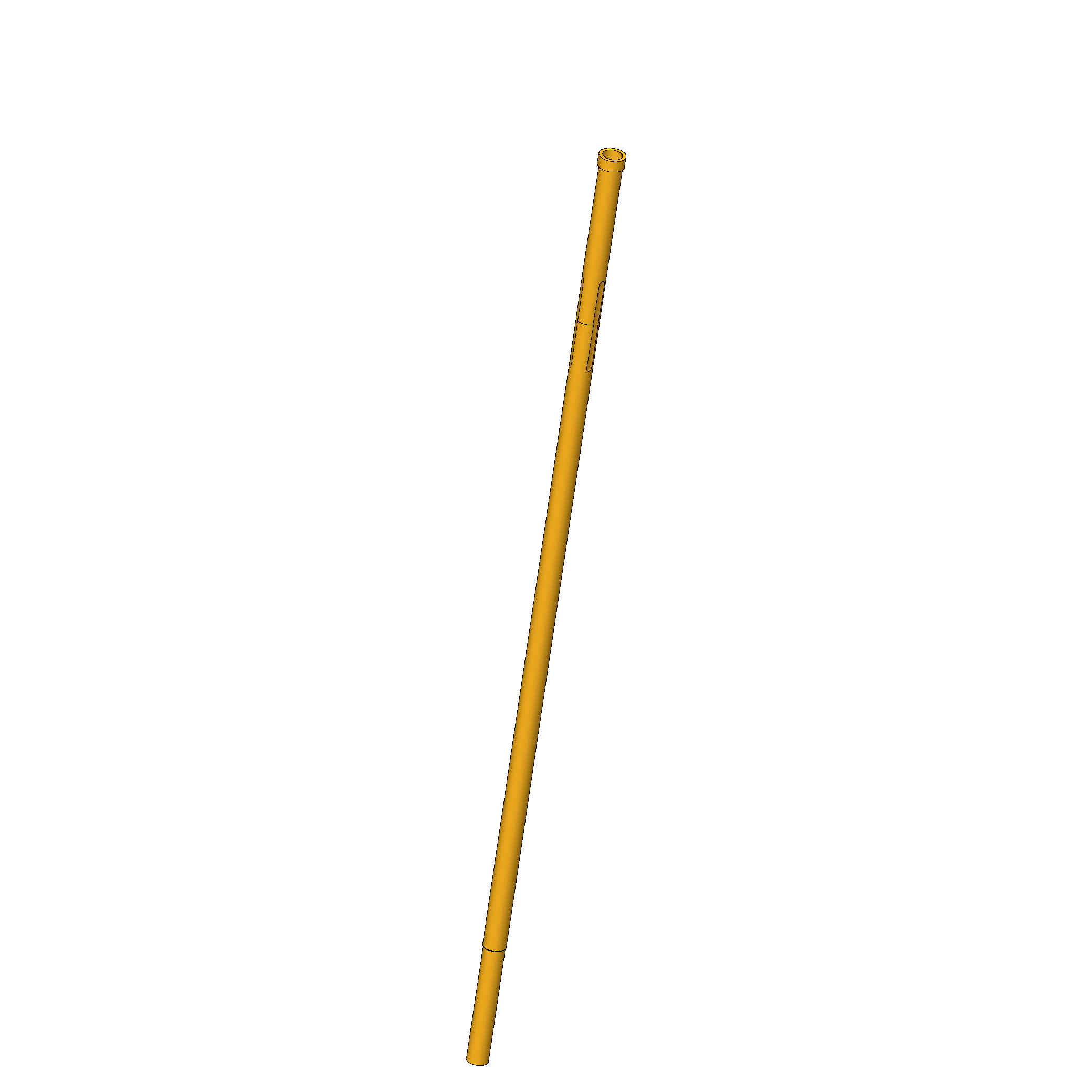

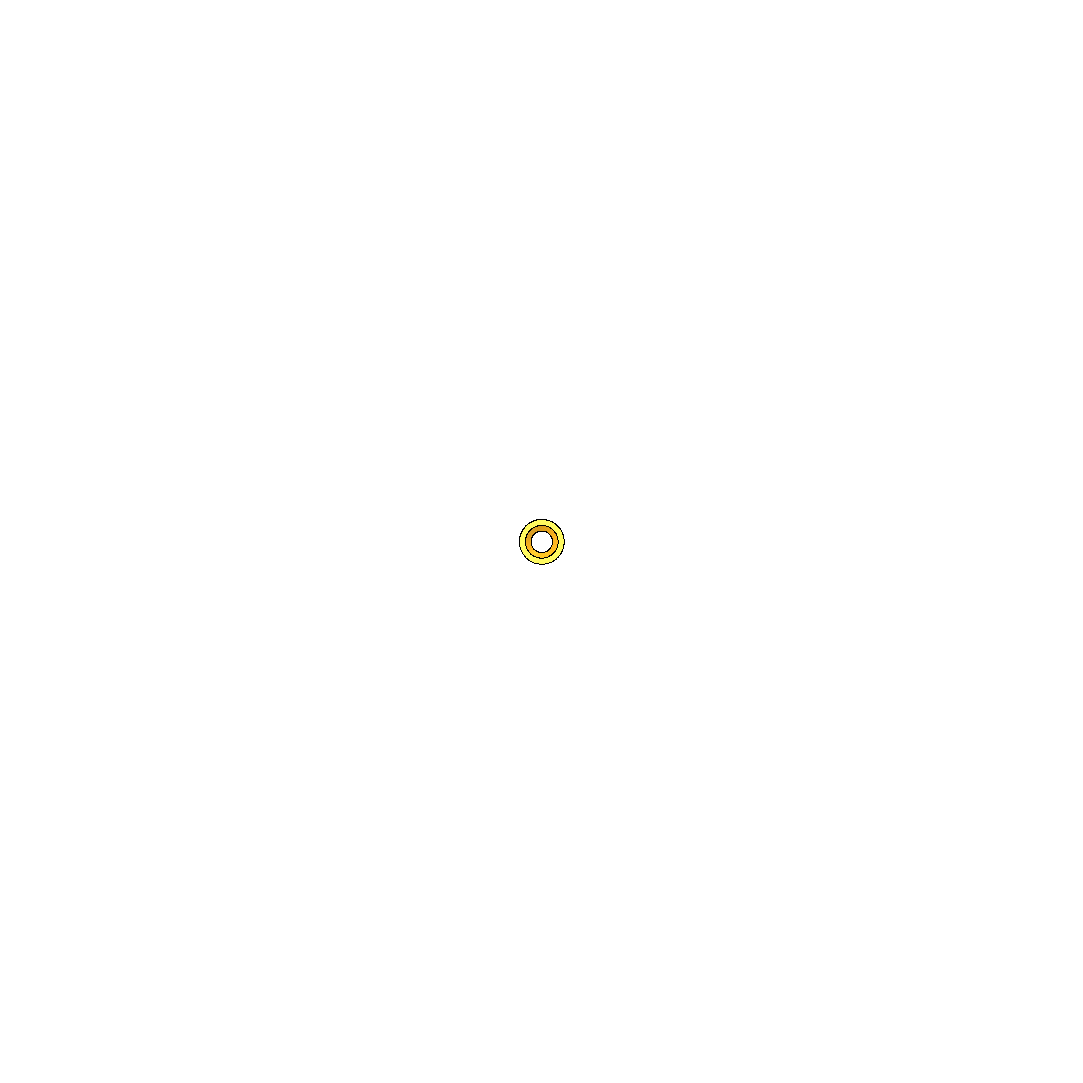

Product information "KS-050 35 M"
| Collar diameter: | 1.15 mm [.045 in] |
|---|---|
| Collar height: | 0.5 mm [.019 in] |
| Knurl: | No |
| Mounting hole in CEM1: | 1 – 1.02 mm [.039 – .04 in] |
| Mounting hole in FR4: | 1.01 – 1.03 mm [.039 – .04 in] |
| Outer diameter: | 1 mm [.039 in] |
| Press ring: | No |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-050 |
| Sub-series: | KS-050 M screw-in version |
| Surface area: | Gold |
| Total length: | 43.5 mm [1.71 in] |
| Type of receptacle connection: | Plug / open |
| Vacuum-tight: | No |
Login
Other products in this series:
Technical data
Mounting hole
- Mounting hole in FR4: 1.01 – 1.03 mm [.039 – .04 in]
- Mounting hole in CEM1: 1 – 1.02 mm [.039 – .04 in]
General data
- Product group: Receptacles (KS)
- Series: KS-050
- RoHS-compliant: Yes
- Press ring: No
- Surface area: Gold
- Collar height: 0.5 mm [.019 in]
- Type of receptacle connection: Plug / open
- Sub-series: KS-050 M screw-in version
- Knurl: No
- Vacuum-tight: No
- Collar diameter: 1.15 mm [.045 in]

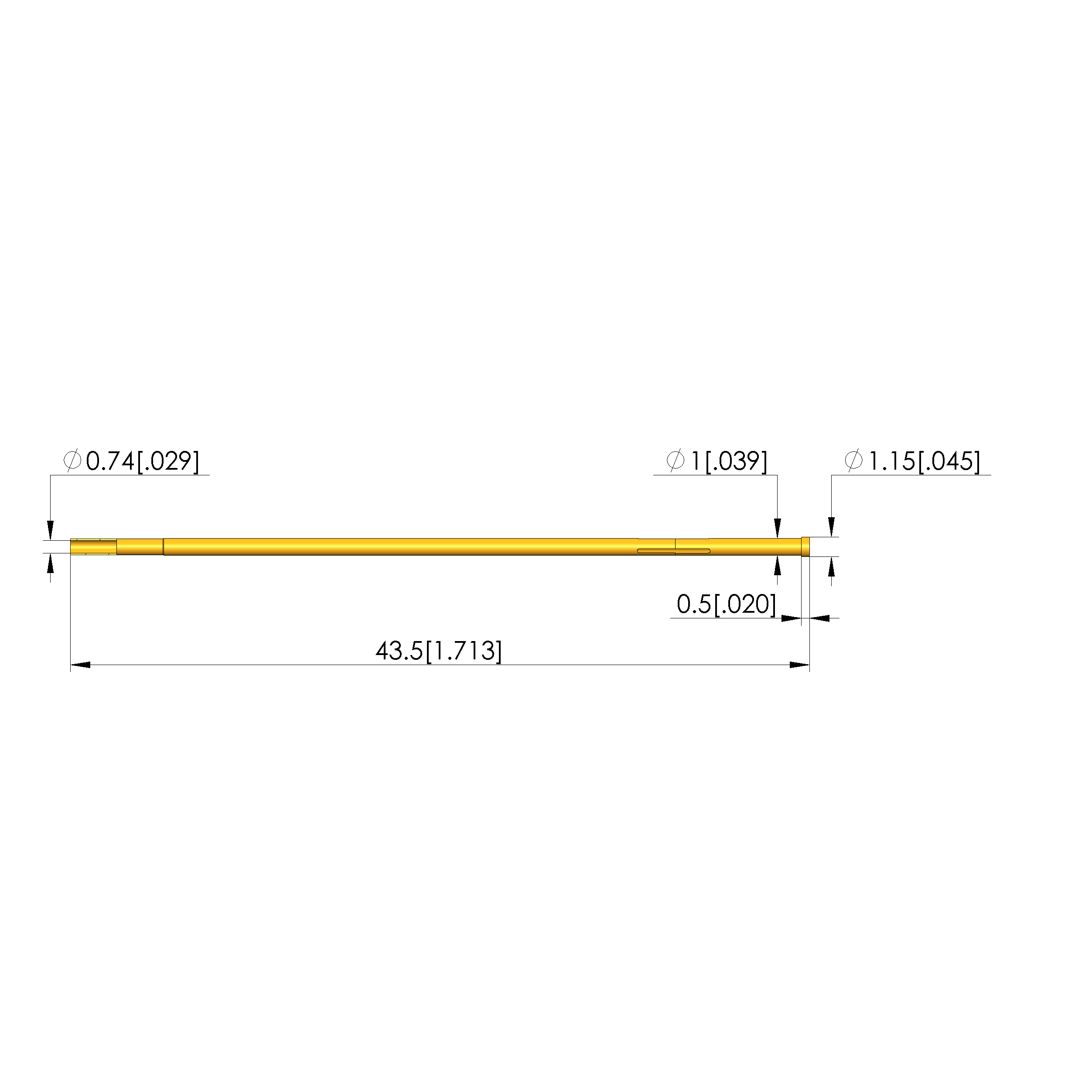

Mechanical data
- Total length: 43.5 mm [1.71 in]
- Outer diameter: 1 mm [.039 in]
