Product information "HSS-827 302 200 S 2502 M"
- Short-stroke high-current probes with optimum size to current load capacity ratio
- Low-Ohm probe with Ri typical: < 10 mOhm
- For use in applications with limited space
- Secure hold in the receptacle thanks to the threaded connection
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 1.65 mm [.064 in] |
| Collar height: | 02 |
| Compatible receptacle(s): | KS-427 M |
| Contacting from: | Bead, Flat contact, Post, Pin |
| Current load capacity / rated current: | 20 A |
| Grid: | 2.54 mm [100 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 200 °C [392 °F] |
| Maximum stroke: | 4.5 mm [.177 in] |
| Min. temperature: | -100 °C [-148 °F] |
| Non-rotating: | No |
| Product group: | High-current test probe, Short stroke HSS |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Screw-in torque: | 3 – 5 cNm [.265 – .442 lbf·in] |
| Screw-in torque max.: | 5 cNm [.442 lbf·in] |
| Screw-in torque min.: | 3 cNm [.265 lbf·in] |
| Series: | HSS-827, HSS-827 M screw-in |
| Spring force at working stroke: | 2.5 N [8.99 ozf] |
| Spring pre-load: | 0.7 N [2.51 ozf] |
| Sub-product group: | Short stroke HSS |
| Tip diameter: | 2 mm [.078 in] |
| Tip style: | 02 flat |
| Tip style material: | 3 CuBe |
| Tip style surface: | S silver |
| Total length: | 19.5 mm [.767 in] |
| Typical resistance (Ri): | 10 mOhm |
| Working stroke: | 3.5 mm [.137 in] |
Login
Product Details
- Short-stroke high-current probes with optimum size to current load capacity ratio
- Low-Ohm probe with Ri typical: < 10 mOhm
- For use in applications with limited space
- Secure hold in the receptacle thanks to the threaded connection
Other products in this series:
Technical data
Mechanical data
- Total length: 19.5 mm [.767 in]
- Barrel diameter: 1.65 mm [.064 in]
- Maximum stroke: 4.5 mm [.177 in]
- Spring pre-load: 0.7 N [2.51 ozf]
- Collar height: 02
- Spring force at working stroke: 2.5 N [8.99 ozf]
- Working stroke: 3.5 mm [.137 in]
General data
- Screw-in torque max.: 5 cNm [.442 lbf·in]
- Screw-in torque min.: 3 cNm [.265 lbf·in]
- Product group: Short stroke HSS
- Product group: High-current test probe
- Sub-product group: Short stroke HSS
- Series: HSS-827
- Series: HSS-827 M screw-in
- Grid: 2.54 mm [100 mil]
- Contacting from: Bead
- Contacting from: Pin
- Contacting from: Flat contact
- Contacting from: Post
- Magnetic: Yes
- Installation type: Screw-in
- Quick-exchange system: Yes
- Adjustable installation height: No
- Non-rotating: No
- Screw-in torque: 3 – 5 cNm [.265 – .442 lbf·in]
- Compatible receptacle(s): KS-427 M
- Min. temperature: -100 °C [-148 °F]
- Max. temperature: 200 °C [392 °F]
- RoHS-compliant: Yes

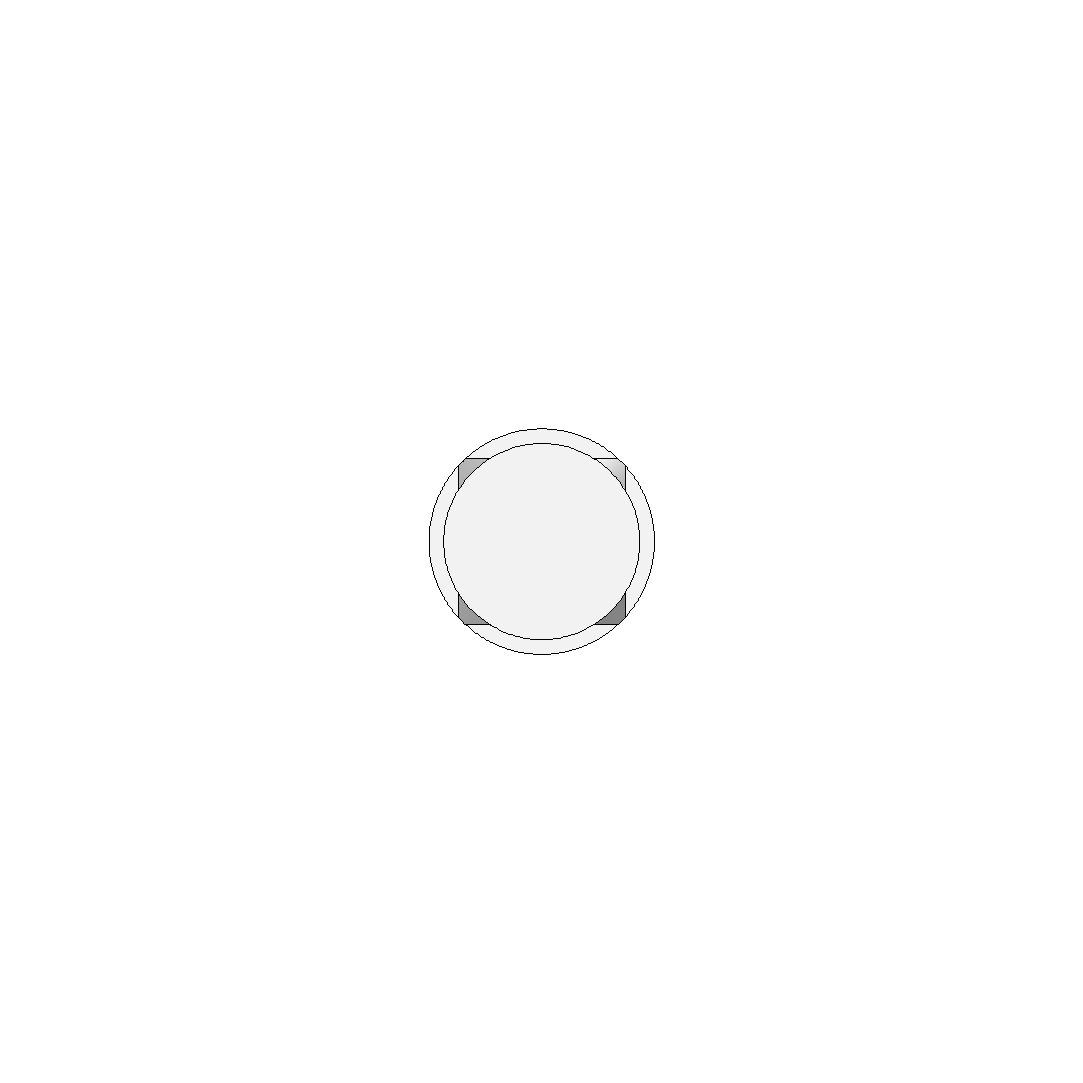

Tip style data
- Tip style: 02 flat
- Tip diameter: 2 mm [.078 in]
- Tip style surface: S silver
- Tip style material: 3 CuBe
Electrical data
- Current load capacity / rated current: 20 A
- Typical resistance (Ri): 10 mOhm
