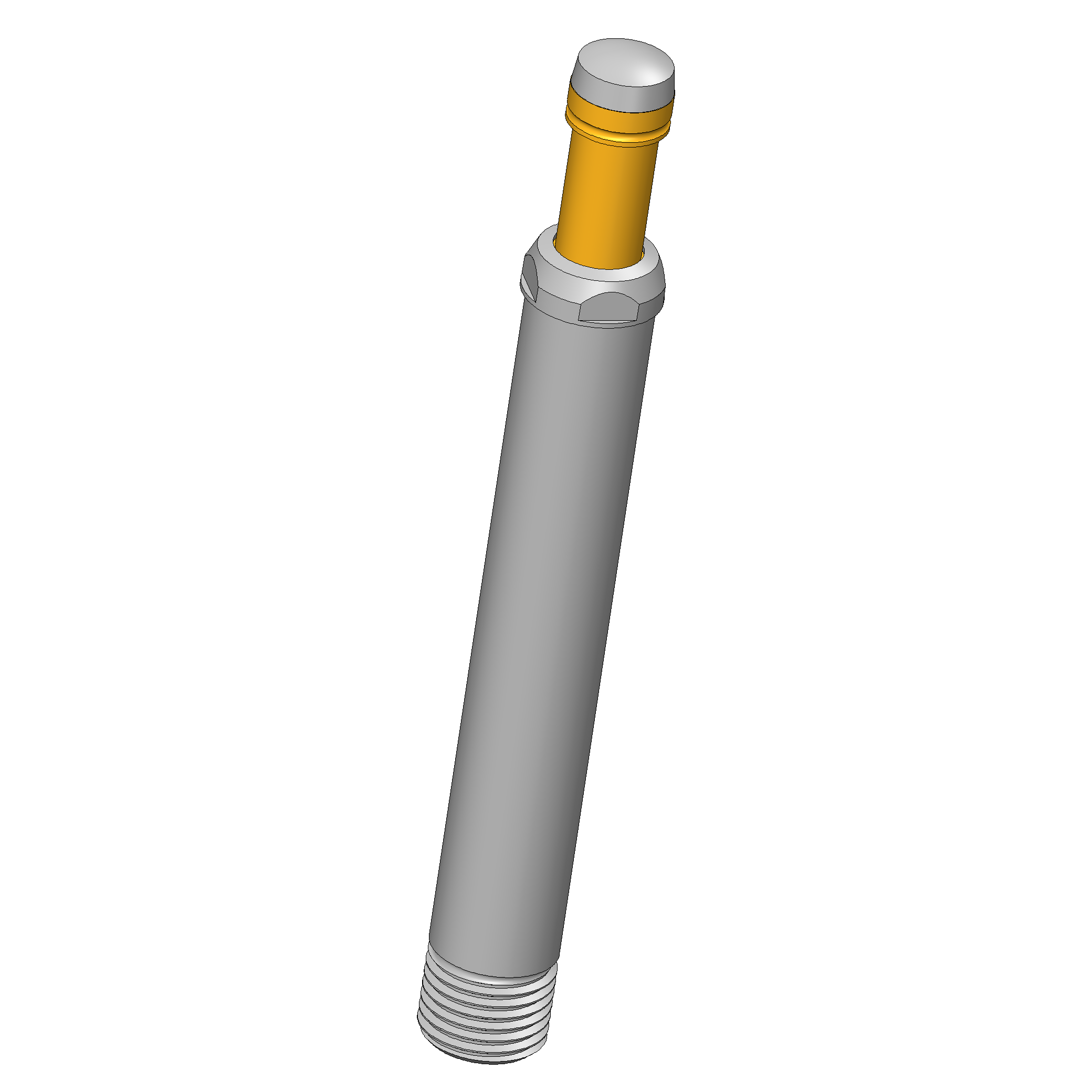

Product information "HSS-621 305 400 S 5002 M"
- Trusted high-current probes, optimally sized for current load capacity ratio
- Low-Ohm probe with Ri typical: < 10 mOhm
- For use in function and burn-in tests
- Large selection of tip styles and spring forces for optimum contact with DUT
- Secure hold in the receptacle thanks to the threaded connection
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 5 mm [.196 in] |
| Collar height: | 02 |
| Compatible receptacle(s): | KS-621 M |
| Contacting from: | Pad, Female connector |
| Current load capacity / rated current: | 75 A |
| Grid: | 6.35 mm [250 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 200 °C [392 °F] |
| Maximum stroke: | 5.5 mm [.216 in] |
| Min. temperature: | -100 °C [-148 °F] |
| Non-rotating: | No |
| Product group: | High-current test probe, Standard HSS (screw-in) |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Screw-in torque: | 40 cNm [3.54 lbf·in] |
| Screw-in torque max.: | 40 cNm [3.54 lbf·in] |
| Series: | HSS-621, HSS-621 M screw-in |
| Spring force at working stroke: | 5 N [17.9 ozf] |
| Spring pre-load: | 1.99 N [7.15 ozf] |
| Sub-product group: | Standard HSS (screw-in) |
| Tip diameter: | 4 mm [.157 in] |
| Tip style: | 05 bullet-nosed (full radius) |
| Tip style material: | 3 CuBe |
| Tip style surface: | S silver |
| Total length: | 43.1 mm [1.69 in] |
| Typical resistance (Ri): | 5 mOhm |
| Working stroke: | 4.4 mm [.173 in] |
Login
Product Details
- Trusted high-current probes, optimally sized for current load capacity ratio
- Low-Ohm probe with Ri typical: < 10 mOhm
- For use in function and burn-in tests
- Large selection of tip styles and spring forces for optimum contact with DUT
- Secure hold in the receptacle thanks to the threaded connection
Other products in this series:
Technical data

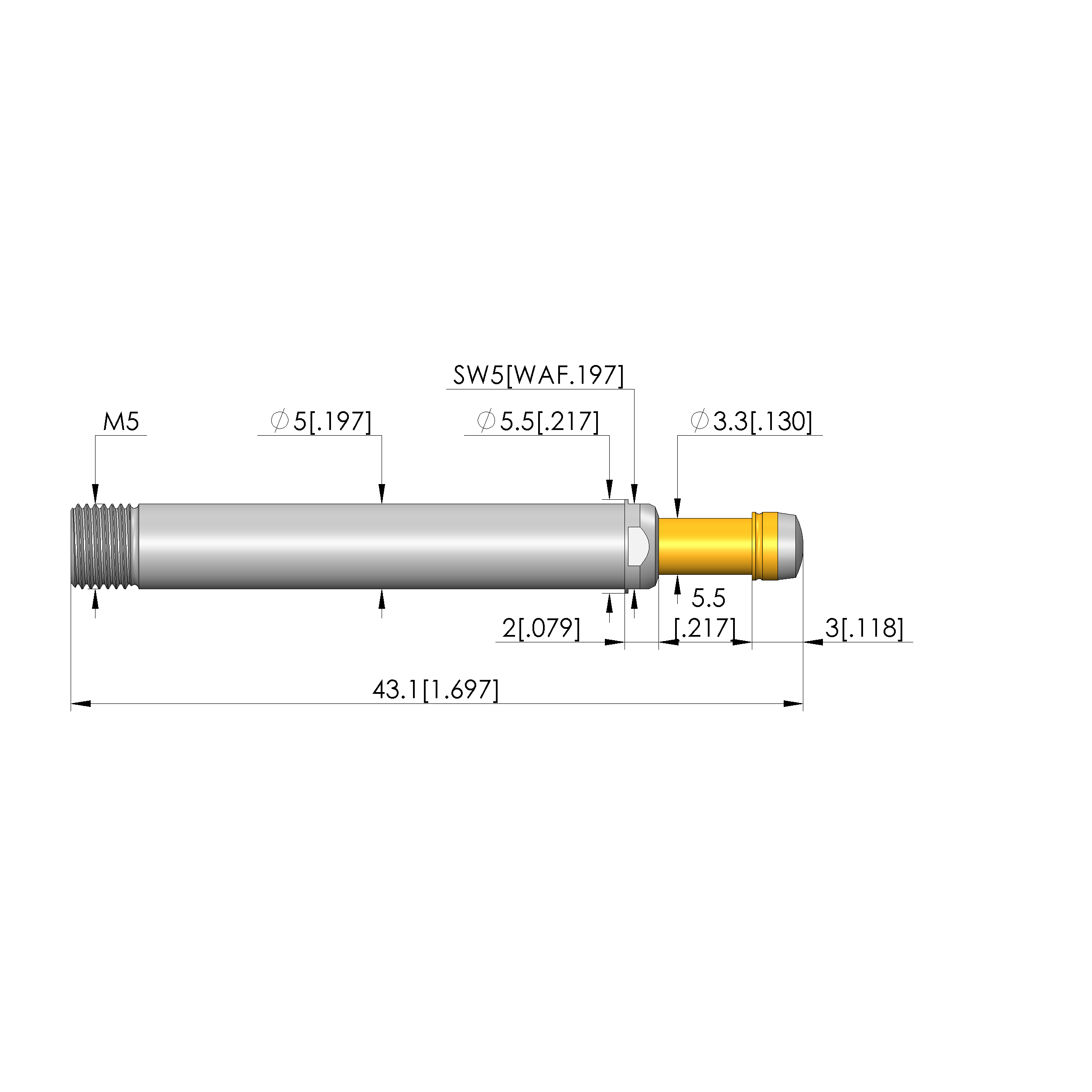

Mechanical data
- Total length: 43.1 mm [1.69 in]
- Barrel diameter: 5 mm [.196 in]
- Maximum stroke: 5.5 mm [.216 in]

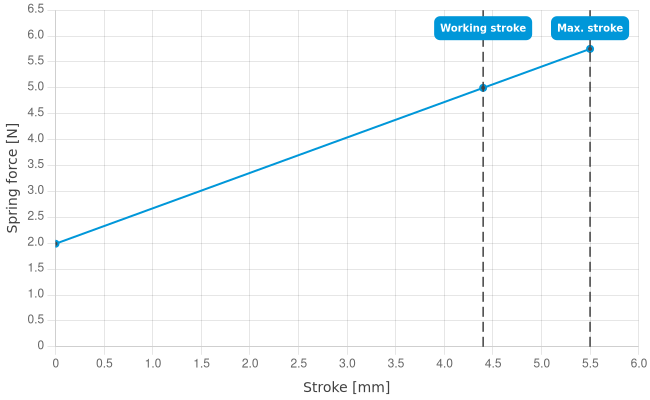

- Spring pre-load: 1.99 N [7.15 ozf]
- Collar height: 02
- Spring force at working stroke: 5 N [17.9 ozf]
- Working stroke: 4.4 mm [.173 in]
General data
- Screw-in torque max.: 40 cNm [3.54 lbf·in]
- Product group: High-current test probe
- Product group: Standard HSS (screw-in)
- Sub-product group: Standard HSS (screw-in)
- Series: HSS-621
- Series: HSS-621 M screw-in
- Grid: 6.35 mm [250 mil]
- Contacting from: Female connector
- Contacting from: Pad
- Magnetic: Yes
- Installation type: Screw-in
- Quick-exchange system: Yes
- Adjustable installation height: No
- Non-rotating: No
- Screw-in torque: 40 cNm [3.54 lbf·in]
- Compatible receptacle(s): KS-621 M
- Min. temperature: -100 °C [-148 °F]
- Max. temperature: 200 °C [392 °F]
- RoHS-compliant: Yes

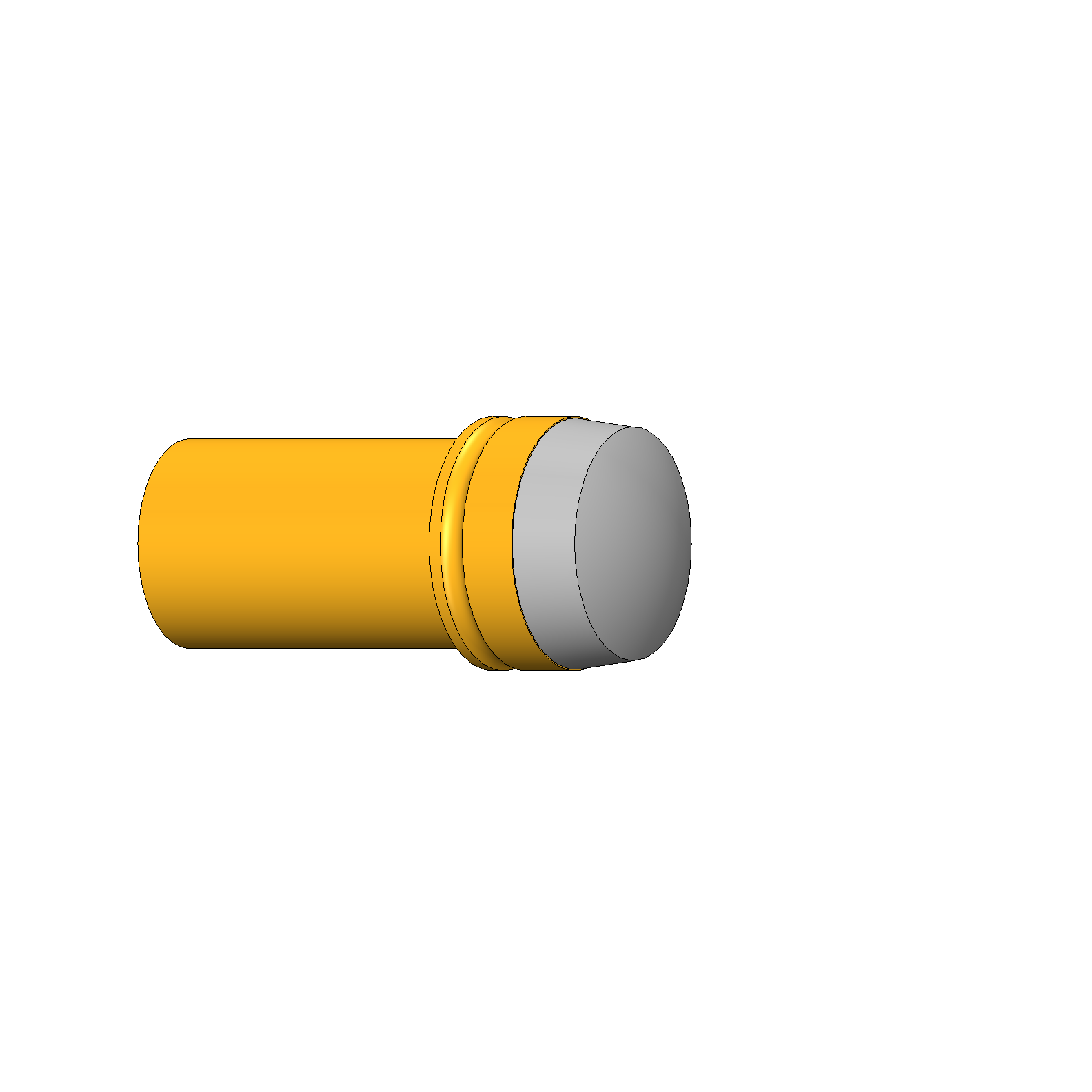

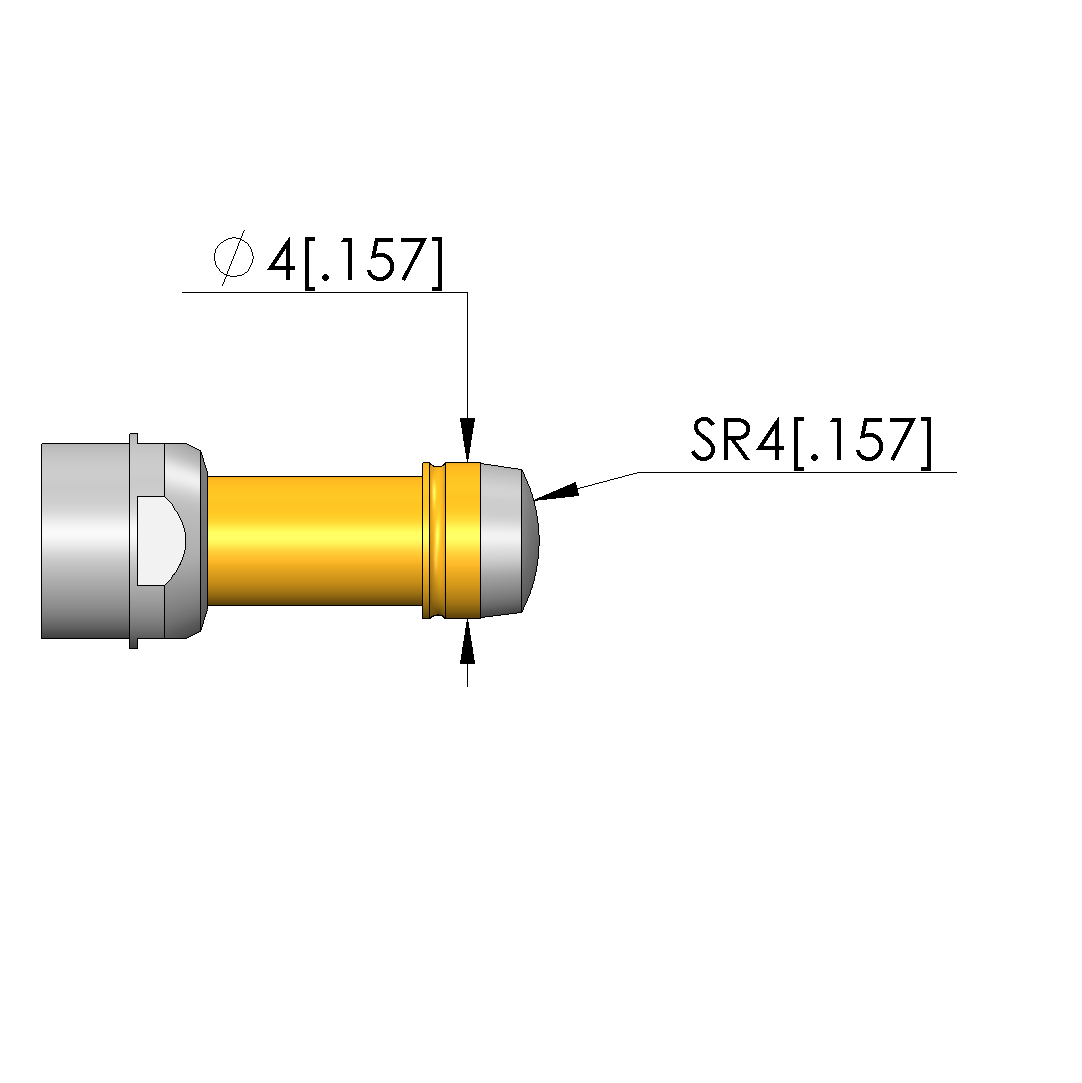

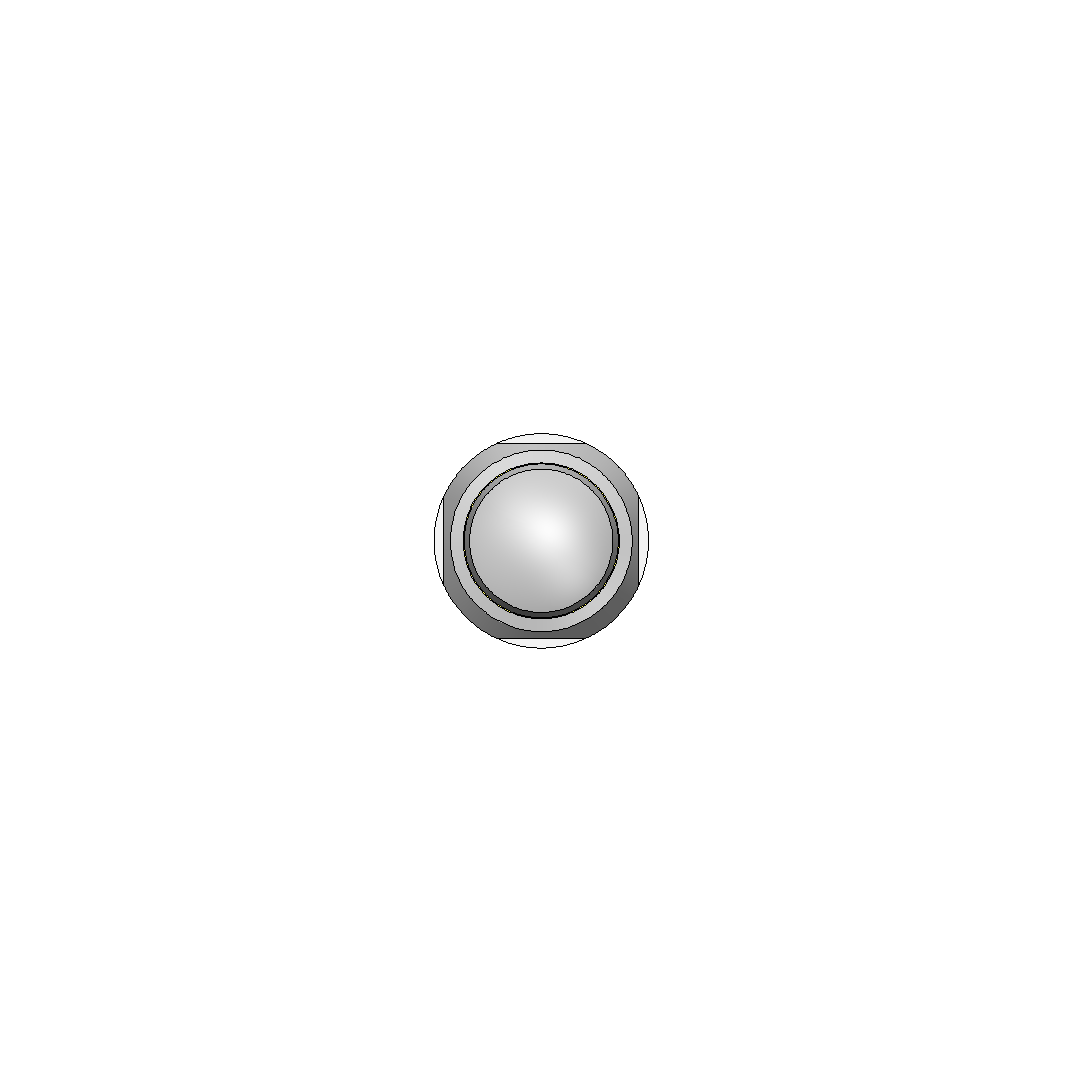

Tip style data
- Tip style: 05 bullet-nosed (full radius)
- Tip diameter: 4 mm [.157 in]
- Tip style surface: S silver
- Tip style material: 3 CuBe
Electrical data
- Current load capacity / rated current: 75 A
- Typical resistance (Ri): 5 mOhm
