Product information "HSS-552 306 400 A 2003 M"
- Short-stroke high-current probes with optimum size to current load capacity ratio
- Low-Ohm probe with Ri typical: < 10 mOhm
- For use in applications with limited space
- Secure hold in the receptacle thanks to the threaded connection
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 3.5 mm [.137 in] |
| Collar height: | 3 |
| Compatible receptacle(s): | KS-552 M |
| Contacting from: | Flat contact, Post, Pin |

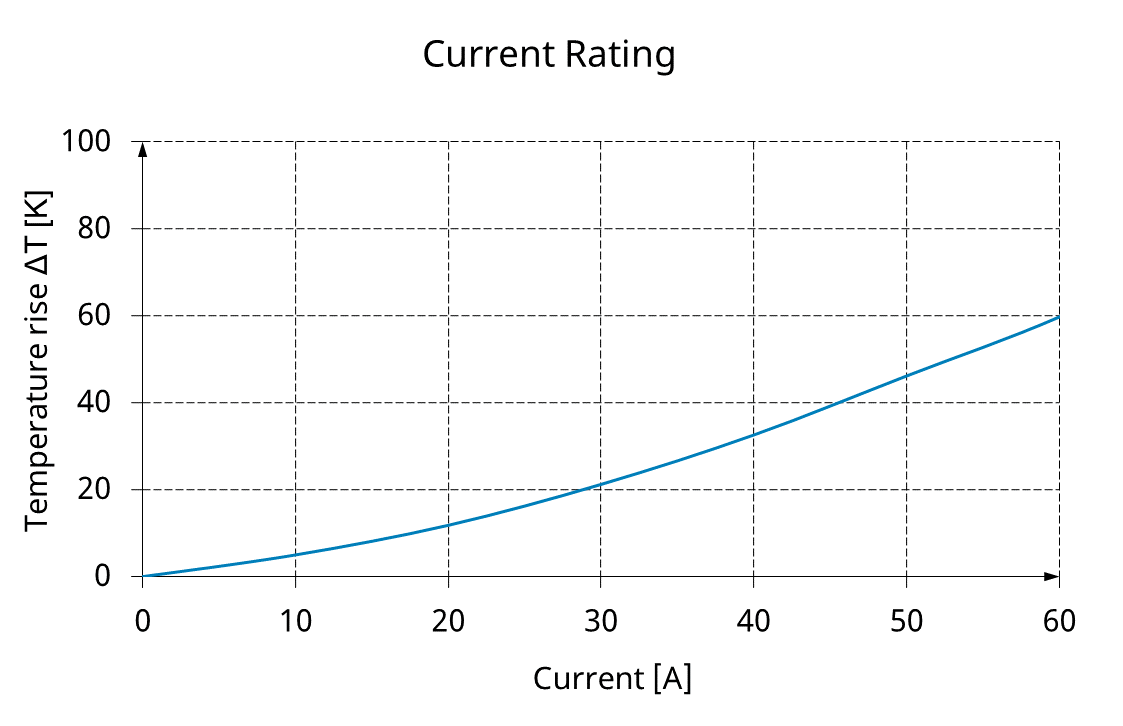

| Current load capacity / rated current: | 50 A |
| Grid: | 5.08 mm [200 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 200 °C [392 °F] |
| Maximum stroke: | 2.5 mm [.098 in] |
| Min. temperature: | -100 °C [-148 °F] |
| Non-rotating: | No |
| Product group: | High-current test probe, Short stroke HSS |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Screw-in torque: | 10 – 20 cNm [.885 – 1.77 lbf·in] |
| Series: | HSS-552, HSS-552 M screw-in |
| Spring force at working stroke: | 2 N [7.19 ozf] |
| Spring pre-load: | 0.89 N [3.2 ozf] |
| Sub-product group: | Short stroke HSS |

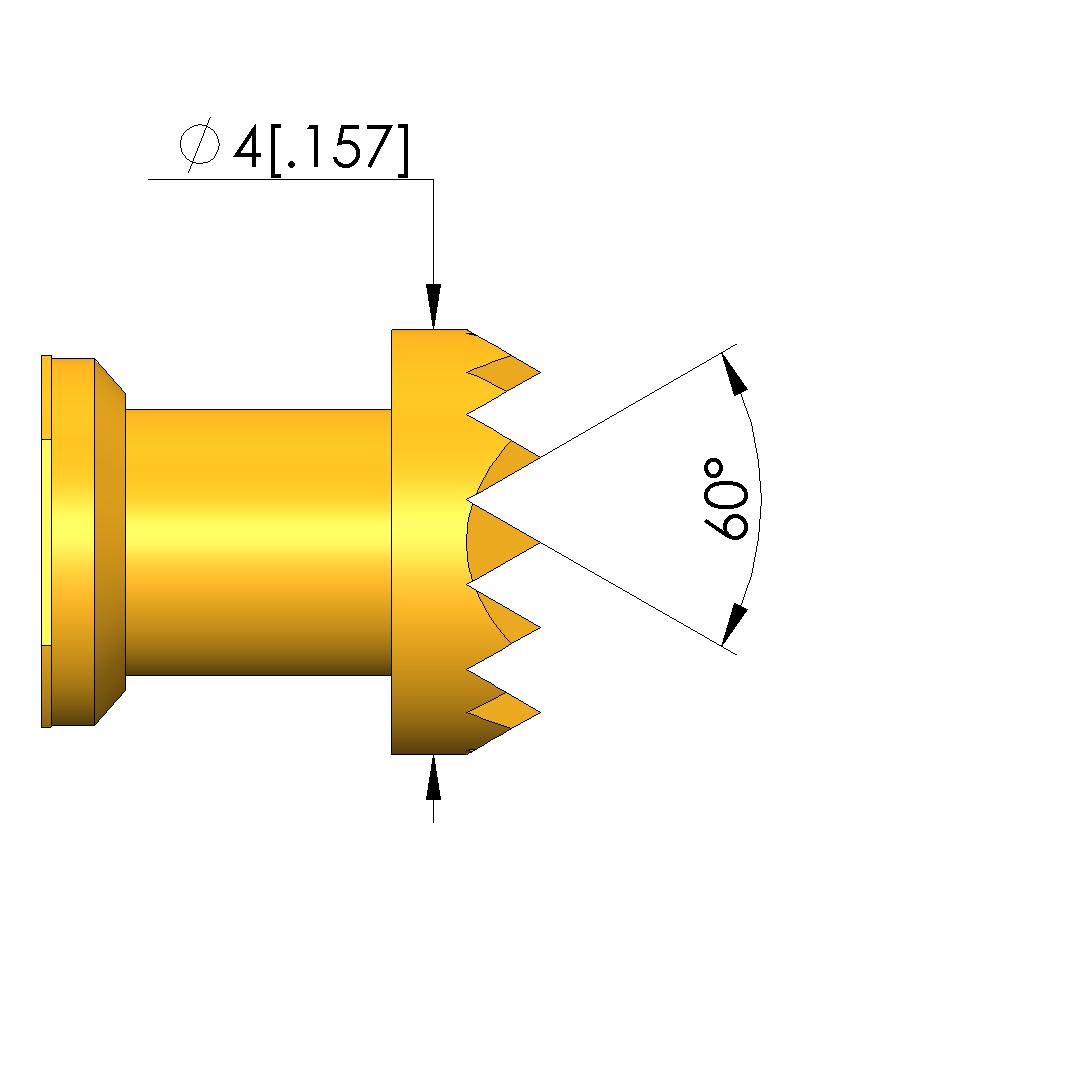

| Tip diameter: | 4 mm [.157 in] |
| Tip style: | 06 serrated |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |

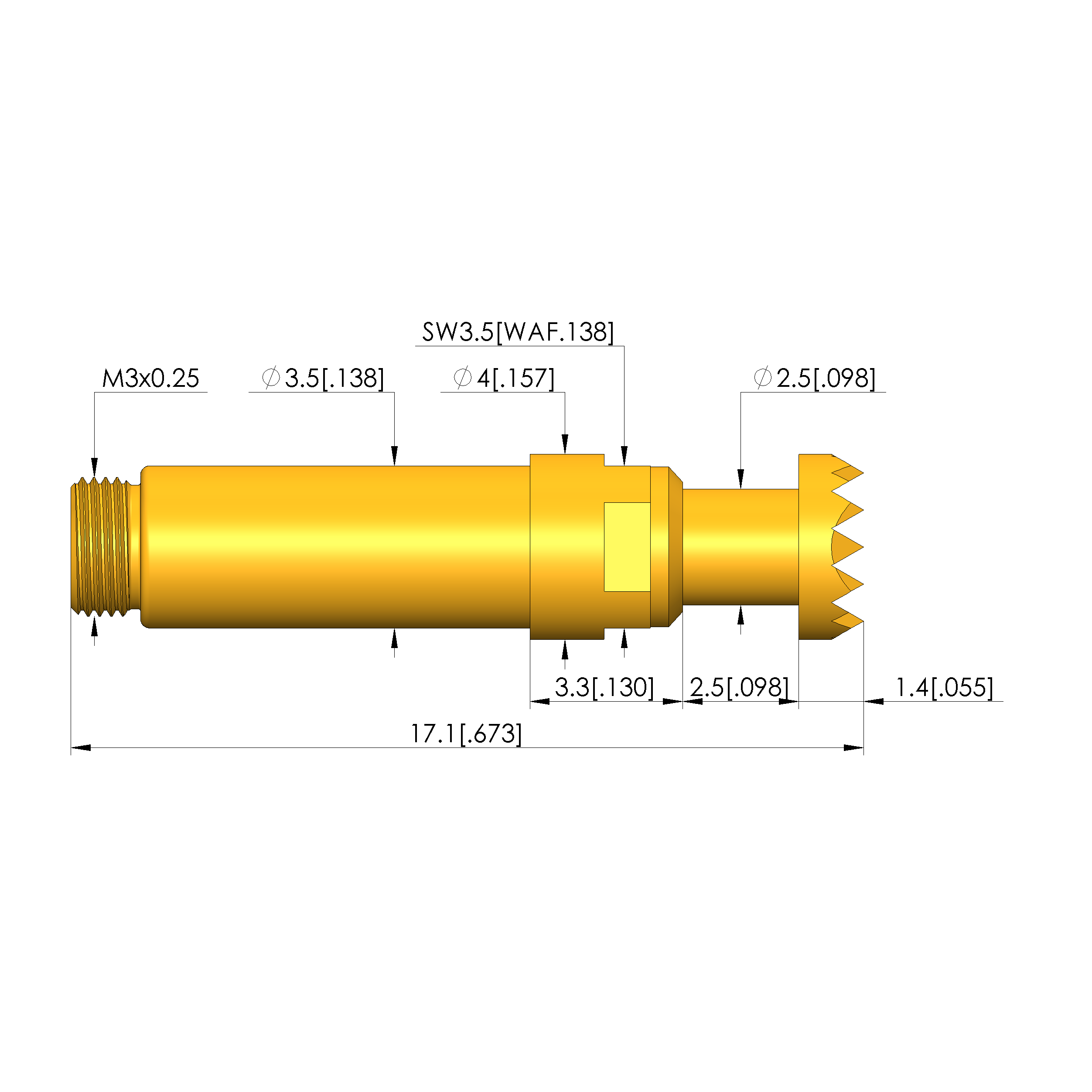

| Total length: | 17.1 mm [.673 in] |
| Typical resistance (Ri): | 10 mOhm |
| Working stroke: | 2 mm [.078 in] |
Login
Product Details
- Short-stroke high-current probes with optimum size to current load capacity ratio
- Low-Ohm probe with Ri typical: < 10 mOhm
- For use in applications with limited space
- Secure hold in the receptacle thanks to the threaded connection
Other products in this series:
Technical data
General data
- Compatible receptacle(s): KS-552 M
- Max. temperature: 200 °C [392 °F]
- Series: HSS-552
- Min. temperature: -100 °C [-148 °F]
- Product group: Short stroke HSS
- Contacting from: Pin
- Non-rotating: No
- Adjustable installation height: No
- Sub-product group: Short stroke HSS
- Product group: High-current test probe
- RoHS-compliant: Yes
- Screw-in torque: 10 – 20 cNm [.885 – 1.77 lbf·in]
- Installation type: Screw-in
- Quick-exchange system: Yes
- Contacting from: Flat contact
- Contacting from: Post
- Grid: 5.08 mm [200 mil]
- Magnetic: Yes
- Series: HSS-552 M screw-in
Tip style data
- Tip style: 06 serrated
- Tip diameter: 4 mm [.157 in]
- Tip style material: 3 CuBe
- Tip style surface: A gold
Mechanical data
- Working stroke: 2 mm [.078 in]
- Spring pre-load: 0.89 N [3.2 ozf]
- Total length: 17.1 mm [.673 in]
- Spring force at working stroke: 2 N [7.19 ozf]
- Barrel diameter: 3.5 mm [.137 in]
- Maximum stroke: 2.5 mm [.098 in]
- Collar height: 3
Electrical data
- Current load capacity / rated current: 50 A
- Typical resistance (Ri): 10 mOhm
