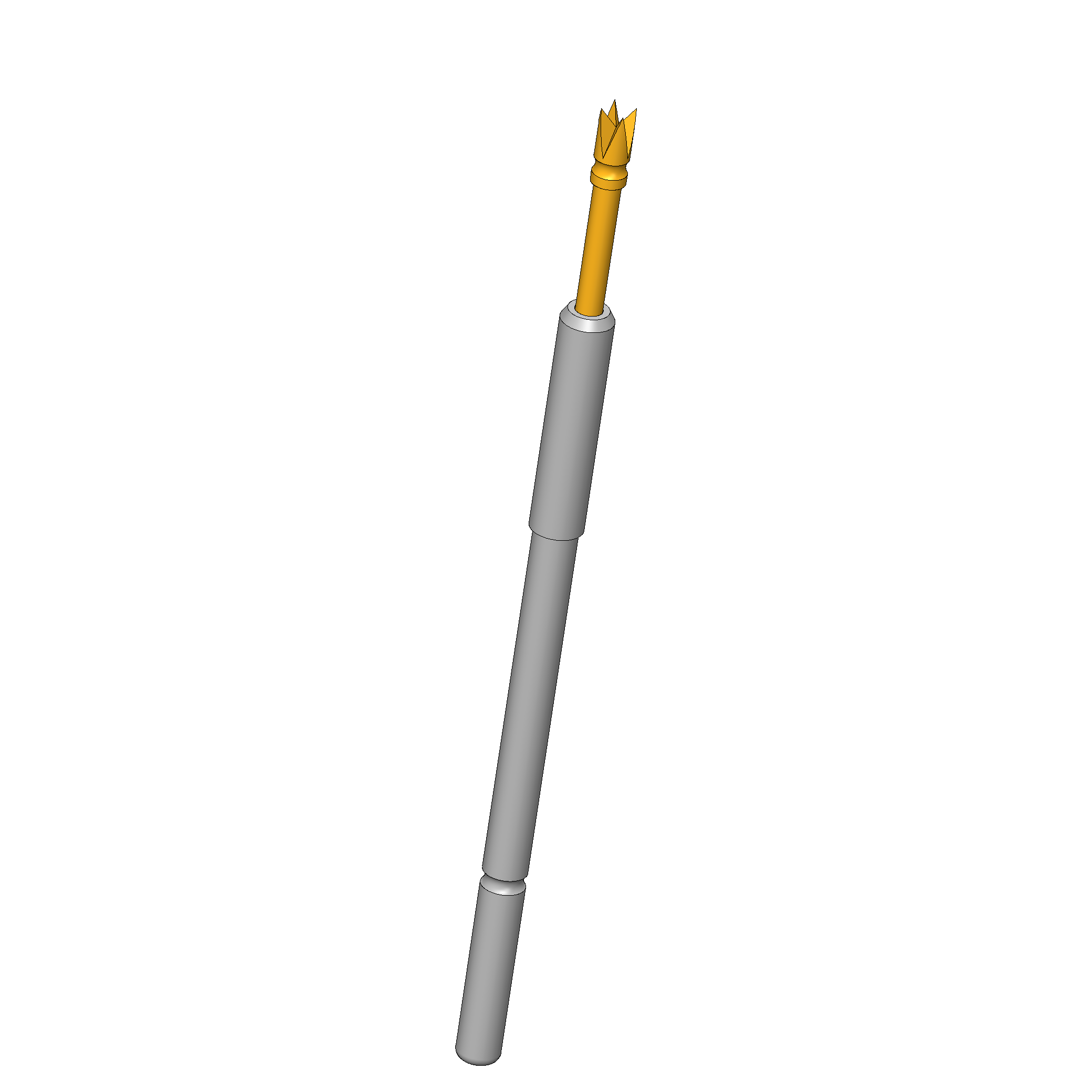

Product information "HSS-118 214 130 A 1509"
- Trusted, robust high-current probes, optimally sized for current load capacity ratio
- Low-Ohm probe with Ri typical: < 10 mOhm
- For use in function and burn-in tests
- Large selection of tip styles and spring forces for optimum contact with DUT
- Optimum adjustment of the stroke ratios in the test fixture: The test probe collar is available in different heights, which, in combination with the receptacles, allows a range of installation heights
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 1.66 mm [.065 in] |
| Collar height: | 09 |
| Compatible receptacle(s): | KS-112 |
| Contacting from: | Pad, Post, Pin |
| Current load capacity / rated current: | 16 A |
| Grid: | 2.54 mm [100 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 200 °C [392 °F] |
| Maximum stroke: | 5.3 mm [.208 in] |
| Min. temperature: | -100 °C [-148 °F] |
| Non-rotating: | No |
| Product group: | High-current test probe, Standard HSS (press-in) |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Series: | HSS-118 |
| Spring force at working stroke: | 1.5 N [5.39 ozf] |
| Spring pre-load: | 0.5 N [1.79 ozf] |
| Sub-product group: | Standard HSS (press-in) |

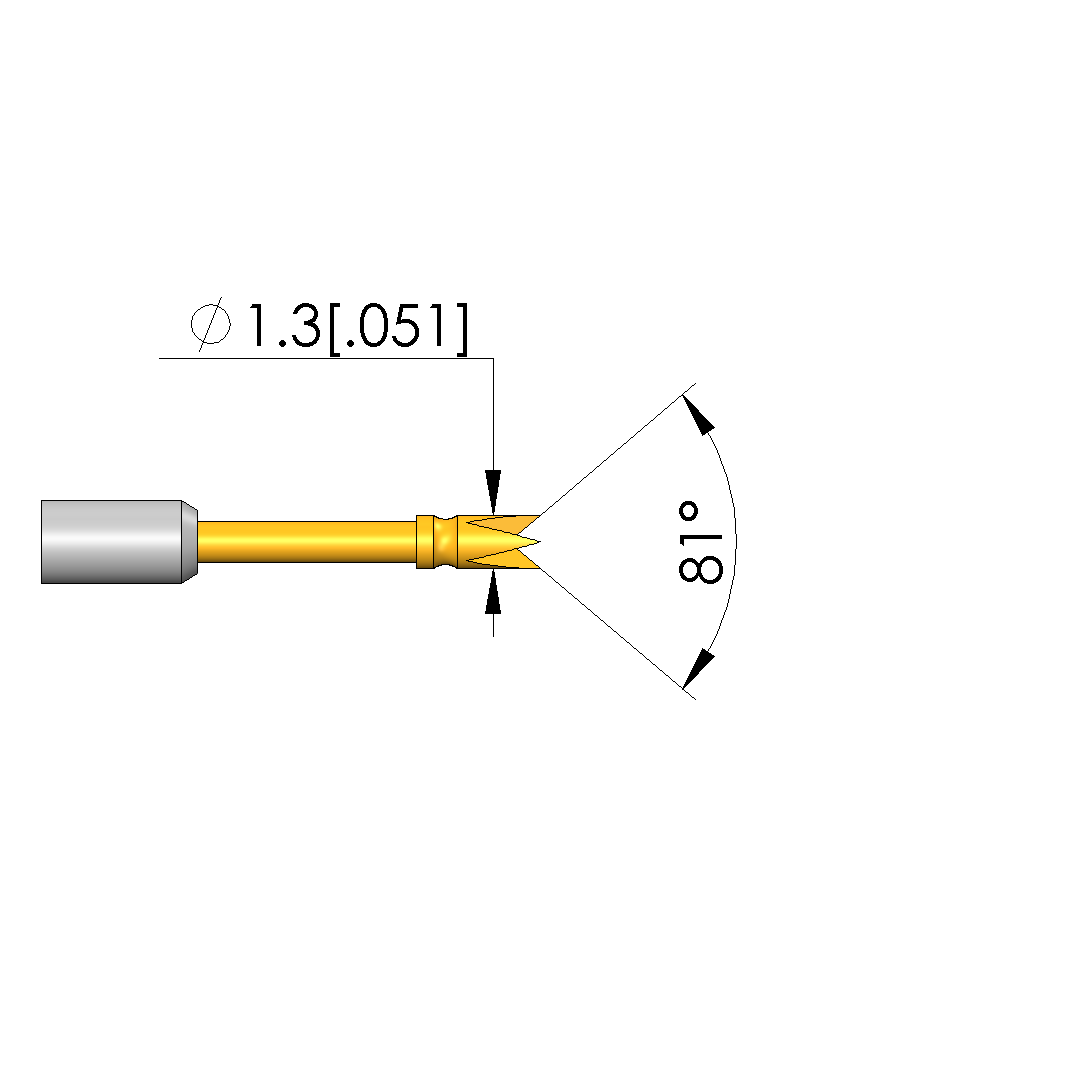

| Tip diameter: | 1.3 mm [.051 in] |

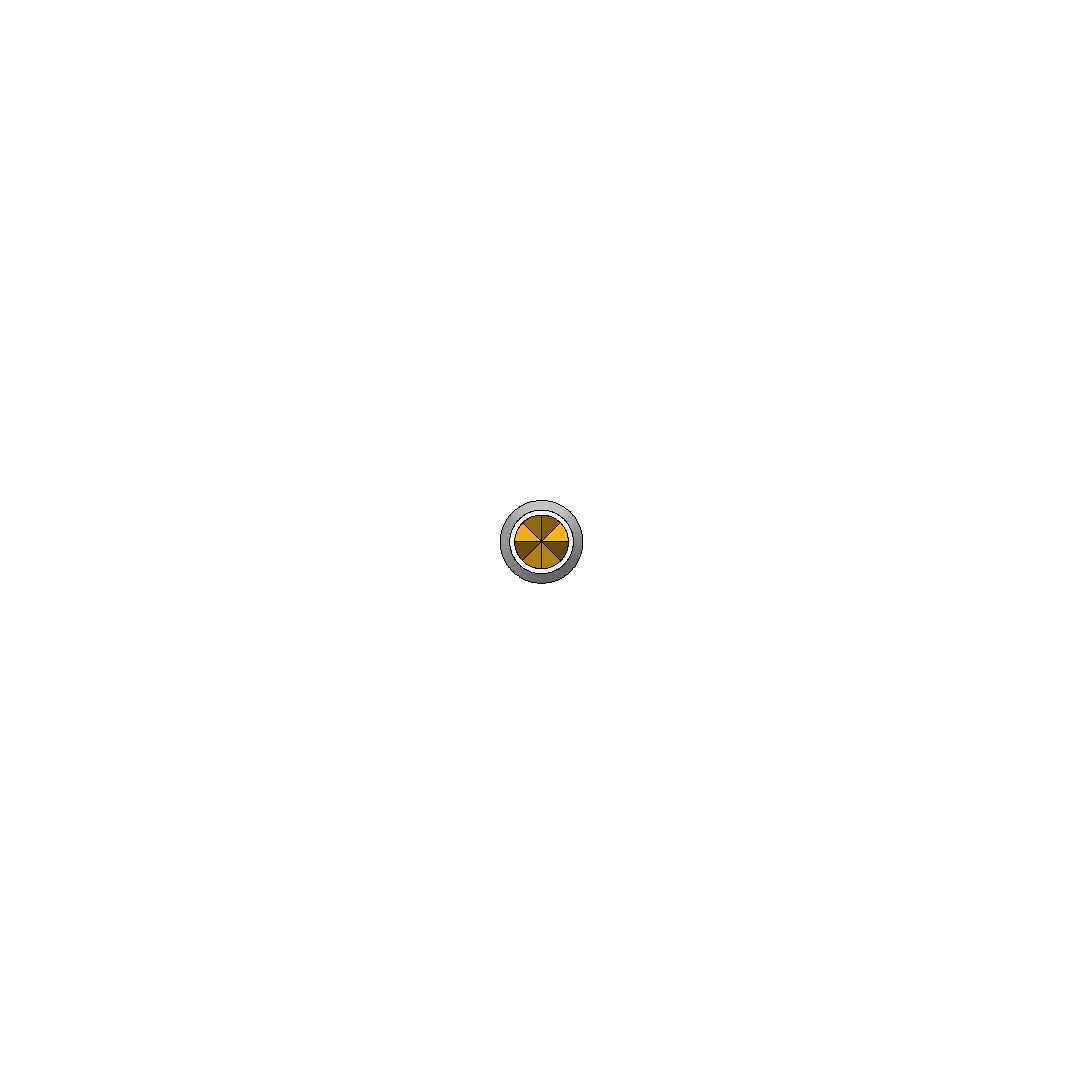

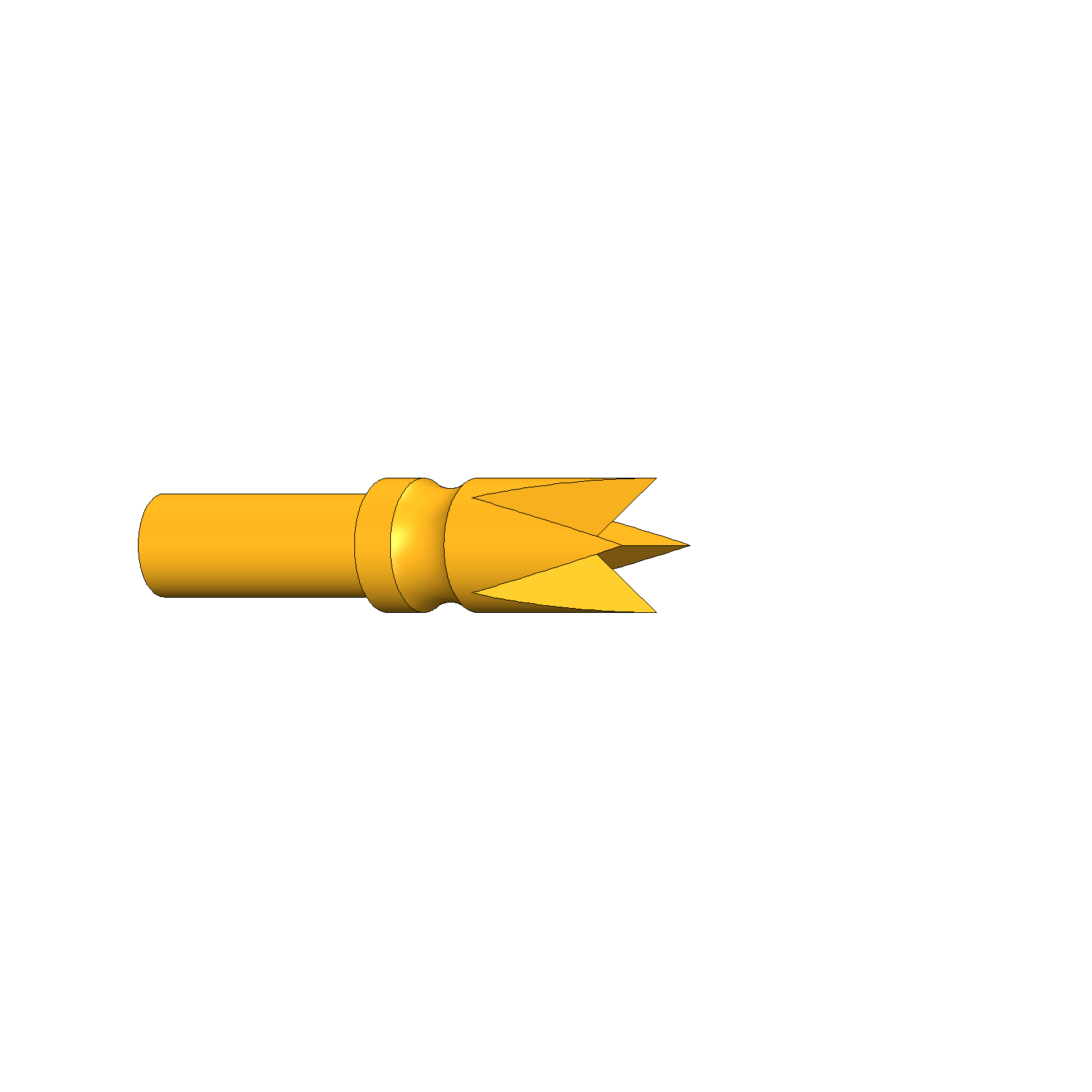

| Tip style: | 14 4-point crown, self-cleaning |
| Tip style material: | 2 steel |
| Tip style surface: | A gold |

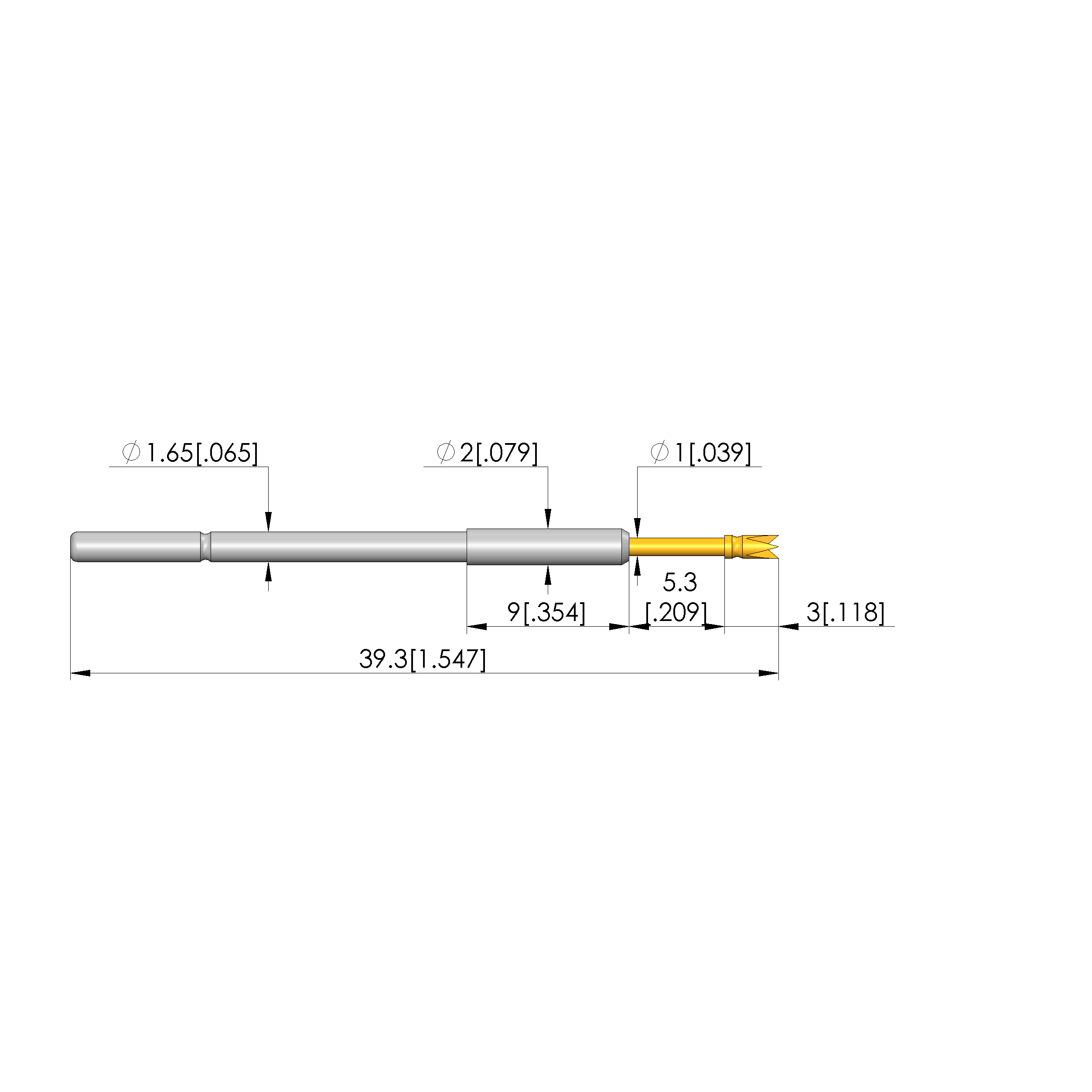

| Total length: | 39.3 mm [1.54 in] |
| Typical resistance (Ri): | 10 mOhm |
| Working stroke: | 4 mm [.157 in] |
Login
Product Details
- Trusted, robust high-current probes, optimally sized for current load capacity ratio
- Low-Ohm probe with Ri typical: < 10 mOhm
- For use in function and burn-in tests
- Large selection of tip styles and spring forces for optimum contact with DUT
- Optimum adjustment of the stroke ratios in the test fixture: The test probe collar is available in different heights, which, in combination with the receptacles, allows a range of installation heights
Other products in this series:
Technical data
General data
- Installation type: Plug-in
- Series: HSS-118
- Contacting from: Pin
- Non-rotating: No
- Adjustable installation height: No
- Grid: 2.54 mm [100 mil]
- Sub-product group: Standard HSS (press-in)
- Product group: High-current test probe
- Product group: Standard HSS (press-in)
- RoHS-compliant: Yes
- Max. temperature: 200 °C [392 °F]
- Quick-exchange system: Yes
- Contacting from: Post
- Magnetic: Yes
- Contacting from: Pad
- Compatible receptacle(s): KS-112
- Min. temperature: -100 °C [-148 °F]
Mechanical data
- Barrel diameter: 1.66 mm [.065 in]
- Maximum stroke: 5.3 mm [.208 in]
- Spring force at working stroke: 1.5 N [5.39 ozf]
- Collar height: 09
- Spring pre-load: 0.5 N [1.79 ozf]
- Total length: 39.3 mm [1.54 in]
- Working stroke: 4 mm [.157 in]
Tip style data
- Tip diameter: 1.3 mm [.051 in]
- Tip style: 14 4-point crown, self-cleaning
- Tip style surface: A gold
- Tip style material: 2 steel
Electrical data
- Typical resistance (Ri): 10 mOhm
- Current load capacity / rated current: 16 A
