Product information "HKR-672 200 080 A 13003 M"
- High-current clamp for scratch-free contacting of round posts and threads
- During the contacting process, the contact lamellae are pressed securely against the post without scratching it.
- Due to the probe design, they are particularly suitable for applications with vibrations, dirt, and longer test cycles, as well as for round contacts with shock-proof protection.
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 3.5 mm [.137 in] |
| Collar height: | 03 |
| Compatible receptacle(s): | KS-150 M |
| Contacting from: | Post |
| Current load capacity / rated current: | 40 A |
| Grid: | 4.5 mm [177 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 200 °C [392 °F] |
| Maximum stroke: | 5.3 mm [.208 in] |
| Min. temperature: | -100 °C [-148 °F] |
| Non-rotating: | No |
| Product group: | High-current test probe, High-current clamps (flat/round) |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Screw-in torque: | 10 – 20 cNm [.885 – 1.77 lbf·in] |
| Screw-in torque max.: | 20 cNm [1.77 lbf·in] |
| Screw-in torque min.: | 10 cNm [.885 lbf·in] |
| Series: | HKR-672, HKR-672 M screw-in |
| Spring force at working stroke: | 13 N [46.7 ozf] |
| Spring pre-load: | 0.71 N [2.55 ozf] |
| Sub-product group: | High-current clamps (flat/round) |
| Tip diameter: | 4.2 mm [.165 in] |
| Tip style: | 00 flat with bore |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 70 mm [2.75 in] |
| Typical resistance (Ri): | 10 mOhm |
| Working stroke: | 4 mm [.157 in] |
Login
Product Details
- High-current clamp for scratch-free contacting of round posts and threads
- During the contacting process, the contact lamellae are pressed securely against the post without scratching it.
- Due to the probe design, they are particularly suitable for applications with vibrations, dirt, and longer test cycles, as well as for round contacts with shock-proof protection.
Other products in this series:
Technical data
General data
- Screw-in torque min.: 10 cNm [.885 lbf·in]
- Screw-in torque max.: 20 cNm [1.77 lbf·in]
- Product group: High-current test probe
- Product group: High-current clamps (flat/round)
- Sub-product group: High-current clamps (flat/round)
- Series: HKR-672
- Series: HKR-672 M screw-in
- Grid: 4.5 mm [177 mil]
- Contacting from: Post
- Magnetic: Yes
- Installation type: Screw-in
- Quick-exchange system: Yes
- Adjustable installation height: No
- Non-rotating: No
- Screw-in torque: 10 – 20 cNm [.885 – 1.77 lbf·in]
- Compatible receptacle(s): KS-150 M
- Min. temperature: -100 °C [-148 °F]
- Max. temperature: 200 °C [392 °F]
- RoHS-compliant: Yes
Mechanical data
- Total length: 70 mm [2.75 in]
- Barrel diameter: 3.5 mm [.137 in]
- Maximum stroke: 5.3 mm [.208 in]
- Spring pre-load: 0.71 N [2.55 ozf]
- Collar height: 03

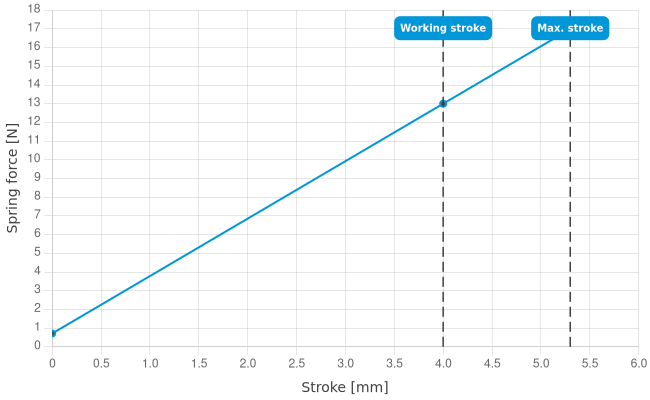

- Spring force at working stroke: 13 N [46.7 ozf]
- Working stroke: 4 mm [.157 in]
Tip style data
- Tip style: 00 flat with bore
- Tip diameter: 4.2 mm [.165 in]
- Tip style surface: A gold
- Tip style material: 3 CuBe
Electrical data
- Current load capacity / rated current: 40 A
- Typical resistance (Ri): 10 mOhm
