Product information "HKR-612 400 100 S 10003 M"
- High-current clamp for scratch-free contacting of round posts and threads
- During the contacting process, the contact lamellae are pressed securely against the post without scratching it.
- Due to the probe design, they are particularly suitable for applications with vibrations, dirt, and longer test cycles, as well as for round contacts with shock-proof protection.
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 7 mm [.275 in] |
| Collar height: | 03 |
| Compatible receptacle(s): | KS-612 M-D04 |
| Contacting from: | Post |
| Continuous plunger: | M 3 x 0,5 x 5,5 |
| Current load capacity / rated current: | 30 A |
| Current rating, connection on plunger: | 50 A |
| Grid: | 10.1 mm [400 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 200 °C [392 °F] |
| Maximum stroke: | 5.5 mm [.216 in] |
| Min. temperature: | -100 °C [-148 °F] |
| Non-rotating: | No |
| Product group: | High-current test probe, High-current clamps (flat/round) |
| Quick-exchange system: | No |
| RoHS-compliant: | Yes |
| Screw-in torque: | 50 cNm [4.42 lbf·in] |
| Screw-in torque max.: | 50 cNm [4.42 lbf·in] |
| Series: | HKR-612, HKR-612 M screw-in |
| Spring force at working stroke: | 10 N [35.9 ozf] |
| Spring pre-load: | 6.72 N [24.1 ozf] |
| Sub-product group: | High-current clamps (flat/round) |
| Tip diameter: | 7.4 mm [.291 in] |
| Tip style: | 00 flat with bore |
| Tip style material: | 3 CuBe |
| Tip style surface: | S silver |
| Total length: | 57 mm [2.24 in] |
| Type of test probe connection: | Thread connection |
| Typical resistance (Ri): | 10 mOhm |
| Typical resistance (Ri), connection on plunger: | 10 mOhm |
| Working stroke: | 4.4 mm [.173 in] |
Login
Product Details
- High-current clamp for scratch-free contacting of round posts and threads
- During the contacting process, the contact lamellae are pressed securely against the post without scratching it.
- Due to the probe design, they are particularly suitable for applications with vibrations, dirt, and longer test cycles, as well as for round contacts with shock-proof protection.
Other products in this series:
Technical data
Mechanical data
- Total length: 57 mm [2.24 in]
- Barrel diameter: 7 mm [.275 in]
- Maximum stroke: 5.5 mm [.216 in]

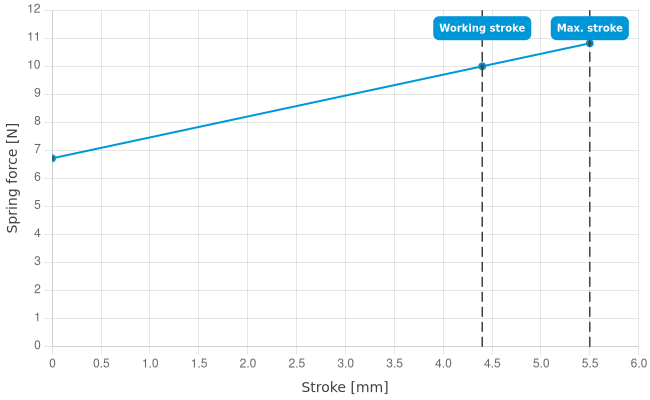

- Spring pre-load: 6.72 N [24.1 ozf]
- Collar height: 03
- Spring force at working stroke: 10 N [35.9 ozf]
- Working stroke: 4.4 mm [.173 in]
General data
- Screw-in torque max.: 50 cNm [4.42 lbf·in]
- Product group: High-current test probe
- Product group: High-current clamps (flat/round)
- Sub-product group: High-current clamps (flat/round)
- Series: HKR-612
- Series: HKR-612 M screw-in
- Grid: 10.1 mm [400 mil]
- Contacting from: Post
- Magnetic: Yes
- Installation type: Screw-in
- Quick-exchange system: No
- Type of test probe connection: Thread connection
- Adjustable installation height: No
- Non-rotating: No
- Continuous plunger: M 3 x 0,5 x 5,5
- Screw-in torque: 50 cNm [4.42 lbf·in]
- Compatible receptacle(s): KS-612 M-D04
- Min. temperature: -100 °C [-148 °F]
- Max. temperature: 200 °C [392 °F]
- RoHS-compliant: Yes
Tip style data
- Tip style: 00 flat with bore
- Tip diameter: 7.4 mm [.291 in]
- Tip style surface: S silver
- Tip style material: 3 CuBe
Electrical data
- Current load capacity / rated current: 30 A
- Current rating, connection on plunger: 50 A
- Typical resistance (Ri): 10 mOhm
- Typical resistance (Ri), connection on plunger: 10 mOhm
