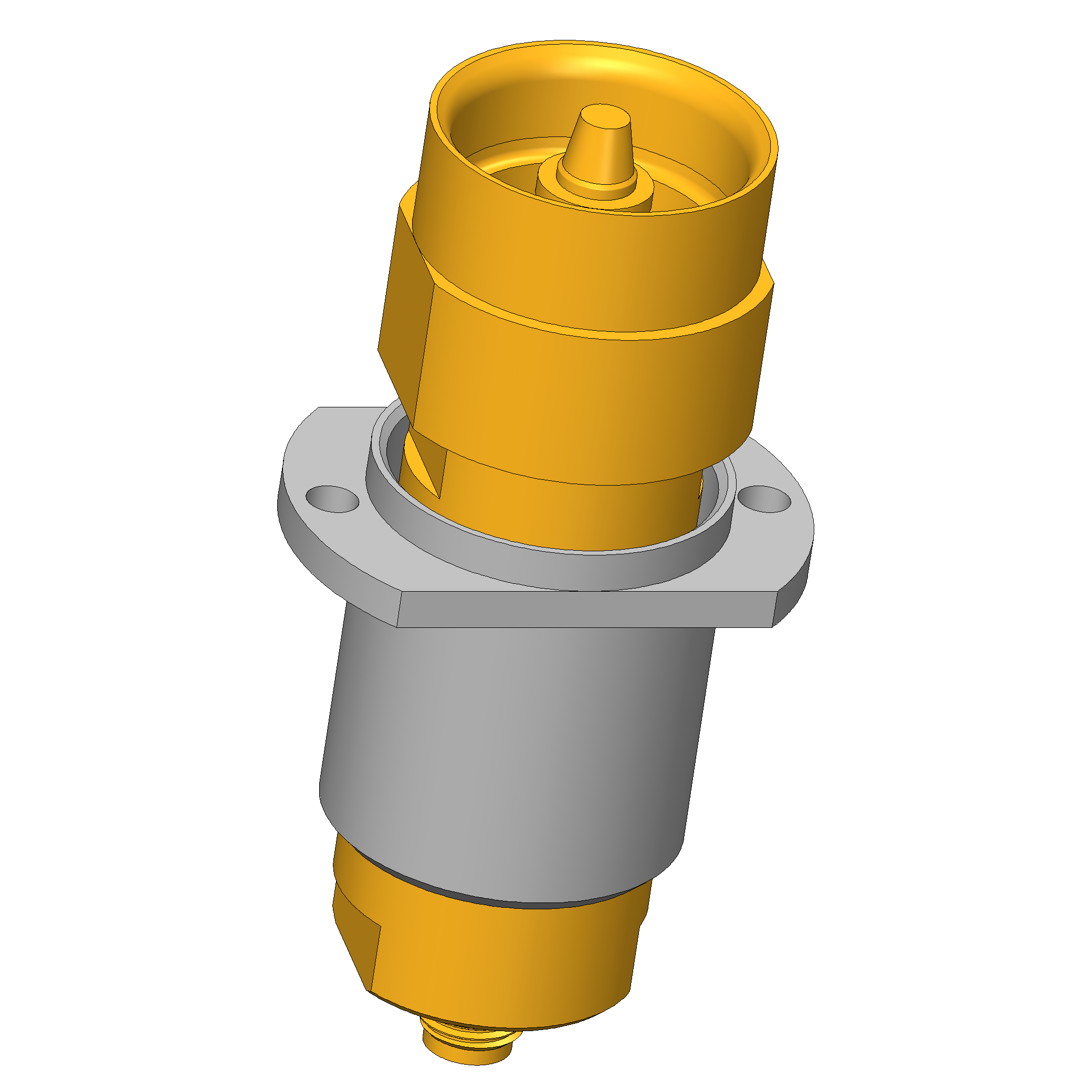

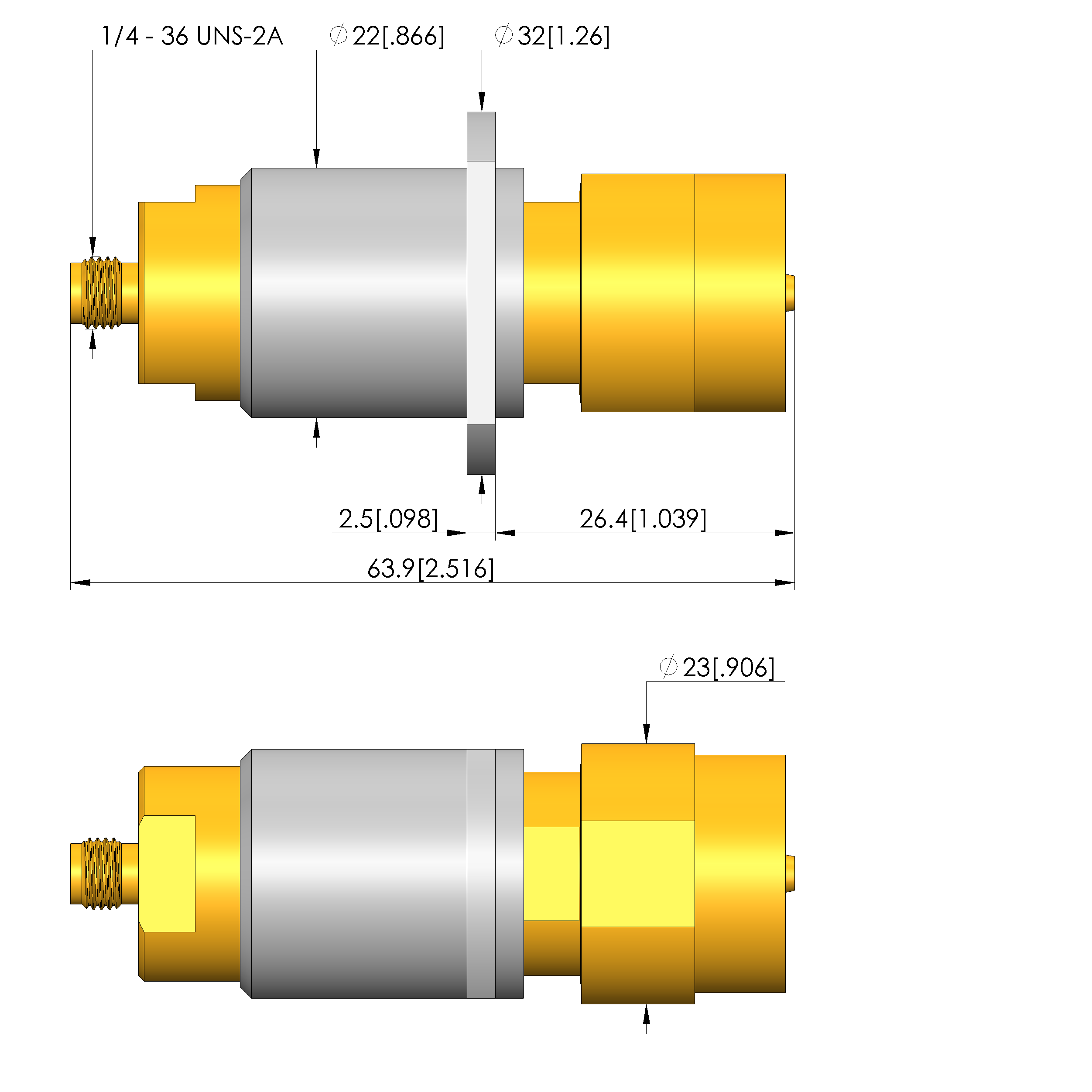

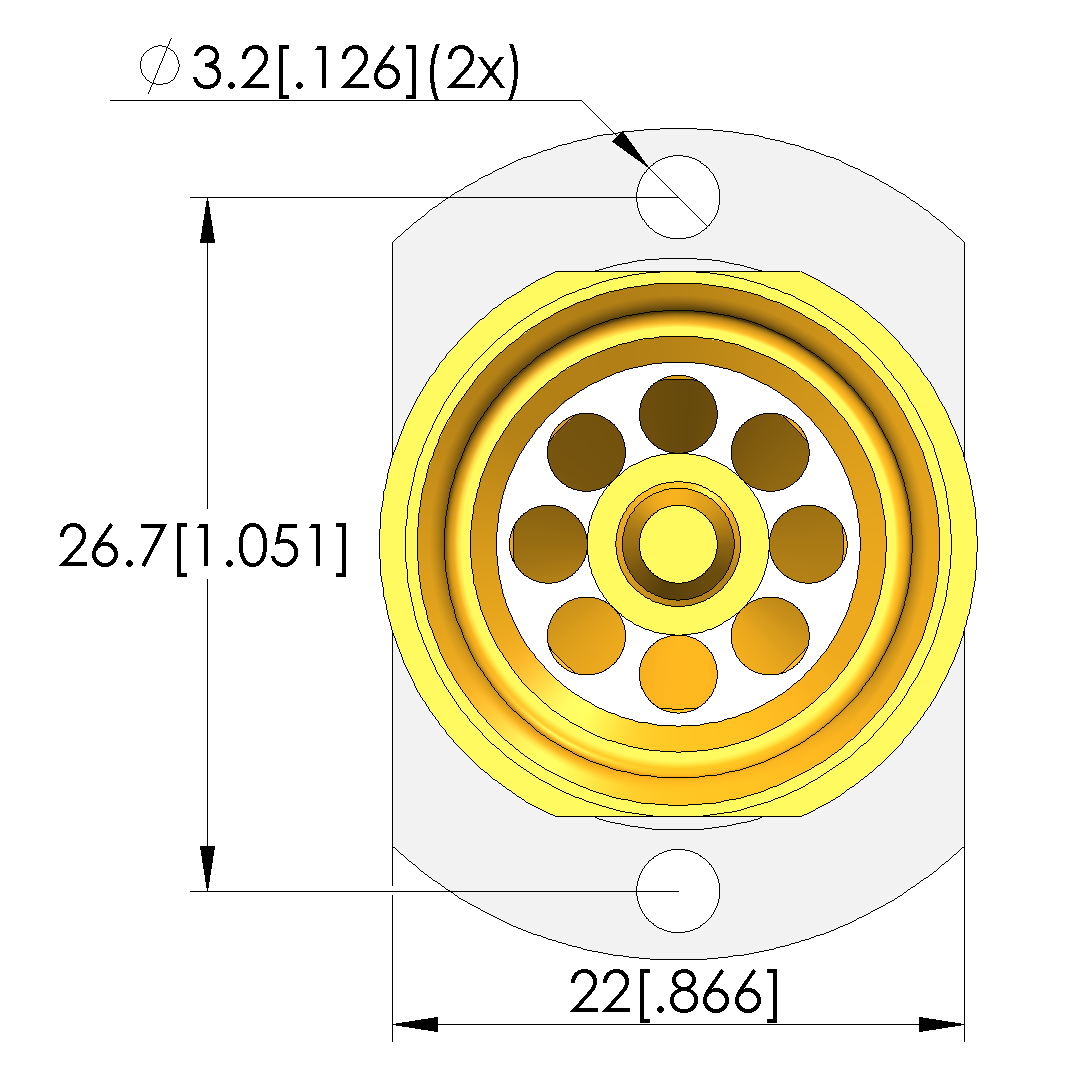

Product information "HFS-864 342 700 A 28643 F716"
- For contacting plug connectors
- Up to 7.5 GHz
- Cable interface SMA
- Installation via flange mounting
| Barrel diameter: | 22 mm [.866 in] |
|---|---|
| Compatible assembly interface gender : | M signal conductor male / pin |
| Continuous plunger: | Yes |
| DUT / contact: | 7/16 |
| DUT interface gender : | F signal conductor female / socket |
| Exchangeable inner conductor: | No |
| Exchangeable outer conductor: | No |
| Floating mount: | Yes |
| Frequency range up to: | 7.5 GHz |
| Grid: | 23.5 mm [925 mil] |
| Impedance: | 50 Ohm |
| Inner conductor max. current load capacity: | 3 A |
| Inner conductor maximum stroke: | 4 mm [.157 in] |
| Inner conductor tip style: | 42 flat with bore |
| Inner conductor tip style diameter: | 7 mm [.275 in] |
| Inner conductor tip style material: | 3 CuBe |
| Inner conductor tip style surface: | A gold |
| Inner conductor working stroke: | 2 mm [.078 in] |
| Installation height without receptacle: | 28.9 mm [1.13 in] |
| Installation type: | Flange |
| Interface of compatible assembly: | SMA 50 Ohm |
| Max. temperature: | 80 °C [176 °F] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Number of inner conductors: | 1 |
| Outer conductor max. current load capacity: | 10 A |
| Outer conductor maximum stroke: | 5 mm [.196 in] |
| Outer conductor tip style: | 43 centring for outer side of connector |
| Outer conductor tip style diameter: | 21 mm [.826 in] |
| Outer conductor working stroke: | 4 mm [.157 in] |
| Product group: | HFS radio-frequency test probes |
| Recommended torque at interface: | 45 cNm [3.98 lbf·in] |
| RoHS-compliant: | Yes |
| Series: | HFS-864 |
| Spring force of each inner conductor at working stroke: | 5 N [17.9 ozf] |
| Spring force of entire outer conductor at working stroke: | 23.6 N [84.8 ozf] |
| Sub-series: | HFS-864 |
| Total length: | 63.9 mm [2.51 in] |
| Total spring force at working stroke: | 28.6 N [102 ozf] |
Login
Product Details
- For contacting plug connectors
- Up to 7.5 GHz
- Cable interface SMA
- Installation via flange mounting
Other products in this series:
Technical data
Outer conductor data
- Outer conductor tip style diameter: 21 mm [.826 in]
- Spring force of entire outer conductor at working stroke: 23.6 N [84.8 ozf]
- Exchangeable outer conductor: No

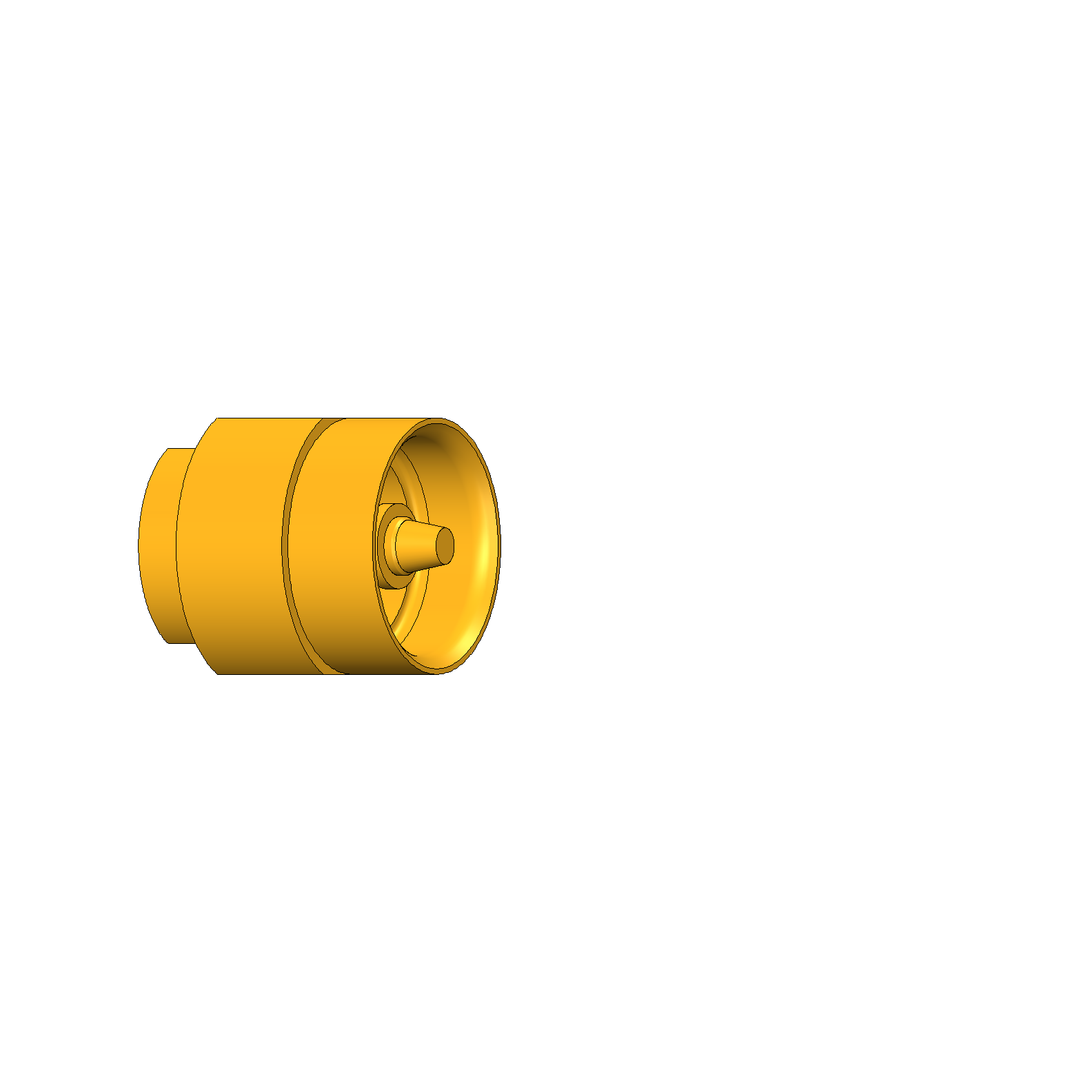

- Outer conductor tip style: 43 centring for outer side of connector
- Outer conductor maximum stroke: 5 mm [.196 in]
- Outer conductor max. current load capacity: 10 A
- Outer conductor working stroke: 4 mm [.157 in]
Mechanical data
- Installation height without receptacle: 28.9 mm [1.13 in]
- Total spring force at working stroke: 28.6 N [102 ozf]
- Barrel diameter: 22 mm [.866 in]
- Total length: 63.9 mm [2.51 in]
Inner conductor data
- Spring force of each inner conductor at working stroke: 5 N [17.9 ozf]
- Number of inner conductors: 1

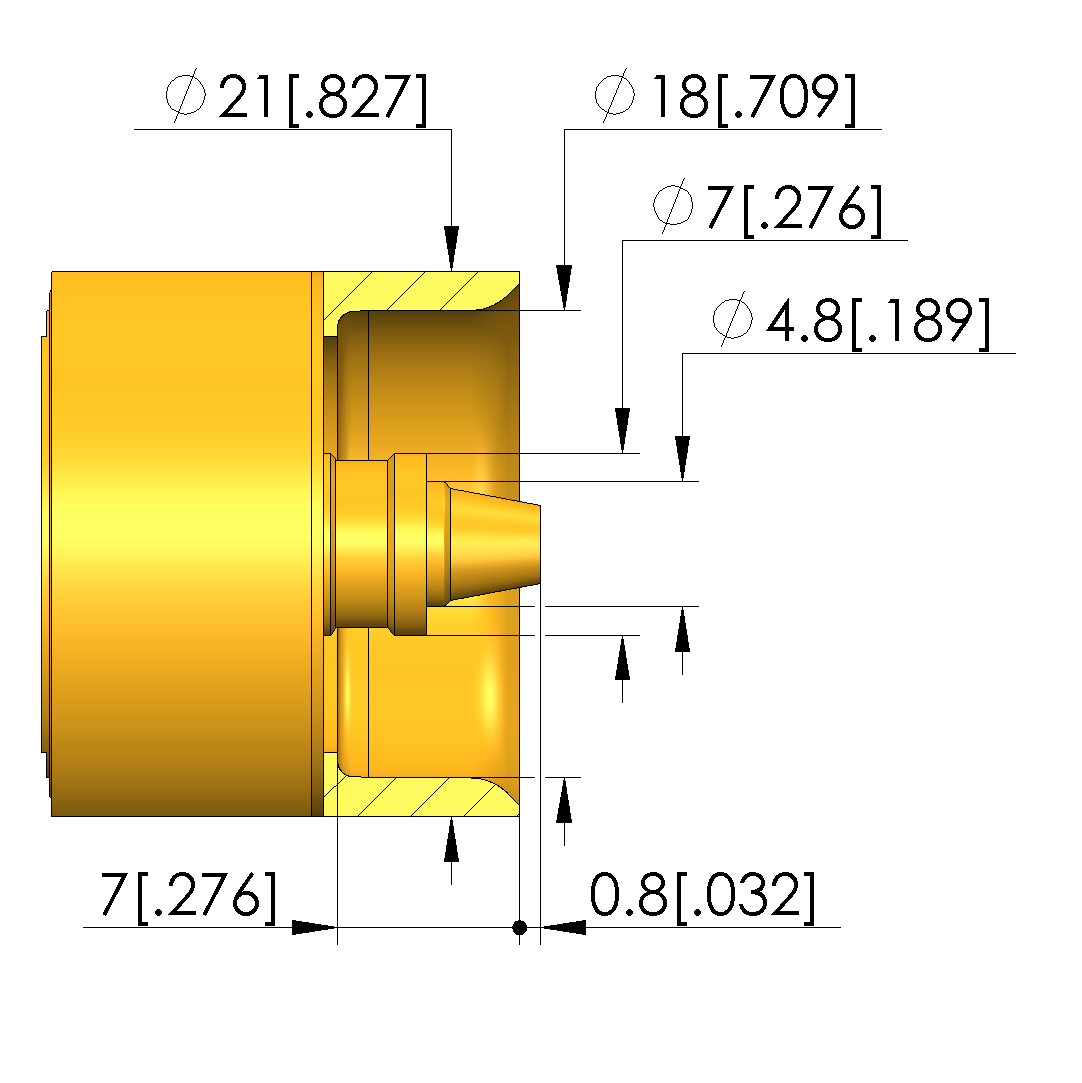

- Inner conductor tip style: 42 flat with bore
- Inner conductor tip style diameter: 7 mm [.275 in]
- Inner conductor tip style material: 3 CuBe
- Inner conductor working stroke: 2 mm [.078 in]
- Inner conductor tip style surface: A gold
- Exchangeable inner conductor: No
- Inner conductor max. current load capacity: 3 A
- Inner conductor maximum stroke: 4 mm [.157 in]
General data
- Max. temperature: 80 °C [176 °F]
- Series: HFS-864
- Continuous plunger: Yes
- DUT / contact: 7/16
- Non-rotating: No
- Floating mount: Yes
- Recommended torque at interface: 45 cNm [3.98 lbf·in]
- Product group: HFS radio-frequency test probes
- Interface of compatible assembly: SMA 50 Ohm
- Compatible assembly interface gender : M signal conductor male / pin
- RoHS-compliant: Yes
- DUT interface gender : F signal conductor female / socket
- Grid: 23.5 mm [925 mil]
- Min. temperature: -40 °C [-40 °F]
- Sub-series: HFS-864
- Installation type: Flange
Electrical data
- Frequency range up to: 7.5 GHz
- Impedance: 50 Ohm
