Product information "HFS-840 204 051 A 9202V2-3604M"
- Long standard series
- Up to 4 GHz
- Cable interface MCX
- Plug-in version
- Receptacles: KS-810, KS-810 R, KS-810 F
| Barrel diameter: | 4.5 mm [.177 in] |
|---|---|
| Compatible assembly interface gender : | M signal conductor male / pin |
| Continuous plunger: | Yes |
| DUT / contact: | PCB pad GGSGG |
| Dielectric strength: | 1.1 kV |
| Exchangeable inner conductor: | UKS-051204051A |
| Exchangeable outer conductor: | KO-810-0080 |
| Floating mount: | No |
| Frequency range up to: | 4 GHz |
| Grid: | 8.5 mm [334 mil] |
| Impedance: | 50 Ohm |
| Inner conductor max. current load capacity: | 2 A |
| Inner conductor maximum stroke: | 0 mm |
| Inner conductor tip style: | 04 4-point crown |
| Inner conductor tip style diameter: | 0.51 mm [.02 in] |
| Inner conductor tip style material: | 2 steel |
| Inner conductor tip style surface: | A gold |
| Inner conductor working stroke: | 0 mm |
| Installation height without receptacle: | 12.5 mm [.492 in] |
| Installation type: | Plug-in |
| Interface of compatible assembly: | MCX 50 Ohm |
| KS sub-series: | KS-810, press-in version |
| Max. temperature: | 80 °C [176 °F] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | Yes |
| Number of inner conductors: | 1 |
| Outer conductor max. current load capacity: | 3 A |
| Outer conductor maximum stroke: | 5.5 mm [.216 in] |
| Outer conductor tip style: | 01 30° needle tip, self-cleaning |
| Outer conductor tip style diameter: | 8 mm [.314 in] |
| Outer conductor working stroke: | 4.5 mm [.177 in] |

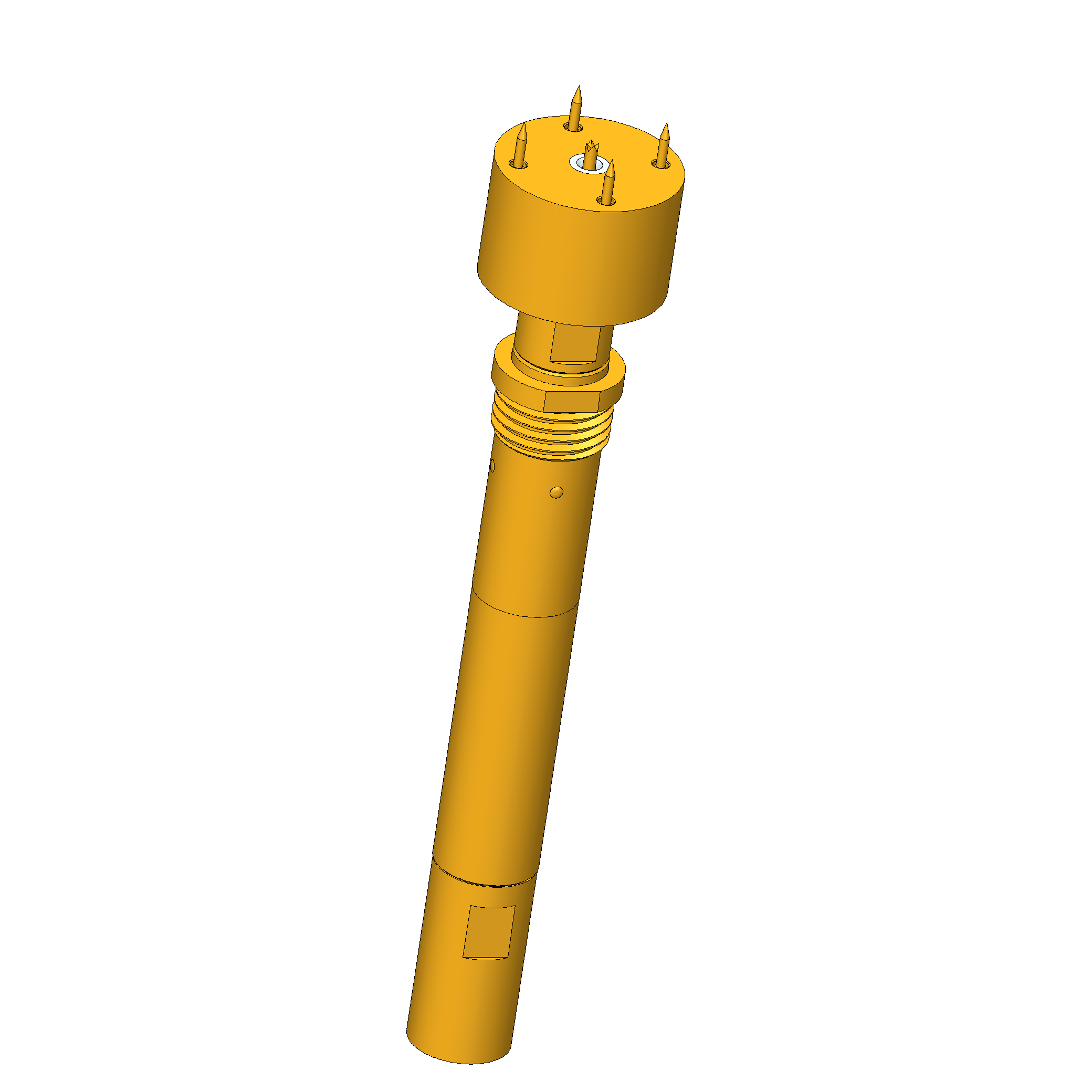

| Product group: | HFS radio-frequency test probes |
| RoHS-compliant: | Yes |
| Series: | HFS-840 |
| Spring force of each inner conductor at working stroke: | 0 N |
| Spring force of entire outer conductor at working stroke: | 9.2 N [33 ozf] |
| Sub-series: | HFS-840 |
| Torque in receptacle: | 10 – 20 cNm [.885 – 1.77 lbf·in] |
| Total length: | 44 mm [1.73 in] |
| Total spring force at working stroke: | 9.2 N [33 ozf] |
Login
Product Details
- Long standard series
- Up to 4 GHz
- Cable interface MCX
- Plug-in version
- Receptacles: KS-810, KS-810 R, KS-810 F
Other products in this series:
Technical data
General data

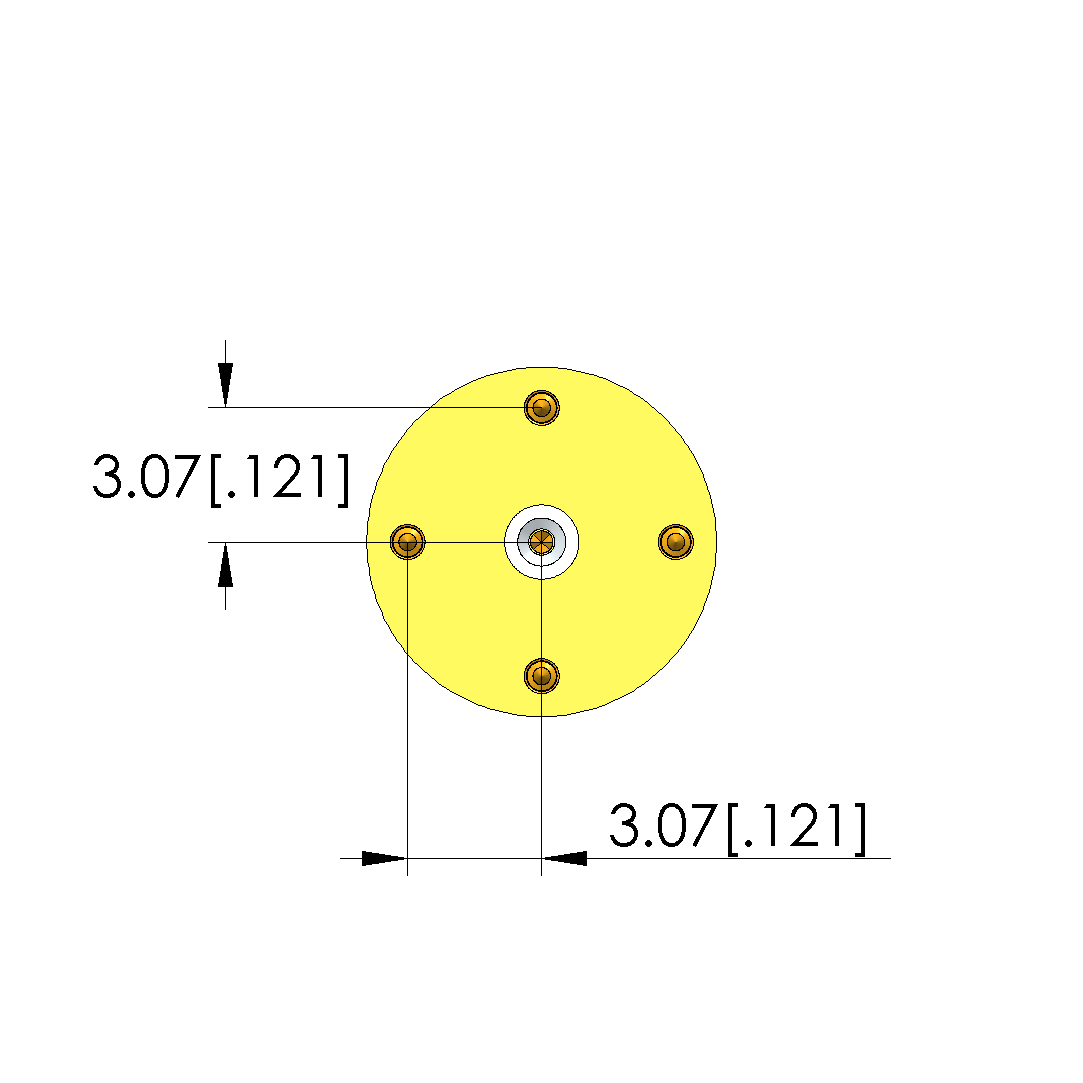

- Grid: 8.5 mm [334 mil]
- Non-rotating: Yes
- Installation type: Plug-in
- Max. temperature: 80 °C [176 °F]
- Continuous plunger: Yes
- Product group: HFS radio-frequency test probes
- Floating mount: No
- Interface of compatible assembly: MCX 50 Ohm
- KS sub-series: KS-810, press-in version
- Compatible assembly interface gender : M signal conductor male / pin
- RoHS-compliant: Yes
- Series: HFS-840
- Sub-series: HFS-840
- Min. temperature: -40 °C [-40 °F]
- DUT / contact: PCB pad GGSGG
Inner conductor data
- Inner conductor working stroke: 0 mm
- Inner conductor tip style diameter: 0.51 mm [.02 in]
- Number of inner conductors: 1
- Inner conductor tip style: 04 4-point crown
- Inner conductor tip style material: 2 steel
- Inner conductor tip style surface: A gold
- Exchangeable inner conductor: UKS-051204051A
- Inner conductor max. current load capacity: 2 A
- Inner conductor maximum stroke: 0 mm
- Spring force of each inner conductor at working stroke: 0 N
Mechanical data
- Torque in receptacle: 10 – 20 cNm [.885 – 1.77 lbf·in]
- Total spring force at working stroke: 9.2 N [33 ozf]

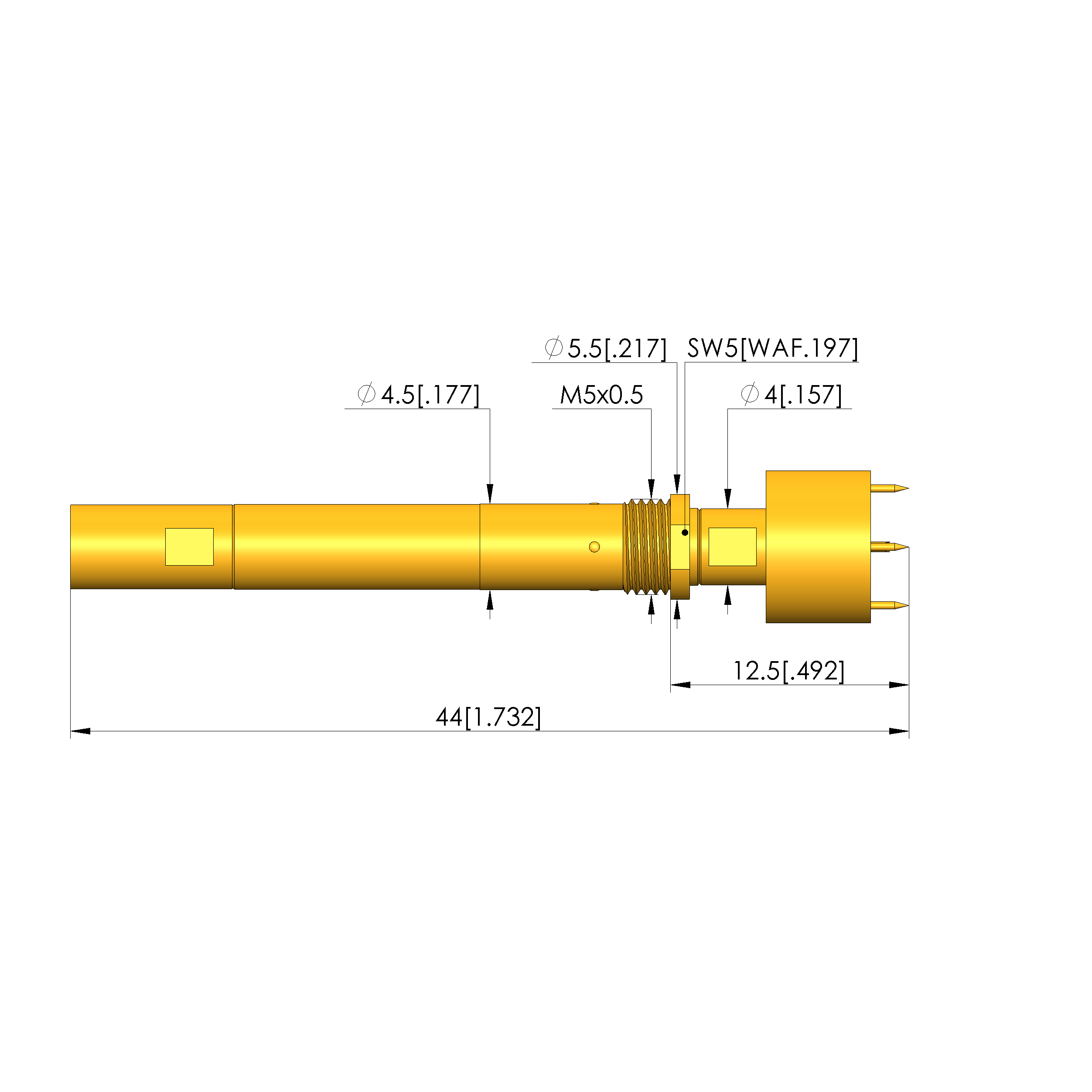

- Total length: 44 mm [1.73 in]
- Barrel diameter: 4.5 mm [.177 in]
- Installation height without receptacle: 12.5 mm [.492 in]
Electrical data
- Frequency range up to: 4 GHz
- Dielectric strength: 1.1 kV
- Impedance: 50 Ohm
Outer conductor data

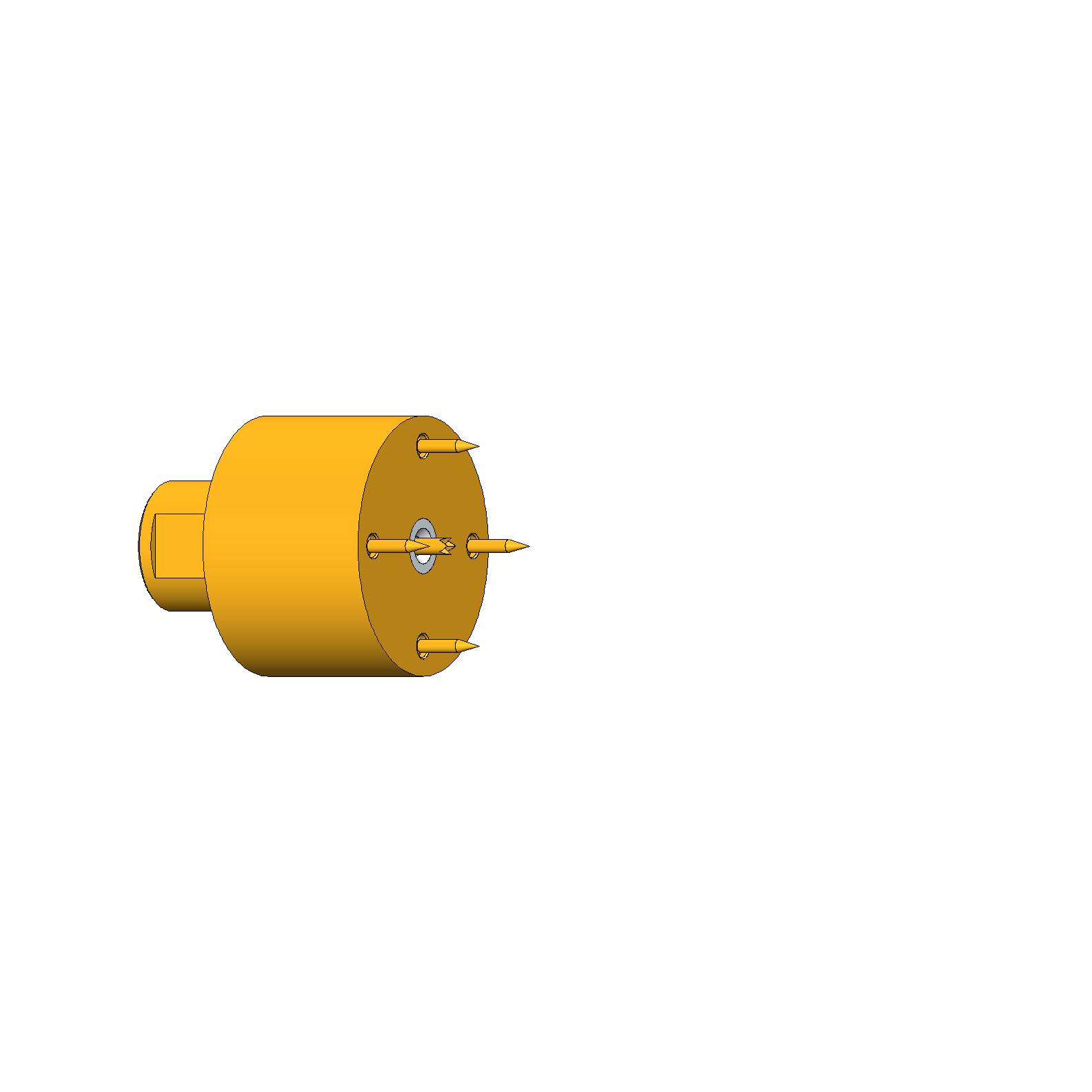

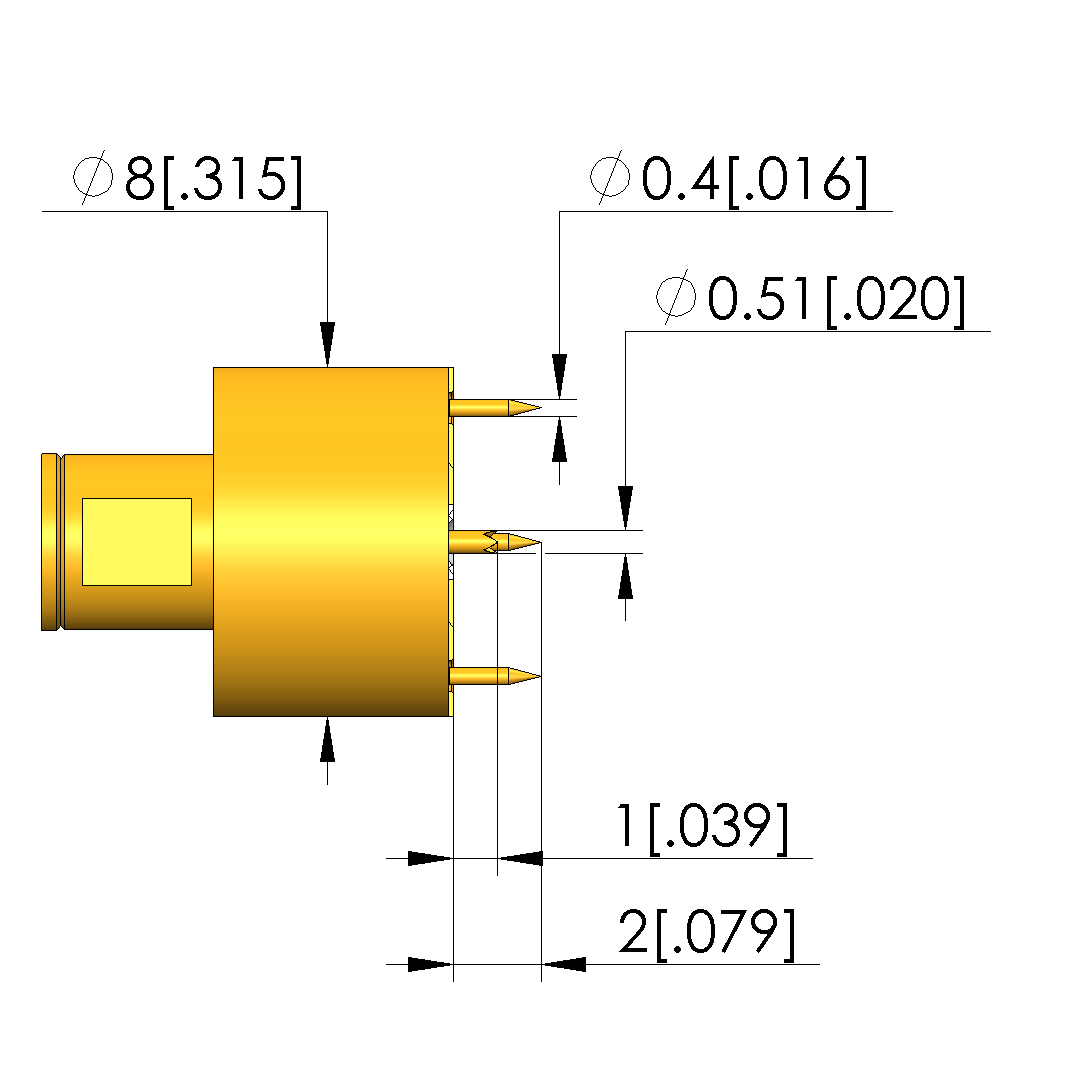

- Outer conductor tip style: 01 30° needle tip, self-cleaning
- Outer conductor working stroke: 4.5 mm [.177 in]
- Exchangeable outer conductor: KO-810-0080
- Outer conductor max. current load capacity: 3 A
- Outer conductor maximum stroke: 5.5 mm [.216 in]
- Spring force of entire outer conductor at working stroke: 9.2 N [33 ozf]
- Outer conductor tip style diameter: 8 mm [.314 in]
