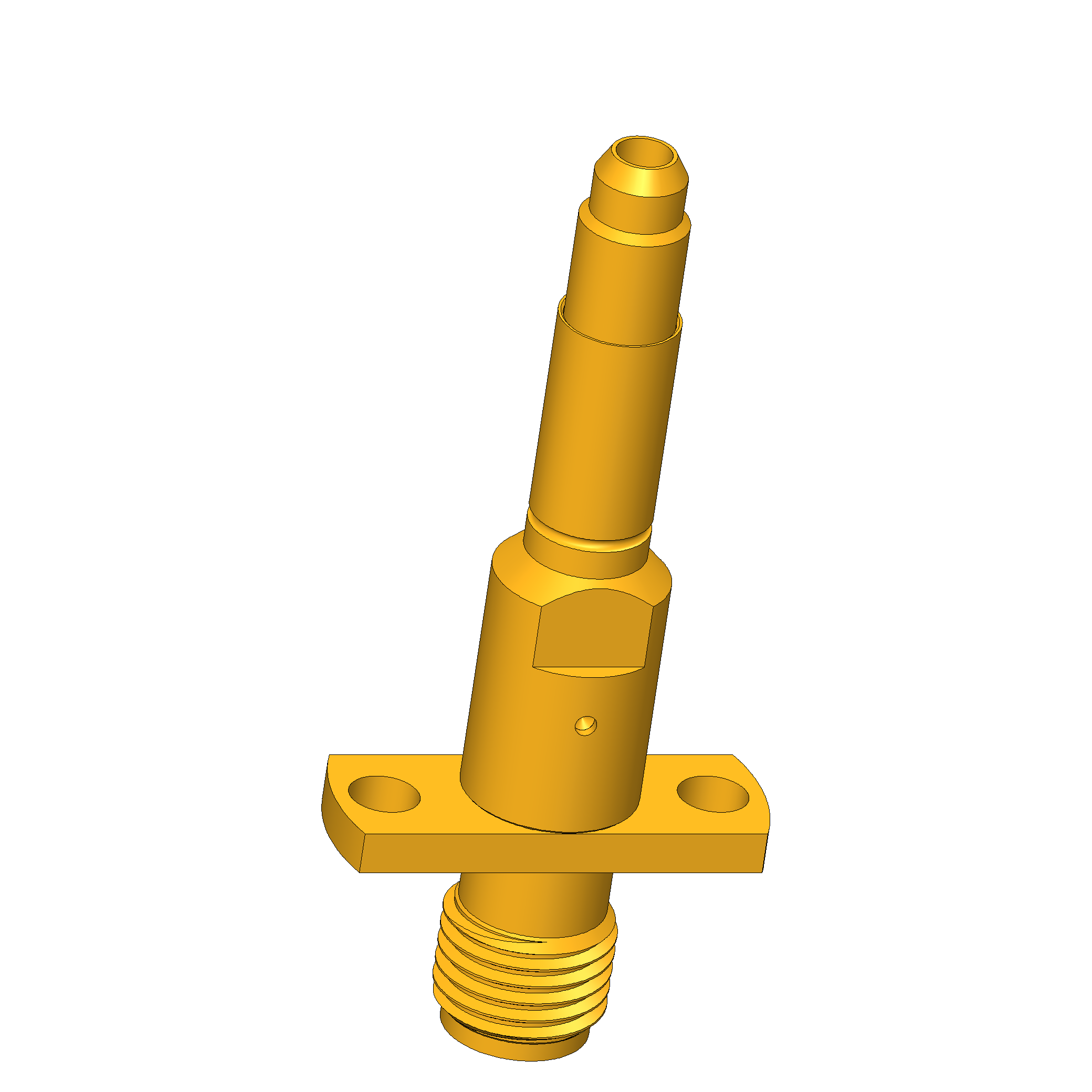

Product information "HFS-822 303 090 A 5042 SMPL"
- For contacting plug connectors, micro-connectors micro-switches
- Up to 6 GHz
- Cable interface SMA
- Installation via flange mounting
| Barrel diameter: | 6.5 mm [.255 in] |
|---|---|
| Compatible assembly interface gender : | M signal conductor male / pin |
| Continuous plunger: | No |
| DUT / contact: | SMPL |
| DUT interface gender : | M signal conductor male / pin |
| Exchangeable inner conductor: | GKS-051-0075 |
| Exchangeable outer conductor: | No |
| Floating mount: | No |
| Frequency range up to: | 6 GHz |
| Grid: | 10 mm [393 mil] |
| Impedance: | 50 Ohm |
| Inner conductor max. current load capacity: | 3 A |
| Inner conductor maximum stroke: | 3 mm [.118 in] |
| Inner conductor tip style: | 03 inverse cone |
| Inner conductor tip style diameter: | 0.9 mm [.035 in] |
| Inner conductor tip style material: | 3 CuBe |
| Inner conductor tip style surface: | A gold |
| Inner conductor working stroke: | 2 mm [.078 in] |
| Installation height without receptacle: | 26.5 mm [1.04 in] |
| Installation type: | Flange |
| Interface of compatible assembly: | SMA 50 Ohm |
| Max. temperature: | 80 °C [176 °F] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Number of inner conductors: | 1 |
| Outer conductor max. current load capacity: | 3 A |
| Outer conductor maximum stroke: | 3 mm [.118 in] |
| Outer conductor tip style: | 42 centring for inner side of plug connector |
| Outer conductor tip style diameter: | 3.4 mm [.133 in] |
| Outer conductor working stroke: | 2 mm [.078 in] |
| Product group: | HFS radio-frequency test probes |
| Recommended torque at interface: | 45 cNm [3.98 lbf·in] |
| RoHS-compliant: | Yes |
| Series: | HFS-822 |
| Spring force of each inner conductor at working stroke: | 1 N [3.59 ozf] |
| Spring force of entire outer conductor at working stroke: | 4 N [14.3 ozf] |
| Sub-series: | HFS-822 |
| Total length: | 36 mm [1.41 in] |
| Total spring force at working stroke: | 5 N [17.9 ozf] |
Login
Product Details
- For contacting plug connectors, micro-connectors micro-switches
- Up to 6 GHz
- Cable interface SMA
- Installation via flange mounting
Other products in this series:
Technical data
General data
- Grid: 10 mm [393 mil]
- Max. temperature: 80 °C [176 °F]
- Continuous plunger: No
- Non-rotating: No
- Recommended torque at interface: 45 cNm [3.98 lbf·in]
- Product group: HFS radio-frequency test probes
- Floating mount: No
- DUT / contact: SMPL
- Interface of compatible assembly: SMA 50 Ohm
- Compatible assembly interface gender : M signal conductor male / pin
- RoHS-compliant: Yes
- Series: HFS-822
- Min. temperature: -40 °C [-40 °F]
- DUT interface gender : M signal conductor male / pin
- Installation type: Flange
- Sub-series: HFS-822
Outer conductor data
- Exchangeable outer conductor: No
- Outer conductor maximum stroke: 3 mm [.118 in]

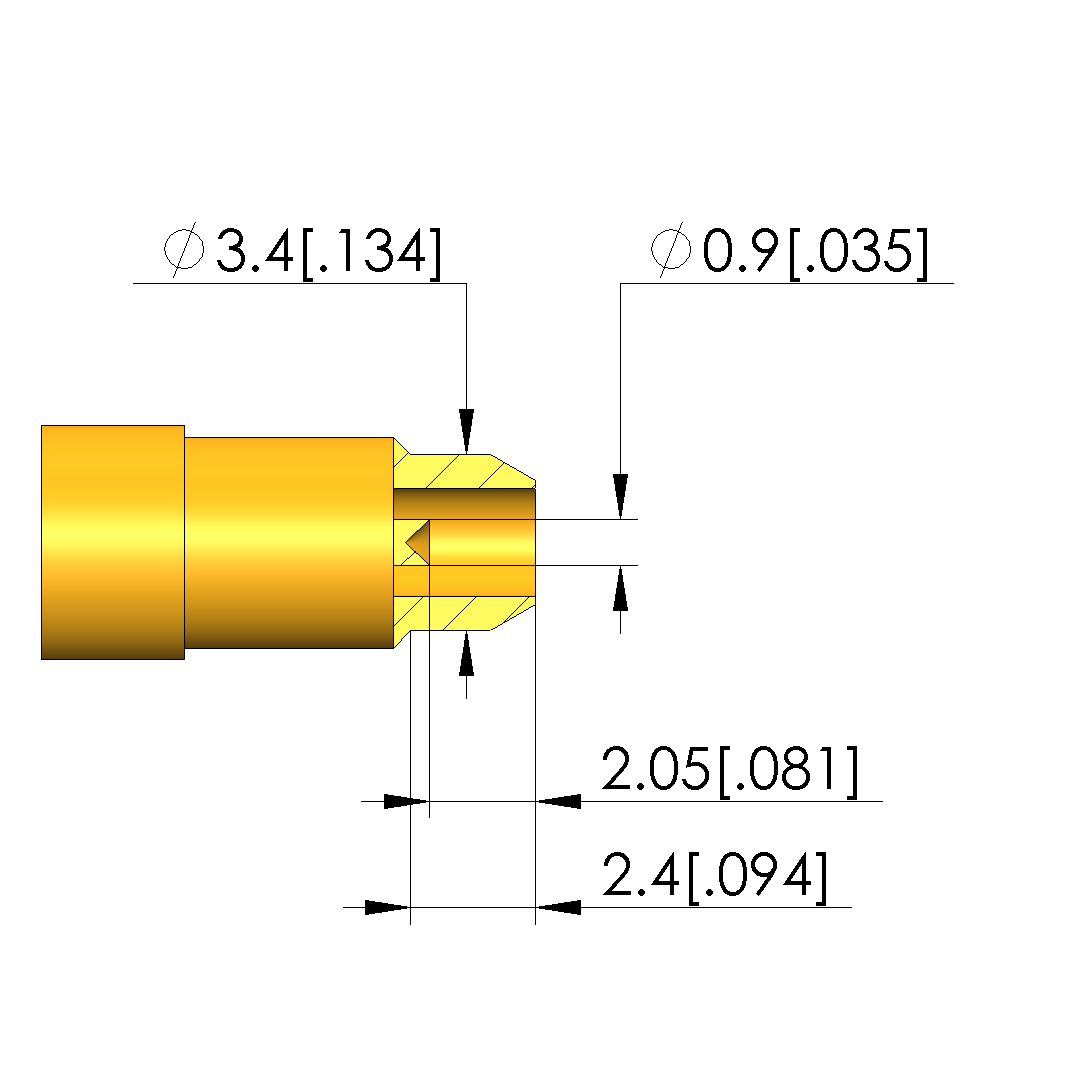

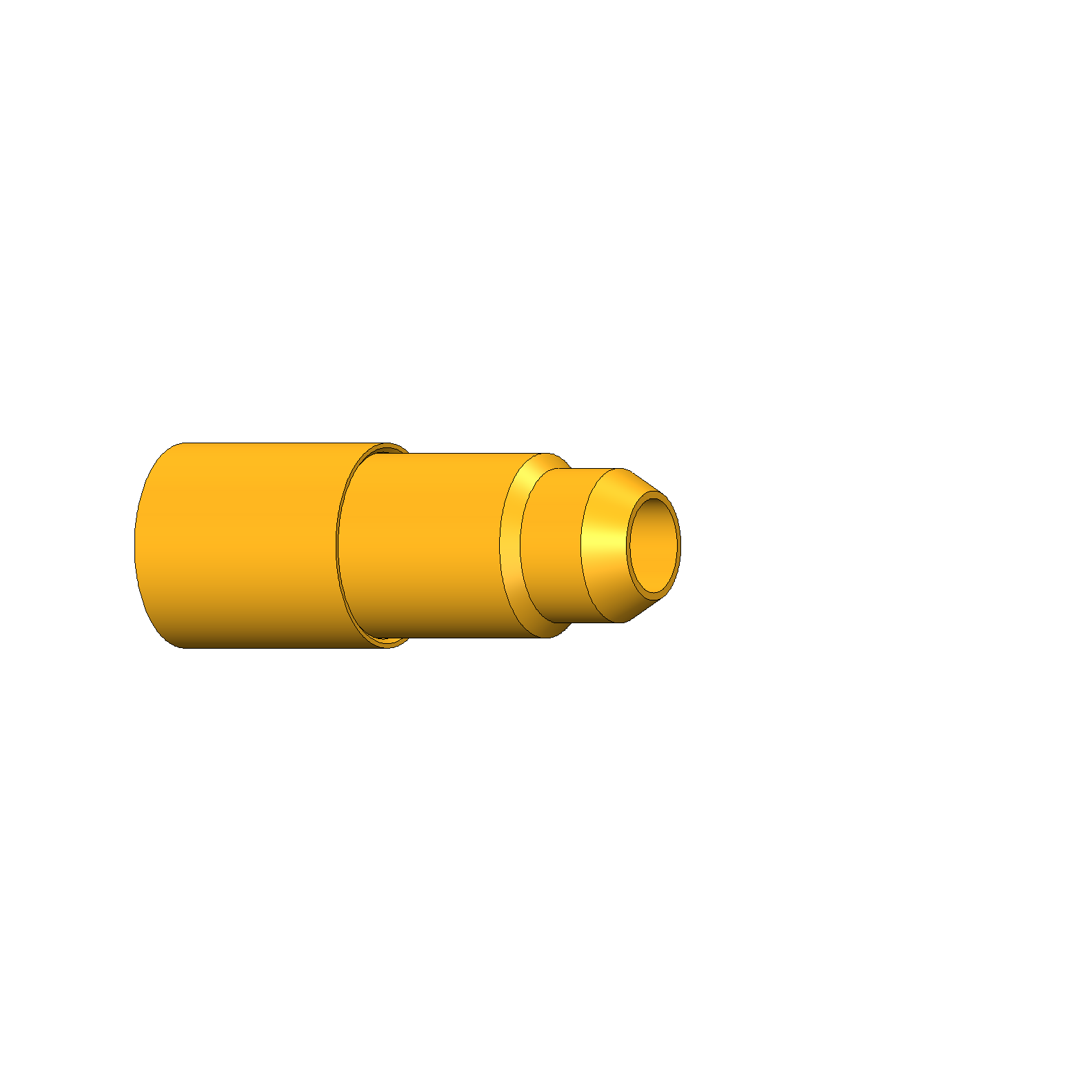

- Outer conductor tip style: 42 centring for inner side of plug connector
- Outer conductor max. current load capacity: 3 A
- Spring force of entire outer conductor at working stroke: 4 N [14.3 ozf]
- Outer conductor working stroke: 2 mm [.078 in]
- Outer conductor tip style diameter: 3.4 mm [.133 in]
Electrical data
- Frequency range up to: 6 GHz
- Impedance: 50 Ohm
Inner conductor data
- Number of inner conductors: 1
- Inner conductor tip style material: 3 CuBe
- Inner conductor working stroke: 2 mm [.078 in]
- Inner conductor tip style surface: A gold
- Inner conductor maximum stroke: 3 mm [.118 in]
- Inner conductor tip style diameter: 0.9 mm [.035 in]
- Spring force of each inner conductor at working stroke: 1 N [3.59 ozf]
- Exchangeable inner conductor: GKS-051-0075
- Inner conductor max. current load capacity: 3 A
- Inner conductor tip style: 03 inverse cone

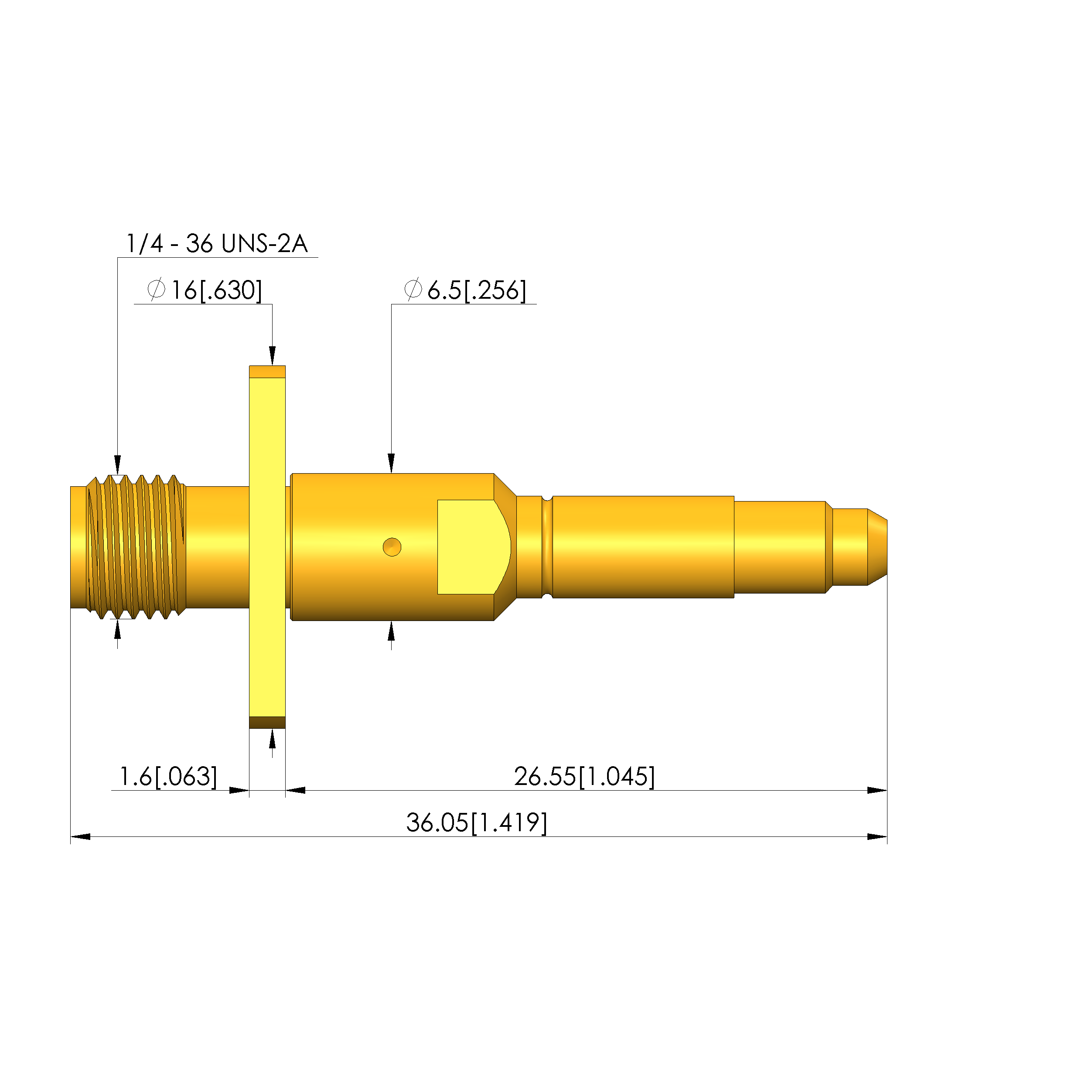

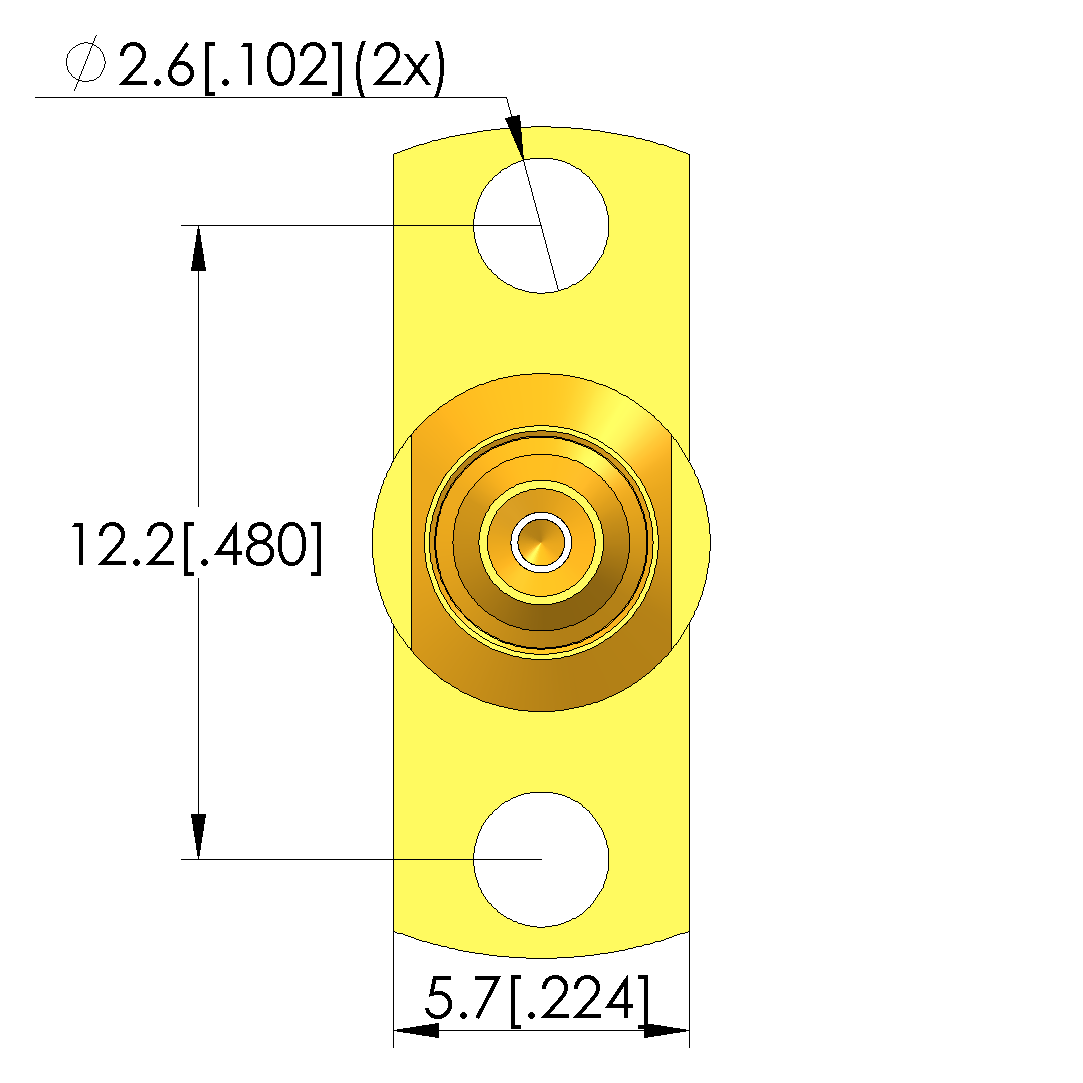

Mechanical data
- Barrel diameter: 6.5 mm [.255 in]
- Total length: 36 mm [1.41 in]
- Installation height without receptacle: 26.5 mm [1.04 in]
- Total spring force at working stroke: 5 N [17.9 ozf]
