Products
HFS-819 Z Products
10 Products
HFS-819 303 090 A 12743 V2-Z
High-Frequency Probe
HFS-819 303 090 A 12743 V2-Z
Product no. HFS-819-0010
  • Grid 12 mm [472 mil]
  • Total spring force at working stroke 12.7 N [45.6 ozf]
  • Interface of compatible assembly SE-819 V5-Z plug, screw-in, for HFS-819
  • Total length 48.9 mm [1.92 in]
Details

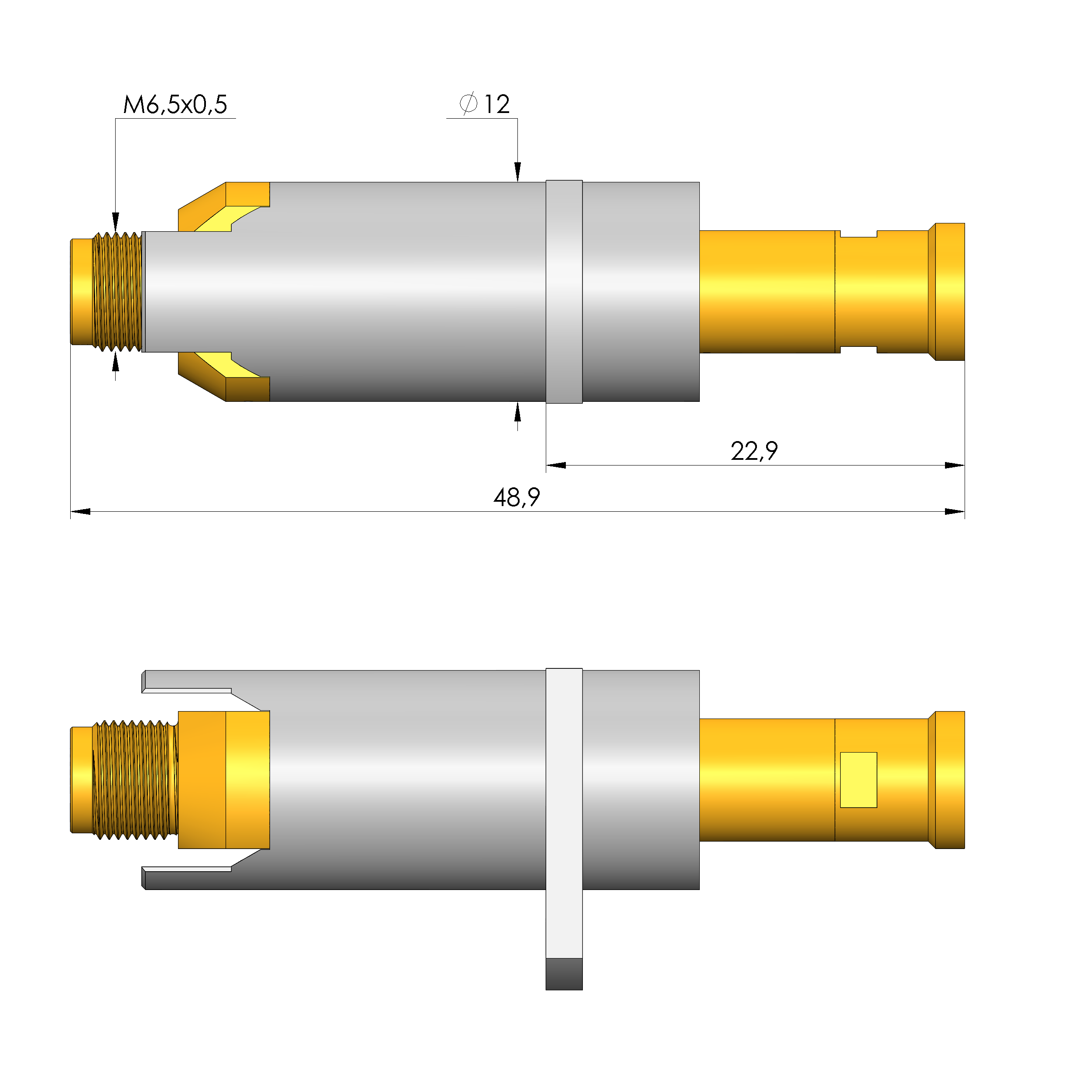

HFS-819 303 090 A 12743 F2-Z
High-Frequency Probe
HFS-819 303 090 A 12743 F2-Z
Product no. HFS-819-0028
  • Total spring force at working stroke 20.7 N [74.4 ozf]
  • Interface of compatible assembly SE-819 V5-Z plug, screw-in, for HFS-819
  • Grid 12.5 mm [492 mil]
  • Total length 48.9 mm [1.92 in]
Details
INGUN SELECTION

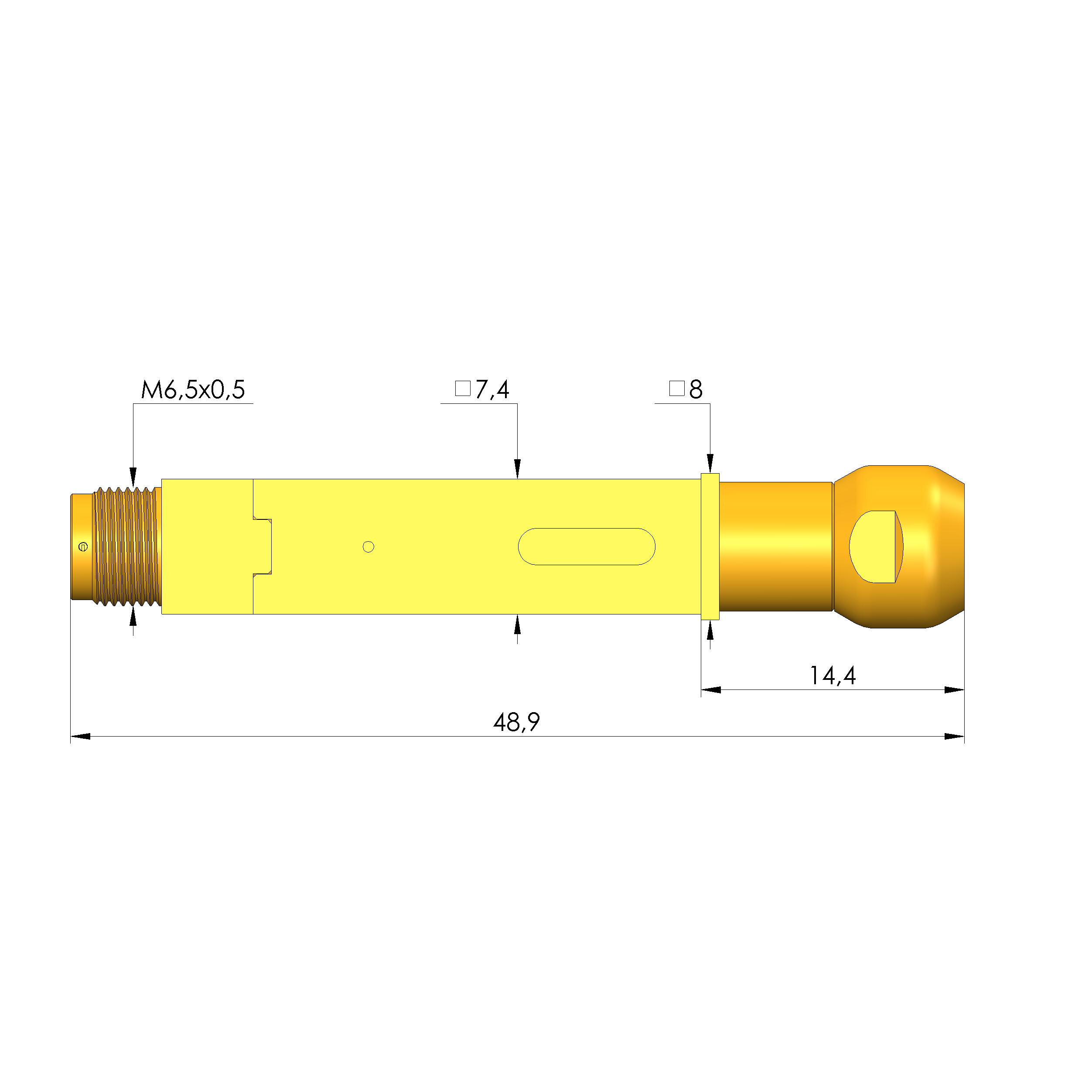

HFS-819 303 090 A 12743 RV5-Z
High-Frequency Probe
HFS-819 303 090 A 12743 RV5-Z
Product no. HFS-819-0014
  • Grid 12 mm [472 mil]
  • Total spring force at working stroke 12.7 N [45.6 ozf]
  • Interface of compatible assembly SE-819 V5-Z plug, screw-in, for HFS-819
  • Total length 48.9 mm [1.92 in]
Details

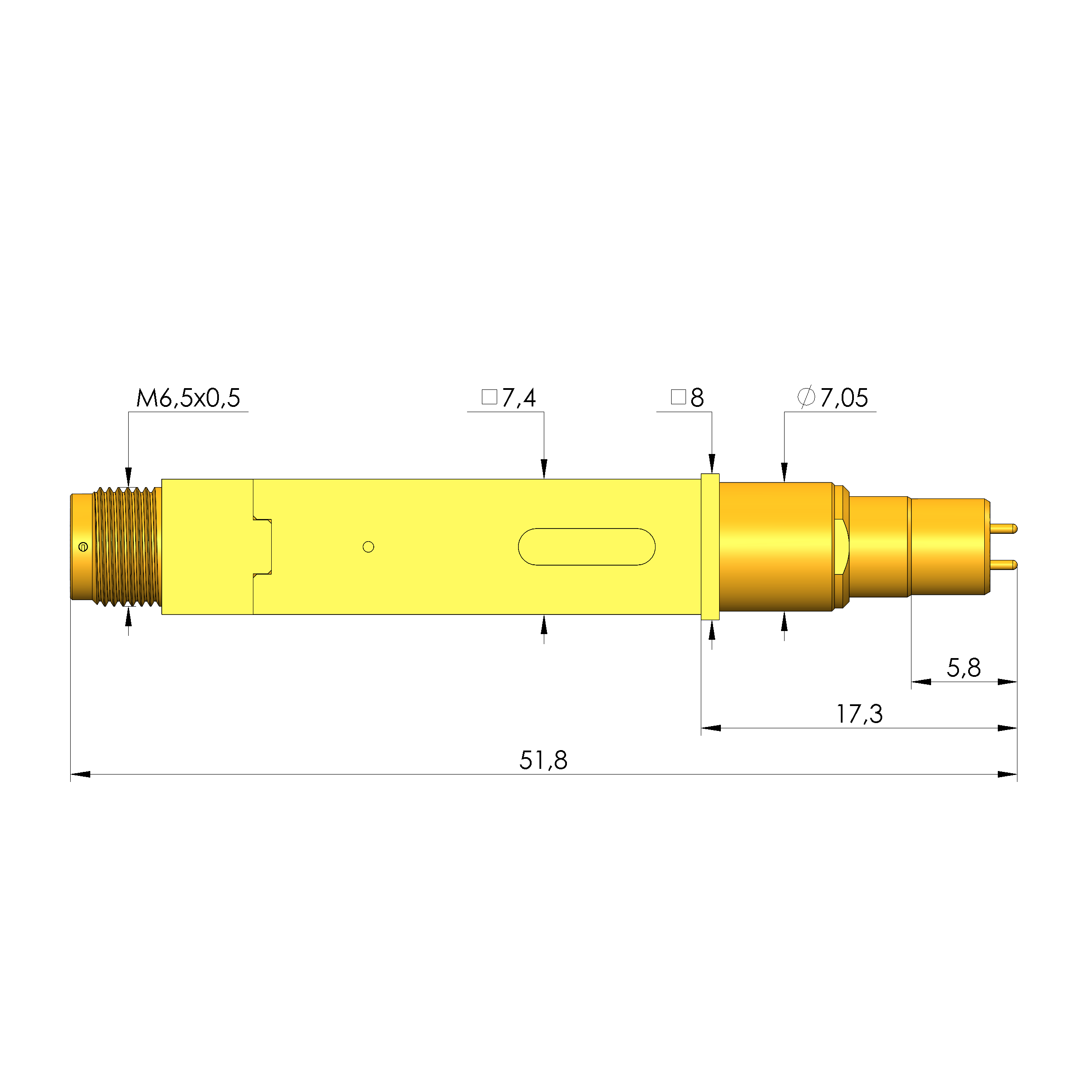

HFS-819 355 051 A 20742 V8-Z
High-Frequency Probe
HFS-819 355 051 A 20742 V8-Z
Product no. HFS-819-0040
  • Total spring force at working stroke 20.7 N [74.4 ozf]
  • Grid 12 mm [472 mil]
  • Total length 51.8 mm [2.03 in]
  • Interface of compatible assembly SE-819 V5-Z plug, screw-in, for HFS-819
Details

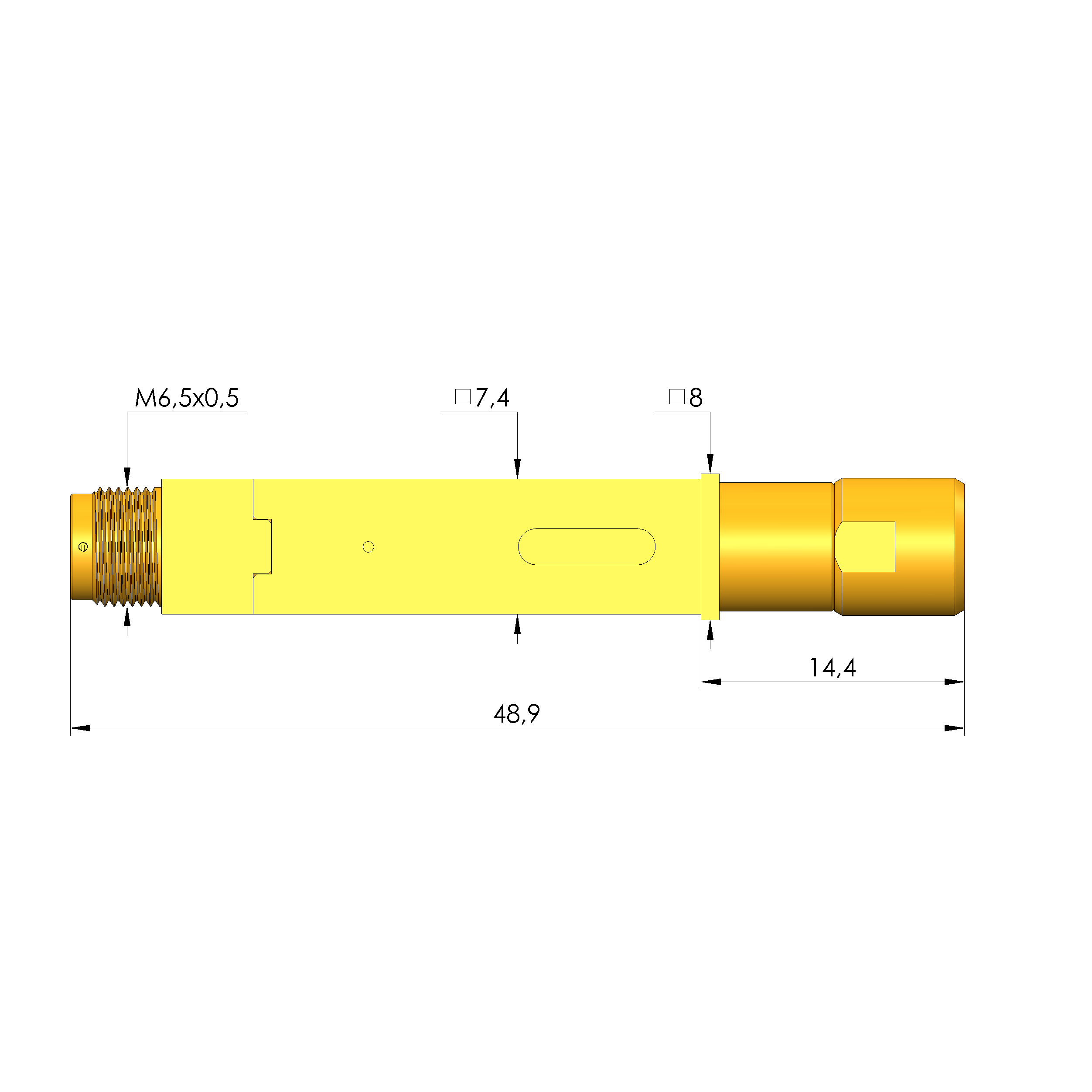

HFS-819 303 090 A 20743 RV7-Z
High-Frequency Probe
HFS-819 303 090 A 20743 RV7-Z
Product no. HFS-819-0019
  • Total spring force at working stroke 20.7 N [74.4 ozf]
  • Grid 12 mm [472 mil]
  • Interface of compatible assembly SE-819 V5-Z plug, screw-in, for HFS-819
  • Total length 48.9 mm [1.92 in]
Details
HFS-819 303 090 A 12743 RV7-Z
High-Frequency Probe
HFS-819 303 090 A 12743 RV7-Z
Product no. HFS-819-0020
  • Grid 12 mm [472 mil]
  • Total spring force at working stroke 12.7 N [45.6 ozf]
  • Interface of compatible assembly SE-819 V5-Z plug, screw-in, for HFS-819
  • Total length 48.9 mm [1.92 in]
Details
INGUN SELECTION
HFS-819 303 090 A 20743 RV5-Z
High-Frequency Probe
HFS-819 303 090 A 20743 RV5-Z
Product no. HFS-819-0008
  • Total spring force at working stroke 20.7 N [74.4 ozf]
  • Grid 12 mm [472 mil]
  • Interface of compatible assembly SE-819 V5-Z plug, screw-in, for HFS-819
  • Total length 48.9 mm [1.92 in]
Details
HFS-819 355 051 A 12742 V8-Z
High-Frequency Probe
HFS-819 355 051 A 12742 V8-Z
Product no. HFS-819-0026
  • Grid 12 mm [472 mil]
  • Total length 51.8 mm [2.03 in]
  • Total spring force at working stroke 12.7 N [45.6 ozf]
  • Interface of compatible assembly SE-819 V5-Z plug, screw-in, for HFS-819
Details
HFS-819 303 090 A 20743 F2-Z
High-Frequency Probe
HFS-819 303 090 A 20743 F2-Z
Product no. HFS-819-0063
  • Total spring force at working stroke 20.7 N [74.4 ozf]
  • Interface of compatible assembly SE-819 V5-Z plug, screw-in, for HFS-819
  • Grid 12.5 mm [492 mil]
  • Total length 48.9 mm [1.92 in]
Details
HFS-819 303 090 A 20743 V2-Z
High-Frequency Probe
HFS-819 303 090 A 20743 V2-Z
Product no. HFS-819-0042
  • Total spring force at working stroke 20.7 N [74.4 ozf]
  • Grid 12 mm [472 mil]
  • Interface of compatible assembly SE-819 V5-Z plug, screw-in, for HFS-819
  • Total length 48.9 mm [1.92 in]
Details
