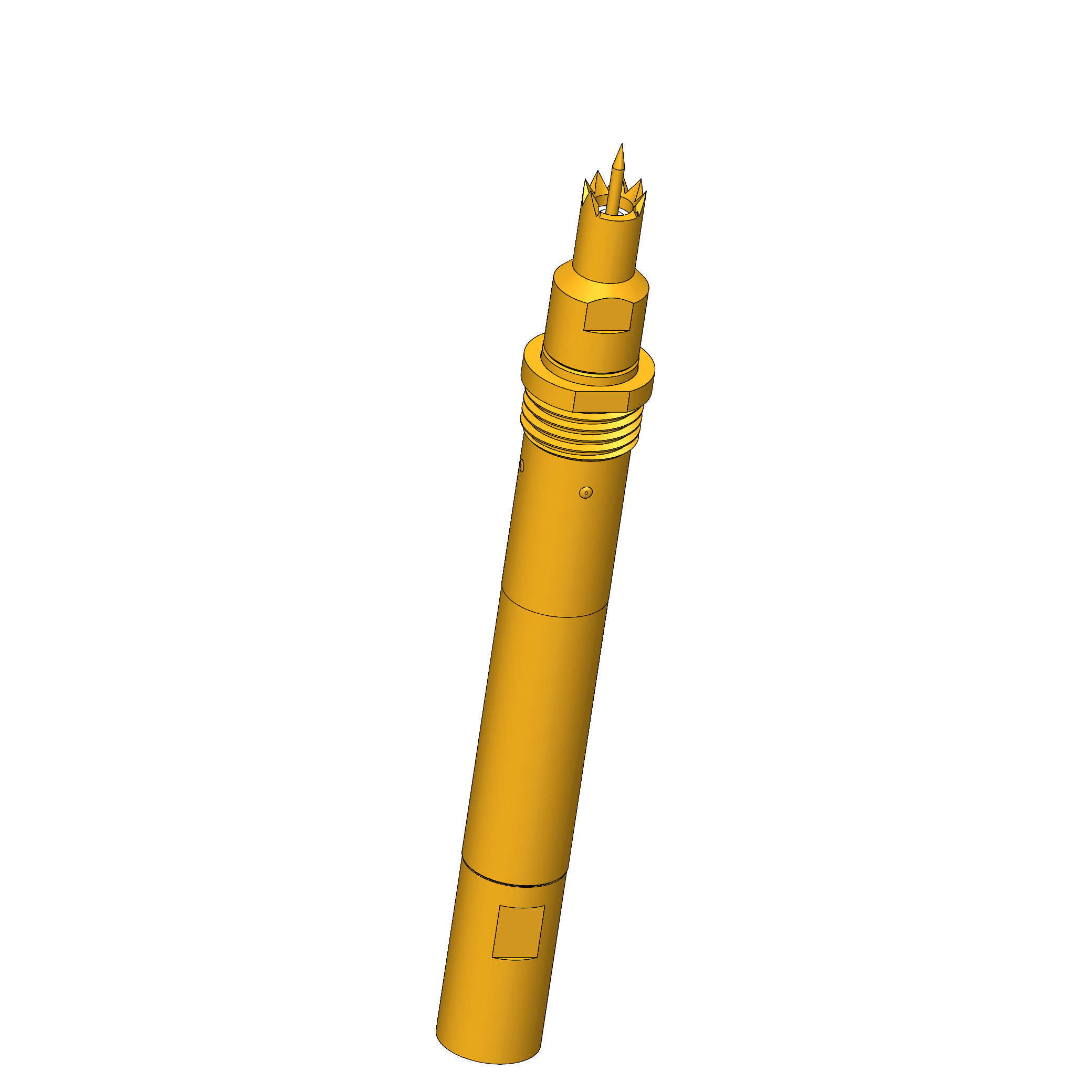

Product information "HFS-810 201 051 A 8006 S 4M"
| Barrel diameter: | 4.5 mm [.177 in] |
|---|---|
| Compatible assembly interface gender : | M signal conductor male / pin |
| Continuous plunger: | Yes |
| DUT / contact: | PCB coax, open |
| Dielectric strength: | 1.1 kV |
| Exchangeable inner conductor: | GKS-051-0007 |
| Exchangeable outer conductor: | KO-810-0164 |
| Floating mount: | No |
| Frequency range up to: | 2 GHz |
| Grid: | 6.5 mm [255 mil] |
| Impedance: | 50 Ohm |
| Inner conductor max. current load capacity: | 2 A |
| Inner conductor maximum stroke: | 3.7 mm [.145 in] |
| Inner conductor tip style: | 01 30° needle tip, self-cleaning |
| Inner conductor tip style diameter: | 0.51 mm [.02 in] |
| Inner conductor tip style material: | 2 steel |
| Inner conductor tip style surface: | A gold |
| Inner conductor working stroke: | 2 mm [.078 in] |
| Installation height without receptacle: | 11.5 mm [.452 in] |
| Installation type: | Screw-in |
| Interface of compatible assembly: | MCX 50 Ohm |
| KS sub-series: | KS-810 M, screw-in version |
| Max. temperature: | 80 °C [176 °F] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | Yes |
| Number of inner conductors: | 1 |
| Outer conductor max. current load capacity: | 10 A |
| Outer conductor maximum stroke: | 5 mm [.196 in] |
| Outer conductor tip style: | 06 serrated |
| Outer conductor tip style diameter: | 2.6 mm [.102 in] |
| Outer conductor working stroke: | 4 mm [.157 in] |
| Product group: | HFS radio-frequency test probes |
| RoHS-compliant: | Yes |
| Series: | HFS-810 |
| Spring force of each inner conductor at working stroke: | 2 N [7.19 ozf] |
| Spring force of entire outer conductor at working stroke: | 6 N [21.5 ozf] |
| Sub-series: | HFS-810 4M screw-in with adjustable positioning |
| Torque in receptacle: | 10 – 20 cNm [.885 – 1.77 lbf·in] |
| Total length: | 43 mm [1.69 in] |
| Total spring force at working stroke: | 8 N [28.7 ozf] |
Login
Other products in this series:
Technical data
General data
- Non-rotating: Yes
- Series: HFS-810
- Max. temperature: 80 °C [176 °F]
- Continuous plunger: Yes
- DUT / contact: PCB coax, open
- Sub-series: HFS-810 4M screw-in with adjustable positioning
- Product group: HFS radio-frequency test probes
- Floating mount: No
- Interface of compatible assembly: MCX 50 Ohm
- Compatible assembly interface gender : M signal conductor male / pin
- KS sub-series: KS-810 M, screw-in version
- Grid: 6.5 mm [255 mil]
- RoHS-compliant: Yes
- Installation type: Screw-in
- Min. temperature: -40 °C [-40 °F]

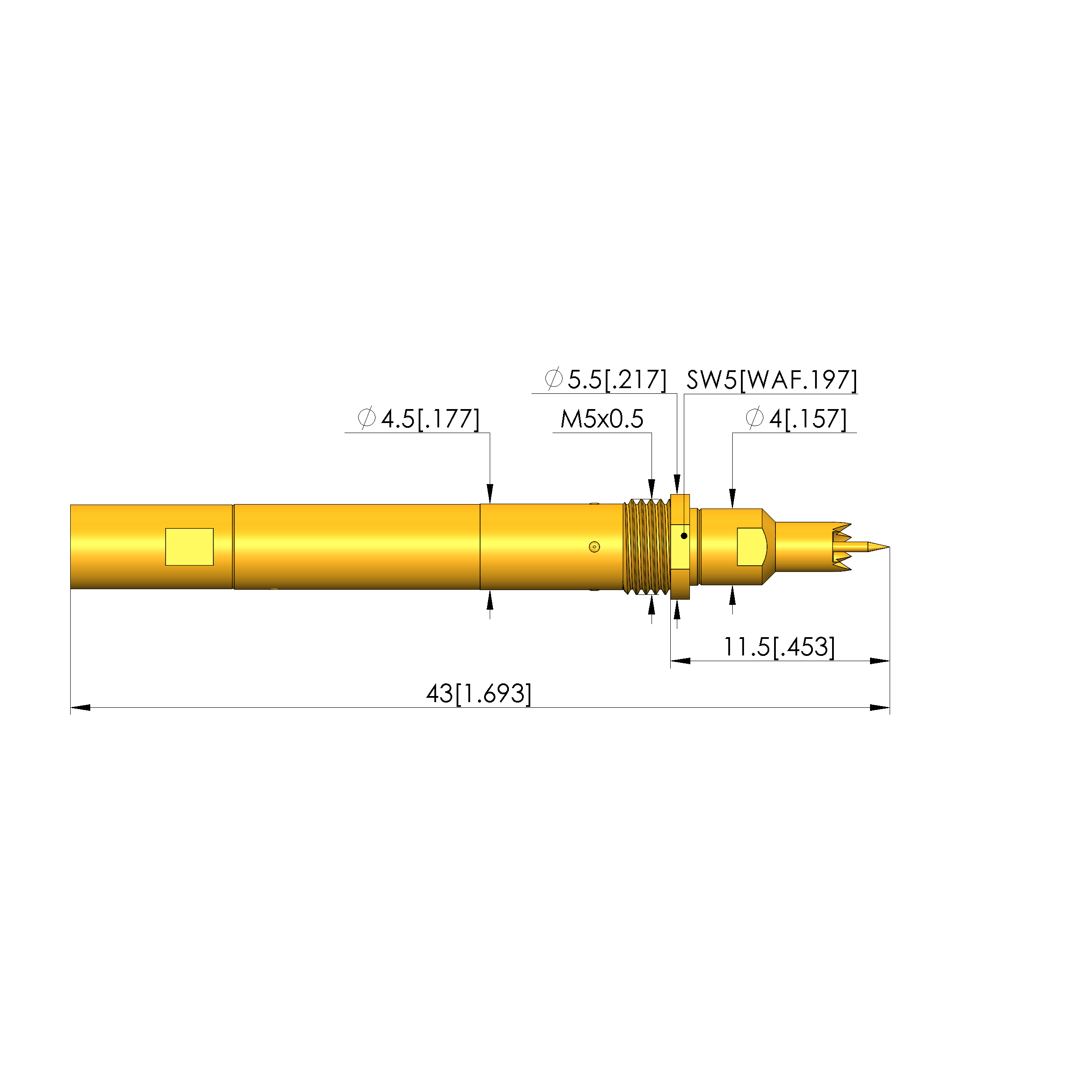

Mechanical data
- Torque in receptacle: 10 – 20 cNm [.885 – 1.77 lbf·in]
- Total spring force at working stroke: 8 N [28.7 ozf]
- Total length: 43 mm [1.69 in]
- Barrel diameter: 4.5 mm [.177 in]
- Installation height without receptacle: 11.5 mm [.452 in]
Inner conductor data
- Inner conductor tip style diameter: 0.51 mm [.02 in]
- Number of inner conductors: 1
- Exchangeable inner conductor: GKS-051-0007
- Inner conductor tip style material: 2 steel
- Inner conductor working stroke: 2 mm [.078 in]
- Inner conductor tip style surface: A gold
- Inner conductor maximum stroke: 3.7 mm [.145 in]
- Inner conductor max. current load capacity: 2 A
- Spring force of each inner conductor at working stroke: 2 N [7.19 ozf]

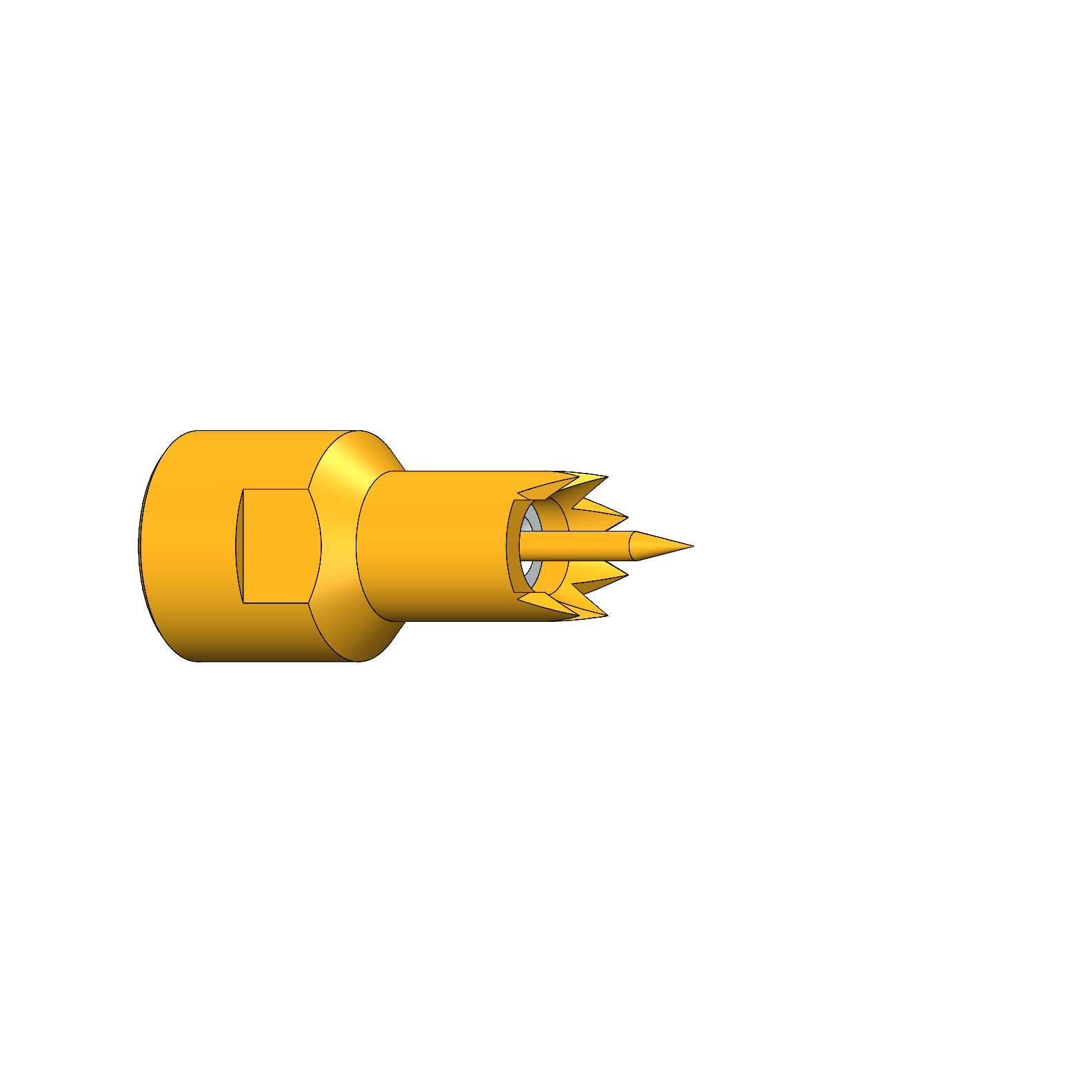

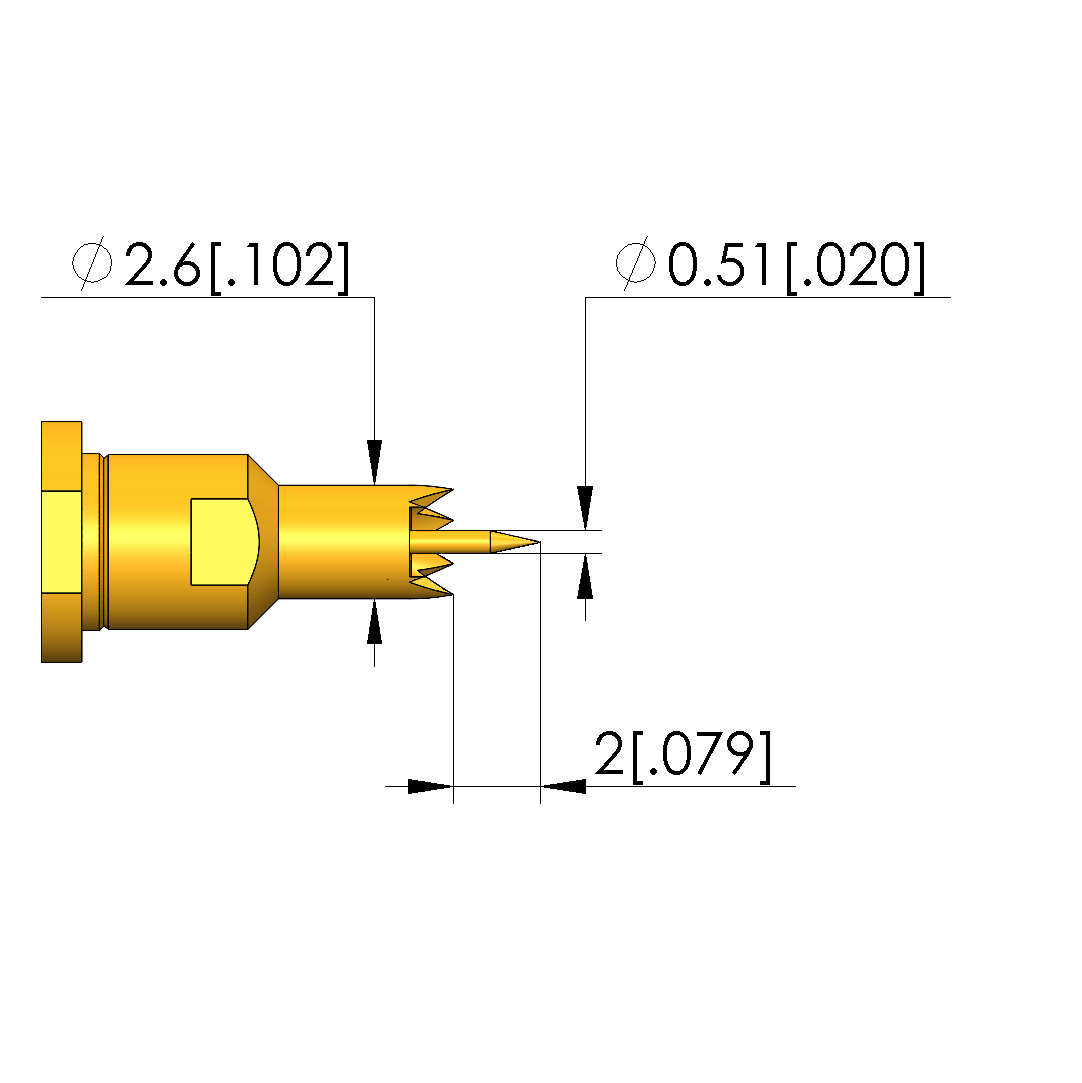

- Inner conductor tip style: 01 30° needle tip, self-cleaning

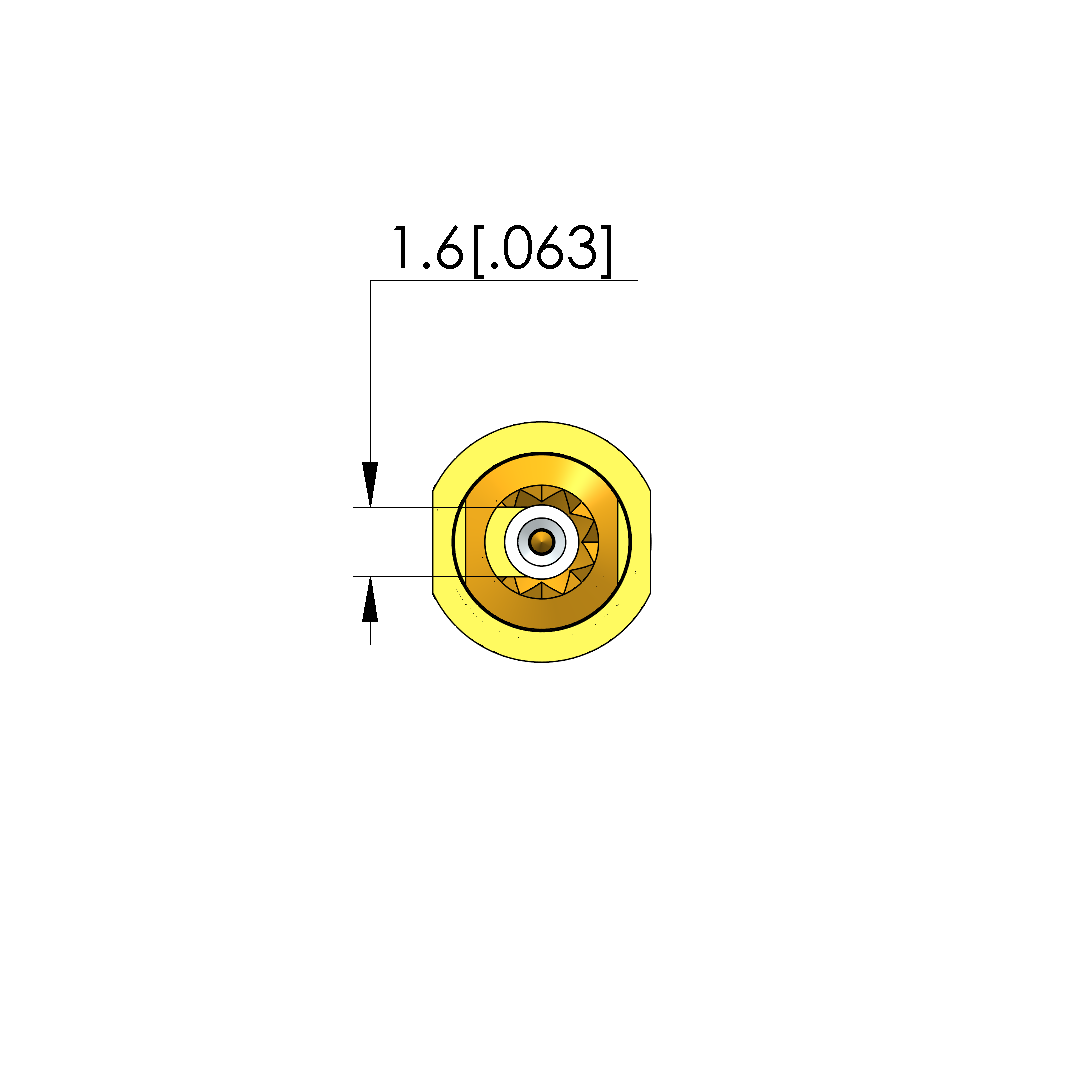

Outer conductor data
- Outer conductor tip style diameter: 2.6 mm [.102 in]
- Outer conductor maximum stroke: 5 mm [.196 in]
- Exchangeable outer conductor: KO-810-0164
- Outer conductor max. current load capacity: 10 A
- Outer conductor tip style: 06 serrated
- Outer conductor working stroke: 4 mm [.157 in]
- Spring force of entire outer conductor at working stroke: 6 N [21.5 ozf]
Electrical data
- Frequency range up to: 2 GHz
- Dielectric strength: 1.1 kV
- Impedance: 50 Ohm
