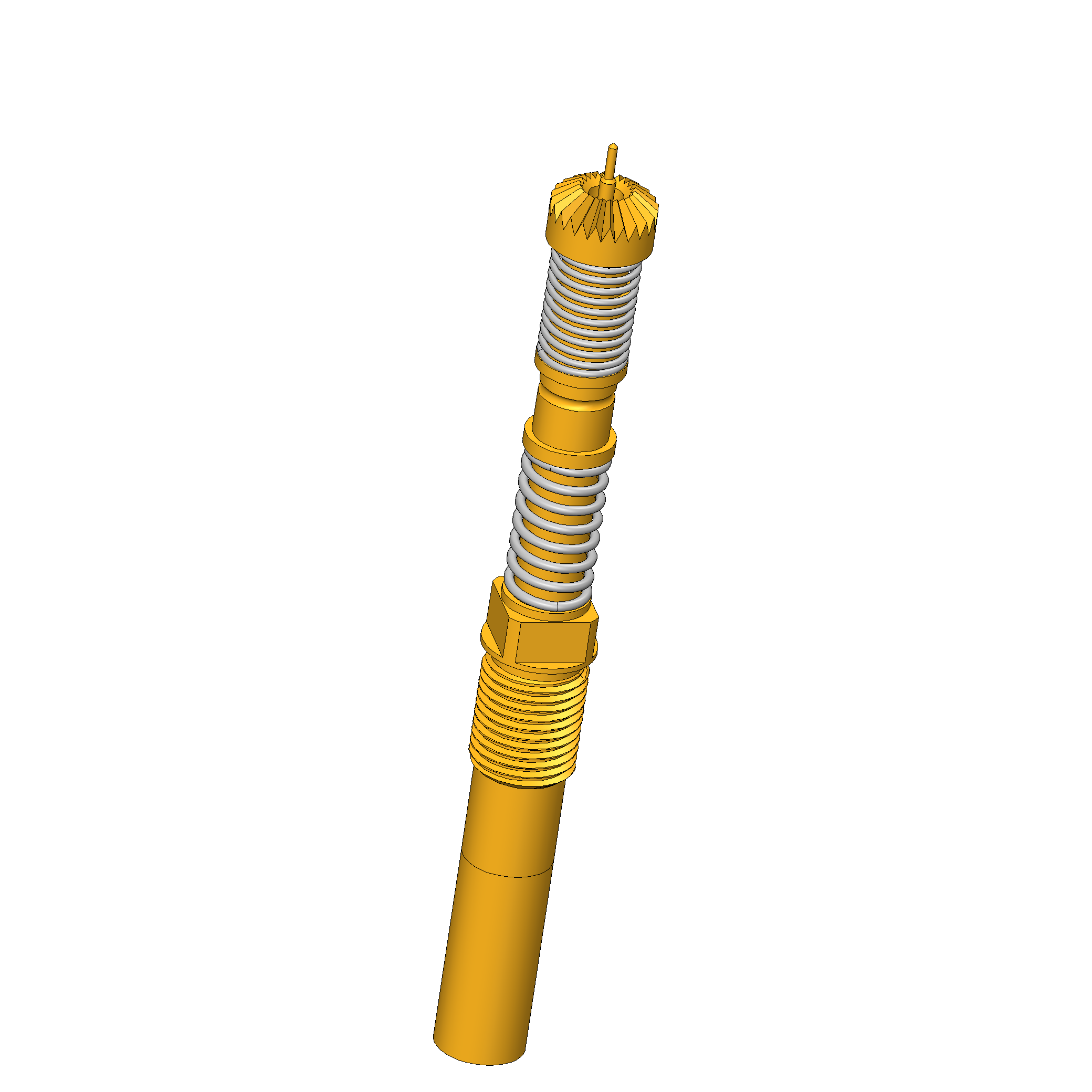

Product information "HFS-807 308 030 A 6842 HFM-F-M"
- For testing FAKRA-mini connectors e.g. HFM (Rosenberger) or Mate-AX (TE Connectivity)
- Used mainly in future technologies for the automotive market (e.g. autonomous driving)
- Radio-frequency test probes for best radio frequency performance and data transmission
- Modular design, test probe combination for single, double or quadruple housing can be used or installed in floating mount HAS-807
- Cable interface high-speed SMPM male, connection cable SMPM female
| Barrel diameter: | 3 mm [.118 in] |
|---|---|
| Compatible assembly interface gender : | F signal conductor female / socket |
| Continuous plunger: | Yes |
| DUT / contact: | Mini Coax HFM |
| DUT interface gender : | F signal conductor female / socket |
| Exchangeable inner conductor: | No |
| Exchangeable outer conductor: | No |
| Floating mount: | No |
| Frequency range up to: | 12 GHz |
| Grid: | 4 mm [157 mil] |
| Impedance: | 50 Ohm |
| Inner conductor max. current load capacity: | 2 A |
| Inner conductor maximum stroke: | 1.5 mm [.059 in] |

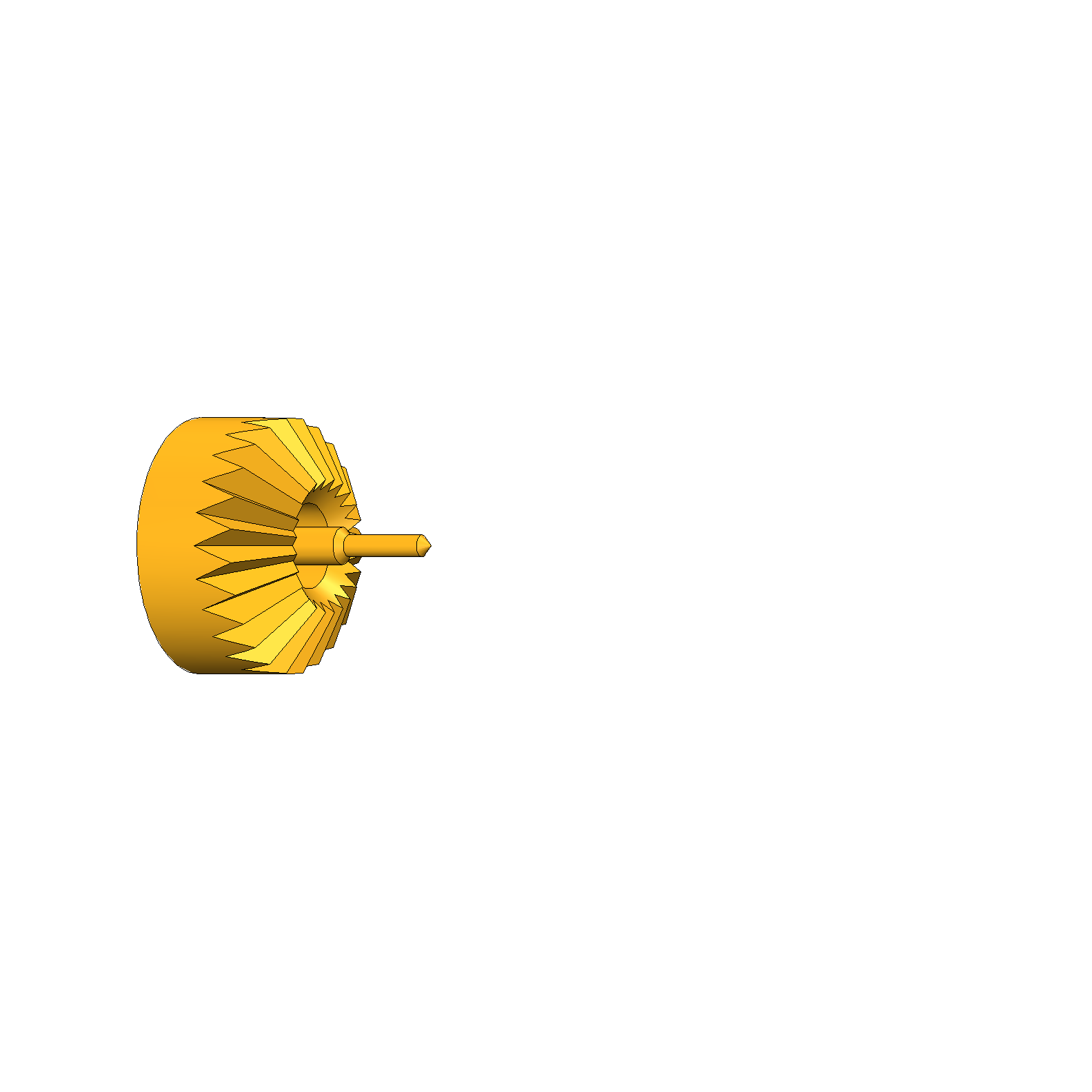

| Inner conductor tip style: | 08 90°conical, self-cleaning |
| Inner conductor tip style diameter: | 0.3 mm [.011 in] |
| Inner conductor tip style material: | 3 CuBe |
| Inner conductor tip style surface: | A gold |
| Inner conductor working stroke: | 1 mm [.039 in] |

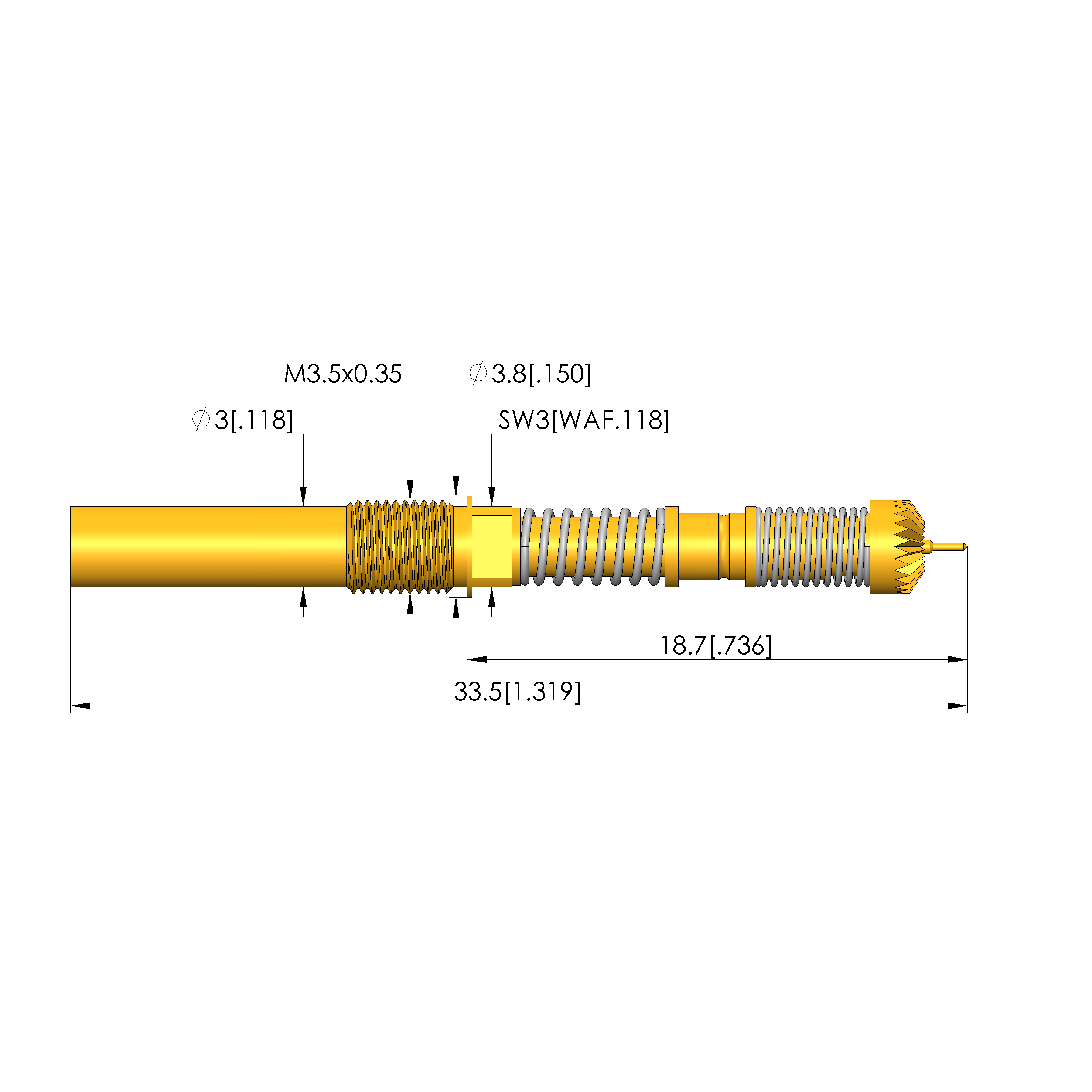

| Installation height without receptacle: | 18.7 mm [.736 in] |
| Installation type: | Screw-in |
| Interface of compatible assembly: | SMPM 50 Ohm |
| Max. temperature: | 80 °C [176 °F] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Number of inner conductors: | 1 |
| Outer conductor max. current load capacity: | 3 A |
| Outer conductor maximum stroke: | 4.1 mm [.161 in] |

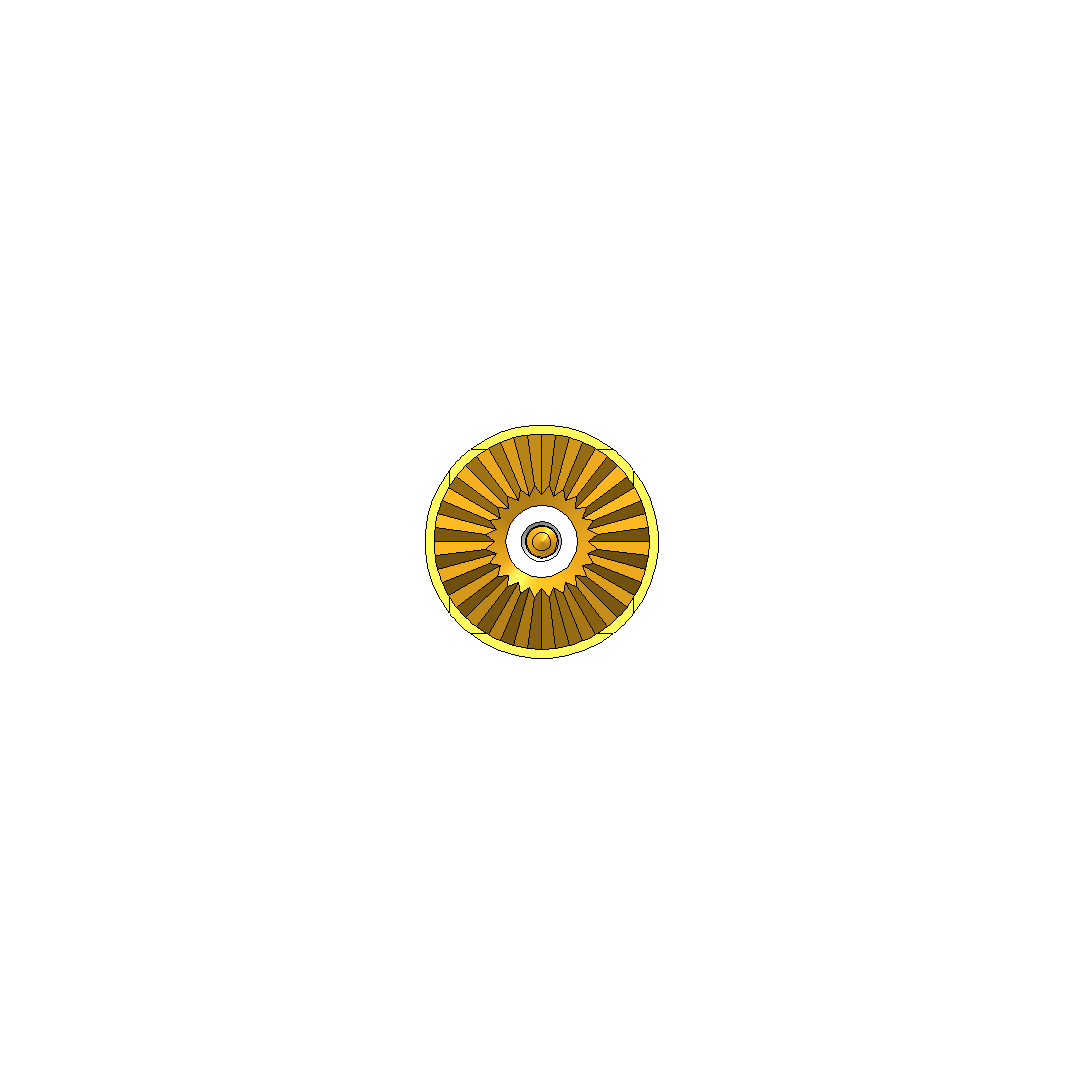

| Outer conductor tip style: | 42 centring for inner side of plug connector |

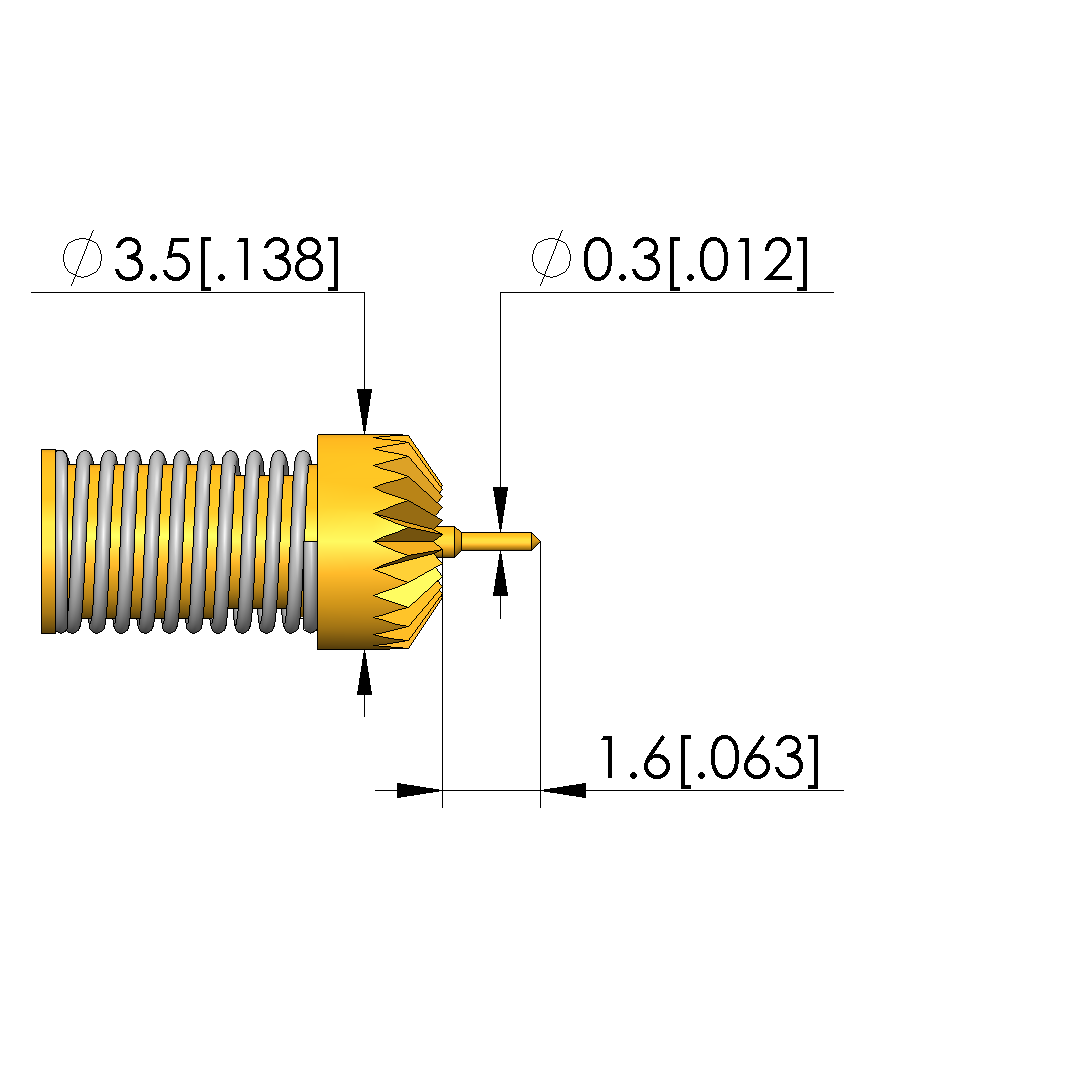

| Outer conductor tip style diameter: | 3.5 mm [.137 in] |
| Outer conductor working stroke: | 3.2 mm [.125 in] |
| Product group: | HFS radio-frequency test probes |
| RoHS-compliant: | Yes |
| Series: | HFS-807 |
| Spring force of each inner conductor at working stroke: | 1 N [3.59 ozf] |
| Spring force of entire outer conductor at working stroke: | 5.8 N [20.8 ozf] |
| Sub-series: | HFS-807 M screw-in |
| Torque in receptacle: | 10 – 20 cNm [.885 – 1.77 lbf·in] |
| Total length: | 33.5 mm [1.31 in] |
| Total spring force at working stroke: | 6.8 N [24.4 ozf] |
Login
Product Details
- For testing FAKRA-mini connectors e.g. HFM (Rosenberger) or Mate-AX (TE Connectivity)
- Used mainly in future technologies for the automotive market (e.g. autonomous driving)
- Radio-frequency test probes for best radio frequency performance and data transmission
- Modular design, test probe combination for single, double or quadruple housing can be used or installed in floating mount HAS-807
- Cable interface high-speed SMPM male, connection cable SMPM female
Other products in this series:
Technical data
General data
- Sub-series: HFS-807 M screw-in
- Max. temperature: 80 °C [176 °F]
- Continuous plunger: Yes
- Non-rotating: No
- Product group: HFS radio-frequency test probes
- Floating mount: No
- Series: HFS-807
- RoHS-compliant: Yes
- DUT interface gender : F signal conductor female / socket
- Interface of compatible assembly: SMPM 50 Ohm
- Installation type: Screw-in
- Min. temperature: -40 °C [-40 °F]
- DUT / contact: Mini Coax HFM
- Grid: 4 mm [157 mil]
- Compatible assembly interface gender : F signal conductor female / socket
Outer conductor data
- Outer conductor maximum stroke: 4.1 mm [.161 in]
- Exchangeable outer conductor: No
- Outer conductor tip style: 42 centring for inner side of plug connector
- Outer conductor max. current load capacity: 3 A
- Outer conductor tip style diameter: 3.5 mm [.137 in]
- Outer conductor working stroke: 3.2 mm [.125 in]
- Spring force of entire outer conductor at working stroke: 5.8 N [20.8 ozf]
Mechanical data
- Torque in receptacle: 10 – 20 cNm [.885 – 1.77 lbf·in]
- Installation height without receptacle: 18.7 mm [.736 in]
- Barrel diameter: 3 mm [.118 in]
- Total length: 33.5 mm [1.31 in]
- Total spring force at working stroke: 6.8 N [24.4 ozf]
Inner conductor data
- Inner conductor working stroke: 1 mm [.039 in]
- Number of inner conductors: 1
- Inner conductor tip style: 08 90°conical, self-cleaning
- Inner conductor tip style material: 3 CuBe
- Inner conductor tip style surface: A gold
- Exchangeable inner conductor: No
- Inner conductor max. current load capacity: 2 A
- Spring force of each inner conductor at working stroke: 1 N [3.59 ozf]
- Inner conductor maximum stroke: 1.5 mm [.059 in]
- Inner conductor tip style diameter: 0.3 mm [.011 in]
Electrical data
- Frequency range up to: 12 GHz
- Impedance: 50 Ohm
