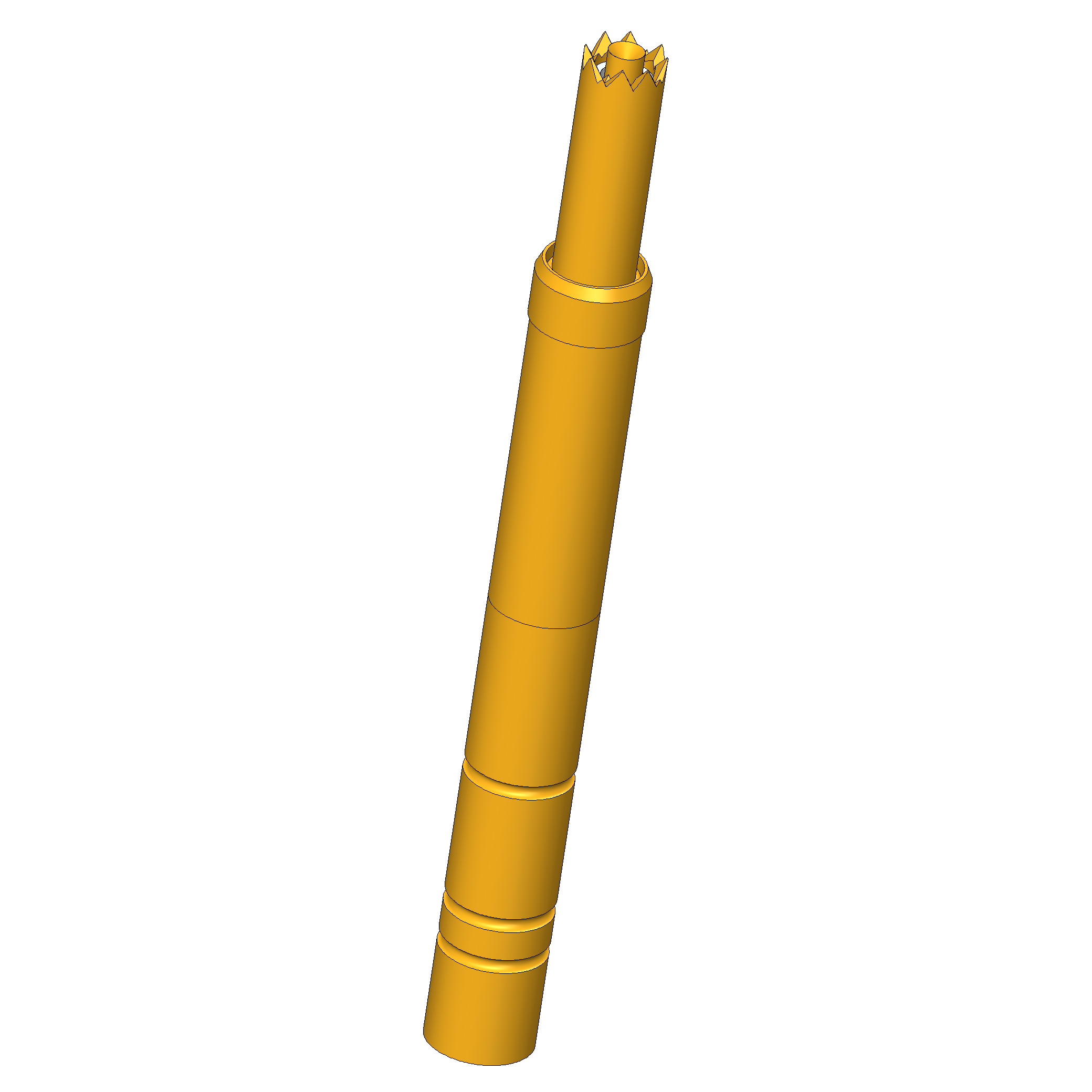

Product information "HFS-110 303 115 A 3006 A"
- Test probe for low frequency range or four-pole (kelvin) measurement
- For simple, price-sensitive applications
- Up to 700 mhz
- Interface plug: SE-110
- Receptacle: KS-110
| Barrel diameter: | 3.5 mm [.137 in] |
|---|---|
| Compatible assembly interface gender : | M signal conductor male / pin |
| Continuous plunger: | No |
| DUT / contact: | PCB coax pin, closed |
| Dielectric strength: | 1.1 kV |
| Exchangeable inner conductor: | No |
| Exchangeable outer conductor: | No |
| Floating mount: | No |
| Frequency range up to: | .7 GHz |
| Grid: | 4.5 mm [177 mil] |
| Impedance: | 50 Ohm |
| Inner conductor max. current load capacity: | 3 A |
| Inner conductor maximum stroke: | 5 mm [.196 in] |

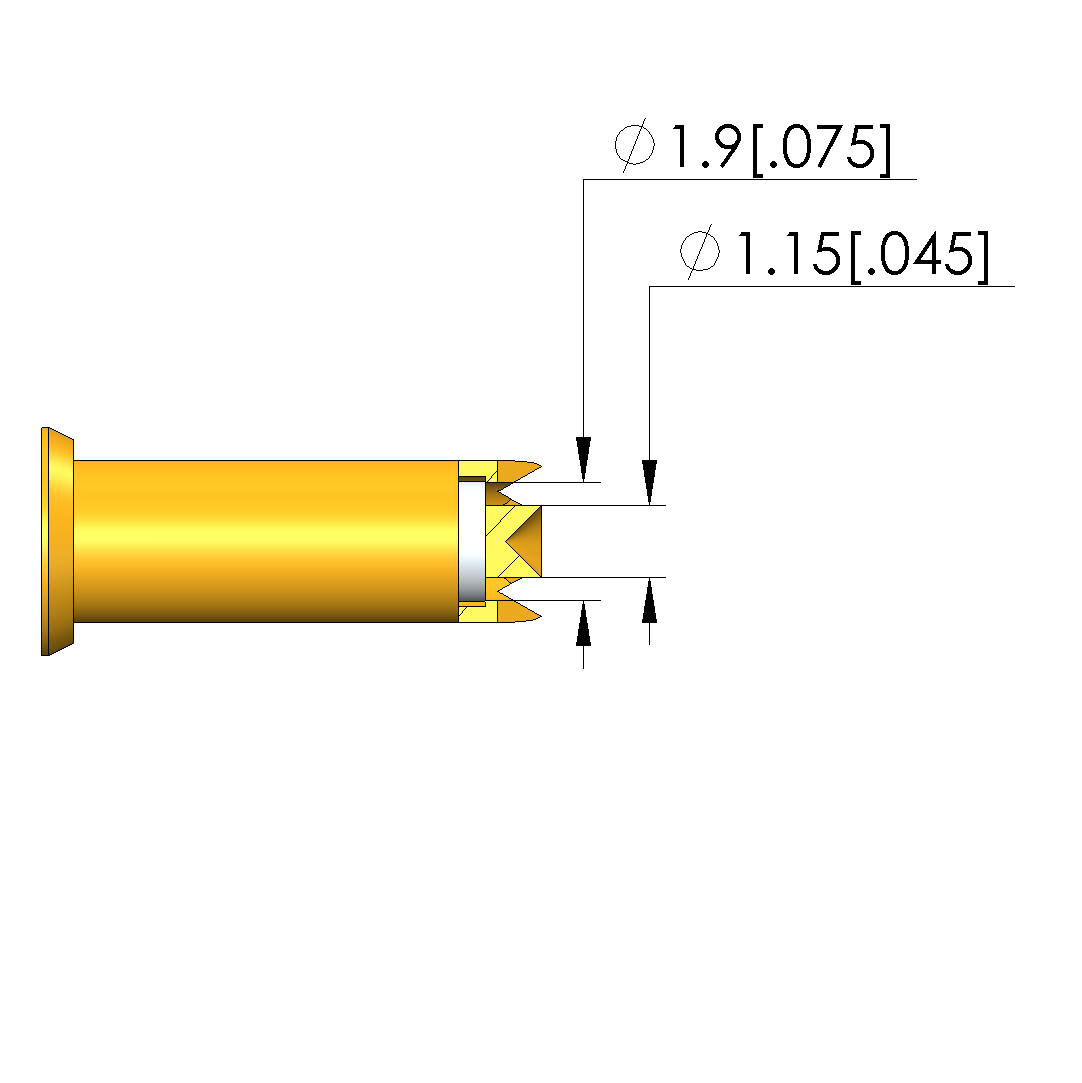

| Inner conductor tip style: | 03 inverse cone |
| Inner conductor tip style diameter: | 1.15 mm [.045 in] |
| Inner conductor tip style material: | 3 CuBe |
| Inner conductor tip style surface: | A gold |
| Inner conductor working stroke: | 4 mm [.157 in] |
| Installation height without receptacle: | 9.5 mm [.374 in] |
| Installation type: | Plug-in |
| Interface of compatible assembly: | SE-110 cable-plug assembly for HFS-110 |
| KS sub-series: | KS-110, screw-in version |
| Max. temperature: | 80 °C [176 °F] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Number of inner conductors: | 1 |
| Outer conductor max. current load capacity: | 3 A |
| Outer conductor maximum stroke: | 5 mm [.196 in] |

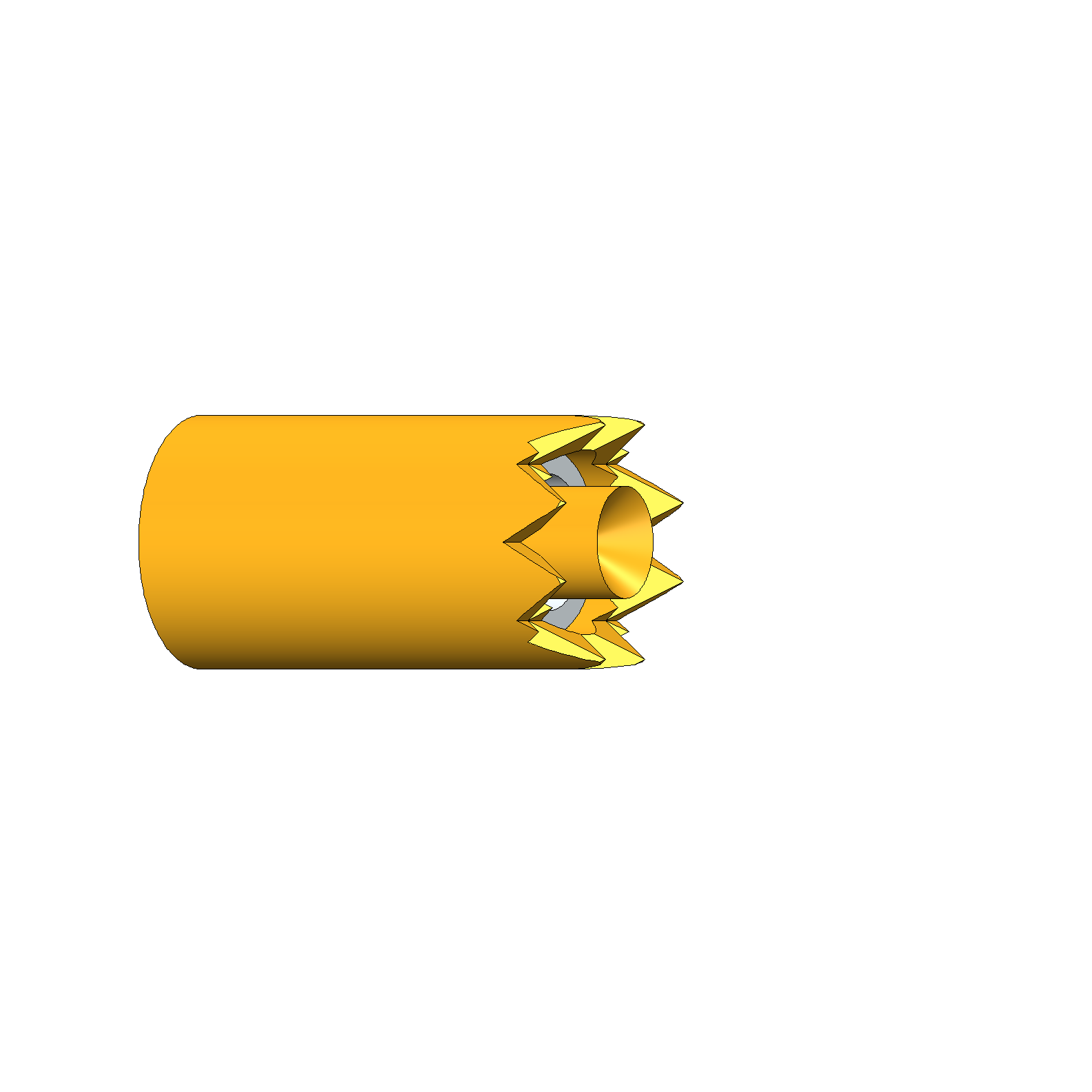

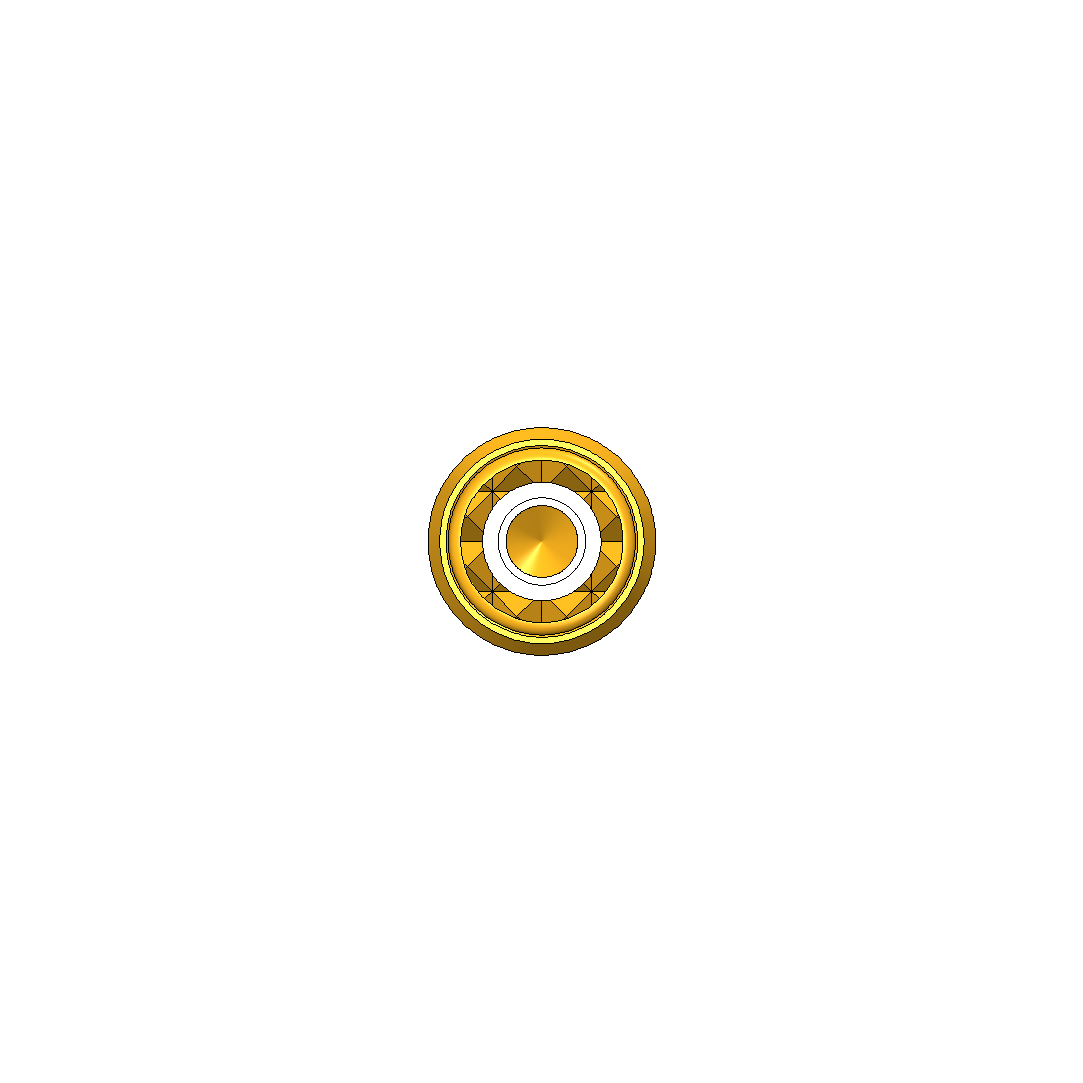

| Outer conductor tip style: | 06 serrated |
| Outer conductor tip style diameter: | 2.6 mm [.102 in] |
| Outer conductor working stroke: | 4 mm [.157 in] |
| Product group: | DPS dipole test probe |
| RoHS-compliant: | Yes |
| Series: | HFS-110 |
| Spring force of each inner conductor at working stroke: | 1.5 N [5.39 ozf] |
| Spring force of entire outer conductor at working stroke: | 3 N [10.7 ozf] |
| Sub-series: | HFS-110 A connection for connector |
| Total length: | 35 mm [1.37 in] |
| Total spring force at working stroke: | 4.5 N [16.1 ozf] |
Login
Product Details
- Test probe for low frequency range or four-pole (kelvin) measurement
- For simple, price-sensitive applications
- Up to 700 mhz
- Interface plug: SE-110
- Receptacle: KS-110
Other products in this series:
Technical data
General data
- Installation type: Plug-in
- DUT / contact: PCB coax pin, closed
- Max. temperature: 80 °C [176 °F]
- Continuous plunger: No
- Grid: 4.5 mm [177 mil]
- Product group: DPS dipole test probe
- Interface of compatible assembly: SE-110 cable-plug assembly for HFS-110
- Non-rotating: No
- KS sub-series: KS-110, screw-in version
- Floating mount: No
- Series: HFS-110
- Compatible assembly interface gender : M signal conductor male / pin
- RoHS-compliant: Yes
- Min. temperature: -40 °C [-40 °F]
- Sub-series: HFS-110 A connection for connector
Inner conductor data
- Spring force of each inner conductor at working stroke: 1.5 N [5.39 ozf]
- Number of inner conductors: 1
- Inner conductor tip style diameter: 1.15 mm [.045 in]
- Inner conductor tip style material: 3 CuBe
- Inner conductor tip style surface: A gold
- Inner conductor maximum stroke: 5 mm [.196 in]
- Exchangeable inner conductor: No
- Inner conductor working stroke: 4 mm [.157 in]
- Inner conductor max. current load capacity: 3 A
- Inner conductor tip style: 03 inverse cone
Outer conductor data
- Exchangeable outer conductor: No
- Outer conductor tip style diameter: 2.6 mm [.102 in]
- Outer conductor maximum stroke: 5 mm [.196 in]
- Outer conductor max. current load capacity: 3 A
- Outer conductor tip style: 06 serrated
- Outer conductor working stroke: 4 mm [.157 in]
- Spring force of entire outer conductor at working stroke: 3 N [10.7 ozf]

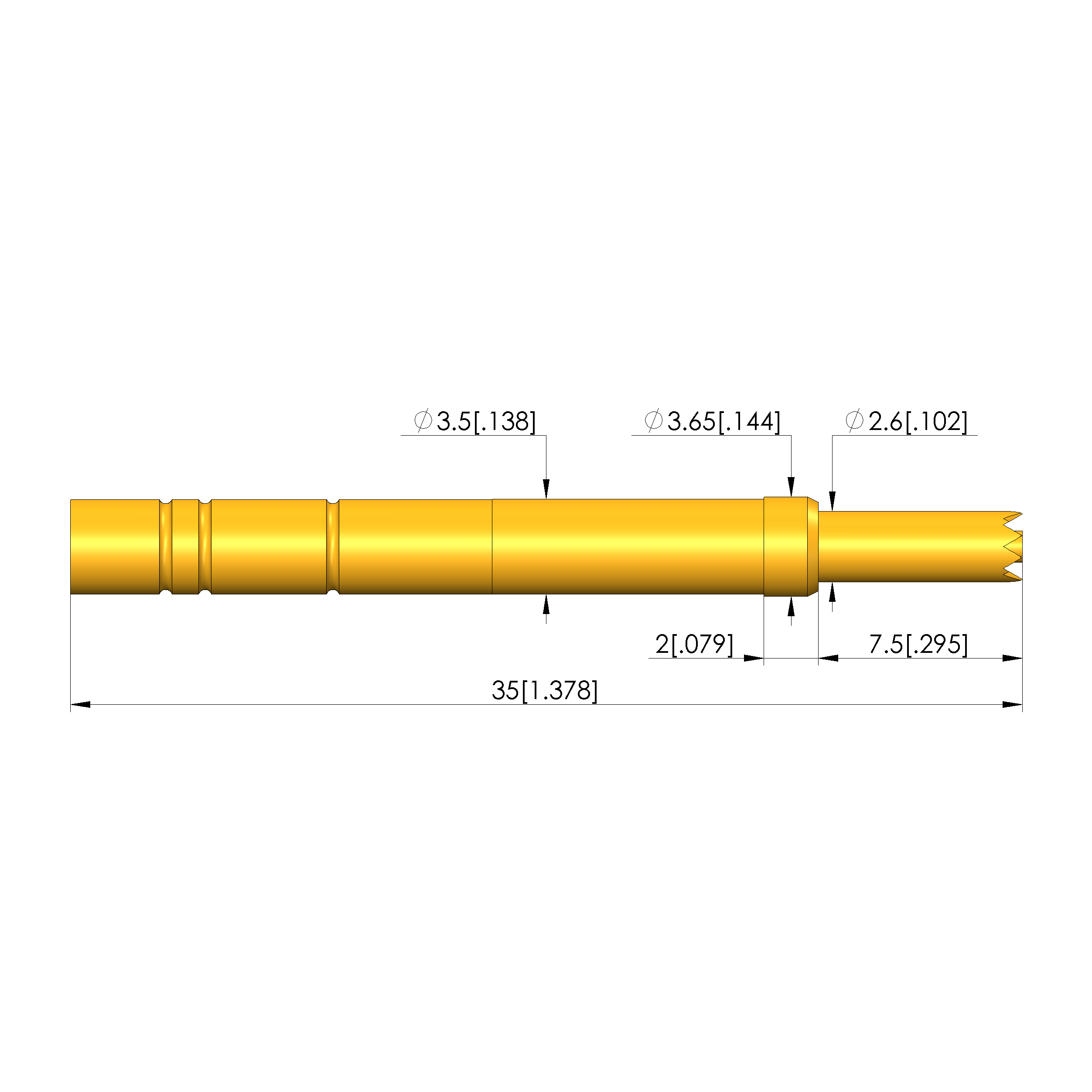

Mechanical data
- Installation height without receptacle: 9.5 mm [.374 in]
- Total length: 35 mm [1.37 in]
- Total spring force at working stroke: 4.5 N [16.1 ozf]
- Barrel diameter: 3.5 mm [.137 in]
Electrical data
- Frequency range up to: .7 GHz
- Dielectric strength: 1.1 kV
- Impedance: 50 Ohm
