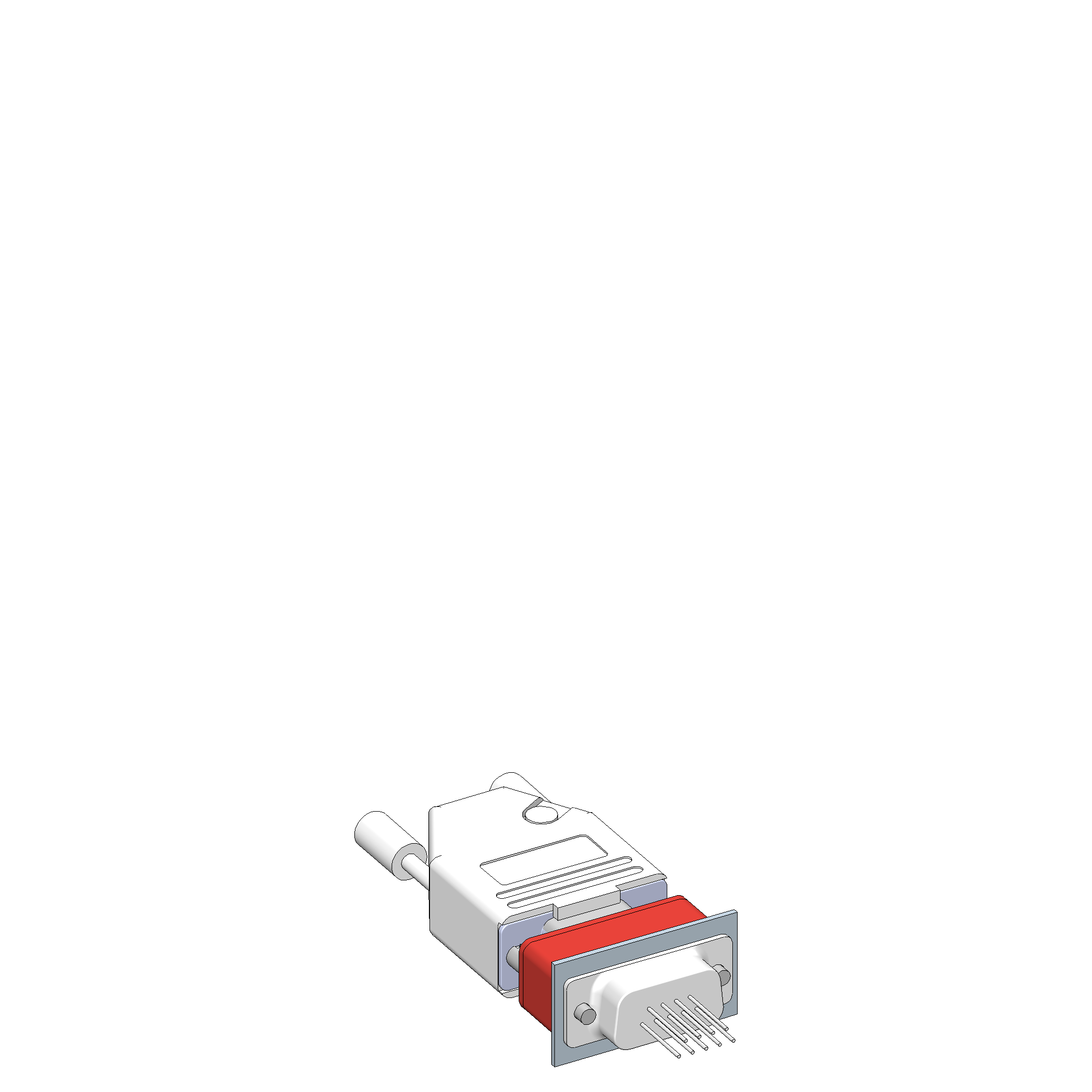

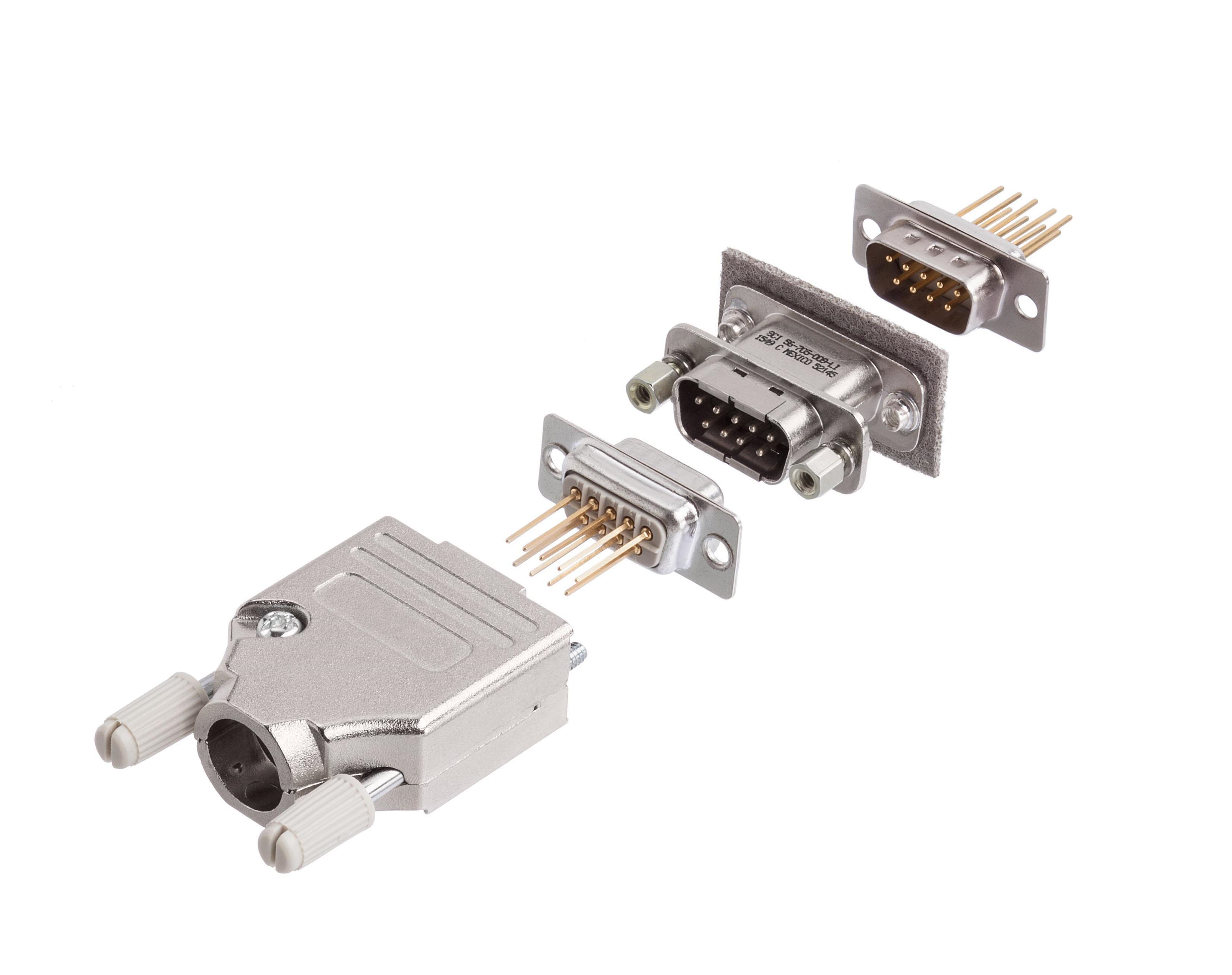

Product information "HF-U-SUBD-09-100pF-WW"
- EMC-compliant radio-frequency transfers for connecting highly sensitive PCBs to the measuring system, from and into the shielding area
- Interference-free transmission of bus and HSD signals up to 150 Mbps
- Capacity 100 pF
- 200 mating cycles
| Accessory type: | Customising accessories |
|---|---|
| Capacity: | 100 pF |
| Connection: | Wire-wrap posts |
| Contact resistance: | 10 mOhm |
| Exchangeable kits version: | HF |
| MA exchangeable kits (ATS MA): | ATS MAxx/HF/AL/ESD |
| Max. current: | 7.5 A |
| Max. temperature: | 125 °C [257 °F] |
| Max. voltage: | 100 VDC |
| Min. temperature: | -55 °C [-67 °F] |
| Number of poles: | 9 |
| Product group: | RF accessories |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | HF-U |
| Type: | RF transfer |
| Version: | D-sub plug connector |
| Weight: | 0.02 kg [.044 lbs] |
Login
Product Details
- EMC-compliant radio-frequency transfers for connecting highly sensitive PCBs to the measuring system, from and into the shielding area
- Interference-free transmission of bus and HSD signals up to 150 Mbps
- Capacity 100 pF
- 200 mating cycles
Other products in this series:
Technical data
General data
- Series: HF-U
- Accessory type: Customising accessories
- Scope of delivery: Unassembled
- Type: RF transfer
- Version: D-sub plug connector
- Max. temperature: 125 °C [257 °F]
- Product group: RF accessories
- RoHS-compliant: Yes
- Weight: 0.02 kg [.044 lbs]
- Min. temperature: -55 °C [-67 °F]
Compatible with
- MA exchangeable kits (ATS MA): ATS MAxx/HF/AL/ESD
- Exchangeable kits version: HF

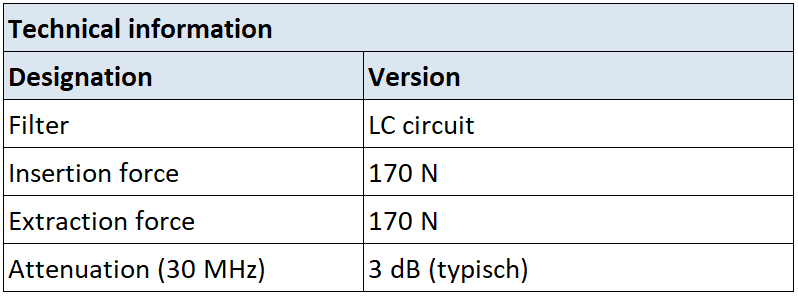

Technical data
- Connection: Wire-wrap posts
- Max. voltage: 100 VDC
- Capacity: 100 pF
- Max. current: 7.5 A
- Contact resistance: 10 mOhm
- Number of poles: 9
