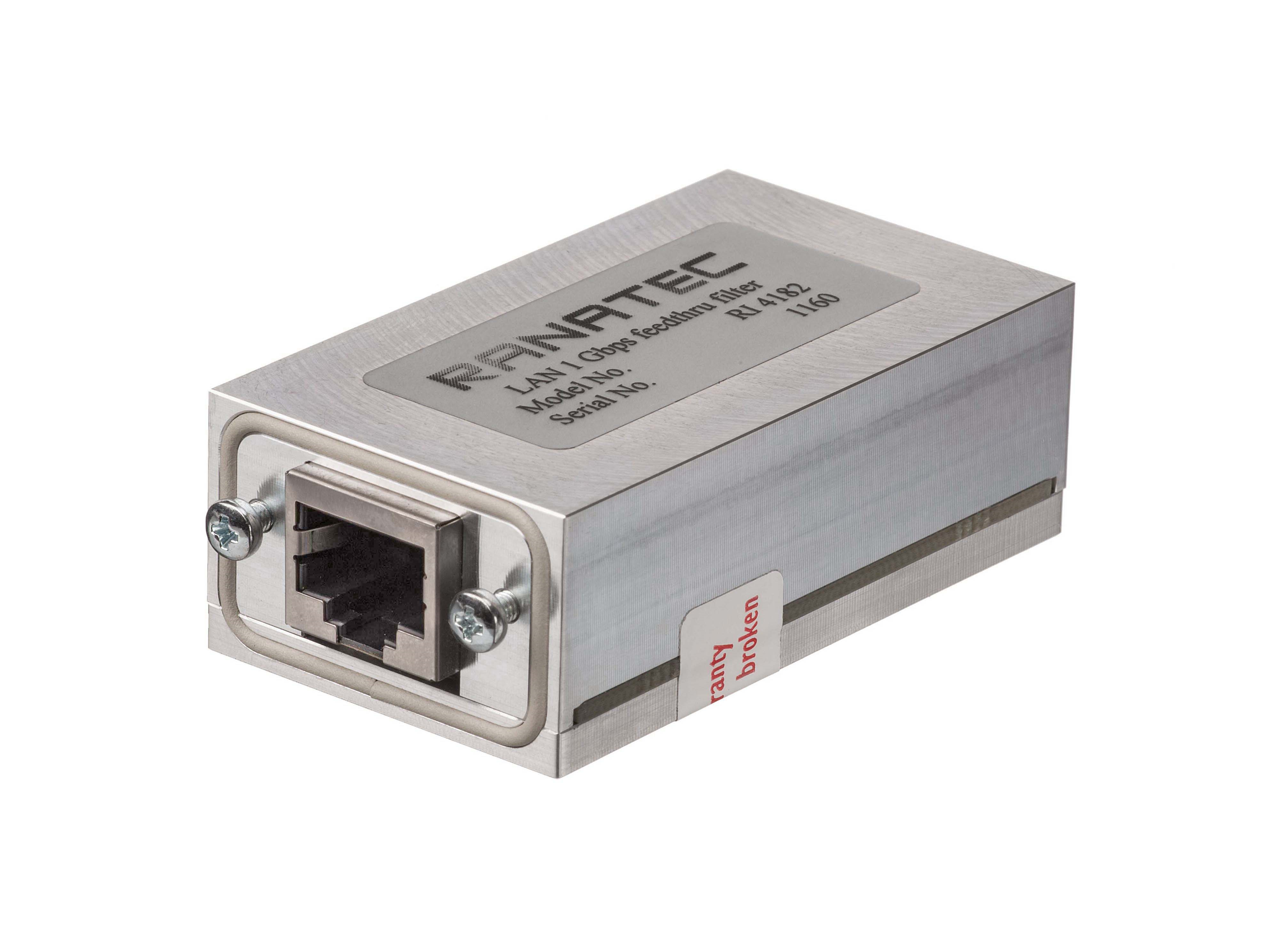

Product information "HF-U-RJ45-LAN1000-F-F-SF"
- EMC-compliant radio-frequency transfers for connecting highly sensitive PCBs to the measuring system, from and into the shielding area
- Interference-free transmission of LAN signals
- Power over Ethernet (PoE) compatible
| Accessory type: | Customising accessories |
|---|---|
| Connection: | RJ45 plug |
| Exchangeable kits version: | HF |
| Gross data rate: | 1 Gbit/s |
| Height: | 22 mm [.866 in] |
| Length: | 69 mm [2.71 in] |
| MA exchangeable kits (ATS MA): | ATS MAxx/HF/AL/ESD |
| Max. current: | .4 A |
| Max. temperature: | 60 °C [140 °F] |
| Max. voltage: | 50 VDC |
| Min. temperature: | 10 °C [50 °F] |
| Number of poles: | 1 |

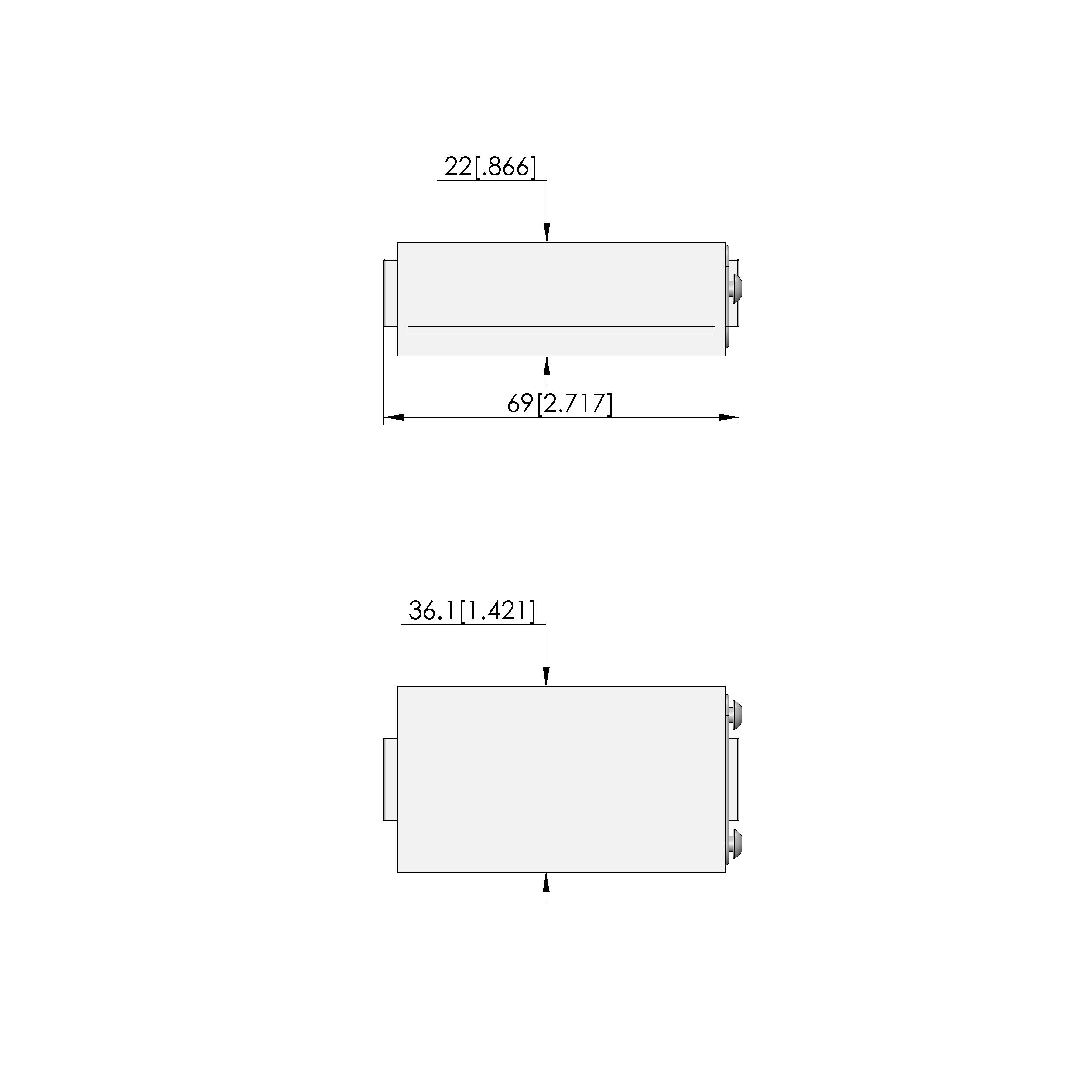

| Outer dimensionS (WxDxH): | 36.1 x 69 x 22 mm [1.42 x 2.71 x .866 in] |
| Product group: | RF accessories |
| RoHS-compliant: | Yes |
| Series: | HF-U |
| Type: | RF transfer |
| Version: | LAN filter |
| Weight: | 0.02 kg [.044 lbs] |
| Width: | 36.1 mm [1.42 in] |
Login
Product Details
- EMC-compliant radio-frequency transfers for connecting highly sensitive PCBs to the measuring system, from and into the shielding area
- Interference-free transmission of LAN signals
- Power over Ethernet (PoE) compatible
Other products in this series:
Technical data
Technical data
- Max. current: .4 A
- Gross data rate: 1 Gbit/s
- Number of poles: 1
- Max. voltage: 50 VDC
- Outer dimensionS (WxDxH): 36.1 x 69 x 22 mm [1.42 x 2.71 x .866 in]
- Connection: RJ45 plug
- Length: 69 mm [2.71 in]
General data
- Max. temperature: 60 °C [140 °F]
- Series: HF-U
- Accessory type: Customising accessories
- Type: RF transfer
- Version: LAN filter
- Height: 22 mm [.866 in]
- Min. temperature: 10 °C [50 °F]
- Product group: RF accessories
- RoHS-compliant: Yes
- Weight: 0.02 kg [.044 lbs]
- Width: 36.1 mm [1.42 in]
Compatible with
- MA exchangeable kits (ATS MA): ATS MAxx/HF/AL/ESD
- Exchangeable kits version: HF
