Product details

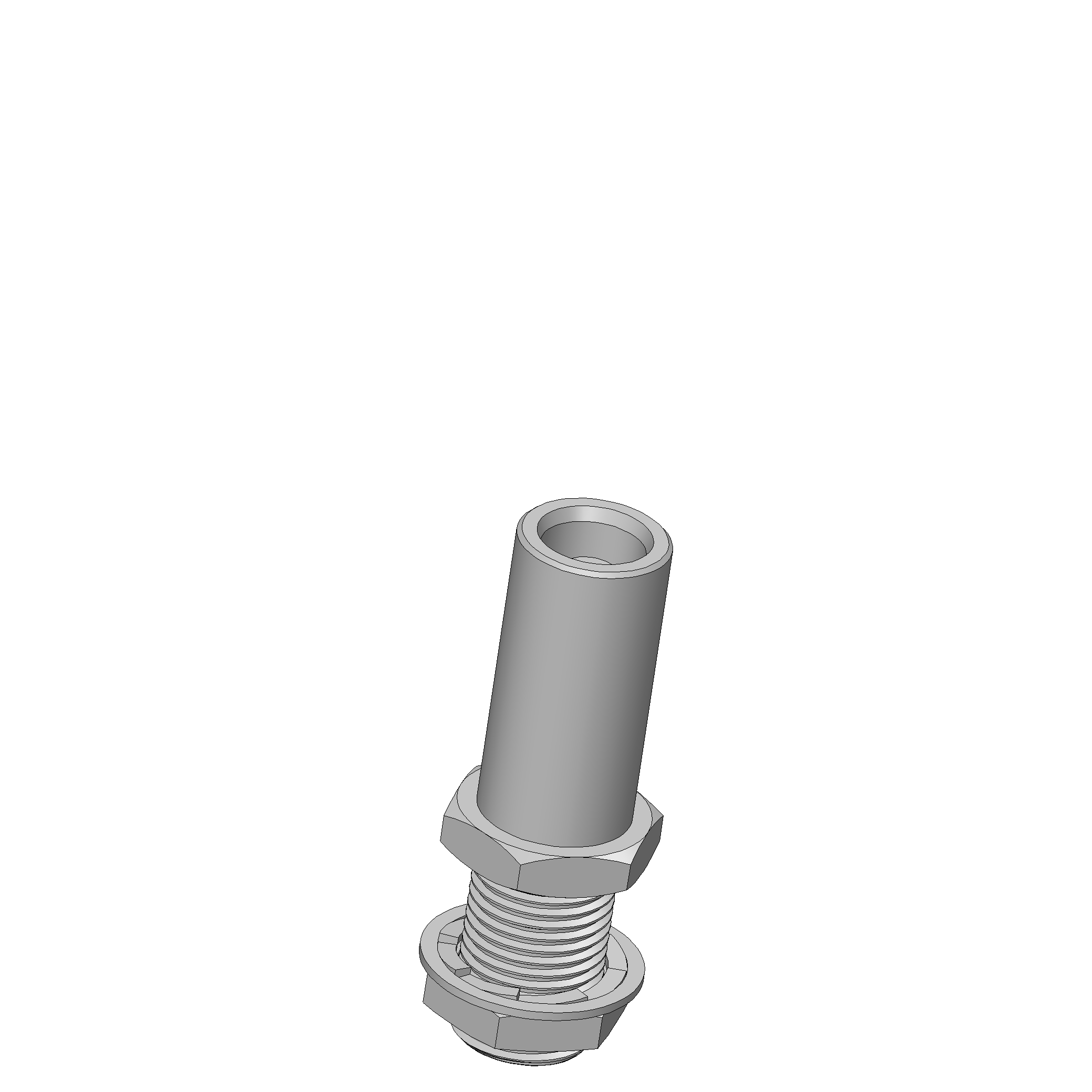

  • EMC-compliant radio-frequency transfers for connecting highly sensitive PCBs to the measuring system, from and into the shielding area
  • Interference-free transmission of radio-frequency signals
  • 500 mating cycles

Other products in this series:

Technical data
  • Product group: RF accessories
  • Series: HF-U
  • Type: RF transfer
  • Version: MCX plug connector
  • Accessory type: Customising accessories
  • Weight: 0.01 kg [.022 lbs]
  • Min. temperature: -55 °C [-67 °F]
  • Max. temperature: 155 °C [311 °F]
  • RoHS-compliant: yes
  • Exchangeable kits version: HF
  • MA exchangeable kits (ATS MA): ATS MAxx/HF/AL/ESD

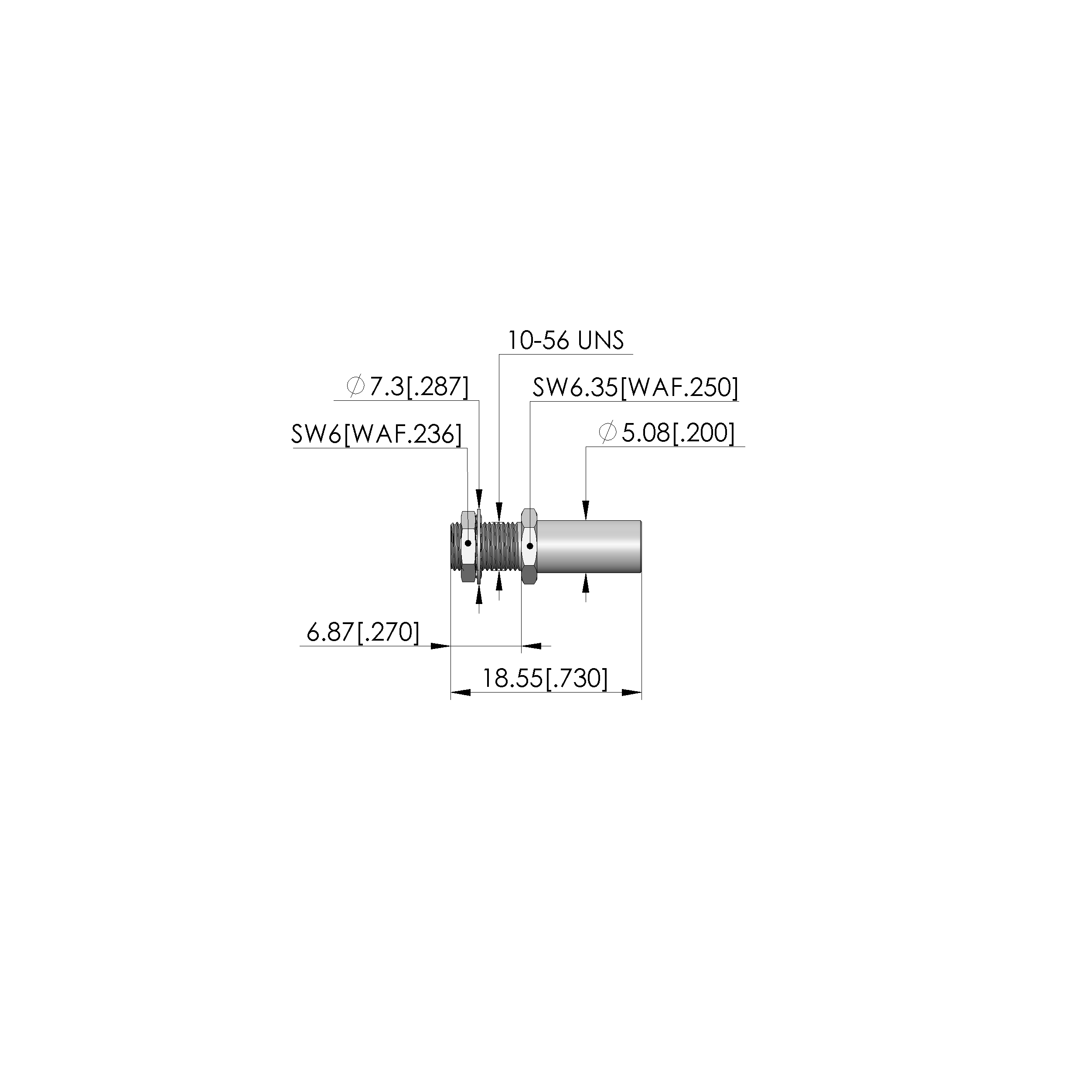

  • Connection: 10-56 UNS
  • Tip diameter: 5.1 mm [0.2 in]
  • Number of poles: 1
  • Frequency up to: 6 GHz
  • Length: 18.6 mm [.732 in]
  • Diameter: 7.3 mm [.287 in]
  • Impedance: 50 Ohm
