Product information "HF-A-7,5GHz-ATSMA14/HF/AL"

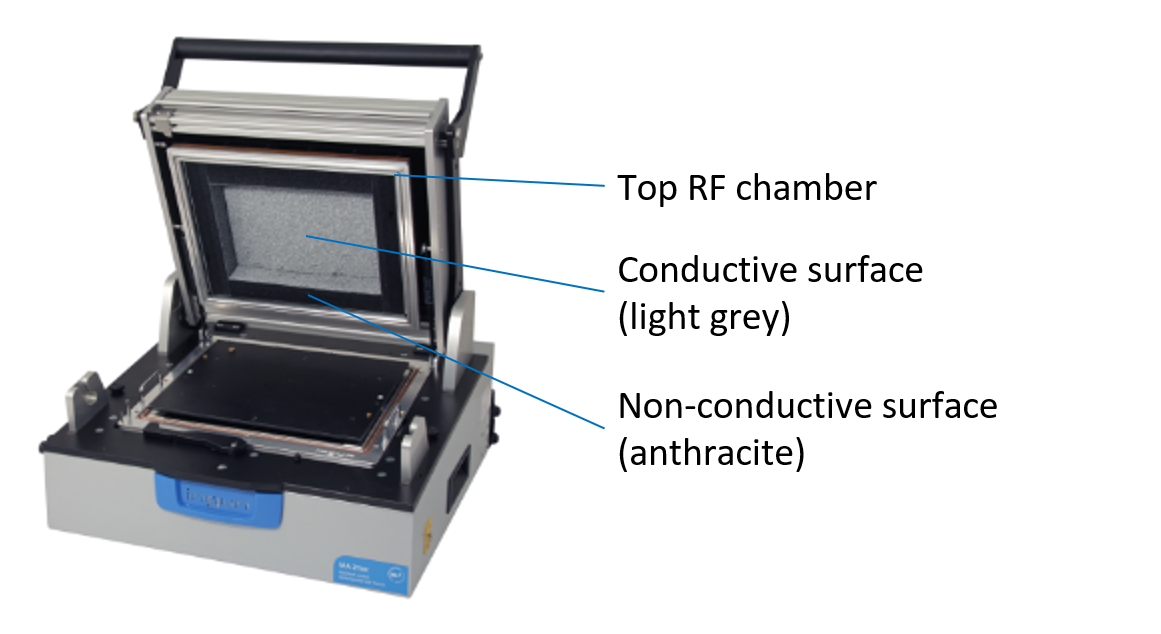

- RF absorber for radio-frequency exchangeable kit for setting up an interference-free, internal radio network
- Reliable prevention of unwanted reflections of radio signals within the radio-frequency chamber
| Accessory type: | Customising accessories |
|---|---|
| Exchangeable kits version: | HF, ESD |
| Free space above PCB: | 49 mm [1.92 in] |
| Frequency up to: | 7.5 GHz |
| MA exchangeable kits (ATS MA): | ATS MA14(/S-10)/HF/AL/ESD |
| Material: | RF plastic foam |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 546 x 292 x 195 mm [21.4 x 11.4 x 7.67 in] |
| Product group: | RF accessories |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | HF-A |
| Type: | RF absorber set |
| Useable area (WxD): | 476 x 240 mm [18.7 x 9.44 in] |
| Version: | RF exchangeable kit ATS MA14/HF |
| Weight: | 0.8 kg [1.76 lbs] |
Login
Product Details
- RF absorber for radio-frequency exchangeable kit for setting up an interference-free, internal radio network
- Reliable prevention of unwanted reflections of radio signals within the radio-frequency chamber
Other products in this series:
Technical data
General data
- Material: RF plastic foam
- Max. temperature: 60 °C [140 °F]
- Accessory type: Customising accessories
- Scope of delivery: Unassembled
- Weight: 0.8 kg [1.76 lbs]
- Min. temperature: 10 °C [50 °F]
- Product group: RF accessories
- RoHS-compliant: Yes
- Series: HF-A
- Version: RF exchangeable kit ATS MA14/HF
- Type: RF absorber set
Technical data
- Useable area (WxD): 476 x 240 mm [18.7 x 9.44 in]
- Frequency up to: 7.5 GHz
- Outer dimensionS (WxDxH): 546 x 292 x 195 mm [21.4 x 11.4 x 7.67 in]
- Free space above PCB: 49 mm [1.92 in]
Compatible with
- MA exchangeable kits (ATS MA): ATS MA14(/S-10)/HF/AL/ESD
- Exchangeable kits version: HF, ESD
