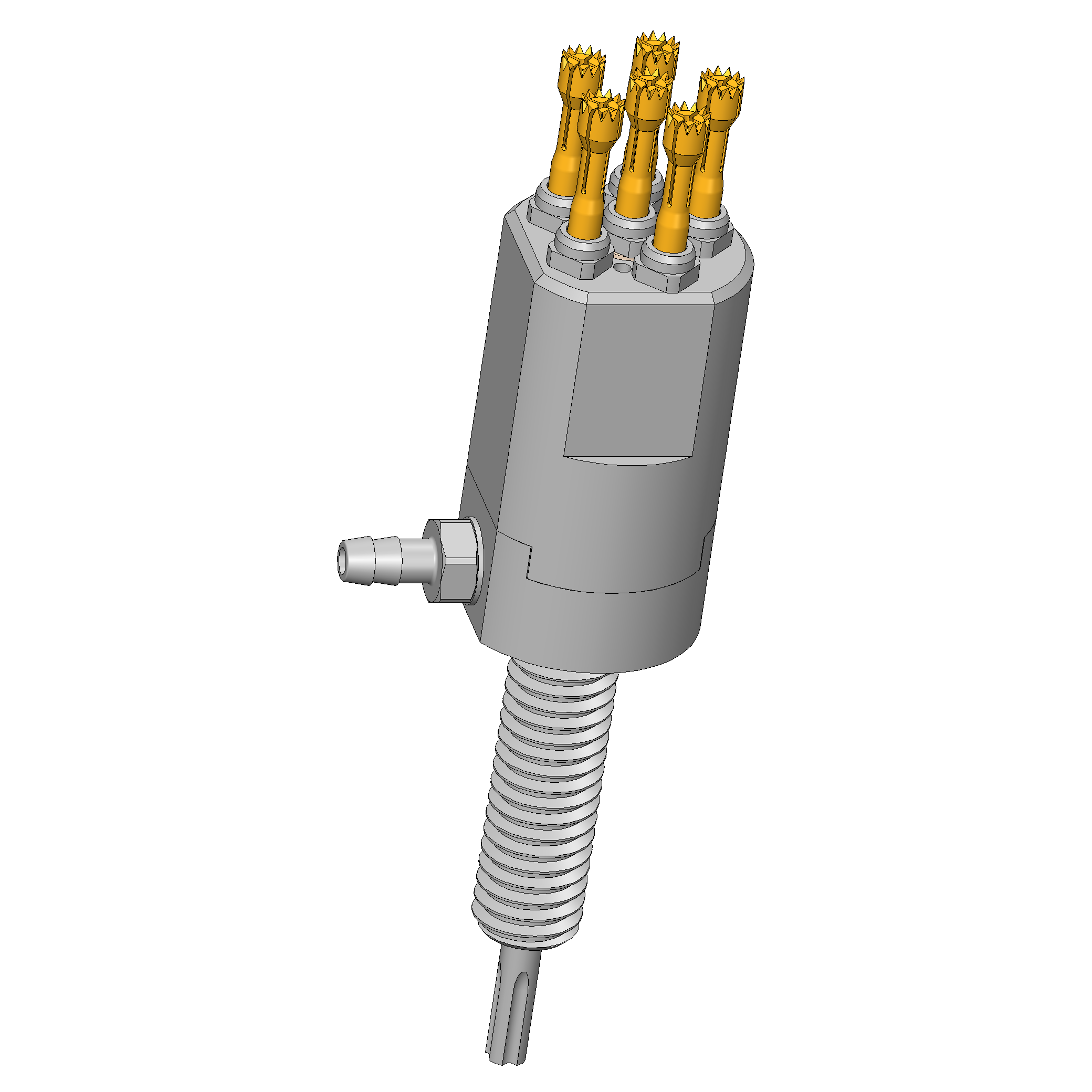

Product information "HCM-667-0012 C02-05000-02"
- Reliable contact of battery cells
- Modular design enables scalability of current transmission using well-established INGUN products
- Increase in maximum current transmission thanks to cooling feature

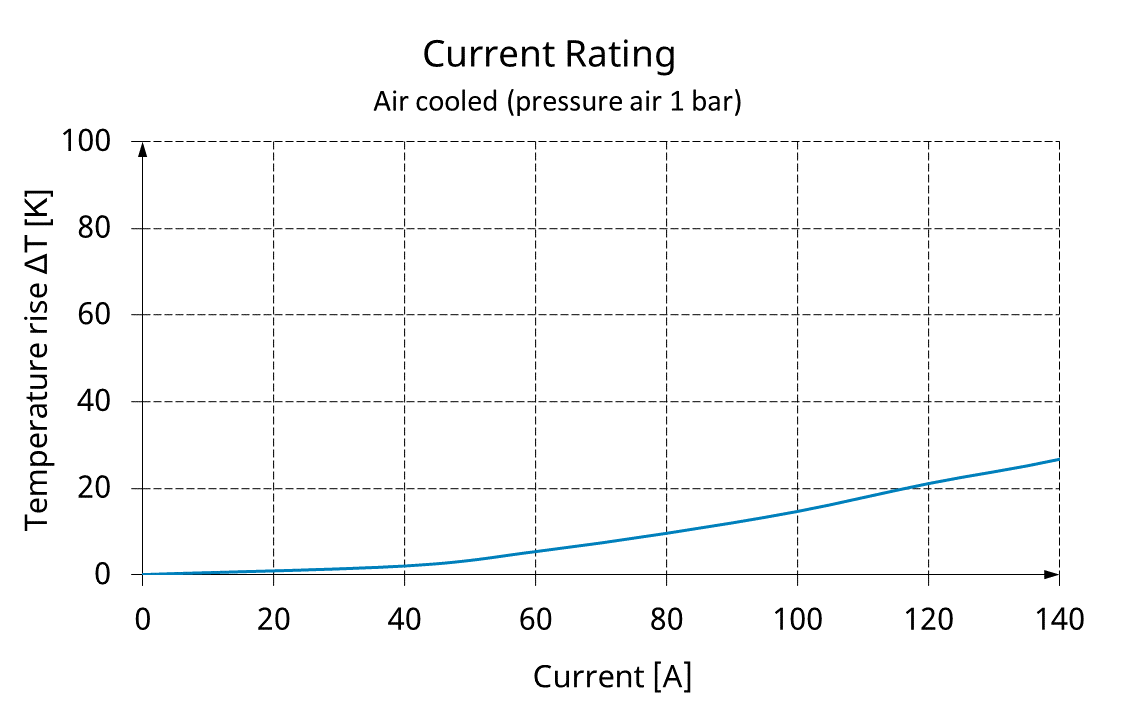

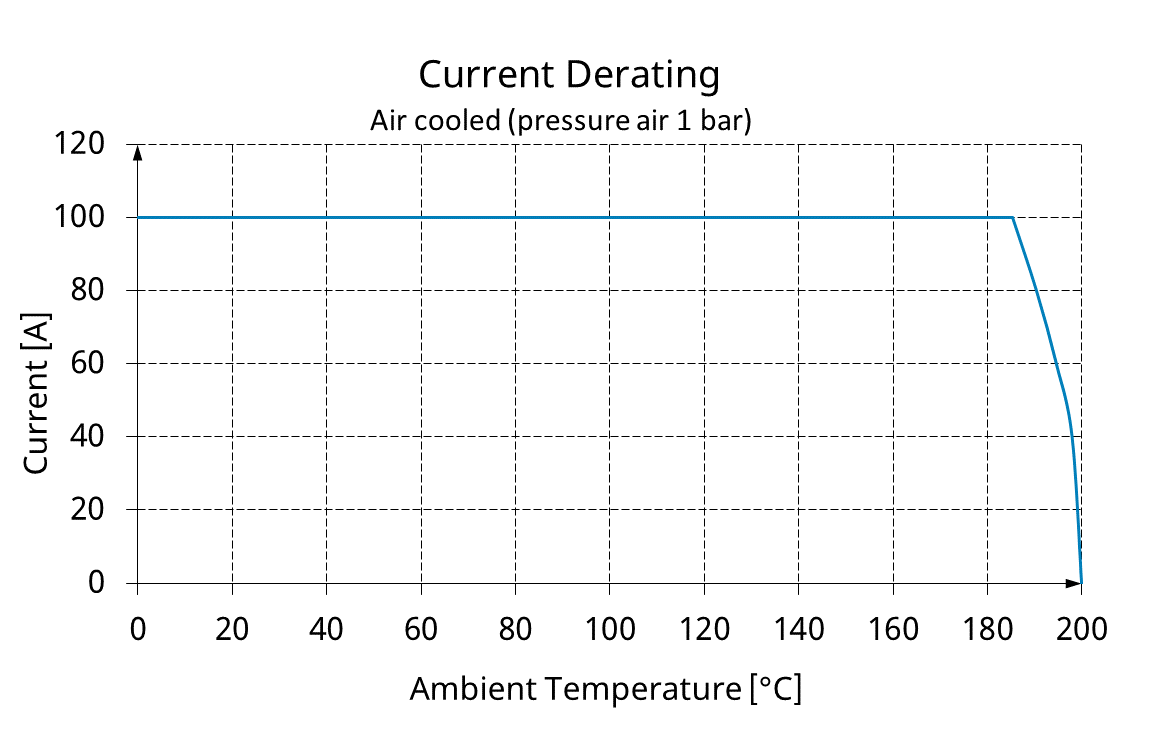

- Optional cooling of contact surface using GKS-667
- Voltage monitoring via a central sense contact probe possible
- Temperature measurement of contact surface using TKS-667 is an optional addition
- Easy installation in plate or busbar via the threaded connection

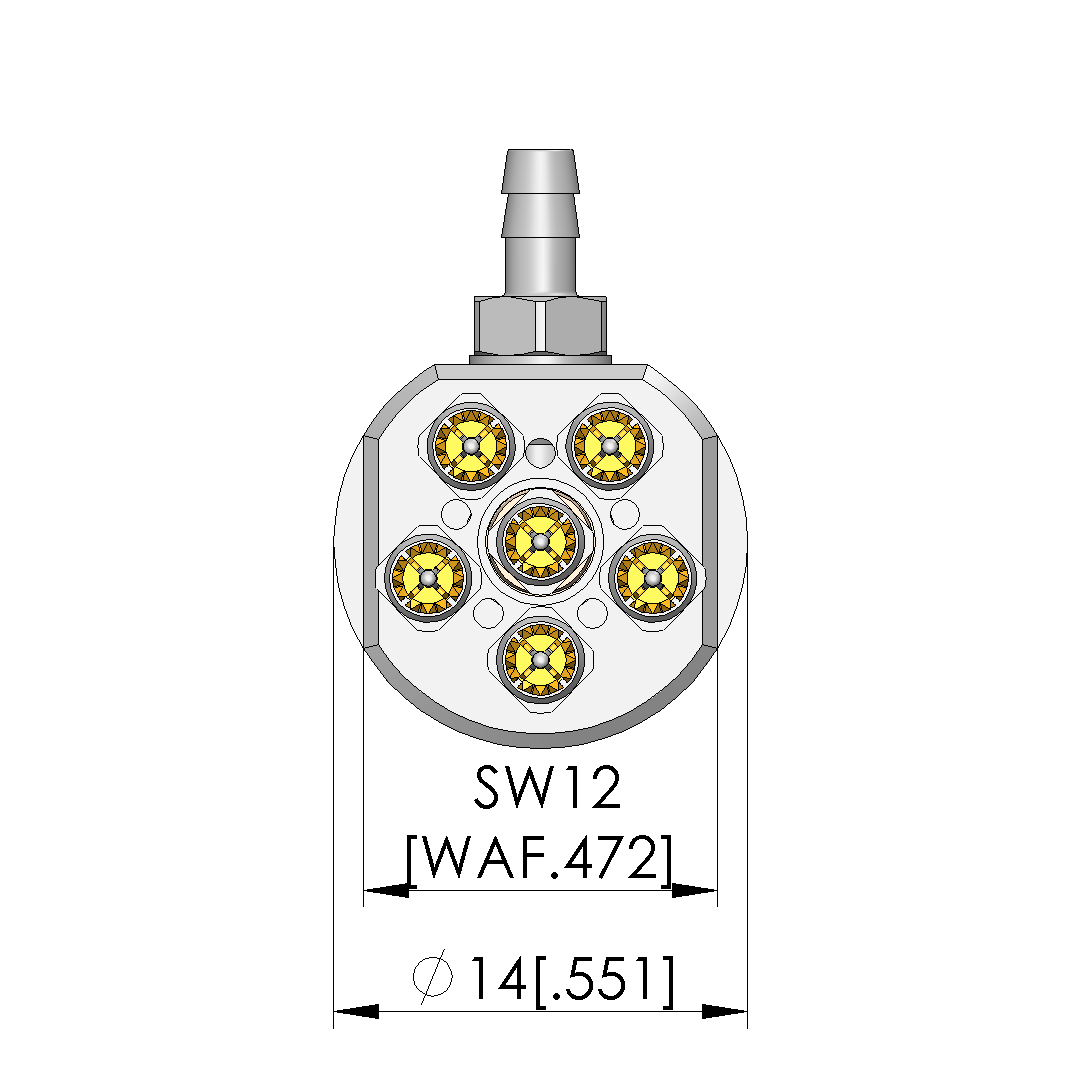

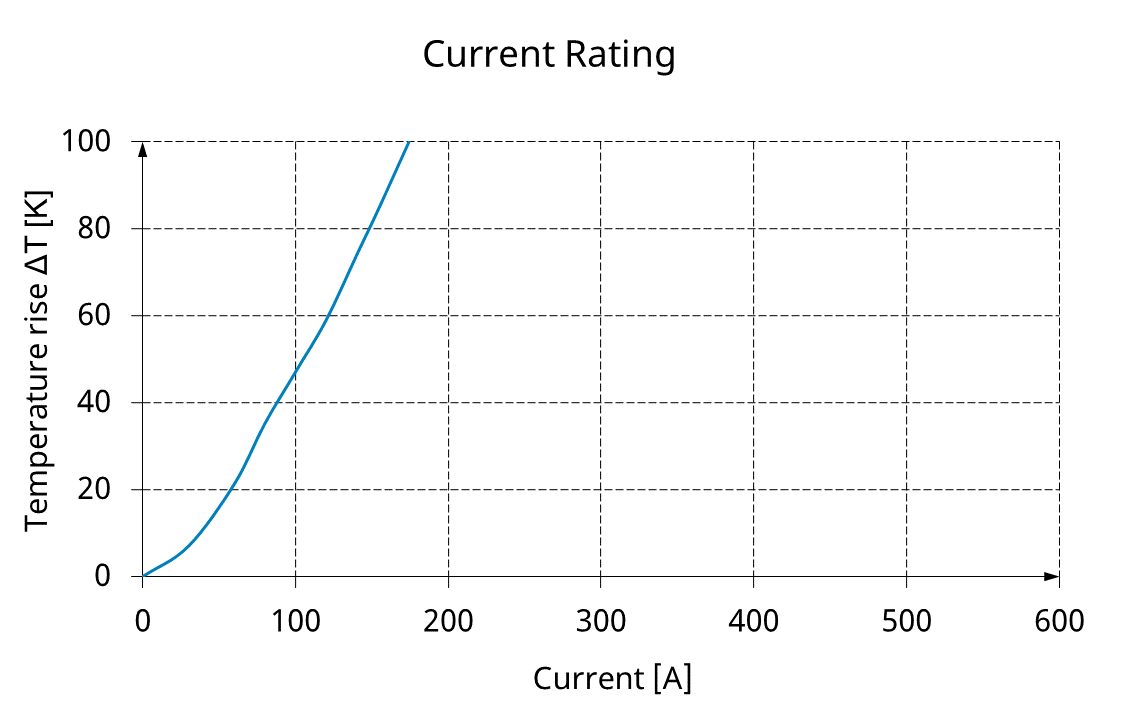

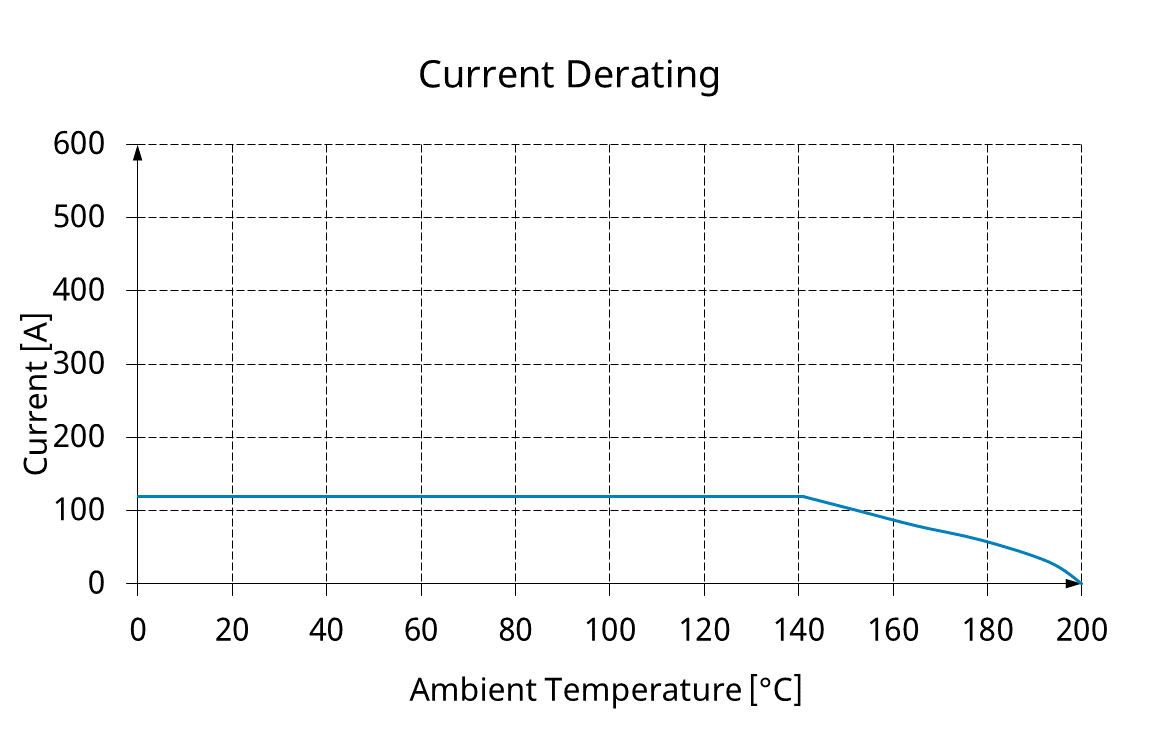

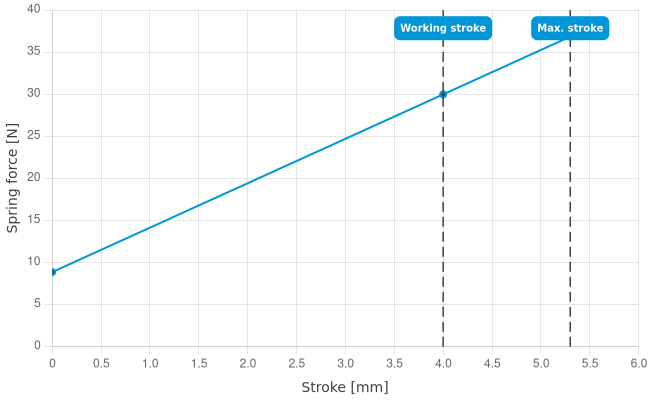

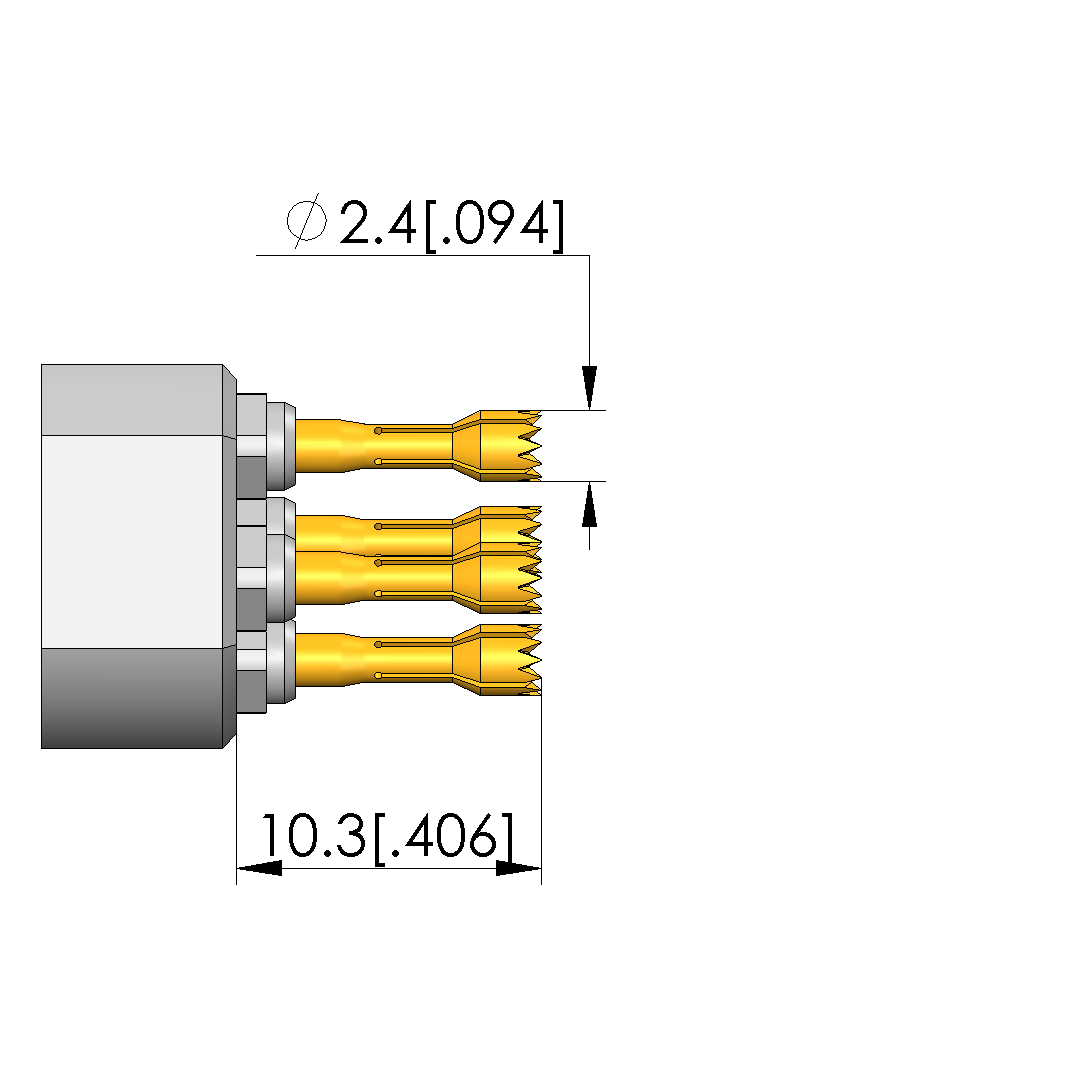

| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 14 mm [.551 in] |
| Contacting from: | - |
| Current load capacity / rated current: | 320 A |
| Grid: | 15 mm [590 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 200 °C [392 °F] |
| Maximum stroke: | 5.3 mm [.208 in] |
| Min. temperature: | -100 °C [-148 °F] |
| Non-rotating: | Yes |
| Product group: | High-current test probe, Standard HSS (screw-in) |
| Quick-exchange system: | No |
| RoHS-compliant: | Yes |
| Screw-in torque: | 60 cNm [5.31 lbf·in] |
| Screw-in torque max.: | 60 cNm [5.31 lbf·in] |
| Series: | HCM-667, HCM-667 M screw-in |
| Spring force at working stroke: | 30 N [107 ozf] |
| Spring pre-load: | 8.88 N [31.9 ozf] |
| Sub-product group: | Standard HSS (screw-in) |
| Tip diameter: | 2.4 mm [.094 in] |

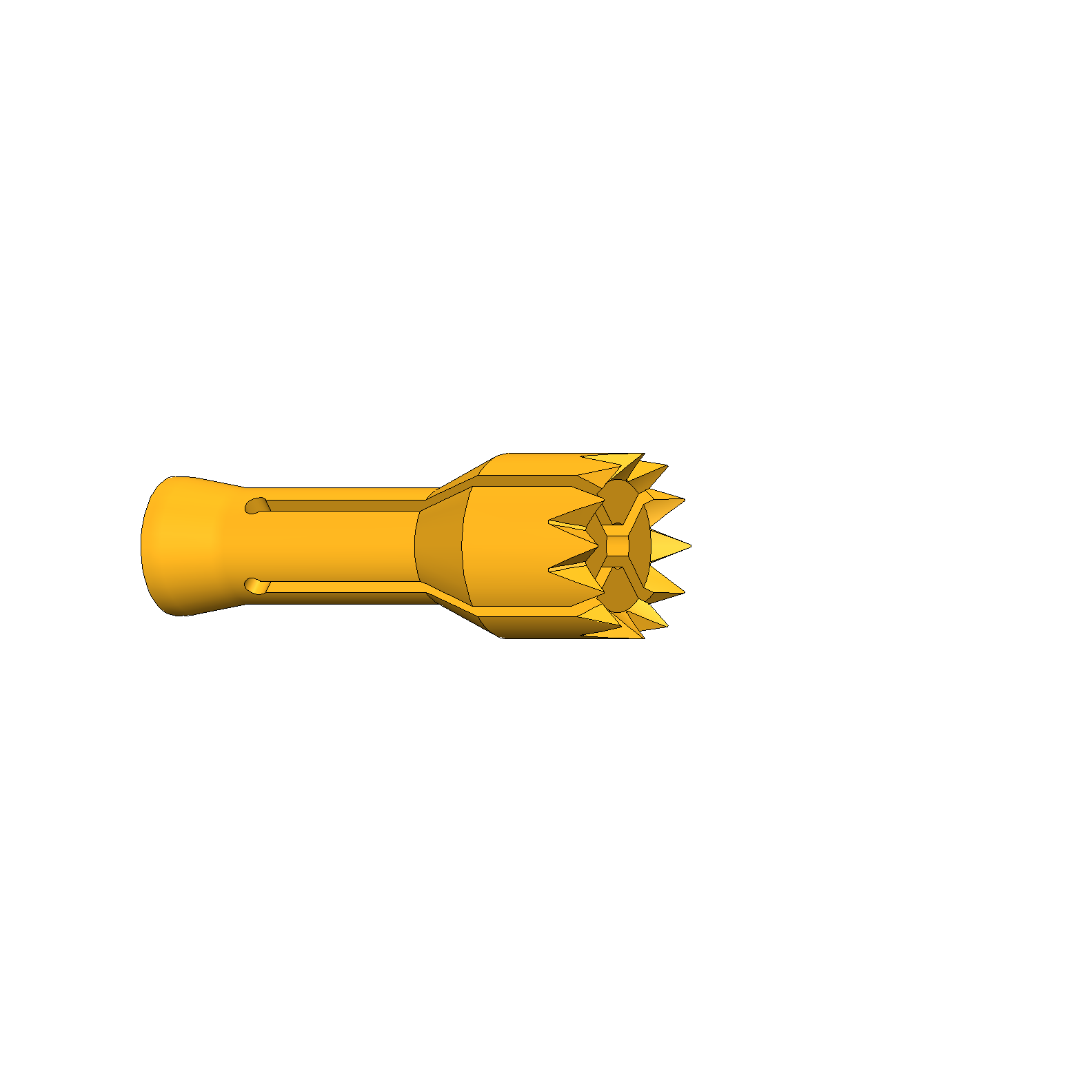

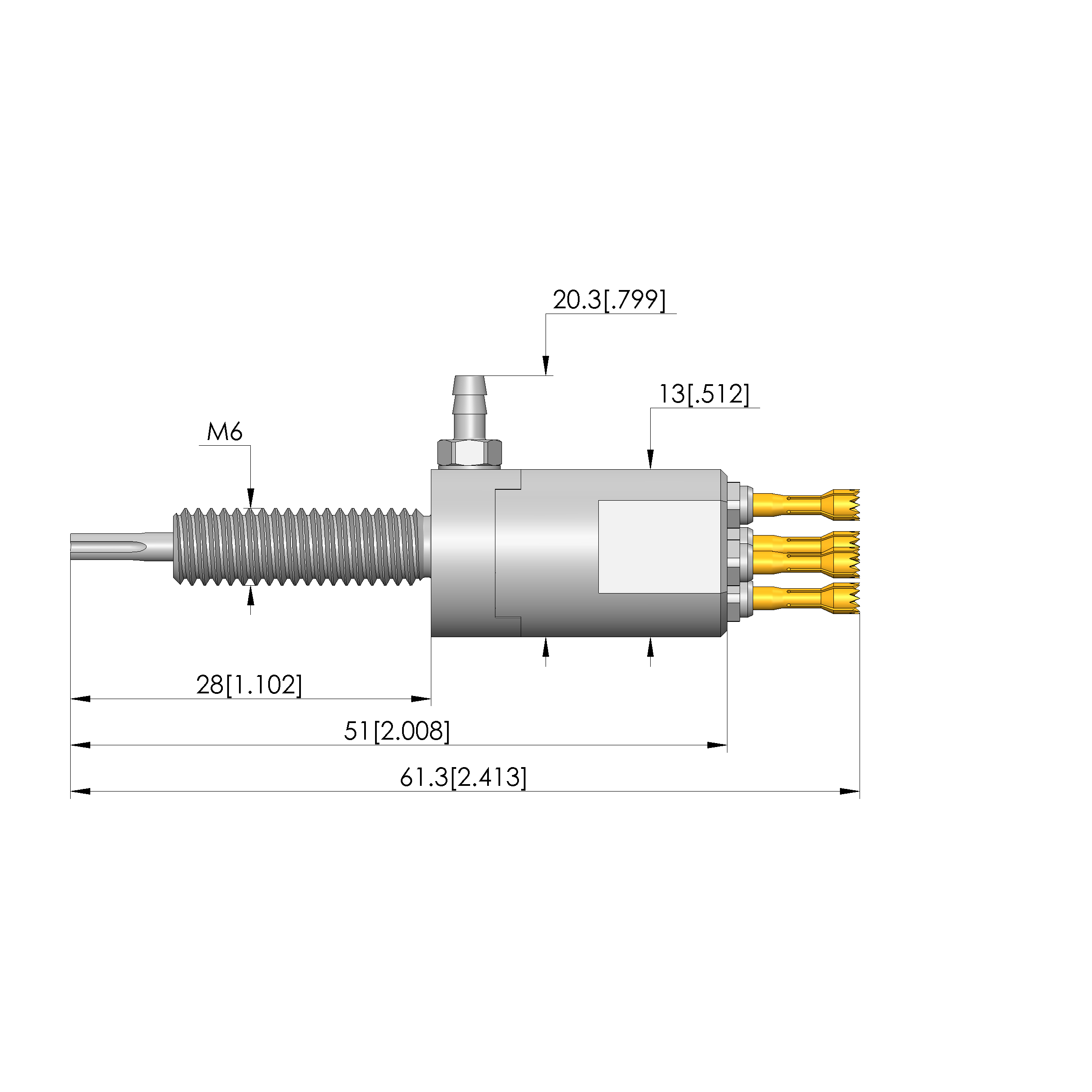

| Tip style: | 68 expanding tip with front-facing pionts/cutting edges |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 61.3 mm [2.41 in] |
| Type of test probe connection: | Thread connection |
| Typical resistance (Ri), connection on plunger: | 1 mOhm |
| Working stroke: | 4 mm [.157 in] |
