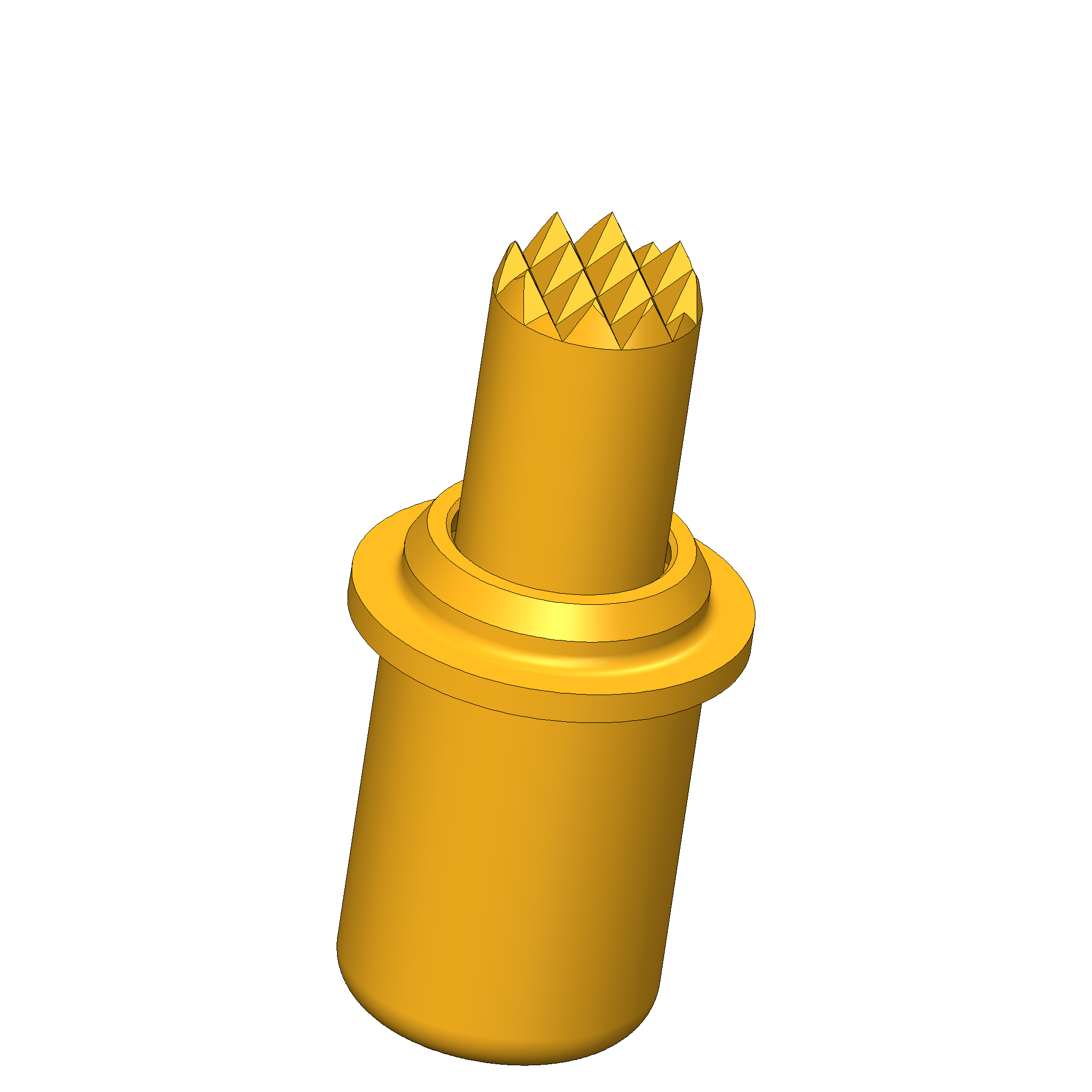

Product information "GKS-967 306 130 A 2001 G"
- Short-stroke probes ensure a reliable signal and power supply, as well as a quick exchange of assemblies in case of maintenance
- For the construction of easily separable electronic interfaces, such as in charging trays for electronic devices
- Particularly suitable for use in applications where space for overall length is limited
- Compensation of possible height and component tolerances
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 2 mm [.078 in] |
| Collar height: | 1 |
| Compatible receptacle(s): | KS-967, KS-967 25, KS-967 50 |
| Contacting from: | Flat contact, Post, Pin |
| Current load capacity / rated current: | 8 A |
| Grid: | 3 mm [118 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 200 °C [392 °F] |
| Maximum stroke: | 1.2 mm [.047 in] |
| Min. temperature: | -100 °C [-148 °F] |
| Non-rotating: | No |
| Product group: | Short stroke GKS / charge and transfer GKS, Assorted test probes |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Series: | GKS-967, GKS-967 G solderable version |
| Spring force at working stroke: | 2 N [7.19 ozf] |
| Spring pre-load: | 0.57 N [2.05 ozf] |
| Sub-product group: | Short stroke GKS / charge and transfer GKS |
| Tip diameter: | 1.3 mm [.051 in] |
| Tip style: | 06 serrated |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 5.3 mm [.208 in] |
| Typical resistance (Ri): | 100 mOhm |
| Working stroke: | 1 mm [.039 in] |
Login
Product Details
- Short-stroke probes ensure a reliable signal and power supply, as well as a quick exchange of assemblies in case of maintenance
- For the construction of easily separable electronic interfaces, such as in charging trays for electronic devices
- Particularly suitable for use in applications where space for overall length is limited
- Compensation of possible height and component tolerances
Other products in this series:
Technical data
General data
- Installation type: Plug-in
- Compatible receptacle(s): KS-967 50
- Max. temperature: 200 °C [392 °F]
- Min. temperature: -100 °C [-148 °F]
- Contacting from: Pin
- Non-rotating: No
- Product group: Short stroke GKS / charge and transfer GKS
- Series: GKS-967
- Adjustable installation height: No
- Grid: 3 mm [118 mil]
- Compatible receptacle(s): KS-967
- RoHS-compliant: Yes
- Product group: Assorted test probes
- Compatible receptacle(s): KS-967 25
- Quick-exchange system: Yes
- Contacting from: Flat contact
- Contacting from: Post
- Series: GKS-967 G solderable version
- Magnetic: Yes
- Sub-product group: Short stroke GKS / charge and transfer GKS

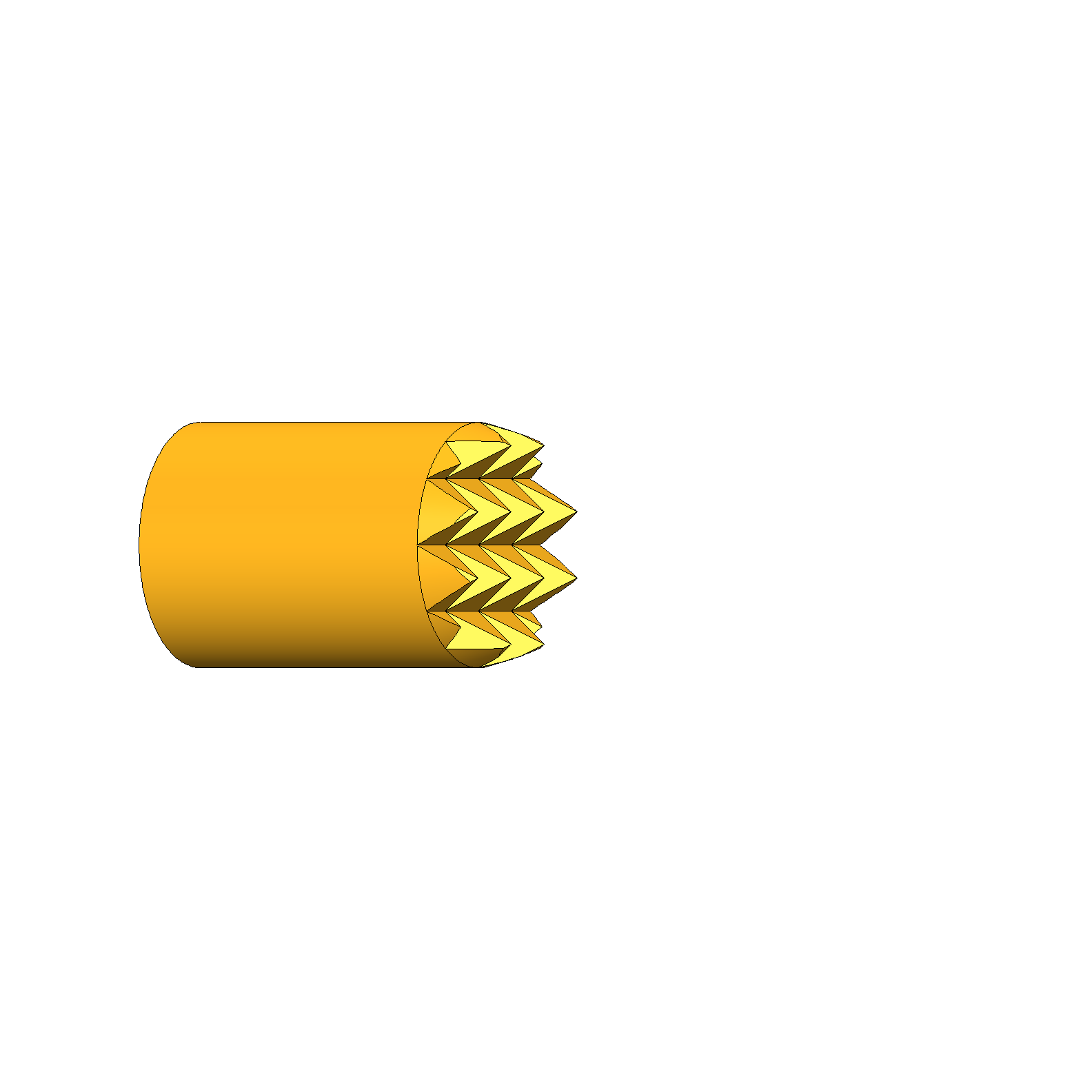

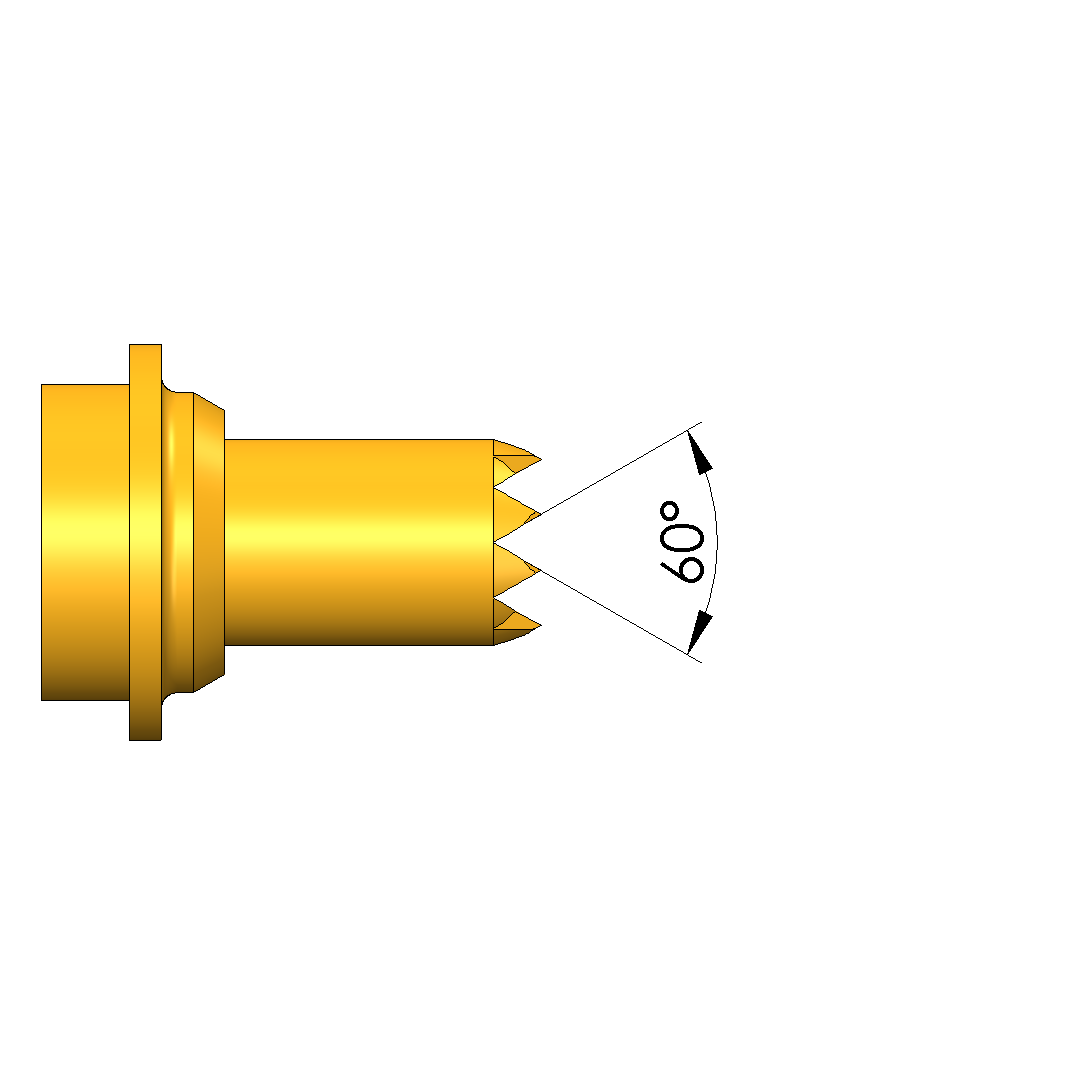

Tip style data
- Tip style: 06 serrated
- Tip style material: 3 CuBe
- Tip diameter: 1.3 mm [.051 in]
- Tip style surface: A gold

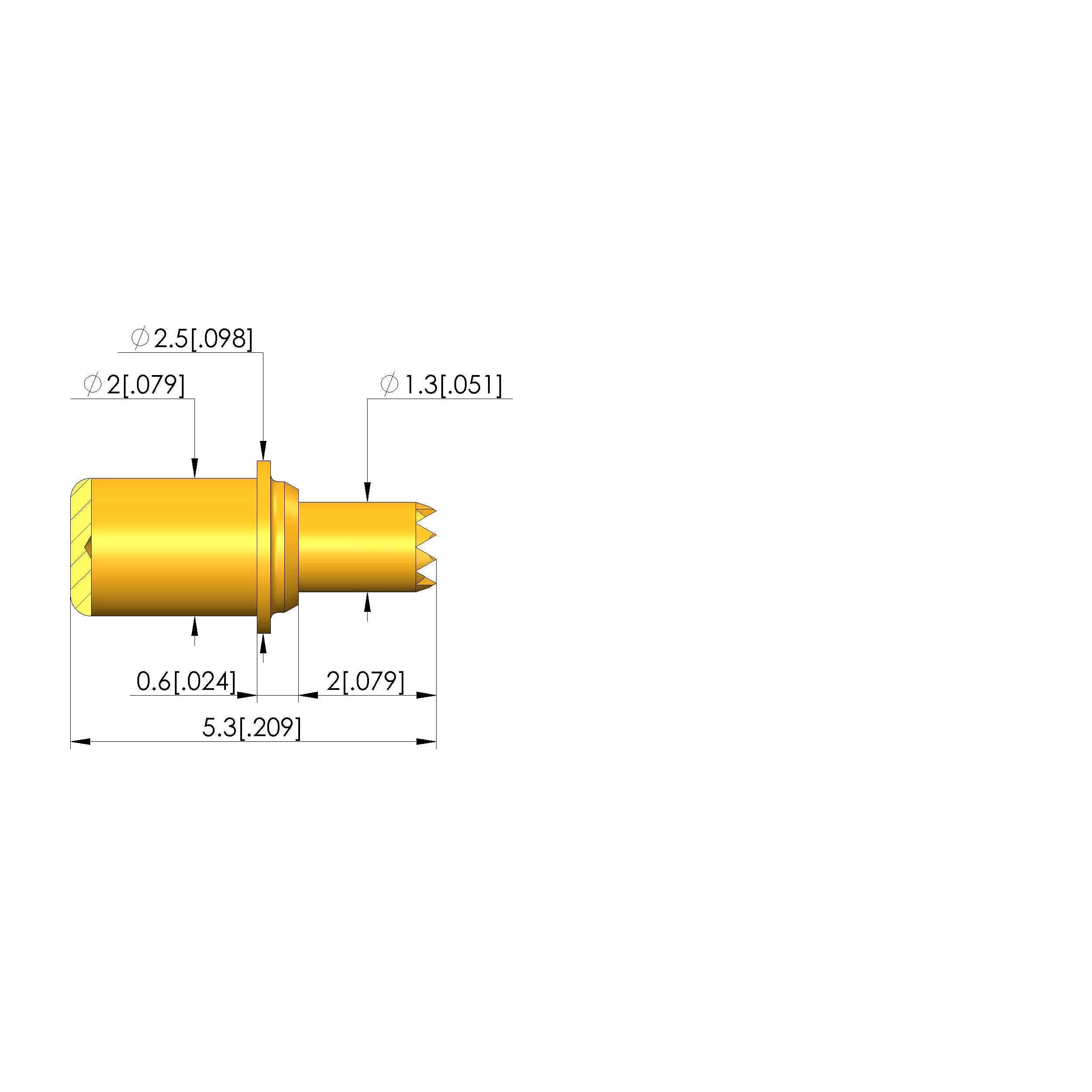

Mechanical data
- Spring pre-load: 0.57 N [2.05 ozf]
- Collar height: 1
- Barrel diameter: 2 mm [.078 in]
- Maximum stroke: 1.2 mm [.047 in]
- Working stroke: 1 mm [.039 in]
- Total length: 5.3 mm [.208 in]
- Spring force at working stroke: 2 N [7.19 ozf]
Electrical data
- Typical resistance (Ri): 100 mOhm
- Current load capacity / rated current: 8 A
