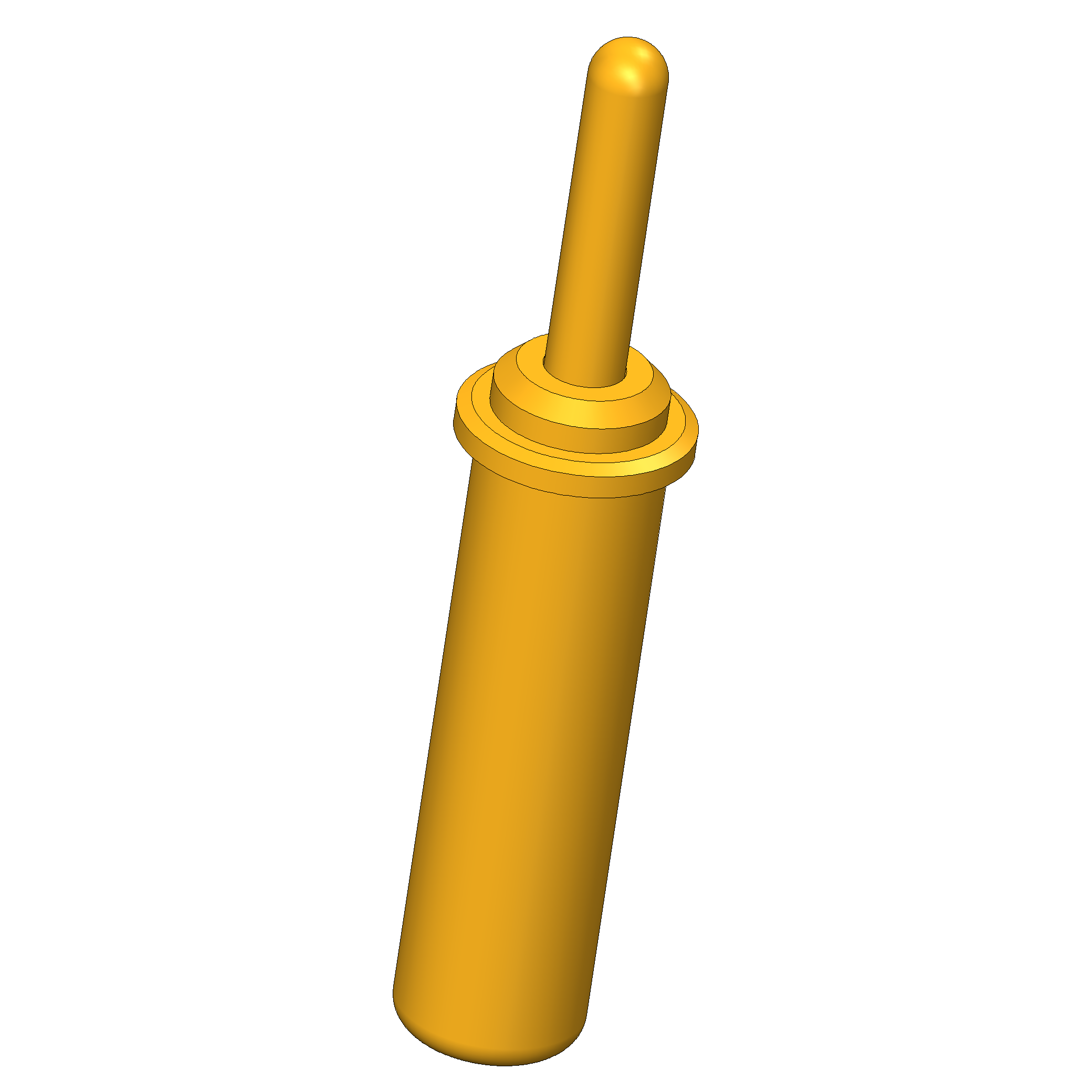

Product information "GKS-961 305 050 A 0601"
- Short-stroke probes ensure a reliable signal and power supply, as well as a quick exchange of assemblies in case of maintenance
- For the construction of easily separable electronic interfaces, such as in charging trays for electronic devices
- Particularly suitable for use in applications where space for overall length is limited
- Compensation of possible height and component tolerances
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 1.2 mm [.047 in] |
| Collar height: | 1 |
| Compatible receptacle(s): | KS-961 |
| Contacting from: | Pad, Female connector |
| Current load capacity / rated current: | 2 A |
| Grid: | 1.91 mm [75.1 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 200 °C [392 °F] |
| Maximum stroke: | 1.3 mm [.051 in] |
| Min. temperature: | -100 °C [-148 °F] |
| Non-rotating: | No |
| Product group: | Short stroke GKS / charge and transfer GKS, Assorted test probes |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Series: | GKS-961 |

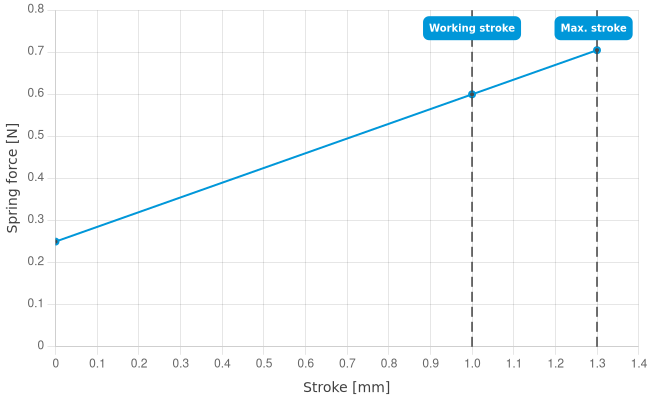

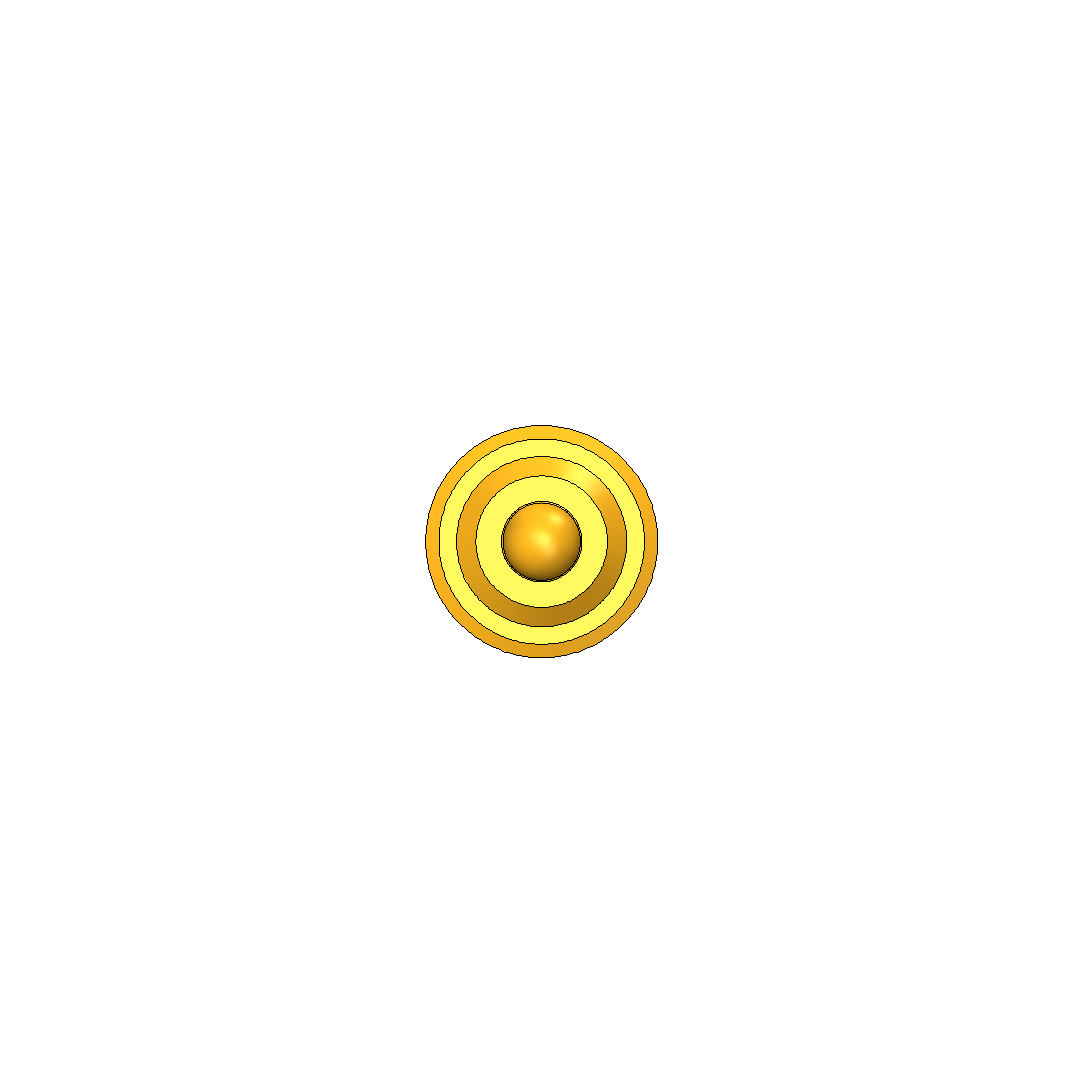

| Spring force at working stroke: | 0.6 N [2.15 ozf] |
| Spring pre-load: | 0.25 N [.899 ozf] |
| Sub-product group: | Short stroke GKS / charge and transfer GKS |
| Tip diameter: | 0.5 mm [.019 in] |

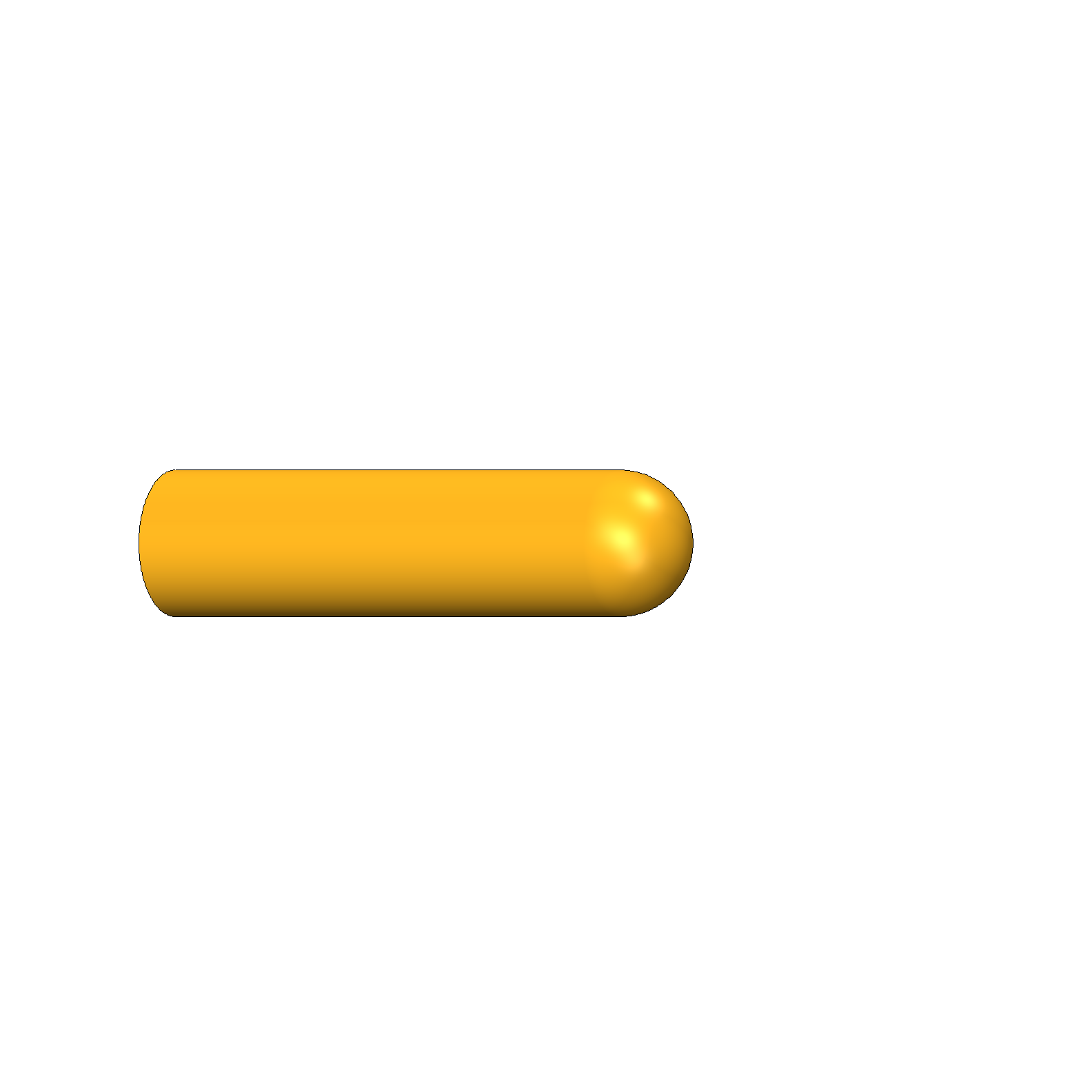

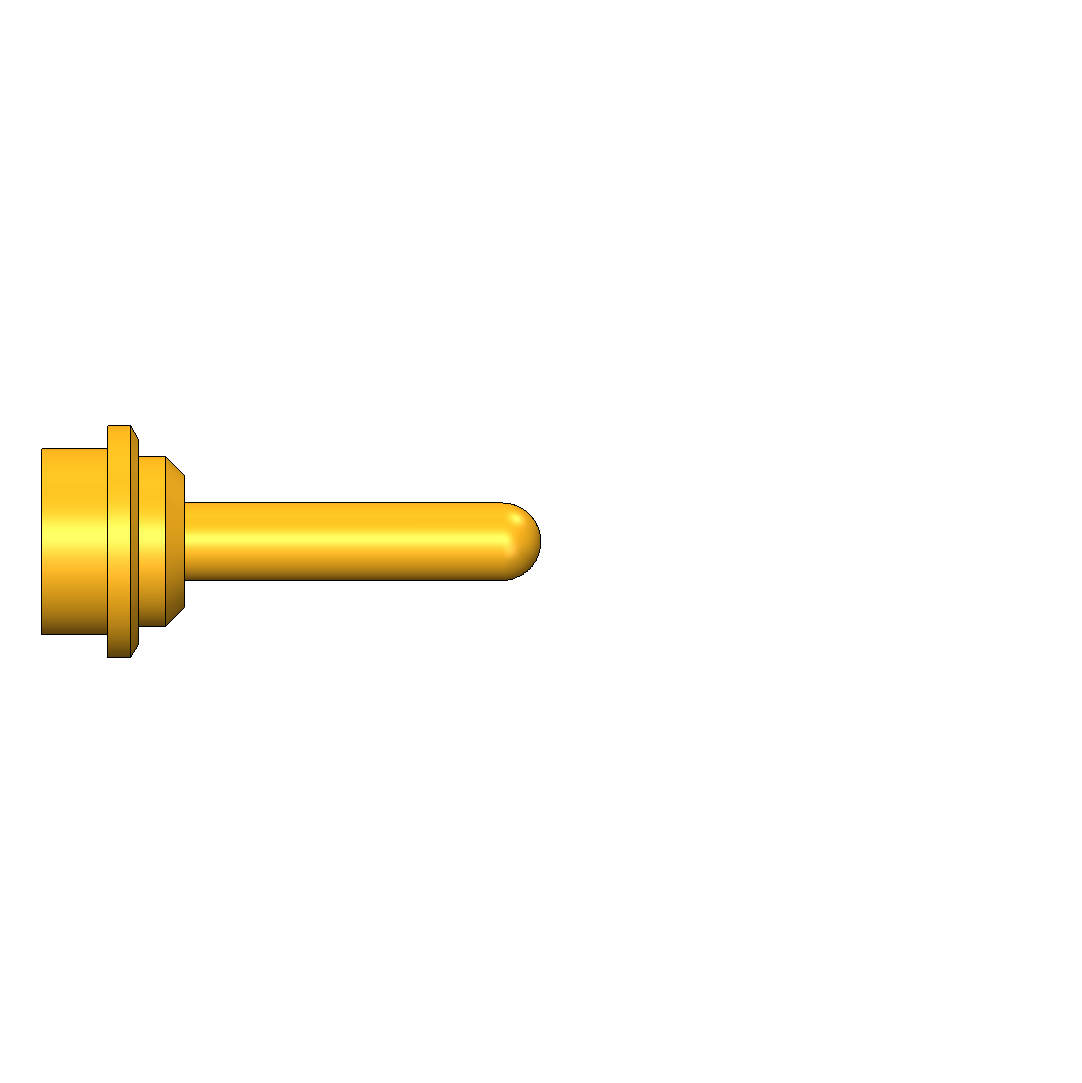

| Tip style: | 05 bullet-nosed (full radius) |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |

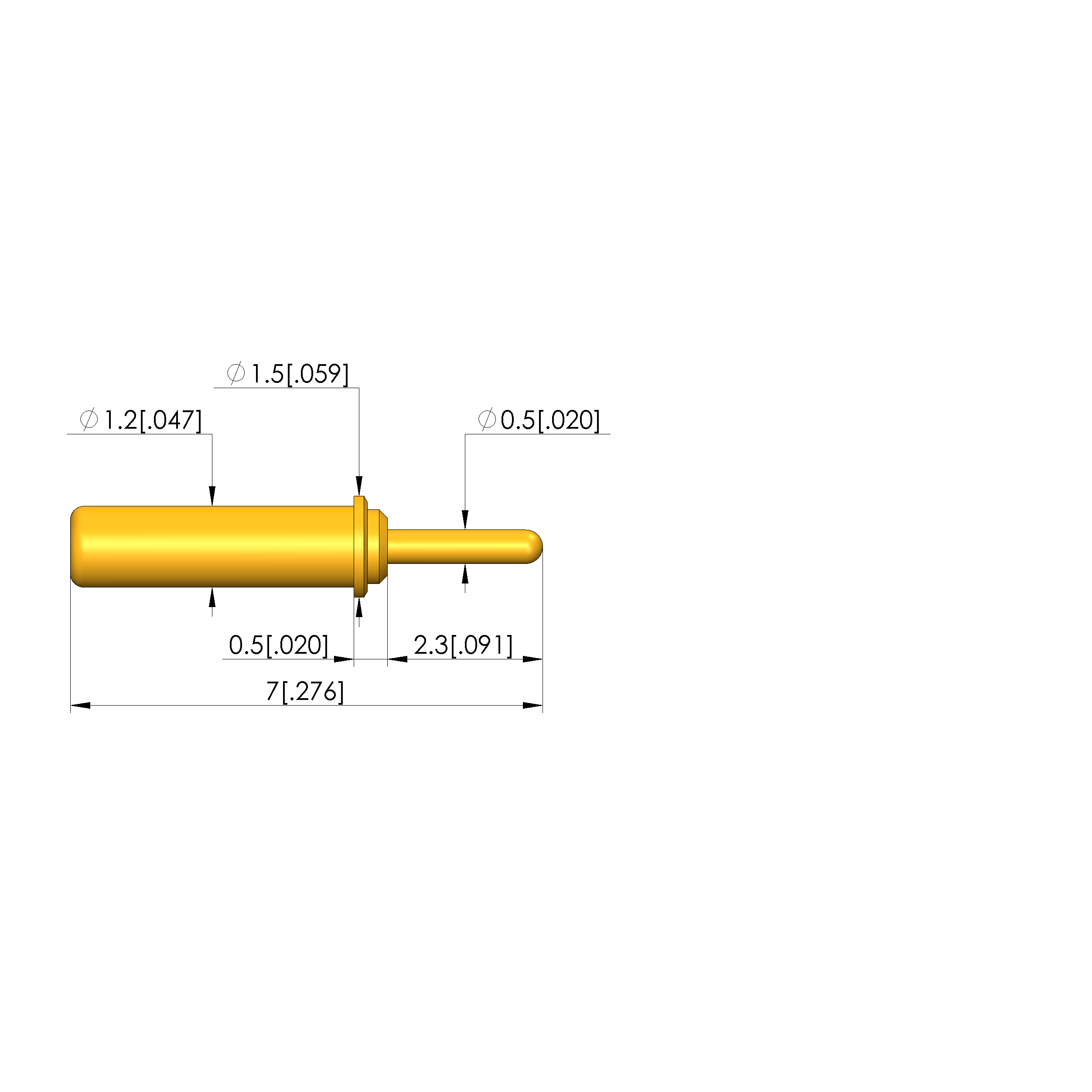

| Total length: | 7 mm [.275 in] |
| Typical resistance (Ri): | 100 mOhm |
| Working stroke: | 1 mm [.039 in] |
Login
Product Details
- Short-stroke probes ensure a reliable signal and power supply, as well as a quick exchange of assemblies in case of maintenance
- For the construction of easily separable electronic interfaces, such as in charging trays for electronic devices
- Particularly suitable for use in applications where space for overall length is limited
- Compensation of possible height and component tolerances
Other products in this series:
Technical data
General data
- Installation type: Plug-in
- Series: GKS-961
- Contacting from: Female connector
- Max. temperature: 200 °C [392 °F]
- Min. temperature: -100 °C [-148 °F]
- Grid: 1.91 mm [75.1 mil]
- Compatible receptacle(s): KS-961
- Non-rotating: No
- Product group: Short stroke GKS / charge and transfer GKS
- Adjustable installation height: No
- RoHS-compliant: Yes
- Product group: Assorted test probes
- Quick-exchange system: Yes
- Magnetic: Yes
- Sub-product group: Short stroke GKS / charge and transfer GKS
- Contacting from: Pad
Mechanical data
- Collar height: 1
- Barrel diameter: 1.2 mm [.047 in]
- Spring pre-load: 0.25 N [.899 ozf]
- Spring force at working stroke: 0.6 N [2.15 ozf]
- Maximum stroke: 1.3 mm [.051 in]
- Working stroke: 1 mm [.039 in]
- Total length: 7 mm [.275 in]
Electrical data
- Typical resistance (Ri): 100 mOhm
- Current load capacity / rated current: 2 A
Tip style data
- Tip diameter: 0.5 mm [.019 in]
- Tip style material: 3 CuBe
- Tip style: 05 bullet-nosed (full radius)
- Tip style surface: A gold
