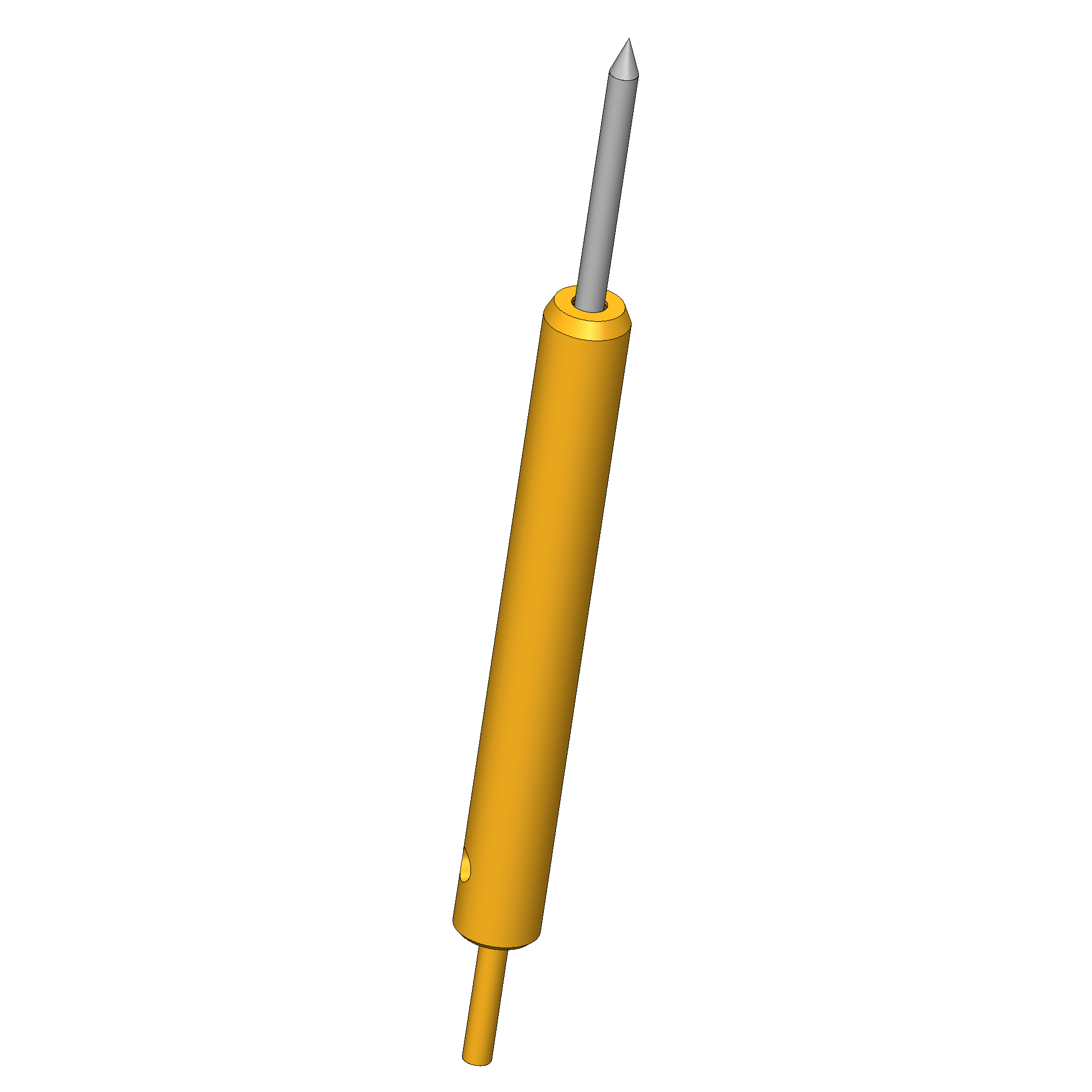

Product information "GKS-941 301 050 R 3500 1"
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 1.5 mm [.059 in] |
| Collar height: | no name |
| Contacting from: | Pad |
| Current load capacity / rated current: | 5 A |
| Grid: | 1.91 mm [75.1 mil] |
| Installation type: | Solderable |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 4 mm [.157 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | Solderable test probe, Assorted test probes |
| Quick-exchange system: | No |
| RoHS-compliant: | Yes |
| Series: | GKS-941, GKS-941 1 pin-ø 0,5 |
| Spring force at working stroke: | 3.5 N [12.5 ozf] |
| Spring pre-load: | 0.9 N [3.23 ozf] |
| Sub-product group: | Solderable test probe |
| Tip diameter: | 0.5 mm [.019 in] |
| Tip style: | 01 30° needle tip, self-cleaning |
| Tip style material: | 3 CuBe |
| Tip style surface: | R rhodium |
| Total length: | 20 mm [.787 in] |
| Type of test probe connection: | Solder connection |
| Typical resistance (Ri): | 100 mOhm |
| Working stroke: | 3.2 mm [.125 in] |
Login
Other products in this series:
Technical data
Electrical data
- Current load capacity / rated current: 5 A
- Typical resistance (Ri): 100 mOhm
General data
- Max. temperature: 80 °C [176 °F]
- Grid: 1.91 mm [75.1 mil]
- Non-rotating: No
- Product group: Solderable test probe
- Adjustable installation height: No
- Series: GKS-941 1 pin-ø 0,5
- RoHS-compliant: Yes
- Product group: Assorted test probes
- Min. temperature: -40 °C [-40 °F]
- Series: GKS-941
- Magnetic: Yes
- Sub-product group: Solderable test probe
- Contacting from: Pad
- Installation type: Solderable
- Type of test probe connection: Solder connection
- Quick-exchange system: No
Tip style data
- Tip diameter: 0.5 mm [.019 in]
- Tip style material: 3 CuBe
- Tip style surface: R rhodium

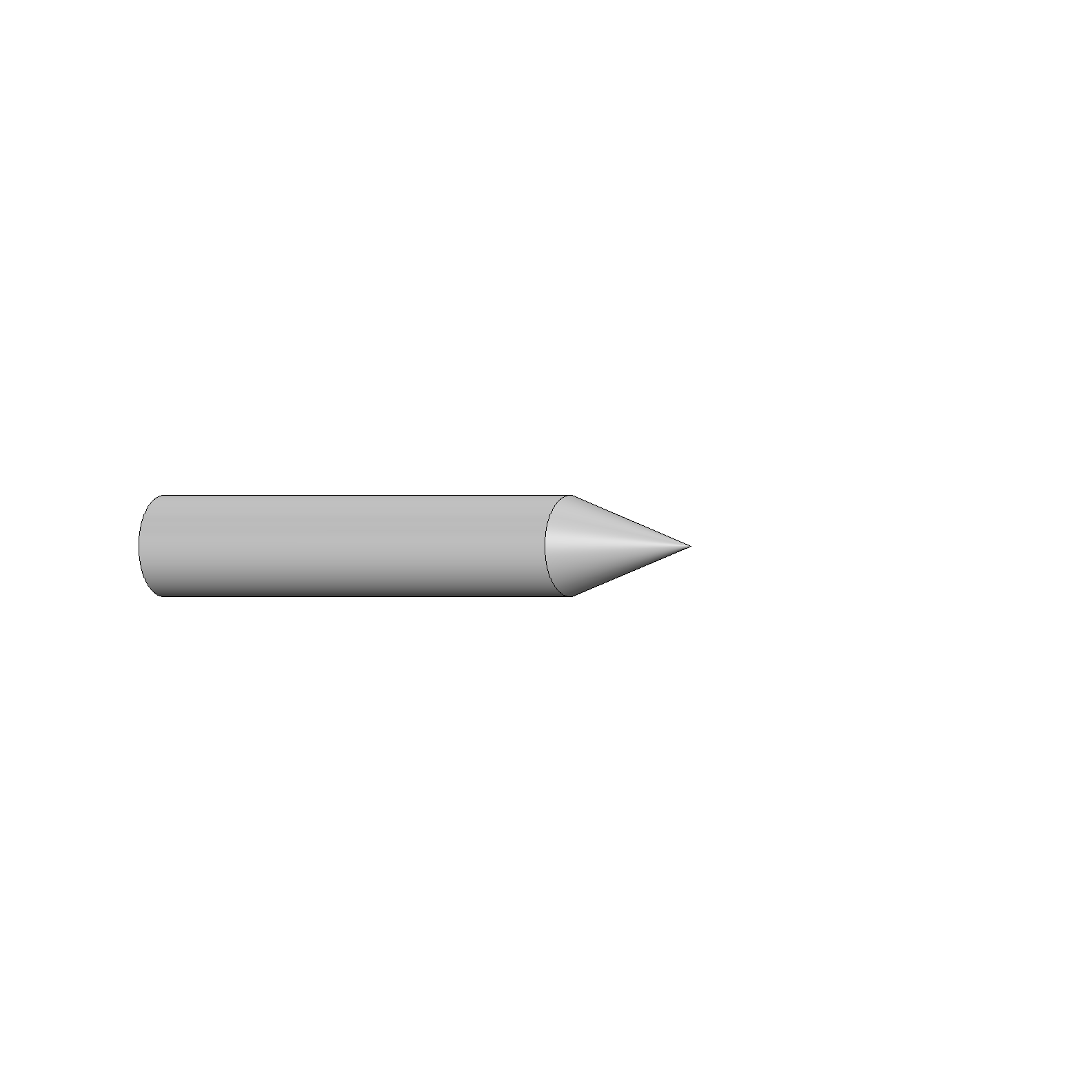

- Tip style: 01 30° needle tip, self-cleaning
Mechanical data
- Working stroke: 3.2 mm [.125 in]
- Collar height: no name

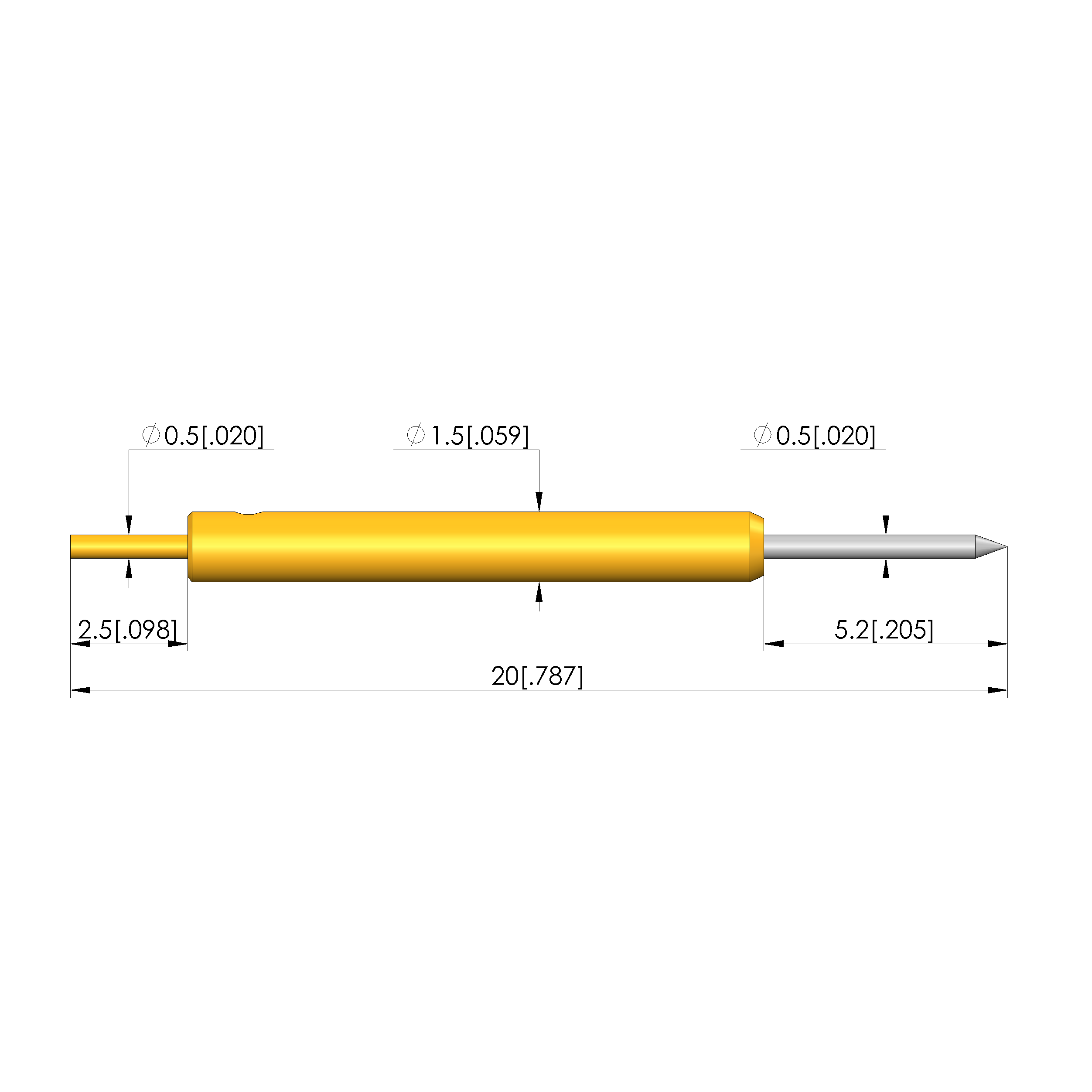

- Total length: 20 mm [.787 in]
- Spring pre-load: 0.9 N [3.23 ozf]
- Maximum stroke: 4 mm [.157 in]
- Barrel diameter: 1.5 mm [.059 in]

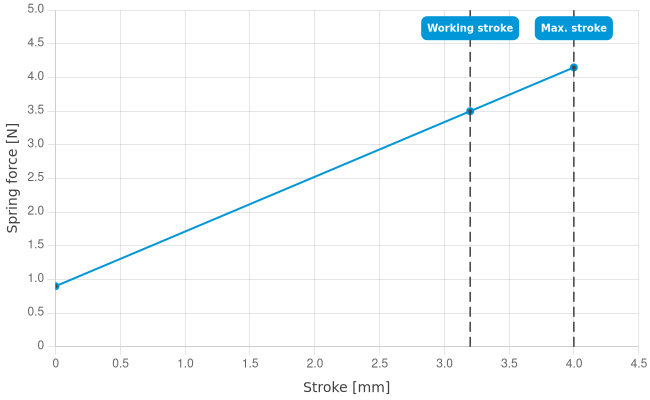

- Spring force at working stroke: 3.5 N [12.5 ozf]
