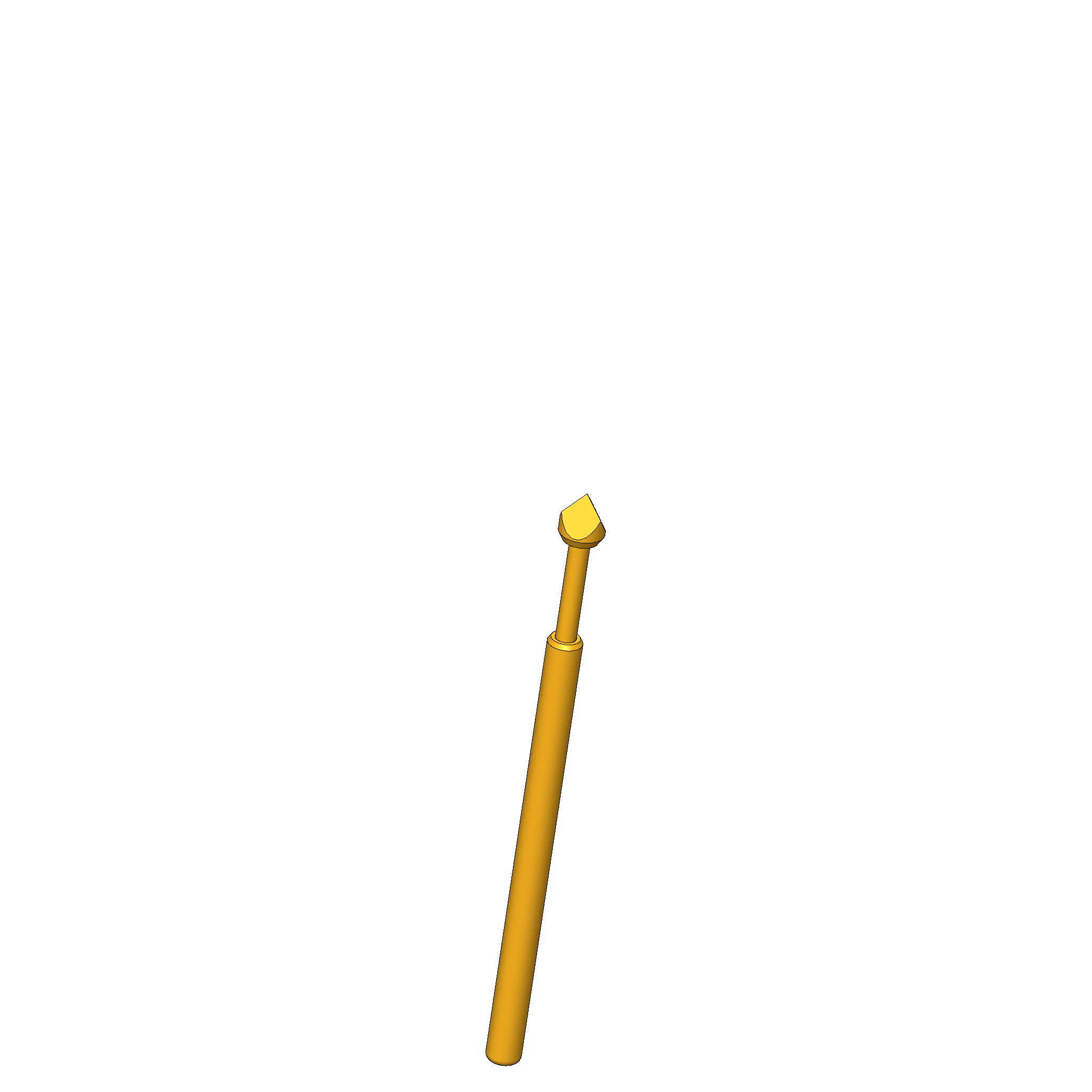

Product information "GKS-938 307 180 A 1500"
- Test probes for the construction of interfaces for reliable signal transmission
- Interface test probes are available for all interfaces from popular test system suppliers
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 1.37 mm [.053 in] |
| Collar height: | no name |
| Compatible receptacle(s): | KS-945 |
| Contacting from: | Pad, Via |
| Current load capacity / rated current: | 4 A |
| Grid: | 2.54 mm [100 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 4.3 mm [.169 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | Interface block probes , Accessories (GKS / ADA) |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Series: | GKS-938 |

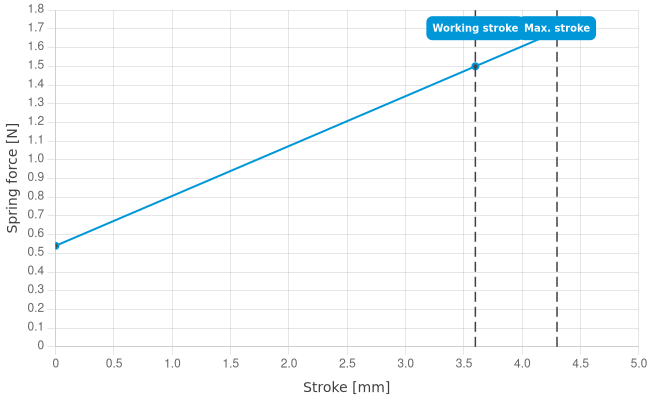

| Spring force at working stroke: | 1.5 N [5.39 ozf] |
| Spring pre-load: | 0.54 N [1.94 ozf] |
| Sub-product group: | Interface block probes |
| Tip diameter: | 1.8 mm [.07 in] |
| Tip style: | 07 90° 3-edged chisel, self-cleaning |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 24.8 mm [.976 in] |
| Typical resistance (Ri): | 20 mOhm |
| Working stroke: | 3.6 mm [.141 in] |
Login
Product Details
- Test probes for the construction of interfaces for reliable signal transmission
- Interface test probes are available for all interfaces from popular test system suppliers
Other products in this series:
Technical data
General data
- Installation type: Plug-in
- Max. temperature: 80 °C [176 °F]
- Product group: Interface block probes
- Sub-product group: Interface block probes
- Non-rotating: No
- Adjustable installation height: No
- Grid: 2.54 mm [100 mil]
- RoHS-compliant: Yes
- Min. temperature: -40 °C [-40 °F]
- Quick-exchange system: Yes
- Series: GKS-938
- Magnetic: Yes
- Product group: Accessories (GKS / ADA)
- Contacting from: Pad
- Compatible receptacle(s): KS-945
- Contacting from: Via

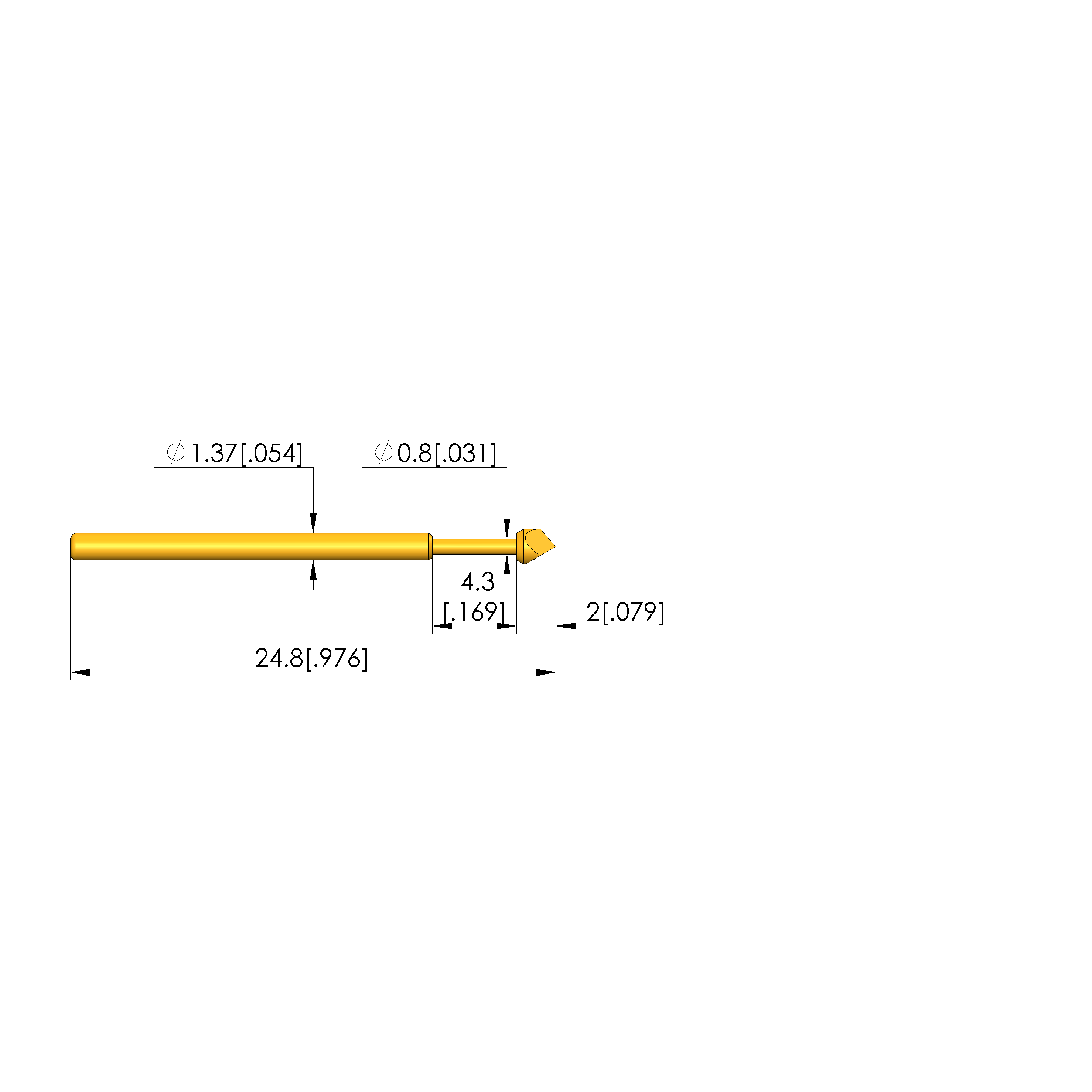

Mechanical data
- Working stroke: 3.6 mm [.141 in]
- Spring force at working stroke: 1.5 N [5.39 ozf]
- Total length: 24.8 mm [.976 in]
- Spring pre-load: 0.54 N [1.94 ozf]
- Maximum stroke: 4.3 mm [.169 in]
- Collar height: no name
- Barrel diameter: 1.37 mm [.053 in]
Electrical data
- Current load capacity / rated current: 4 A
- Typical resistance (Ri): 20 mOhm

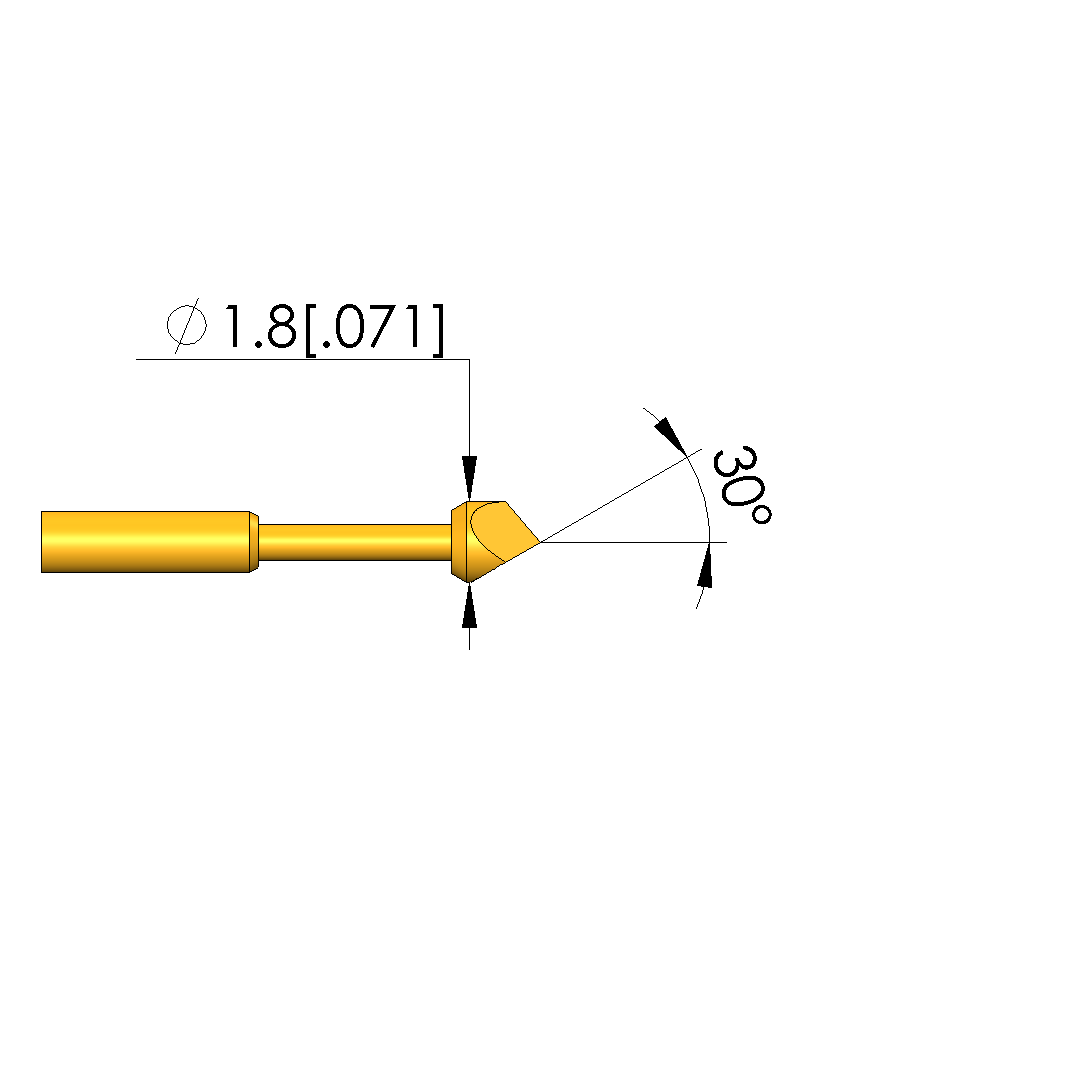

Tip style data
- Tip style material: 3 CuBe

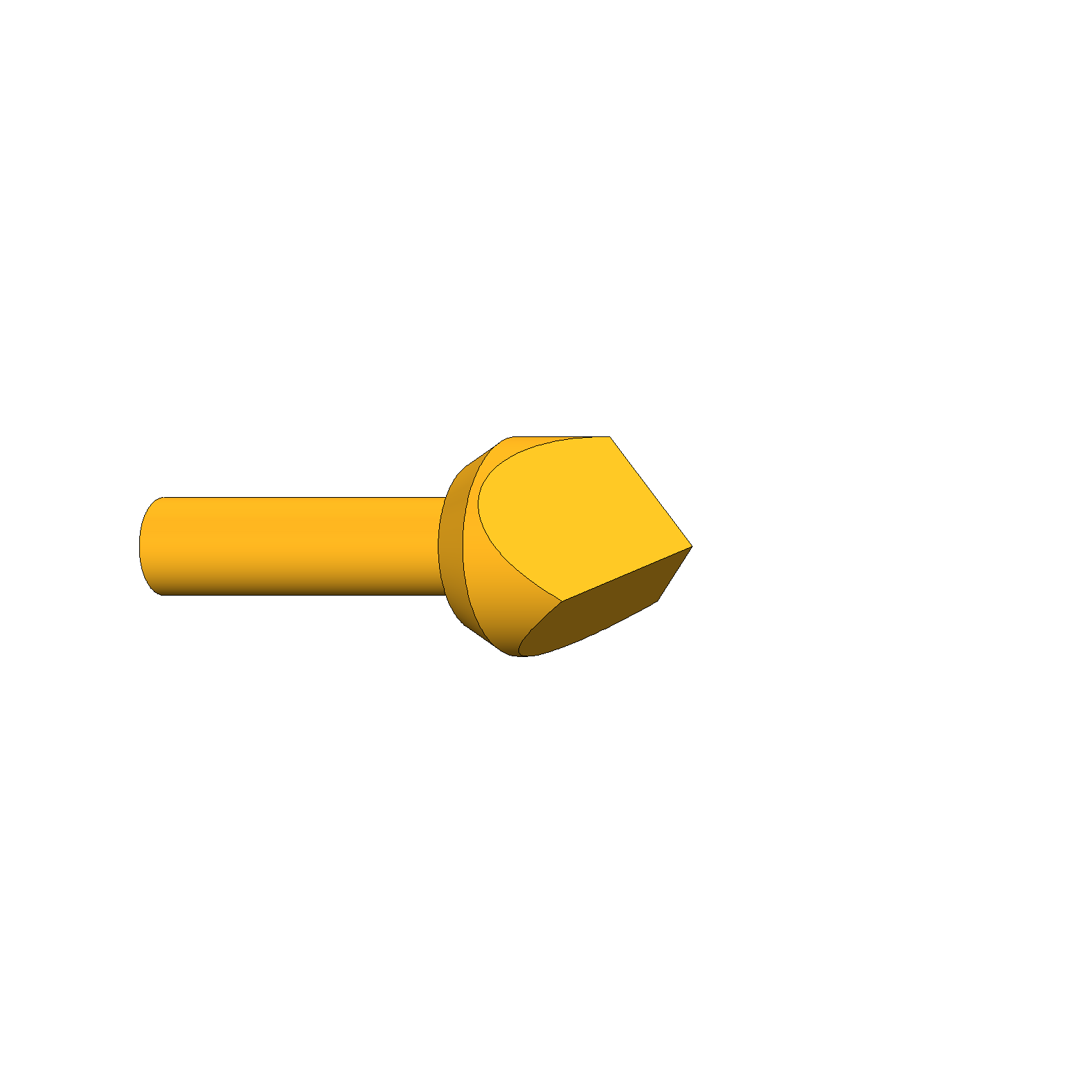

- Tip style: 07 90° 3-edged chisel, self-cleaning
- Tip diameter: 1.8 mm [.07 in]
- Tip style surface: A gold
