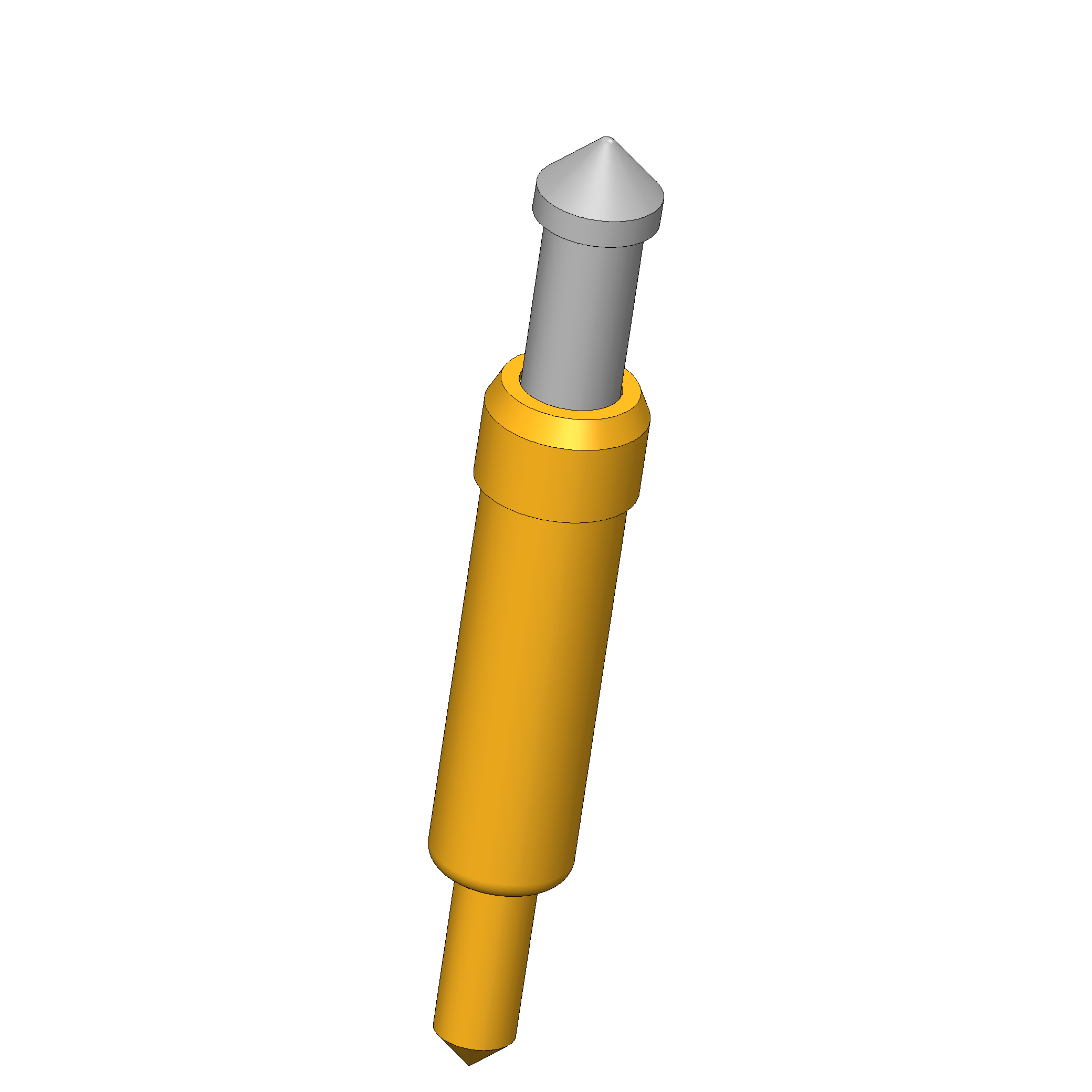

Product information "GKS-913 308 230 R 1502 1C"
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 2.65 mm [.104 in] |
| Collar height: | 2 |
| Contacting from: | Pad, Via, Female connector |
| Current load capacity / rated current: | 8 A |
| Grid: | 4 mm [157 mil] |
| Installation type: | Solderable |
| Magnetic: | Yes |
| Max. temperature: | 200 °C [392 °F] |
| Maximum stroke: | 3.5 mm [.137 in] |
| Min. temperature: | -100 °C [-148 °F] |
| Non-rotating: | No |
| Product group: | ICT / FCT (in-circuit test and function test , Metric standard |
| Quick-exchange system: | No |
| RoHS-compliant: | Yes |
| Series: | GKS-913, GKS-913 1 |
| Spring force at working stroke: | 1.5 N [5.39 ozf] |
| Spring pre-load: | 0.45 N [1.61 ozf] |
| Sub-product group: | Metric standard |
| Tip diameter: | 2.3 mm [.09 in] |
| Tip style: | 08 90°conical, self-cleaning |
| Tip style material: | 3 CuBe |
| Tip style surface: | R rhodium |
| Total length: | 19.2 mm [.755 in] |
| Type of test probe connection: | Solder connection |
| Typical resistance (Ri): | 100 mOhm |
| Working stroke: | 2.8 mm [.11 in] |
Login
Other products in this series:
Technical data

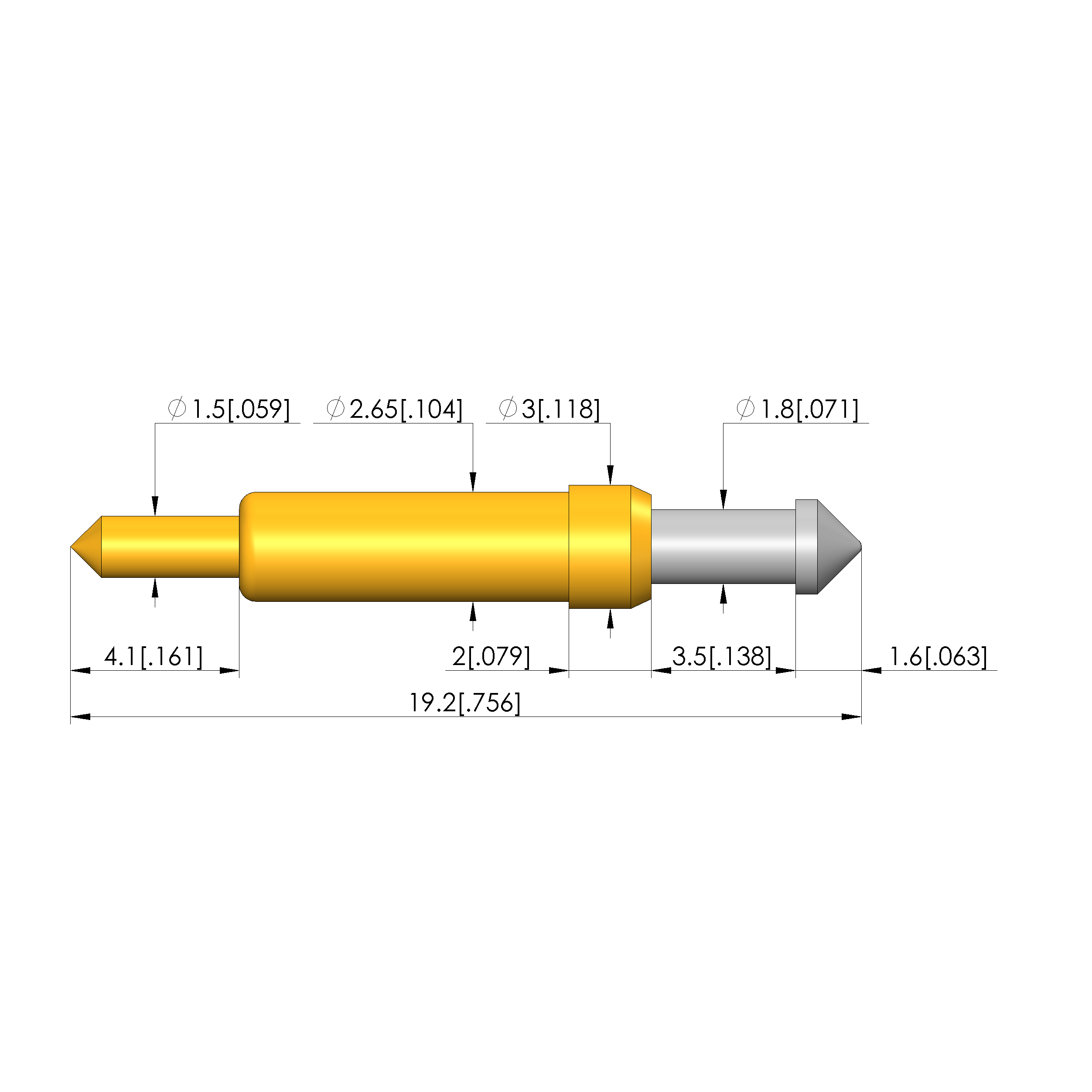

Mechanical data
- Working stroke: 2.8 mm [.11 in]
- Spring force at working stroke: 1.5 N [5.39 ozf]
- Spring pre-load: 0.45 N [1.61 ozf]
- Collar height: 2
- Total length: 19.2 mm [.755 in]
- Maximum stroke: 3.5 mm [.137 in]
- Barrel diameter: 2.65 mm [.104 in]
General data
- Contacting from: Female connector
- Series: GKS-913 1
- Max. temperature: 200 °C [392 °F]
- Min. temperature: -100 °C [-148 °F]
- Non-rotating: No
- Adjustable installation height: No
- Product group: Metric standard
- Sub-product group: Metric standard
- RoHS-compliant: Yes
- Product group: ICT / FCT (in-circuit test and function test
- Magnetic: Yes
- Grid: 4 mm [157 mil]
- Series: GKS-913
- Contacting from: Pad
- Installation type: Solderable
- Contacting from: Via
- Type of test probe connection: Solder connection
- Quick-exchange system: No
Electrical data
- Typical resistance (Ri): 100 mOhm
- Current load capacity / rated current: 8 A

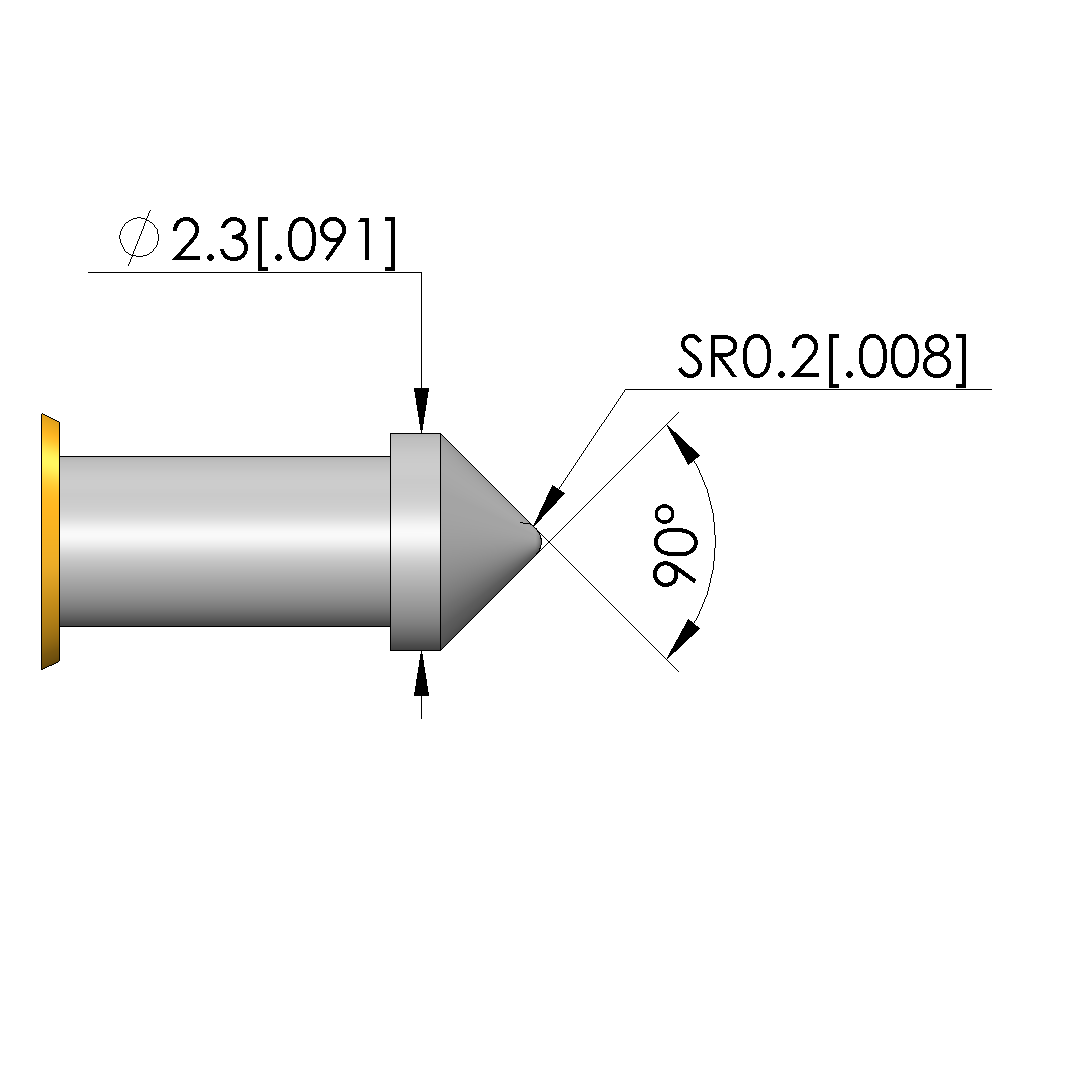

Tip style data
- Tip diameter: 2.3 mm [.09 in]
- Tip style material: 3 CuBe
- Tip style surface: R rhodium

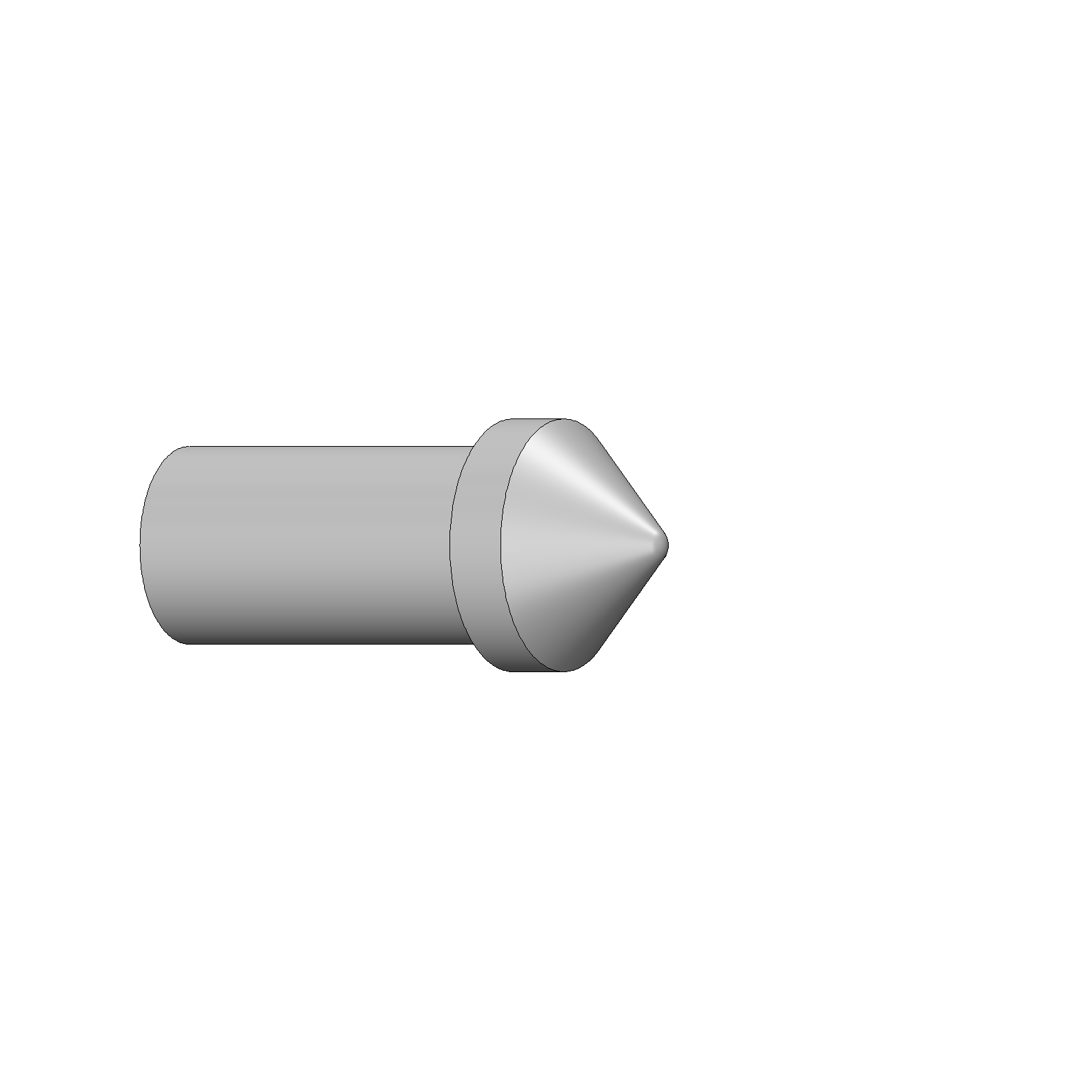

- Tip style: 08 90°conical, self-cleaning
