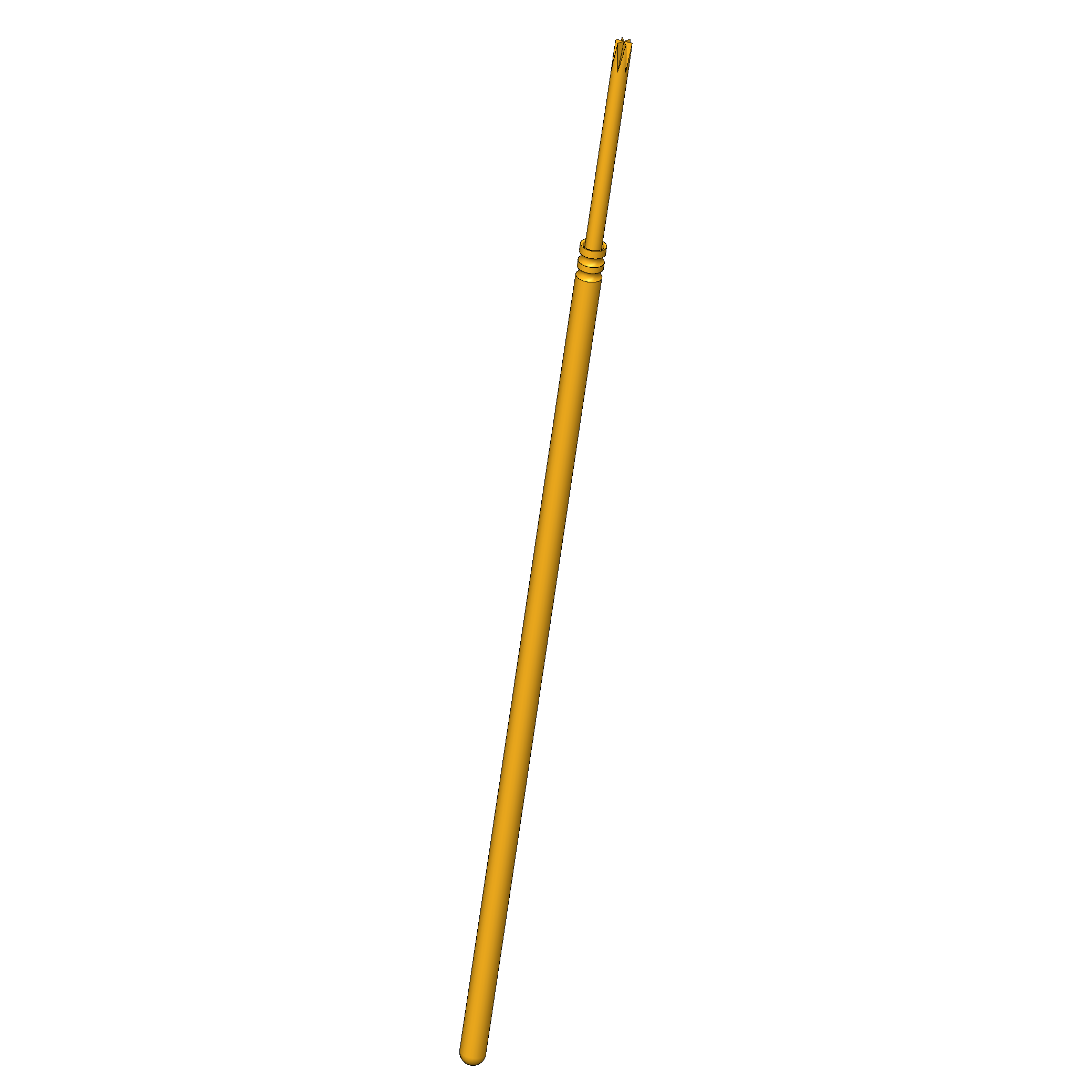

Product information "GKS-550 379 050 A 1500"
- Robust, compact design for harsh ICT/FCT applications with limited space
- For optimum contact at the test points (e.g. pads, vias, and pins), various tip styles in different diameters and finishes, as well as various spring forces are available. spring forces.
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 0.78 mm [.03 in] |
| Collar height: | no name |
| Compatible receptacle(s): | KS-550, KS-550 WL |
| Contacting from: | Bead, Flat contact, Post |
| Current load capacity / rated current: | 3 A |
| Grid: | 1.27 mm [50 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 6.35 mm [.25 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | Bead probe, ICT / FCT (in-circuit test and function test |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Series: | GKS-550 |
| Spring force at working stroke: | 1.5 N [5.39 ozf] |
| Spring pre-load: | 0.66 N [2.37 ozf] |
| Sub-product group: | Bead probe |
| Tip diameter: | 0.5 mm [.019 in] |
| Tip style: | 79 spade, flat, self-cleaning |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 34.6 mm [1.36 in] |
| Typical resistance (Ri): | 20 mOhm |
| Working stroke: | 4.3 mm [.169 in] |
Login
Product Details
- Robust, compact design for harsh ICT/FCT applications with limited space
- For optimum contact at the test points (e.g. pads, vias, and pins), various tip styles in different diameters and finishes, as well as various spring forces are available. spring forces.
Other products in this series:
Technical data
General data
- Installation type: Plug-in
- Contacting from: Bead
- Max. temperature: 80 °C [176 °F]
- Compatible receptacle(s): KS-550
- Sub-product group: Bead probe
- Series: GKS-550
- Grid: 1.27 mm [50 mil]
- Non-rotating: No
- Adjustable installation height: No
- Compatible receptacle(s): KS-550 WL
- RoHS-compliant: Yes
- Min. temperature: -40 °C [-40 °F]
- Quick-exchange system: Yes
- Contacting from: Flat contact
- Contacting from: Post
- Product group: Bead probe
- Product group: ICT / FCT (in-circuit test and function test
- Magnetic: Yes
Electrical data
- Current load capacity / rated current: 3 A
- Typical resistance (Ri): 20 mOhm
Mechanical data
- Maximum stroke: 6.35 mm [.25 in]
- Spring force at working stroke: 1.5 N [5.39 ozf]

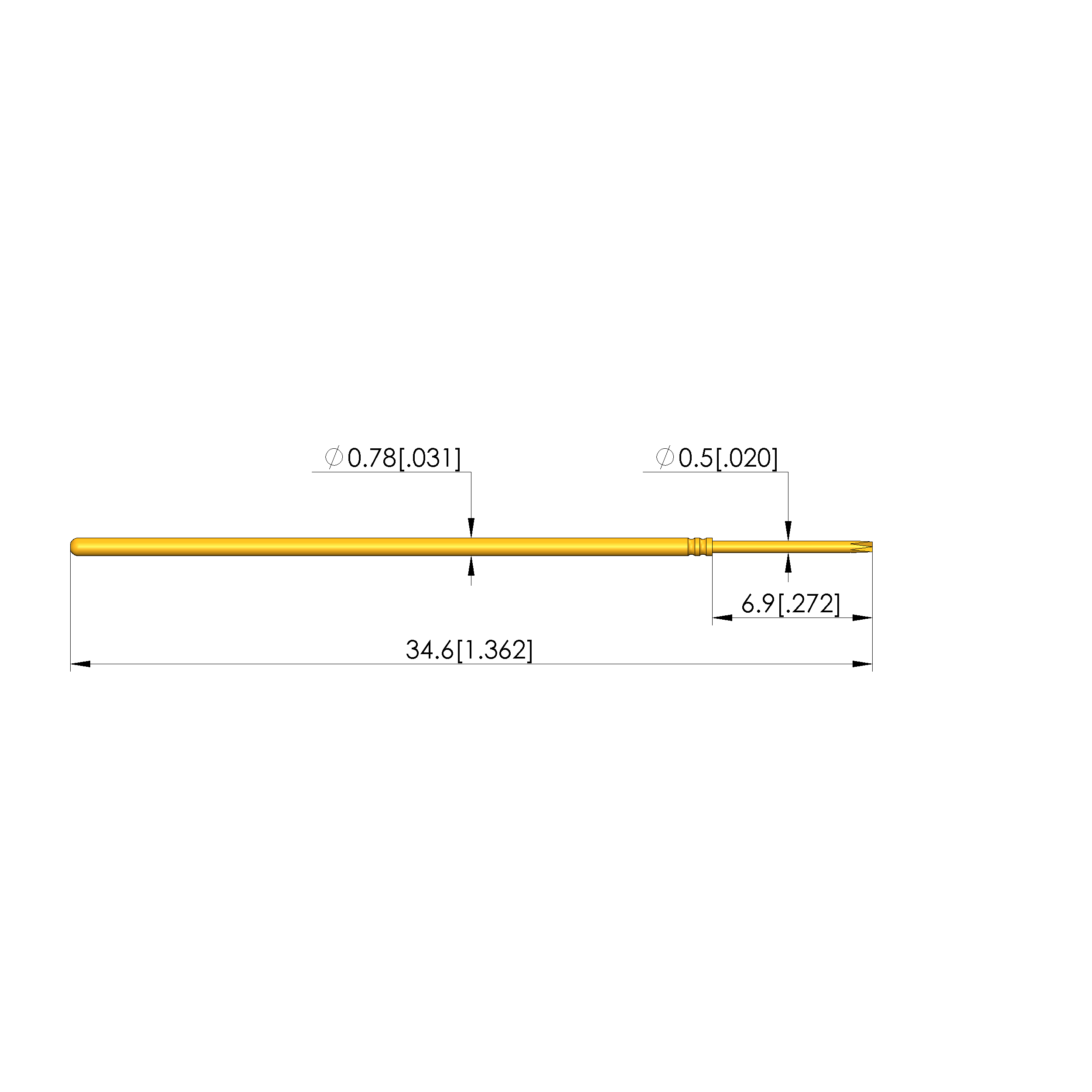

- Total length: 34.6 mm [1.36 in]
- Collar height: no name
- Working stroke: 4.3 mm [.169 in]
- Barrel diameter: 0.78 mm [.03 in]
- Spring pre-load: 0.66 N [2.37 ozf]
Tip style data
- Tip diameter: 0.5 mm [.019 in]
- Tip style material: 3 CuBe

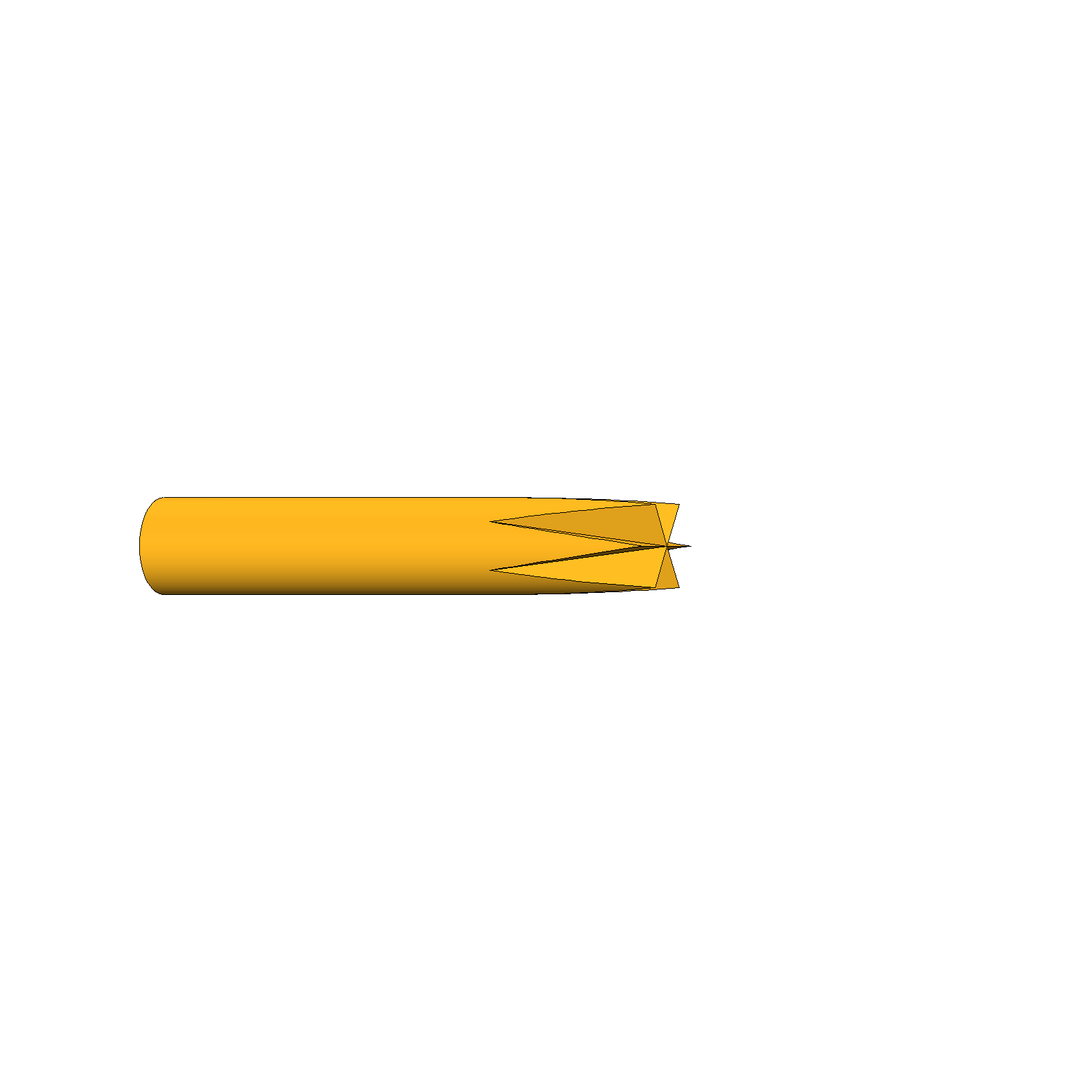

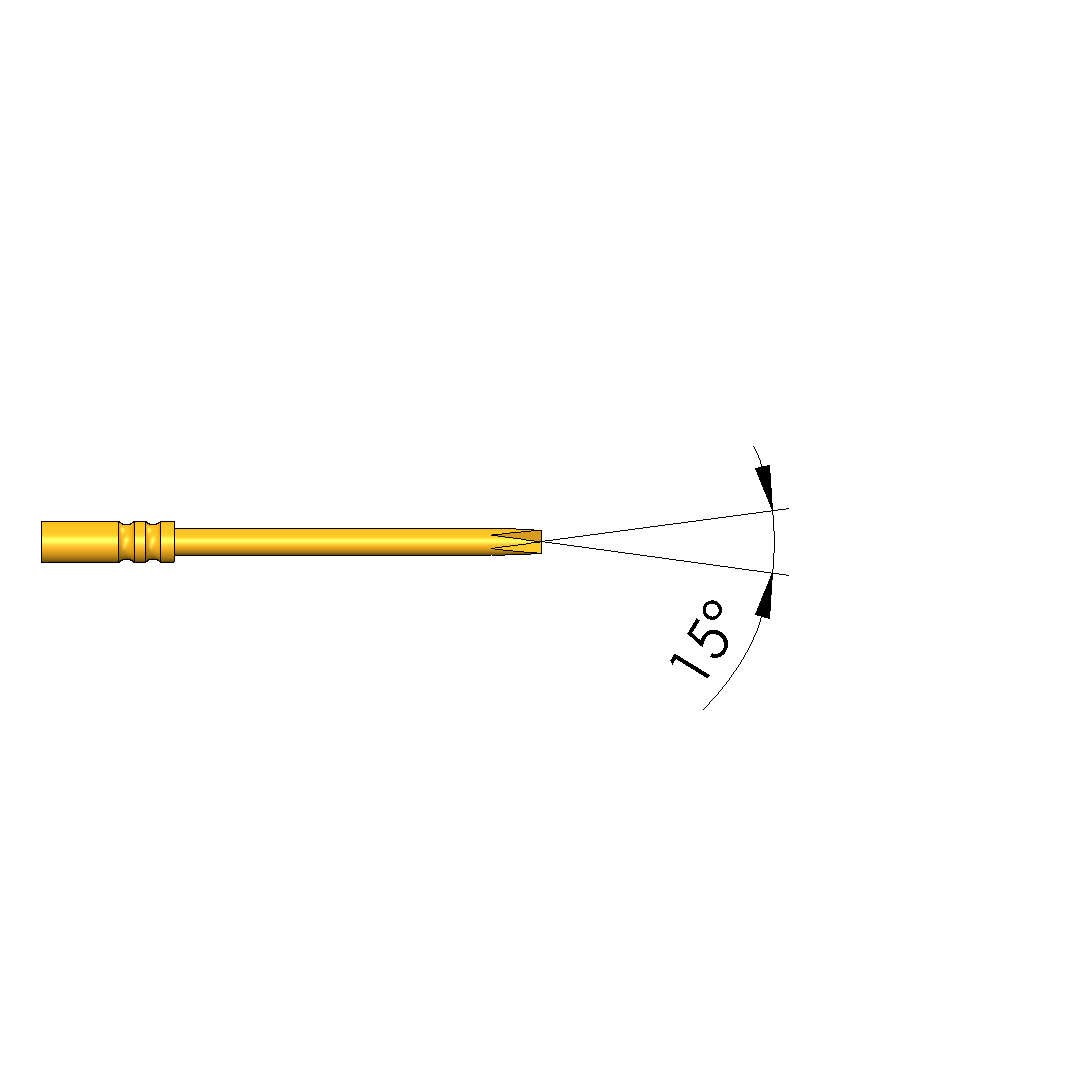

- Tip style: 79 spade, flat, self-cleaning
- Tip style surface: A gold
