Product information "GKS-550 303 090 A 1000"
- Robust, compact design for harsh ICT/FCT applications with limited space
- For optimum contact at the test points (e.g. pads, vias, and pins), various tip styles in different diameters and finishes, as well as various spring forces are available. spring forces.
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 0.78 mm [.03 in] |
| Collar height: | no name |
| Compatible receptacle(s): | KS-550, KS-550 WL |
| Contacting from: | Post, Pin |
| Current load capacity / rated current: | 2 A |
| Grid: | 1.27 mm [50 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 6.35 mm [.25 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | ICT / FCT (in-circuit test and function test , Short/robust GKS |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Series: | GKS-550 |
| Spring force at working stroke: | 1 N [3.59 ozf] |
| Spring pre-load: | 0.44 N [1.58 ozf] |
| Sub-product group: | Short/robust GKS |
| Tip diameter: | 0.9 mm [.035 in] |
| Tip style: | 03 inverse cone |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 34.6 mm [1.36 in] |
| Typical resistance (Ri): | 20 mOhm |
| Working stroke: | 4.3 mm [.169 in] |
Login
Product Details
- Robust, compact design for harsh ICT/FCT applications with limited space
- For optimum contact at the test points (e.g. pads, vias, and pins), various tip styles in different diameters and finishes, as well as various spring forces are available. spring forces.
Other products in this series:
Technical data
General data
- Installation type: Plug-in
- Max. temperature: 80 °C [176 °F]
- Compatible receptacle(s): KS-550
- Contacting from: Pin
- Series: GKS-550
- Grid: 1.27 mm [50 mil]
- Non-rotating: No
- Sub-product group: Short/robust GKS
- Adjustable installation height: No
- Product group: Short/robust GKS
- Compatible receptacle(s): KS-550 WL
- RoHS-compliant: Yes
- Min. temperature: -40 °C [-40 °F]
- Quick-exchange system: Yes
- Contacting from: Post
- Product group: ICT / FCT (in-circuit test and function test
- Magnetic: Yes
Mechanical data
- Maximum stroke: 6.35 mm [.25 in]

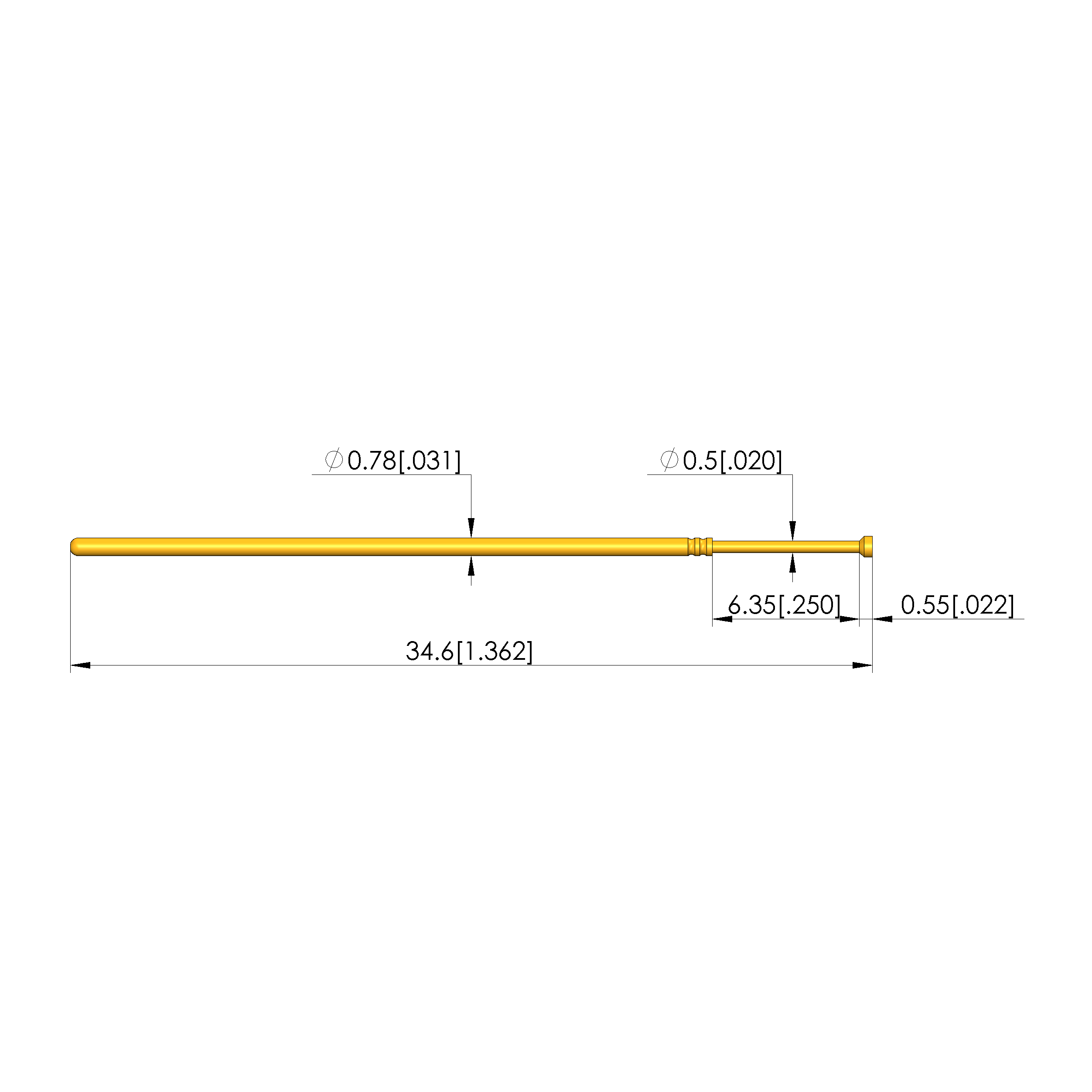

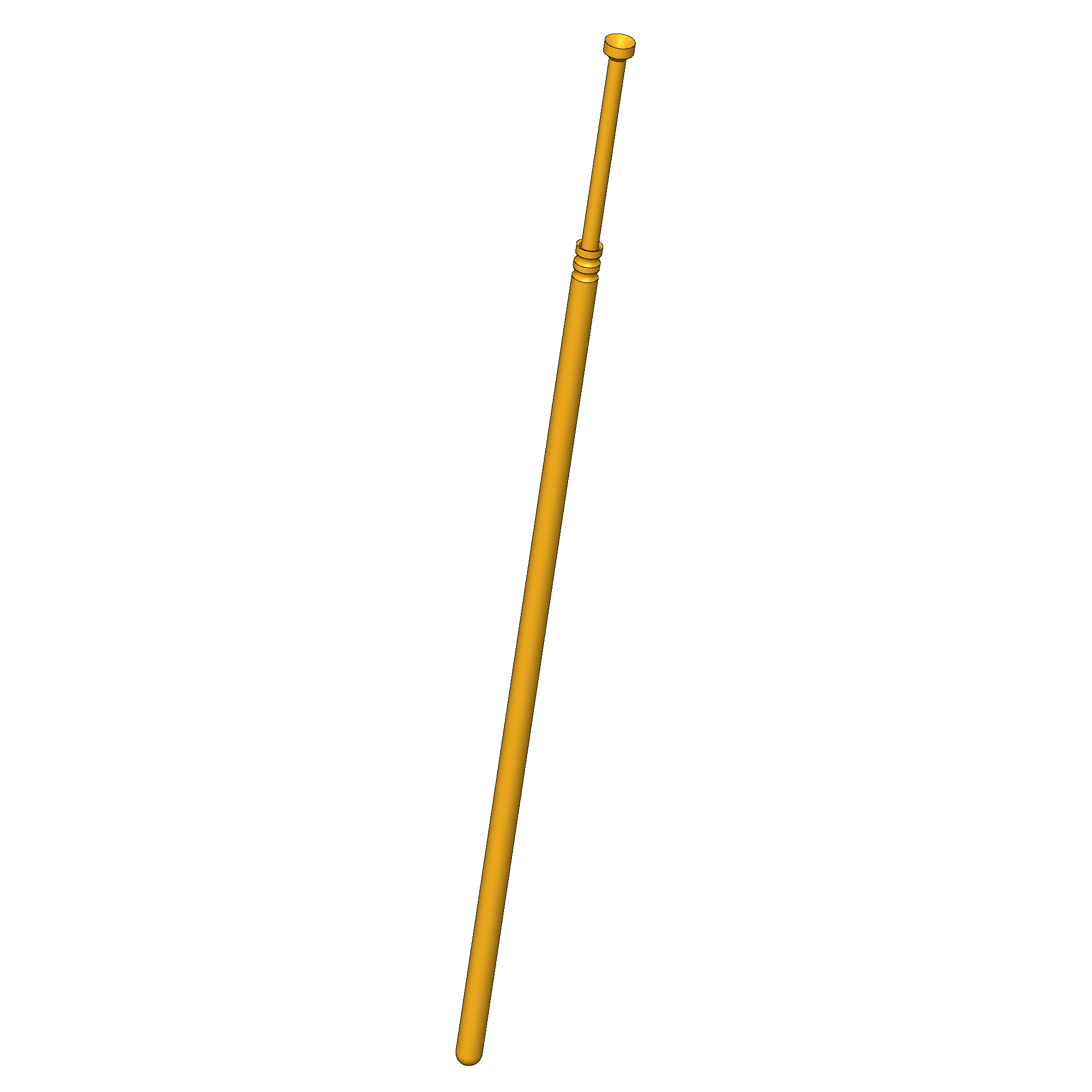

- Total length: 34.6 mm [1.36 in]
- Collar height: no name
- Spring pre-load: 0.44 N [1.58 ozf]
- Spring force at working stroke: 1 N [3.59 ozf]
- Working stroke: 4.3 mm [.169 in]
- Barrel diameter: 0.78 mm [.03 in]
Tip style data

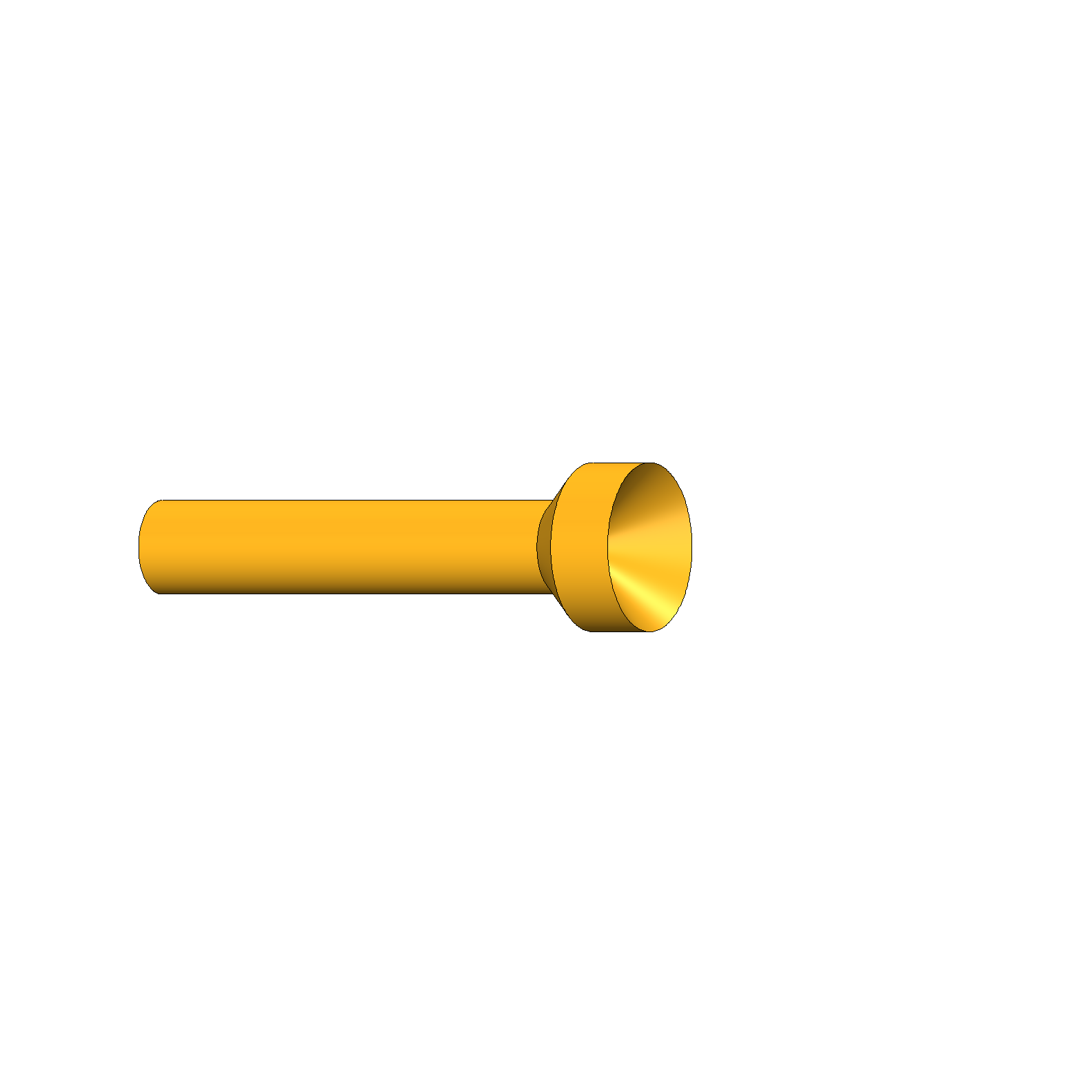

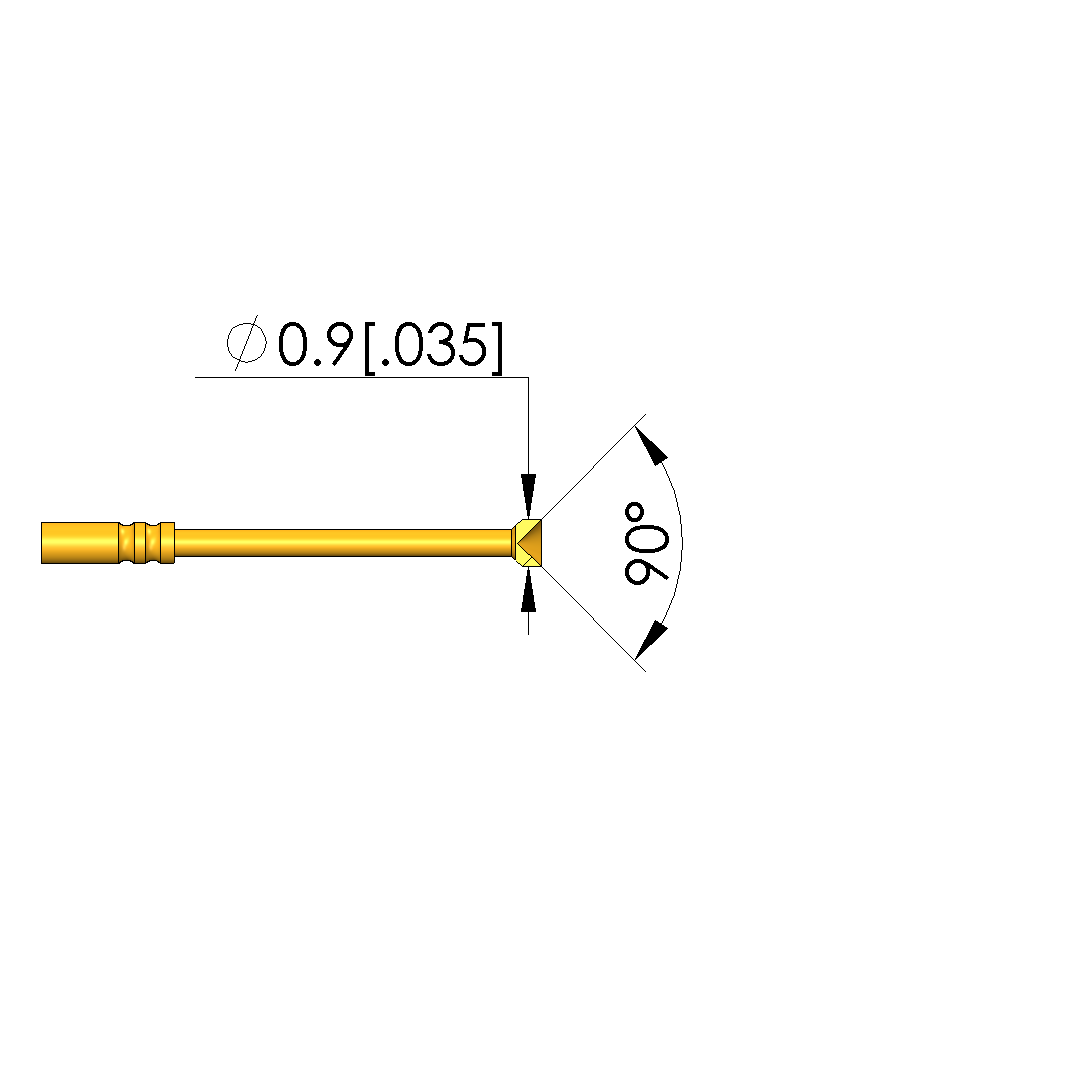

- Tip style: 03 inverse cone
- Tip diameter: 0.9 mm [.035 in]
- Tip style material: 3 CuBe
- Tip style surface: A gold
Electrical data
- Current load capacity / rated current: 2 A
- Typical resistance (Ri): 20 mOhm
