Product information "GKS-502 304 140 A 0802"
- Robust test probes with distinctive collar (stop) on the barrel
- Version with continuous plunger
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 2 mm [.078 in] |
| Collar height: | 02 |
| Compatible connector(s): | SE-502 |
| Compatible receptacle(s): | KS-502 23 |
| Contacting from: | Pad, Post, Pin |
| Continuous plunger: | ø1,0 x 7,0 |
| Current load capacity / rated current: | 5 A |
| Current rating, connection on plunger: | 12 A |
| Grid: | 2.54 mm [100 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 7 mm [.275 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | ICT / FCT (in-circuit test and function test , Metric standard |
| Quick-exchange system: | No |
| RoHS-compliant: | Yes |
| Series: | GKS-502 |
| Spring force at working stroke: | 0.8 N [2.87 ozf] |
| Spring pre-load: | 0.17 N [.611 ozf] |
| Sub-product group: | Metric standard |
| Tip diameter: | 1.4 mm [.055 in] |
| Tip style: | 04 4-point crown |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 39.1 mm [1.53 in] |
| Type of test probe connection: | Plug |
| Typical resistance (Ri): | 30 mOhm |
| Typical resistance (Ri), connection on plunger: | 10 mOhm |
| Working stroke: | 5.6 mm [.22 in] |
Login
Product Details
- Robust test probes with distinctive collar (stop) on the barrel
- Version with continuous plunger
Other products in this series:
Technical data
General data
- Product group: Metric standard
- Product group: ICT / FCT (in-circuit test and function test
- Sub-product group: Metric standard
- Series: GKS-502
- Grid: 2.54 mm [100 mil]
- Contacting from: Pin
- Contacting from: Post
- Contacting from: Pad
- Magnetic: Yes
- Installation type: Plug-in
- Quick-exchange system: No
- Type of test probe connection: Plug
- Adjustable installation height: No
- Non-rotating: No
- Continuous plunger: ø1,0 x 7,0
- Compatible connector(s): SE-502
- Compatible receptacle(s): KS-502 23
- Min. temperature: -40 °C [-40 °F]
- Max. temperature: 80 °C [176 °F]
- RoHS-compliant: Yes
Electrical data
- Current load capacity / rated current: 5 A
- Current rating, connection on plunger: 12 A
- Typical resistance (Ri): 30 mOhm
- Typical resistance (Ri), connection on plunger: 10 mOhm
Mechanical data
- Total length: 39.1 mm [1.53 in]
- Barrel diameter: 2 mm [.078 in]
- Maximum stroke: 7 mm [.275 in]
- Spring pre-load: 0.17 N [.611 ozf]
- Collar height: 02

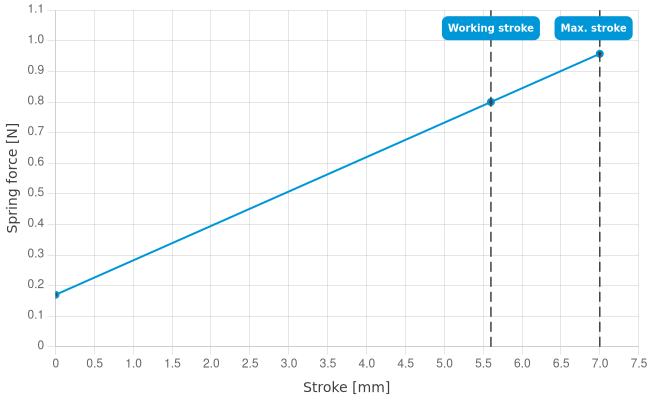

- Spring force at working stroke: 0.8 N [2.87 ozf]
- Working stroke: 5.6 mm [.22 in]
Tip style data

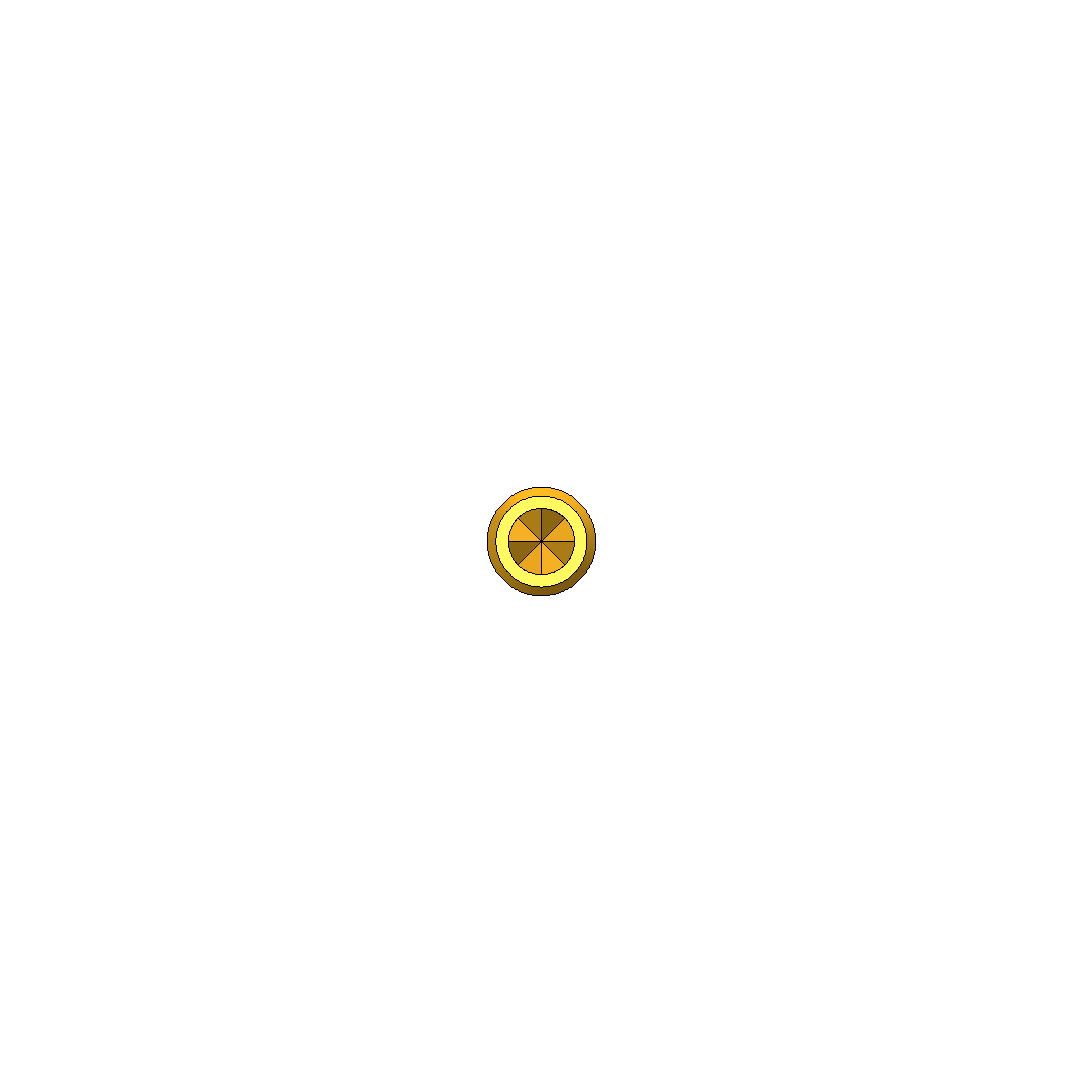

- Tip style: 04 4-point crown
- Tip diameter: 1.4 mm [.055 in]
- Tip style surface: A gold
- Tip style material: 3 CuBe
