Product information "GKS-365 206 400 A 0601"
- Extremely robust test probes for applications with unwanted side and axial forces
- For use in applications with limited space
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 4.97 mm [.195 in] |
| Collar height: | 01 |
| Compatible receptacle(s): | KS-365 |
| Contacting from: | Flat contact, Post, Pin |
| Current load capacity / rated current: | 5 A |
| Grid: | 6.5 mm [255 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 4 mm [.157 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | Short stroke GKS / charge and transfer GKS, Assorted test probes |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Series: | GKS-365 |
| Spring force at working stroke: | 0.6 N [2.15 ozf] |
| Spring pre-load: | 0.23 N [.827 ozf] |
| Sub-product group: | Short stroke GKS / charge and transfer GKS |
| Tip diameter: | 4 mm [.157 in] |

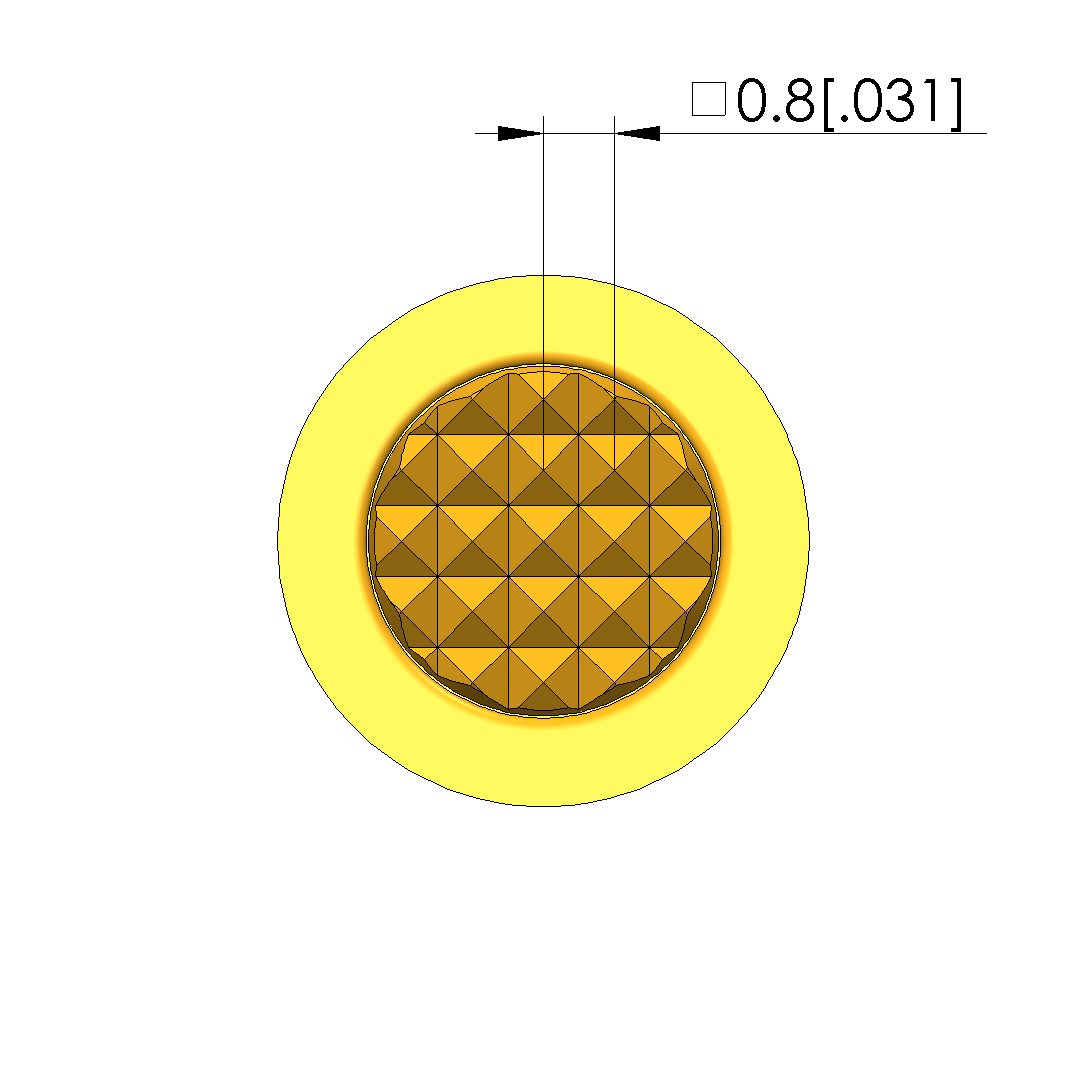

| Tip style: | 06 serrated |
| Tip style material: | 2 steel |
| Tip style surface: | A gold |
| Total length: | 15 mm [.59 in] |
| Typical resistance (Ri): | 30 mOhm |
| Working stroke: | 3.2 mm [.125 in] |
Login
Product Details
- Extremely robust test probes for applications with unwanted side and axial forces
- For use in applications with limited space
Other products in this series:
Technical data
General data
- Product group: Short stroke GKS / charge and transfer GKS
- Product group: Assorted test probes
- Sub-product group: Short stroke GKS / charge and transfer GKS
- Series: GKS-365
- Grid: 6.5 mm [255 mil]
- Contacting from: Pin
- Contacting from: Flat contact
- Contacting from: Post
- Magnetic: Yes
- Installation type: Plug-in
- Quick-exchange system: Yes
- Adjustable installation height: No
- Non-rotating: No
- Compatible receptacle(s): KS-365
- Min. temperature: -40 °C [-40 °F]
- Max. temperature: 80 °C [176 °F]
- RoHS-compliant: Yes
Tip style data
- Tip style: 06 serrated
- Tip diameter: 4 mm [.157 in]
- Tip style surface: A gold
- Tip style material: 2 steel
Electrical data
- Current load capacity / rated current: 5 A
- Typical resistance (Ri): 30 mOhm
Mechanical data
- Total length: 15 mm [.59 in]
- Barrel diameter: 4.97 mm [.195 in]
- Maximum stroke: 4 mm [.157 in]
- Spring pre-load: 0.23 N [.827 ozf]
- Collar height: 01
- Spring force at working stroke: 0.6 N [2.15 ozf]
- Working stroke: 3.2 mm [.125 in]
