Product information "GKS-181 354 080 A 0800"
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 1 mm [.039 in] |
| Collar height: | no name |
| Compatible receptacle(s): | KS-181 |
| Contacting from: | Pad, Post, Pin |
| Current load capacity / rated current: | 2 A |
| Grid: | 1.27 mm [50 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 7.5 mm [.295 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | Fine-pitch, ICT / FCT (in-circuit test and function test |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Series: | GKS-181, GKS-181..00 installation with KS |
| Spring force at working stroke: | 0.8 N [2.87 ozf] |
| Spring pre-load: | 0.22 N [.791 ozf] |
| Sub-product group: | Fine-pitch |
| Tip diameter: | 0.8 mm [.031 in] |
| Tip style: | 54 4-point crown, special length |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 34.9 mm [1.37 in] |
| Typical resistance (Ri): | 20 mOhm |
| Working stroke: | 5.5 mm [.216 in] |
Login
Other products in this series:
Technical data
General data
- Installation type: Plug-in
- Sub-product group: Fine-pitch
- Max. temperature: 80 °C [176 °F]
- Contacting from: Pin
- Product group: Fine-pitch
- Grid: 1.27 mm [50 mil]
- Non-rotating: No
- Adjustable installation height: No
- Series: GKS-181
- RoHS-compliant: Yes
- Series: GKS-181..00 installation with KS
- Min. temperature: -40 °C [-40 °F]
- Quick-exchange system: Yes
- Contacting from: Post
- Product group: ICT / FCT (in-circuit test and function test
- Magnetic: Yes
- Contacting from: Pad
- Compatible receptacle(s): KS-181
Mechanical data
- Spring force at working stroke: 0.8 N [2.87 ozf]
- Barrel diameter: 1 mm [.039 in]
- Maximum stroke: 7.5 mm [.295 in]
- Collar height: no name
- Working stroke: 5.5 mm [.216 in]
- Spring pre-load: 0.22 N [.791 ozf]
- Total length: 34.9 mm [1.37 in]
Tip style data

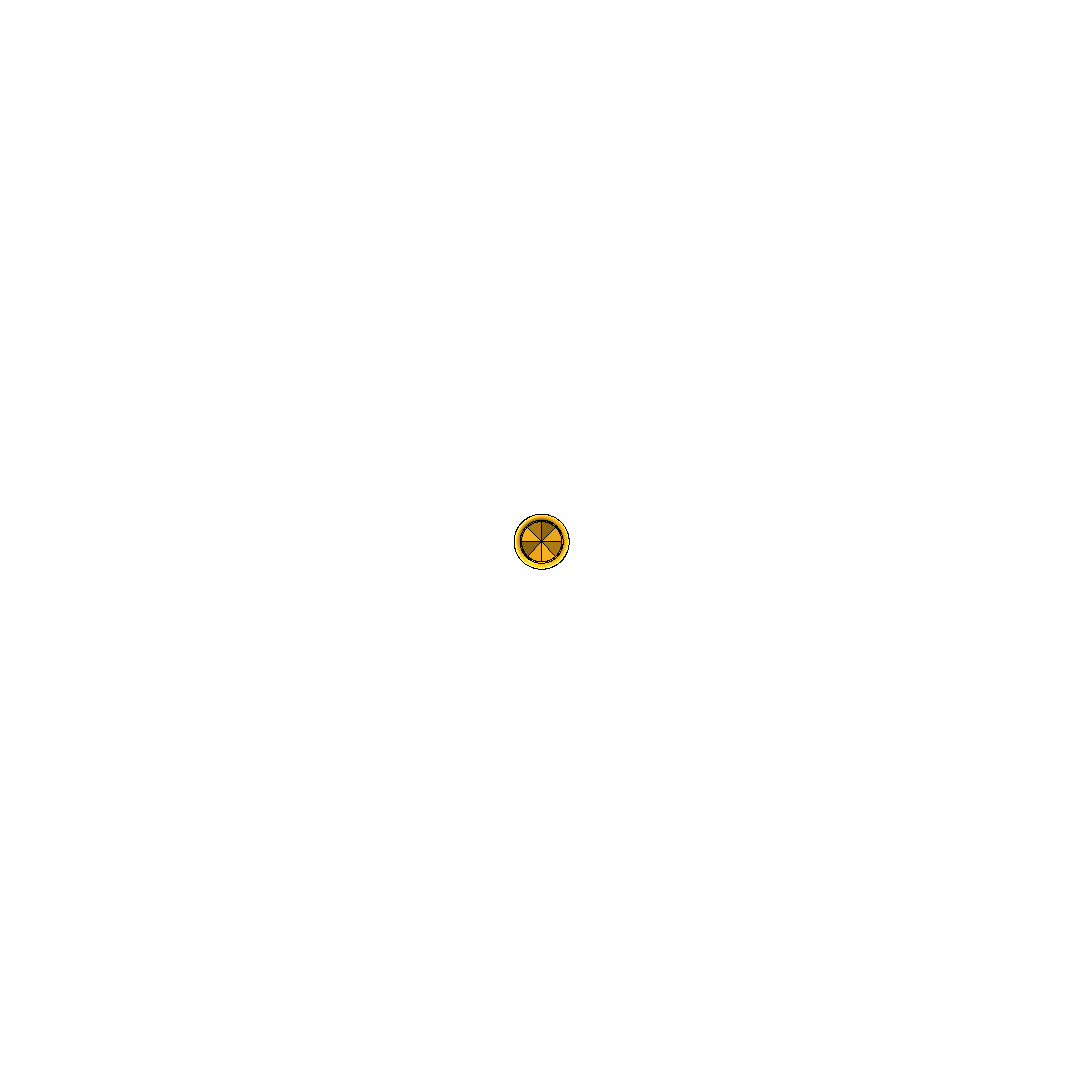

- Tip style: 54 4-point crown, special length
- Tip diameter: 0.8 mm [.031 in]
- Tip style material: 3 CuBe
- Tip style surface: A gold
Electrical data
- Current load capacity / rated current: 2 A
- Typical resistance (Ri): 20 mOhm
