Product information "GKS-135 204 130 A 2800"

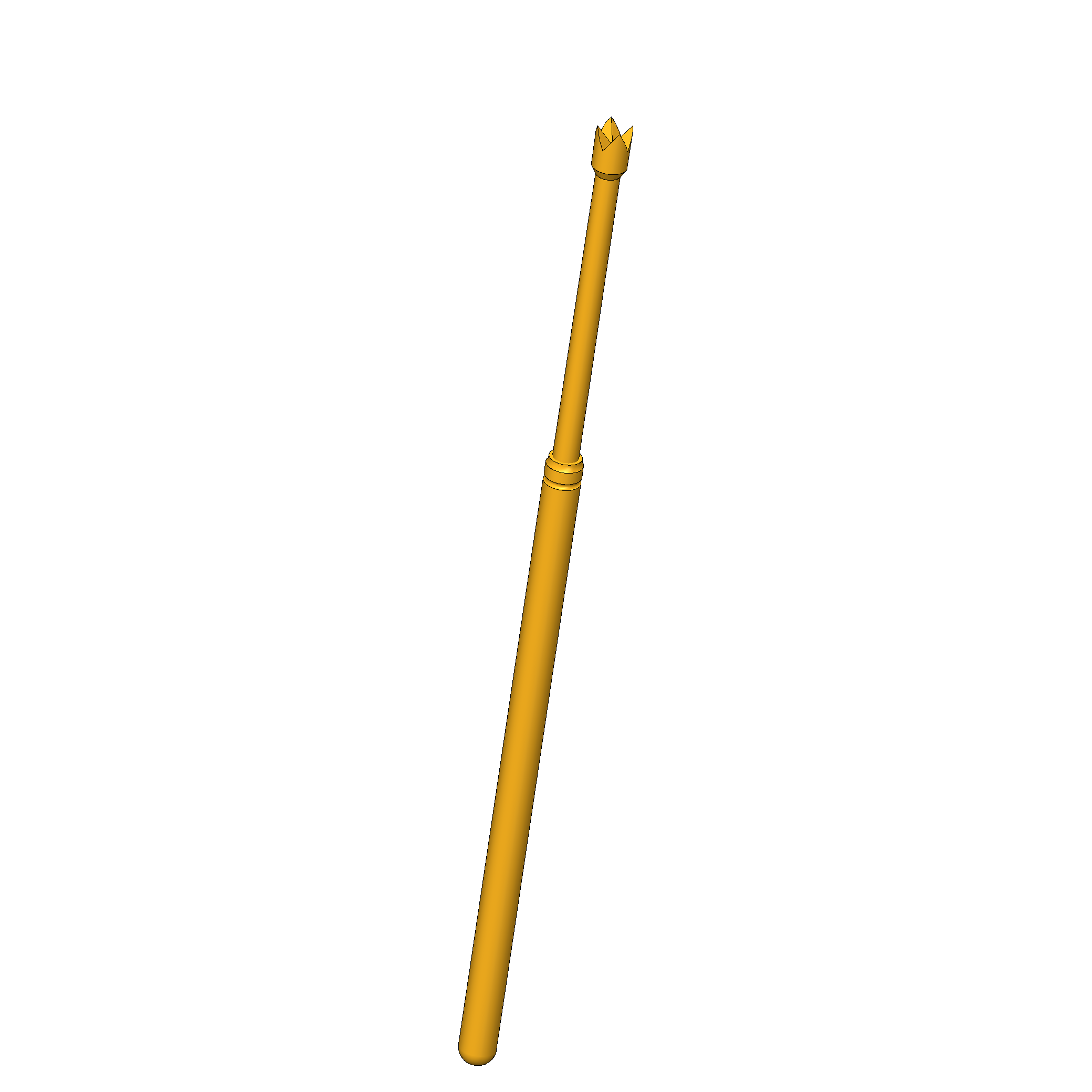

- Long-stroke test probe for implementing combined ICT and FCT in a dual-stage fixture
- For optimum contact at the test points (e.g. pads, vias, and pins), various tip styles in different diameters and finishes, as well as various spring forces are available. spring forces.
- Used for setting the optimum stroke conditions in the test fixture, various installation heights can be achieved by combining test probes and receptacles
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 1.37 mm [.053 in] |
| Collar height: | 00 |
| Compatible receptacle(s): | KS-100 |
| Contacting from: | Pad, Post, Pin |
| Current load capacity / rated current: | 5 A |
| Grid: | 2.54 mm [100 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 11.5 mm [.452 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | Long stroke GKS, xxx |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Series: | GKS-135 |
| Spring force at working stroke: | 2.8 N [10 ozf] |
| Spring pre-load: | 0.37 N [1.33 ozf] |
| Sub-product group: | Long stroke GKS |

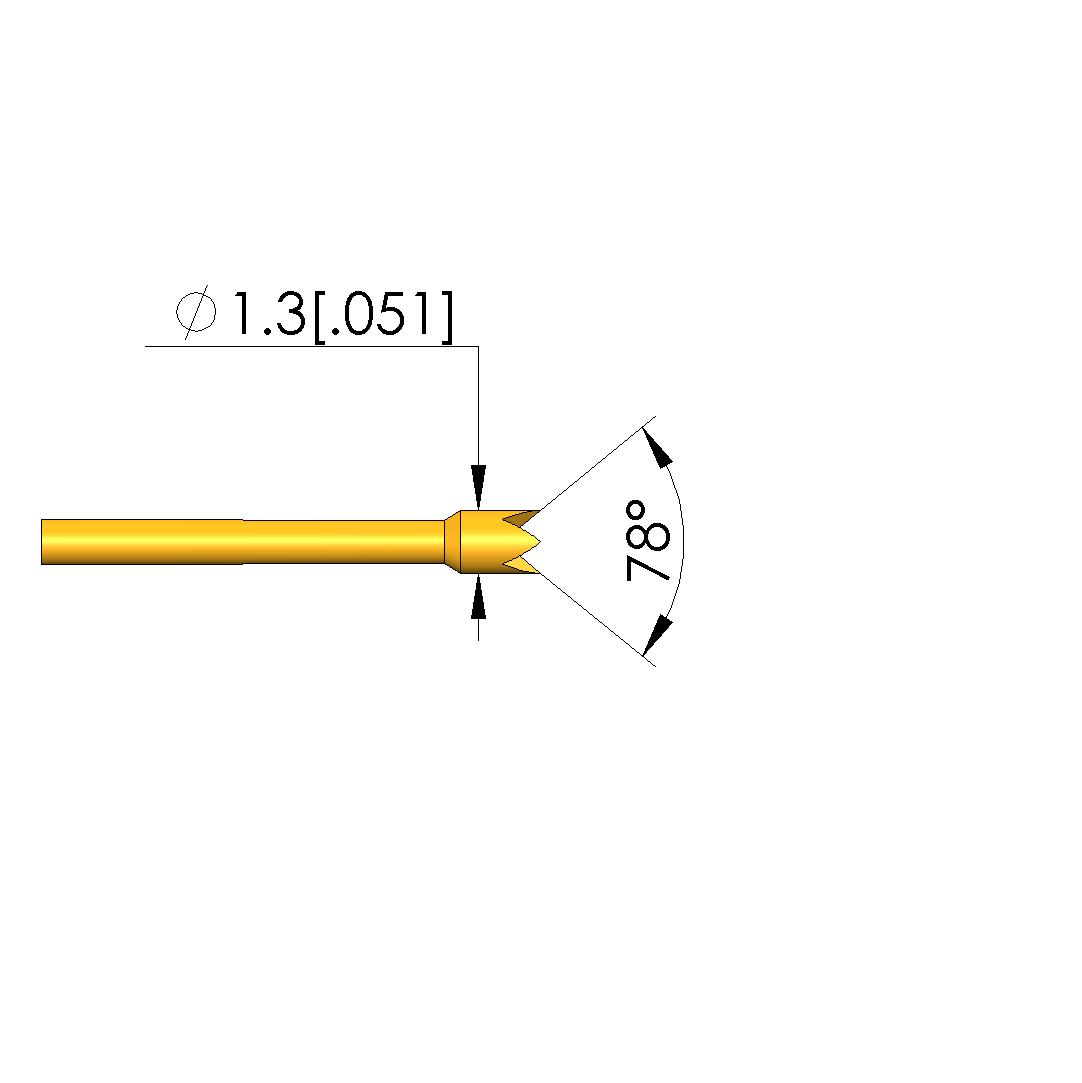

| Tip diameter: | 1.3 mm [.051 in] |

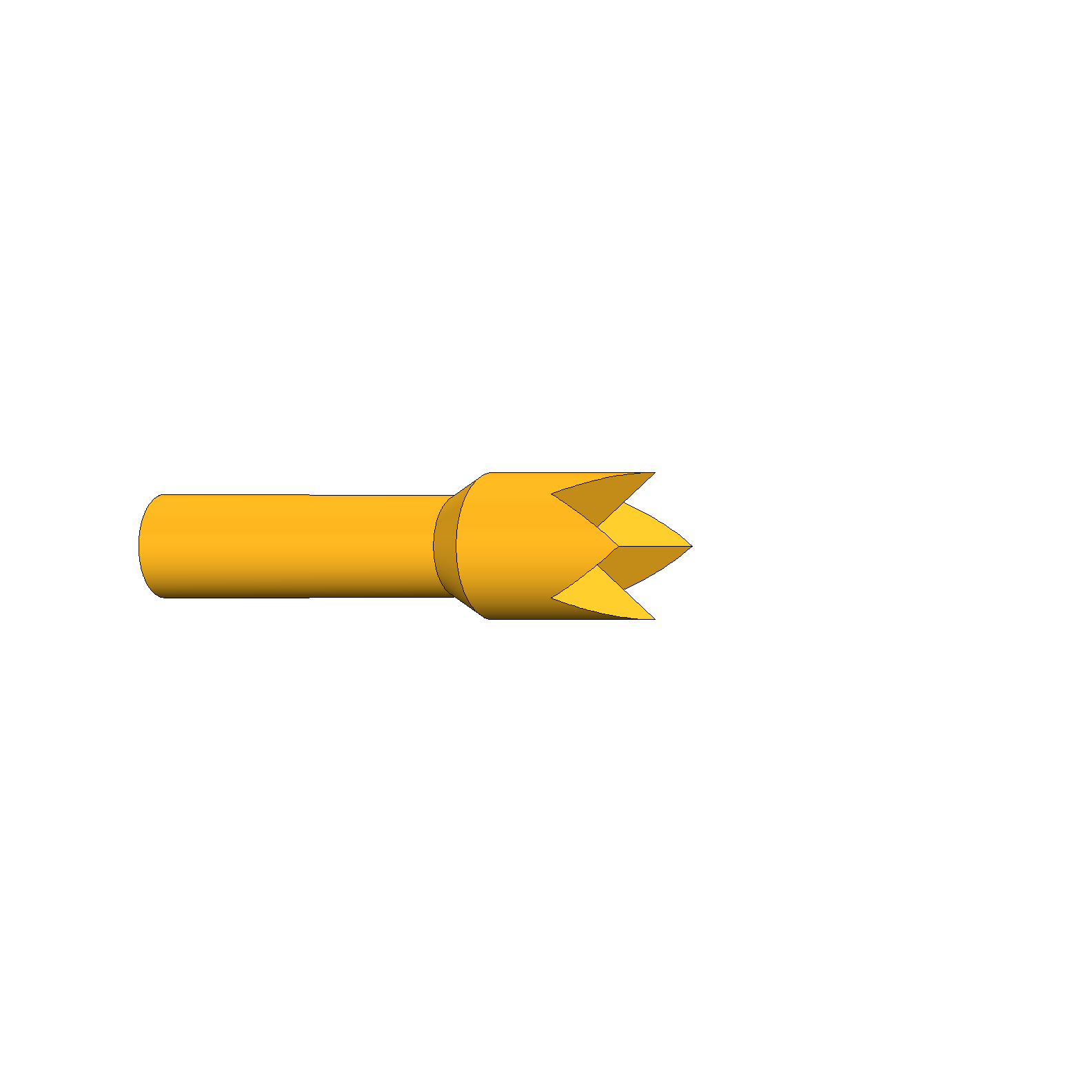

| Tip style: | 04 4-point crown |
| Tip style material: | 2 steel |
| Tip style surface: | A gold |

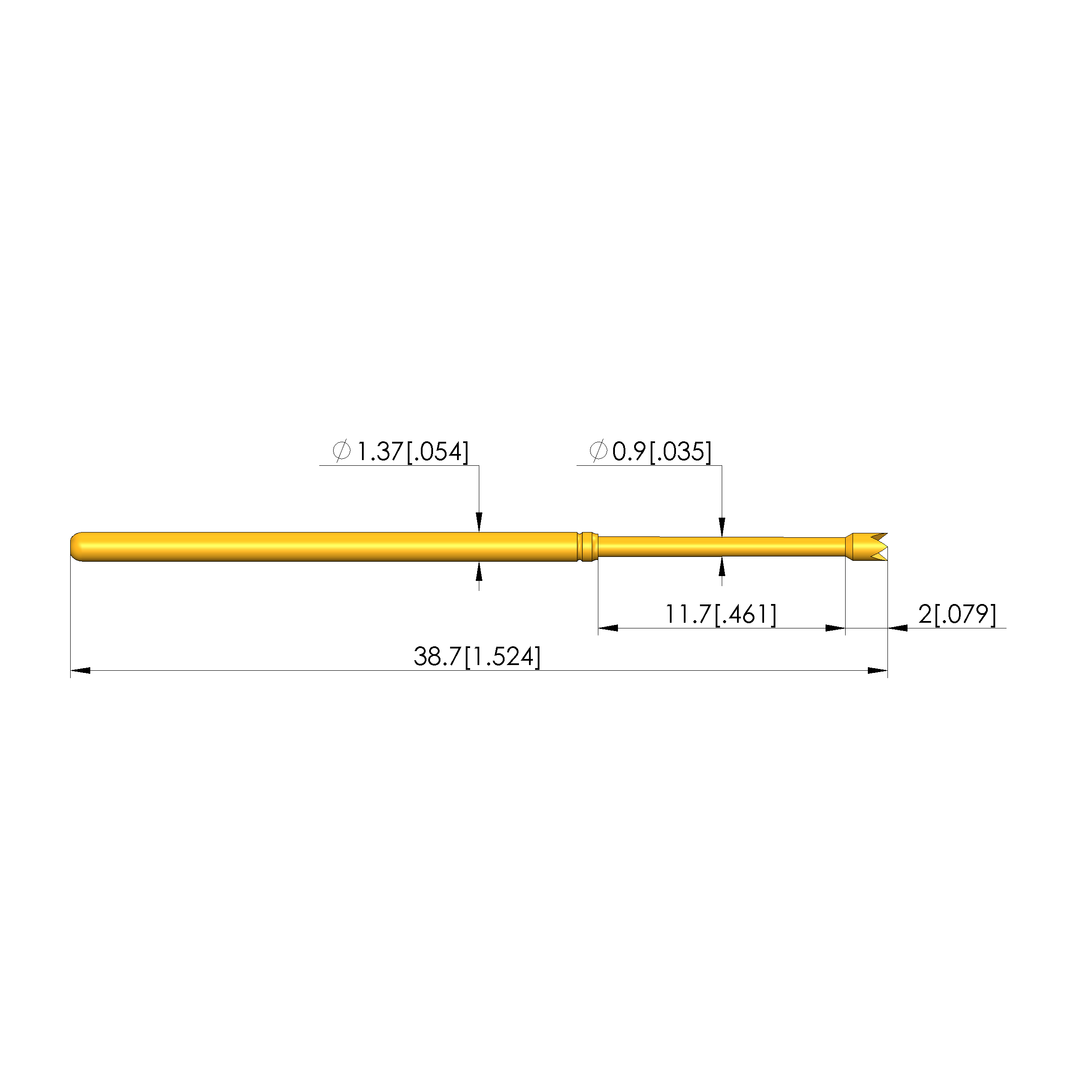

| Total length: | 38.7 mm [1.52 in] |
| Typical resistance (Ri): | 30 mOhm |
| Working stroke: | 9.3 mm [.366 in] |
Login
Product Details
- Long-stroke test probe for implementing combined ICT and FCT in a dual-stage fixture
- For optimum contact at the test points (e.g. pads, vias, and pins), various tip styles in different diameters and finishes, as well as various spring forces are available. spring forces.
- Used for setting the optimum stroke conditions in the test fixture, various installation heights can be achieved by combining test probes and receptacles
Other products in this series:
Technical data
General data
- Product group: xxx
- Product group: Long stroke GKS
- Sub-product group: Long stroke GKS
- Series: GKS-135
- Grid: 2.54 mm [100 mil]
- Contacting from: Pin
- Contacting from: Post
- Contacting from: Pad
- Magnetic: Yes
- Installation type: Plug-in
- Quick-exchange system: Yes
- Adjustable installation height: No
- Non-rotating: No
- Compatible receptacle(s): KS-100
- Min. temperature: -40 °C [-40 °F]
- Max. temperature: 80 °C [176 °F]
- RoHS-compliant: Yes
Electrical data
- Current load capacity / rated current: 5 A
- Typical resistance (Ri): 30 mOhm
Mechanical data
- Total length: 38.7 mm [1.52 in]
- Barrel diameter: 1.37 mm [.053 in]
- Maximum stroke: 11.5 mm [.452 in]
- Spring pre-load: 0.37 N [1.33 ozf]
- Collar height: 00
- Spring force at working stroke: 2.8 N [10 ozf]
- Working stroke: 9.3 mm [.366 in]
Tip style data
- Tip style: 04 4-point crown
- Tip diameter: 1.3 mm [.051 in]
- Tip style surface: A gold
- Tip style material: 2 steel
