Product information "GKS-112 303 200 R 1502 M"

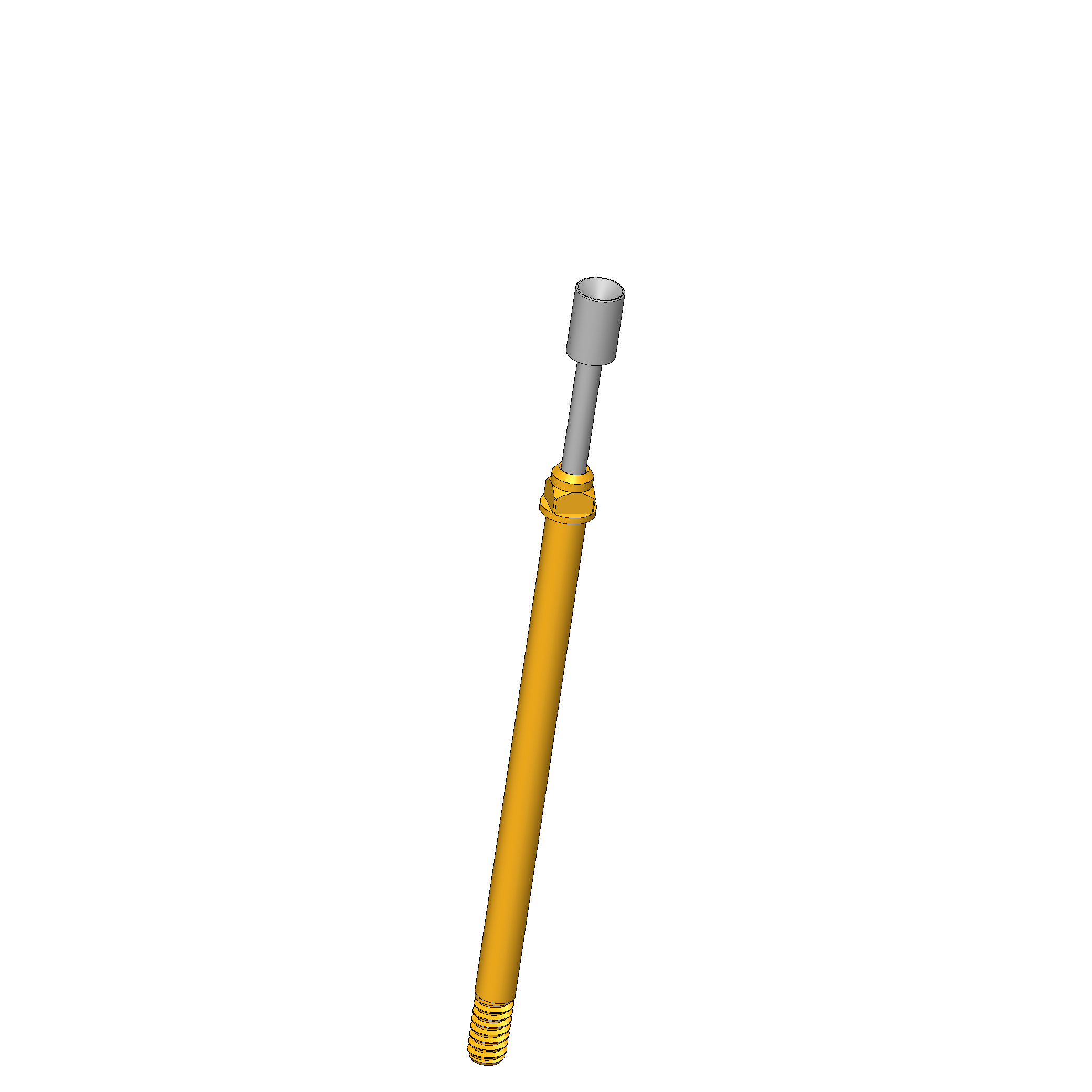

- Screw-in test probes for applications with possible vibrations or unwanted side and axial forces (migration of the test probe out of the receptacle is reliably prevented)
- The screw-in test probe is securely installed in the KS using a torque screwdriver and bit tool. The required screw-in torque is applied via a square post on the receptacle.
- Stainless steel versions for temperatures from -100 °C up to +200 °C available
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 1.65 mm [.064 in] |
| Collar height: | 02 |
| Compatible receptacle(s): | KS-112 M |
| Contacting from: | Post, Pin |
| Current load capacity / rated current: | 8 A |
| Grid: | 2.54 mm [100 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 5.3 mm [.208 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | Screw-in test probe , Screw-in test probe |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Screw-in torque: | 3 – 5 cNm [.265 – .442 lbf·in] |
| Screw-in torque max.: | 5 cNm [.442 lbf·in] |
| Screw-in torque min.: | 3 cNm [.265 lbf·in] |
| Series: | GKS-112, GKS-112 M screw-in |
| Spring force at working stroke: | 1.5 N [5.39 ozf] |
| Spring pre-load: | 0.5 N [1.79 ozf] |
| Sub-product group: | Screw-in test probe |
| Tip diameter: | 2 mm [.078 in] |
| Tip style: | 03 inverse cone |
| Tip style material: | 3 CuBe |
| Tip style surface: | R rhodium |
| Total length: | 35.8 mm [1.4 in] |
| Typical resistance (Ri): | 20 mOhm |
| Working stroke: | 4 mm [.157 in] |
Login
Product Details
- Screw-in test probes for applications with possible vibrations or unwanted side and axial forces (migration of the test probe out of the receptacle is reliably prevented)
- The screw-in test probe is securely installed in the KS using a torque screwdriver and bit tool. The required screw-in torque is applied via a square post on the receptacle.
- Stainless steel versions for temperatures from -100 °C up to +200 °C available
Other products in this series:
Technical data
Mechanical data

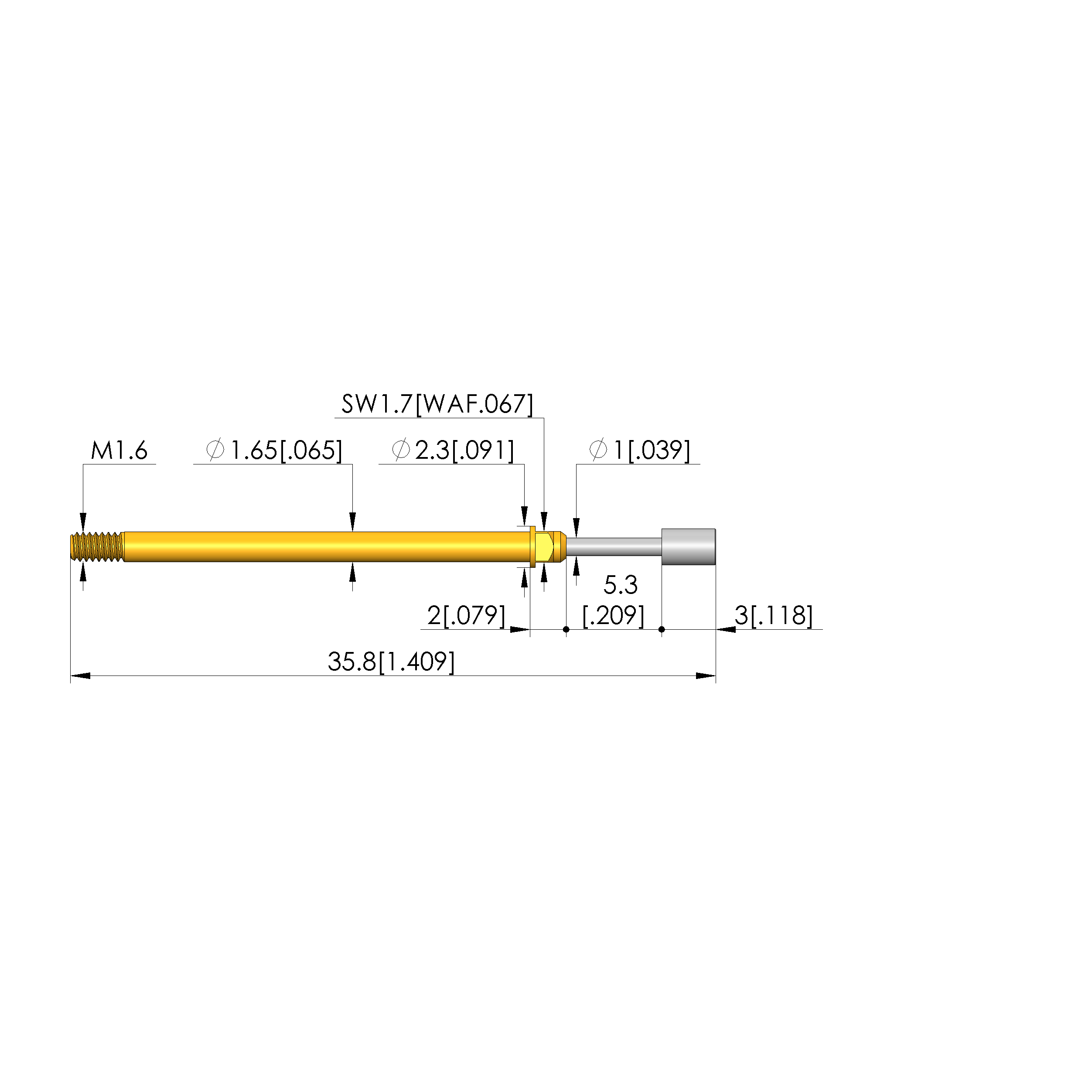

- Total length: 35.8 mm [1.4 in]
- Barrel diameter: 1.65 mm [.064 in]
- Maximum stroke: 5.3 mm [.208 in]
- Spring pre-load: 0.5 N [1.79 ozf]
- Collar height: 02
- Spring force at working stroke: 1.5 N [5.39 ozf]
- Working stroke: 4 mm [.157 in]
General data
- Screw-in torque max.: 5 cNm [.442 lbf·in]
- Screw-in torque min.: 3 cNm [.265 lbf·in]
- Product group: Screw-in test probe
- Product group: Screw-in test probe
- Sub-product group: Screw-in test probe
- Series: GKS-112
- Series: GKS-112 M screw-in
- Grid: 2.54 mm [100 mil]
- Contacting from: Pin
- Contacting from: Post
- Magnetic: Yes
- Installation type: Screw-in
- Quick-exchange system: Yes
- Adjustable installation height: No
- Non-rotating: No
- Screw-in torque: 3 – 5 cNm [.265 – .442 lbf·in]
- Compatible receptacle(s): KS-112 M
- Min. temperature: -40 °C [-40 °F]
- Max. temperature: 80 °C [176 °F]
- RoHS-compliant: Yes
Tip style data

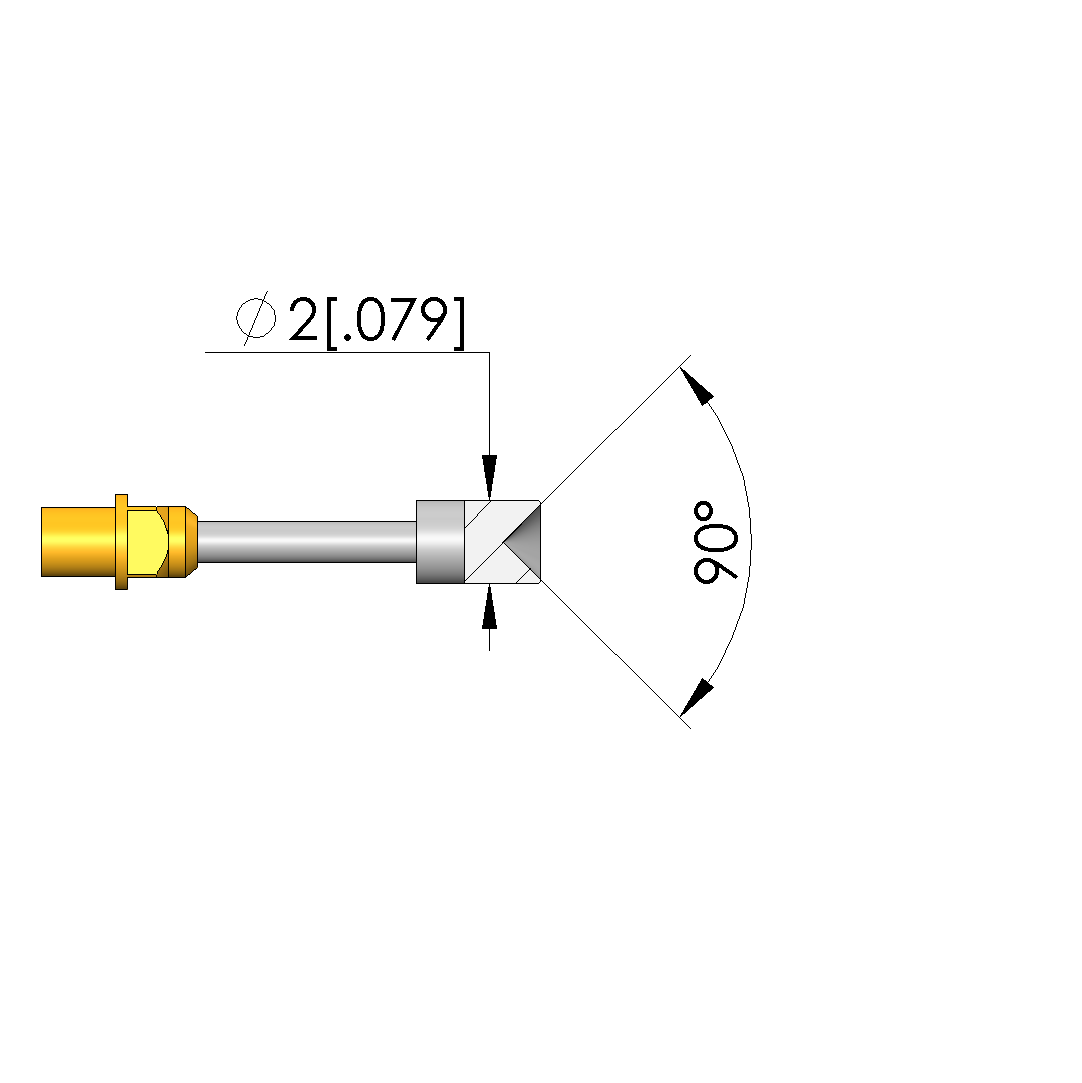

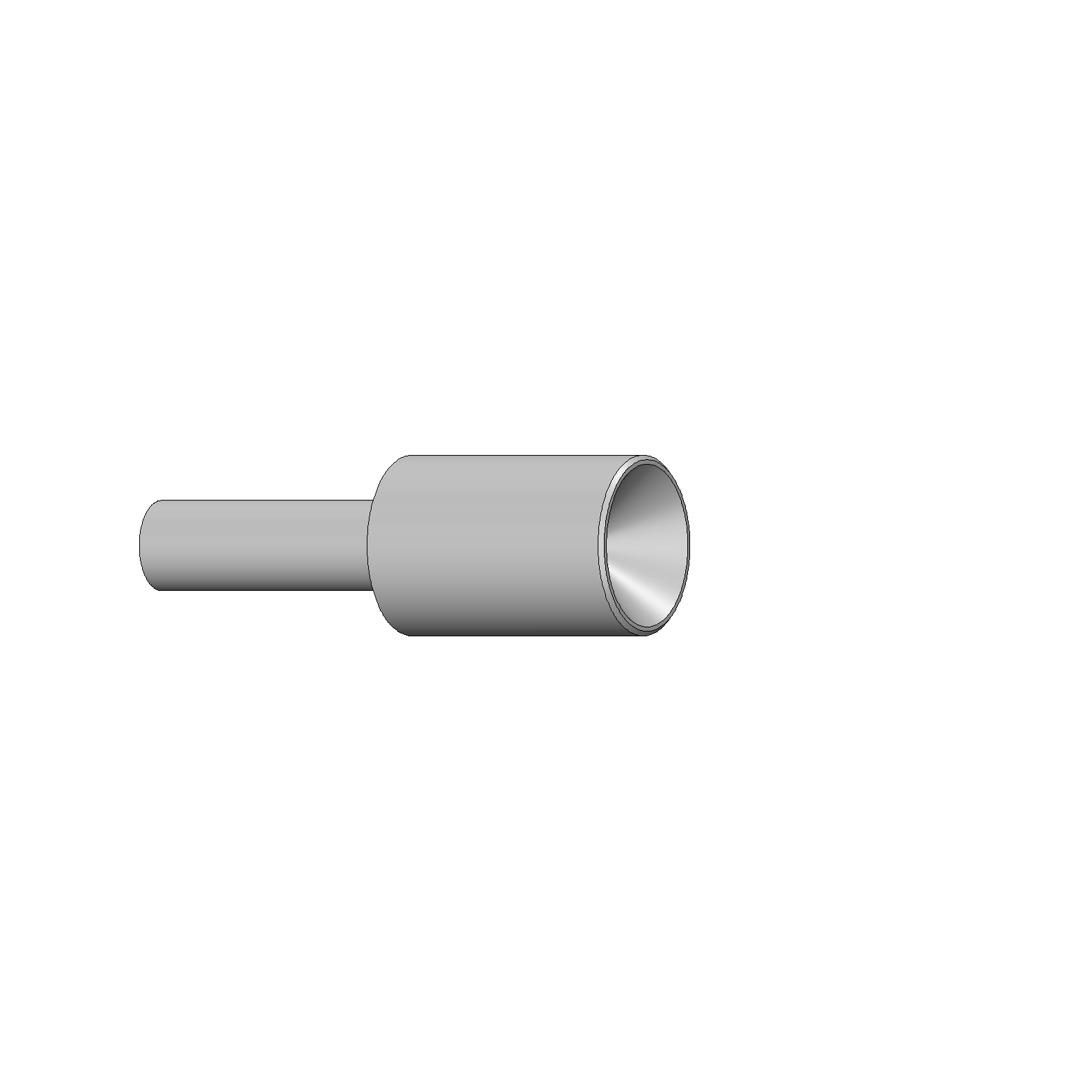

- Tip style: 03 inverse cone
- Tip diameter: 2 mm [.078 in]
- Tip style surface: R rhodium
- Tip style material: 3 CuBe
Electrical data
- Current load capacity / rated current: 8 A
- Typical resistance (Ri): 20 mOhm
