Product information "GKS-103 206 230 A 0002"

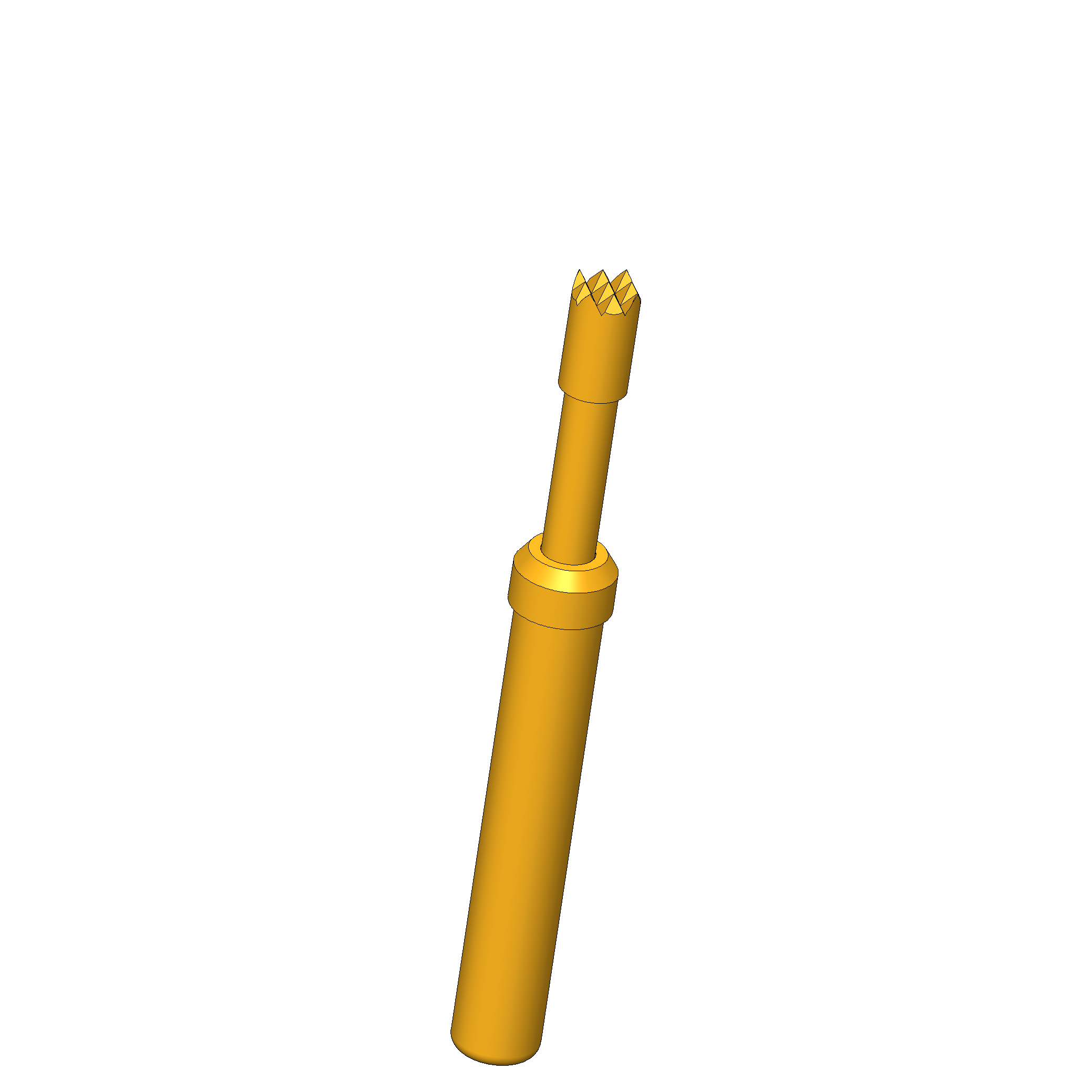

- Robust test probes with distinctive collar (stop) on the barrel
- Optimum adjustment of the stroke ratios in the test fixture: The collar is available in different heights, which, in combination with the receptacles, allows a range of installation heights
- Stainless steel versions for temperatures from -100 °C up to +200 °C available
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 3 mm [.118 in] |
| Collar height: | 2 |
| Compatible receptacle(s): | KS-103, KS-103 23 |
| Contacting from: | Flat contact, Post, Pin |
| Current load capacity / rated current: | 5 A |
| Grid: | 4.5 mm [177 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 0 mm |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | Metric standard, xxx |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Series: | GKS-103 |
| Spring force at working stroke: | 0 N |
| Spring pre-load: | 0 N |
| Sub-product group: | Metric standard |

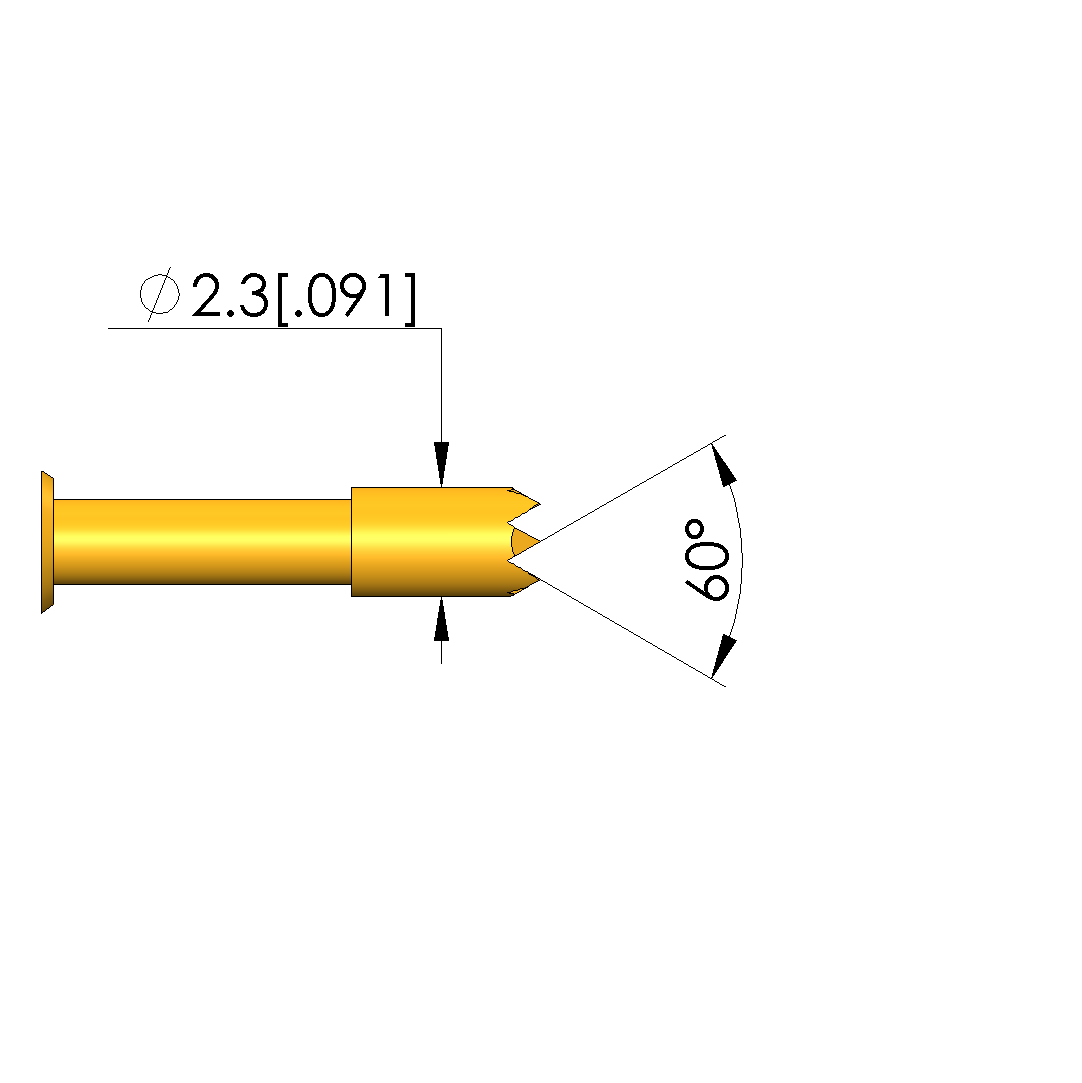

| Tip diameter: | 2.3 mm [.09 in] |

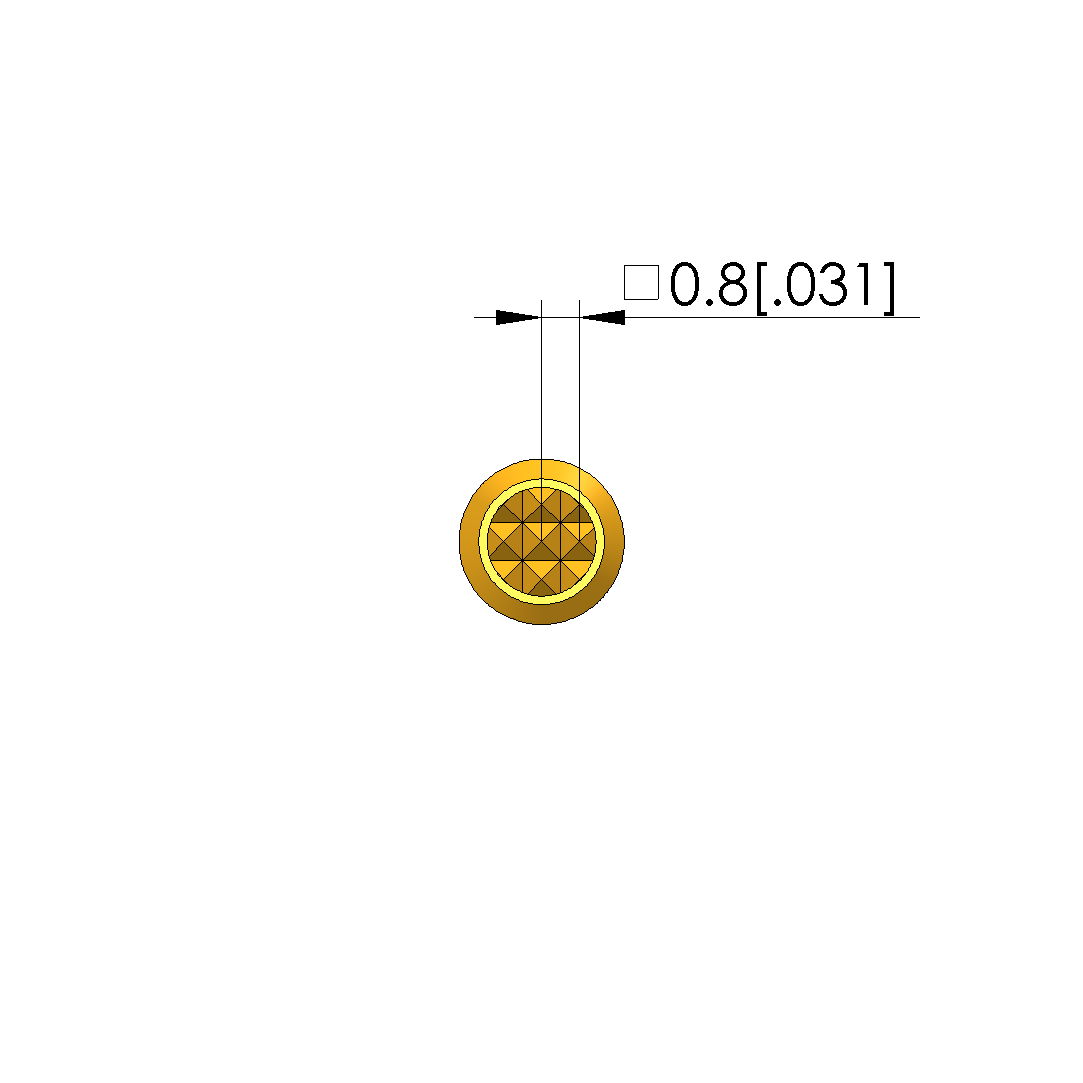

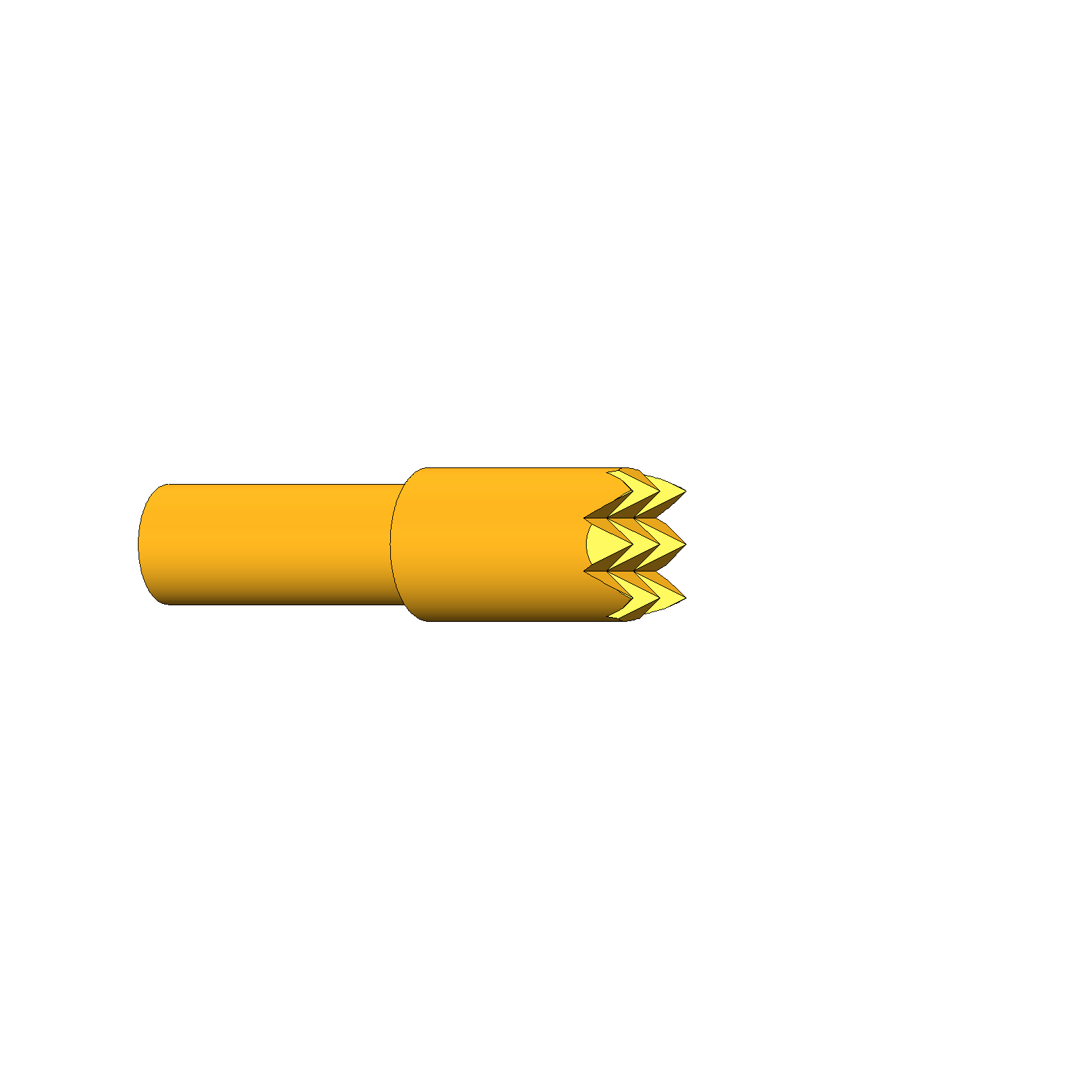

| Tip style: | 06 serrated |
| Tip style material: | 2 steel |
| Tip style surface: | A gold |

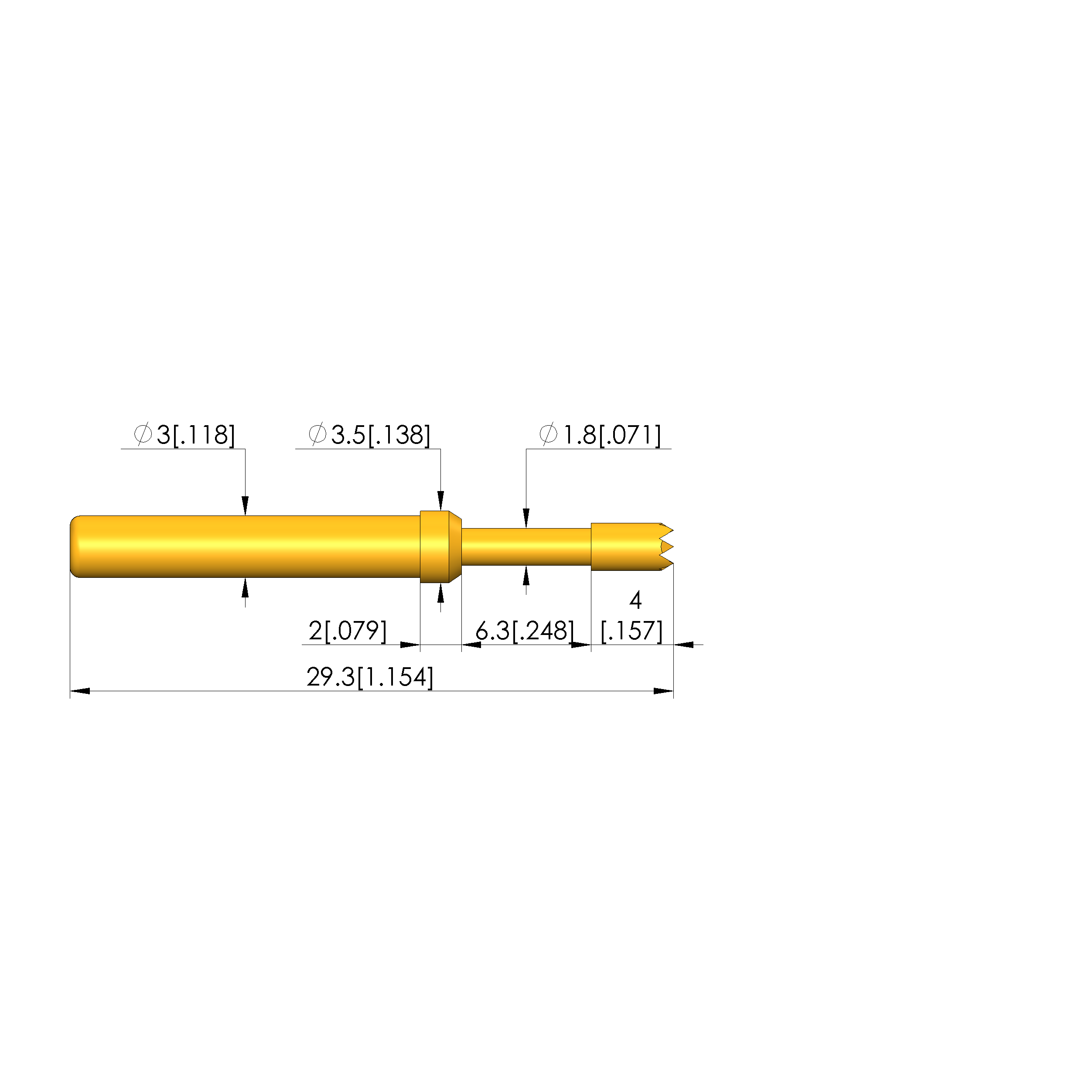

| Total length: | 29.3 mm [1.15 in] |
| Typical resistance (Ri): | 30 mOhm |
| Working stroke: | 0 mm |
Login
Product Details
- Robust test probes with distinctive collar (stop) on the barrel
- Optimum adjustment of the stroke ratios in the test fixture: The collar is available in different heights, which, in combination with the receptacles, allows a range of installation heights
- Stainless steel versions for temperatures from -100 °C up to +200 °C available
Other products in this series:
Technical data
Electrical data
- Current load capacity / rated current: 5 A
- Typical resistance (Ri): 30 mOhm
General data
- Installation type: Plug-in
- Max. temperature: 80 °C [176 °F]
- Grid: 4.5 mm [177 mil]
- Contacting from: Pin
- Non-rotating: No
- Adjustable installation height: No
- Product group: Metric standard
- Product group: xxx
- Sub-product group: Metric standard
- RoHS-compliant: Yes
- Compatible receptacle(s): KS-103
- Compatible receptacle(s): KS-103 23
- Min. temperature: -40 °C [-40 °F]
- Quick-exchange system: Yes
- Contacting from: Flat contact
- Contacting from: Post
- Magnetic: Yes
- Series: GKS-103
Tip style data
- Tip style: 06 serrated
- Tip diameter: 2.3 mm [.09 in]
- Tip style surface: A gold
- Tip style material: 2 steel
Mechanical data
- Spring pre-load: 0 N
- Barrel diameter: 3 mm [.118 in]
- Collar height: 2
- Total length: 29.3 mm [1.15 in]
- Maximum stroke: 0 mm
- Working stroke: 0 mm
- Spring force at working stroke: 0 N
