Product information "GKS-103 206 400 A 1502 W"
- Robust test probes with distinctive collar (stop) on the barrel
- Version with continuous plunger
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 3 mm [.118 in] |
| Collar height: | 02 |
| Compatible receptacle(s): | KS-103 23 |
| Contacting from: | Flat contact, Post, Pin |
| Current load capacity / rated current: | 5 A |
| Grid: | 4.5 mm [177 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 6 mm [.236 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | ICT / FCT (in-circuit test and function test , Metric standard |
| Quick-exchange system: | No |
| RoHS-compliant: | Yes |
| Series: | GKS-103, GKS-103 W wire-wrap version |
| Spring force at working stroke: | 1.5 N [5.39 ozf] |
| Spring pre-load: | 0.44 N [1.58 ozf] |
| Sub-product group: | Metric standard |
| Tip diameter: | 4 mm [.157 in] |

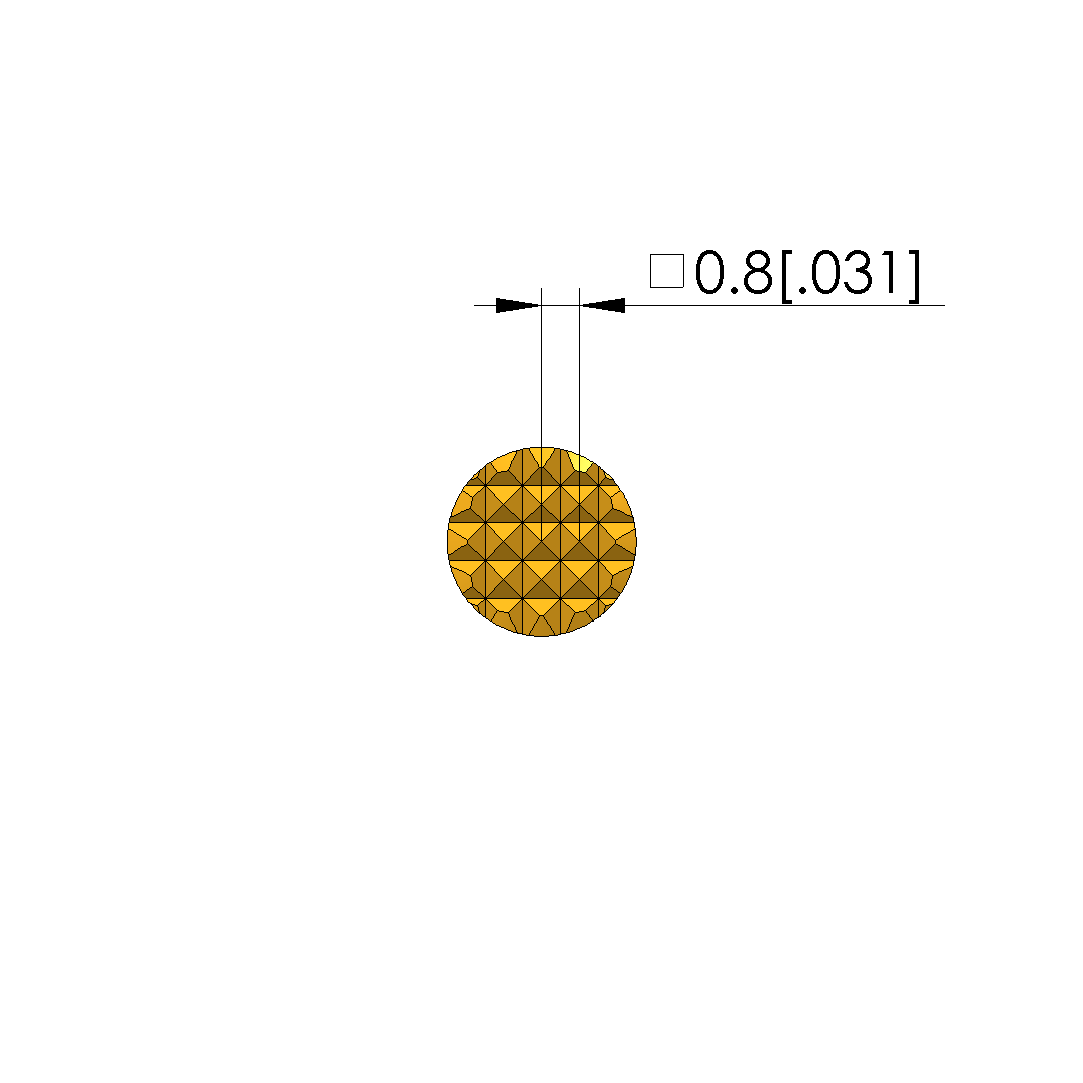

| Tip style: | 06 serrated |
| Tip style material: | 2 steel |
| Tip style surface: | A gold |
| Total length: | 37.3 mm [1.46 in] |
| Type of test probe connection: | Wire-wrap |
| Typical resistance (Ri): | 30 mOhm |
| Working stroke: | 4.8 mm [.188 in] |
Login
Product Details
- Robust test probes with distinctive collar (stop) on the barrel
- Version with continuous plunger
Other products in this series:
Technical data
General data
- Product group: Metric standard
- Product group: ICT / FCT (in-circuit test and function test
- Sub-product group: Metric standard
- Series: GKS-103 W wire-wrap version
- Series: GKS-103
- Grid: 4.5 mm [177 mil]
- Contacting from: Pin
- Contacting from: Flat contact
- Contacting from: Post
- Magnetic: Yes
- Installation type: Plug-in
- Quick-exchange system: No
- Type of test probe connection: Wire-wrap
- Adjustable installation height: No
- Non-rotating: No
- Compatible receptacle(s): KS-103 23
- Min. temperature: -40 °C [-40 °F]
- Max. temperature: 80 °C [176 °F]
- RoHS-compliant: Yes
Tip style data
- Tip style: 06 serrated
- Tip diameter: 4 mm [.157 in]
- Tip style surface: A gold
- Tip style material: 2 steel
Mechanical data
- Total length: 37.3 mm [1.46 in]
- Barrel diameter: 3 mm [.118 in]
- Maximum stroke: 6 mm [.236 in]
- Spring pre-load: 0.44 N [1.58 ozf]
- Collar height: 02
- Spring force at working stroke: 1.5 N [5.39 ozf]
- Working stroke: 4.8 mm [.188 in]
Electrical data
- Current load capacity / rated current: 5 A
- Typical resistance (Ri): 30 mOhm
