Product information "GKS-103 102 230 A 5002 M"
- Screw-in test probes for applications with possible vibrations or unwanted side and axial forces (migration of the test probe out of the receptacle is reliably prevented)
- The screw-in test probe is securely installed in the KS using a torque screwdriver and bit tool. The required screw-in torque is applied via a square post on the receptacle.
- Stainless steel versions for temperatures from -100 °C up to +200 °C available
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 3 mm [.118 in] |
| Collar height: | 02 |
| Compatible receptacle(s): | KS-103 M, KS-500 M |
| Contacting from: | Bead, Flat contact, Post, Pin |
| Current load capacity / rated current: | 5 A |
| Grid: | 4.5 mm [177 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 6 mm [.236 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | Screw-in test probe , Screw-in test probe |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Screw-in torque: | 10 – 20 cNm [.885 – 1.77 lbf·in] |
| Screw-in torque max.: | 20 cNm [1.77 lbf·in] |
| Screw-in torque min.: | 10 cNm [.885 lbf·in] |

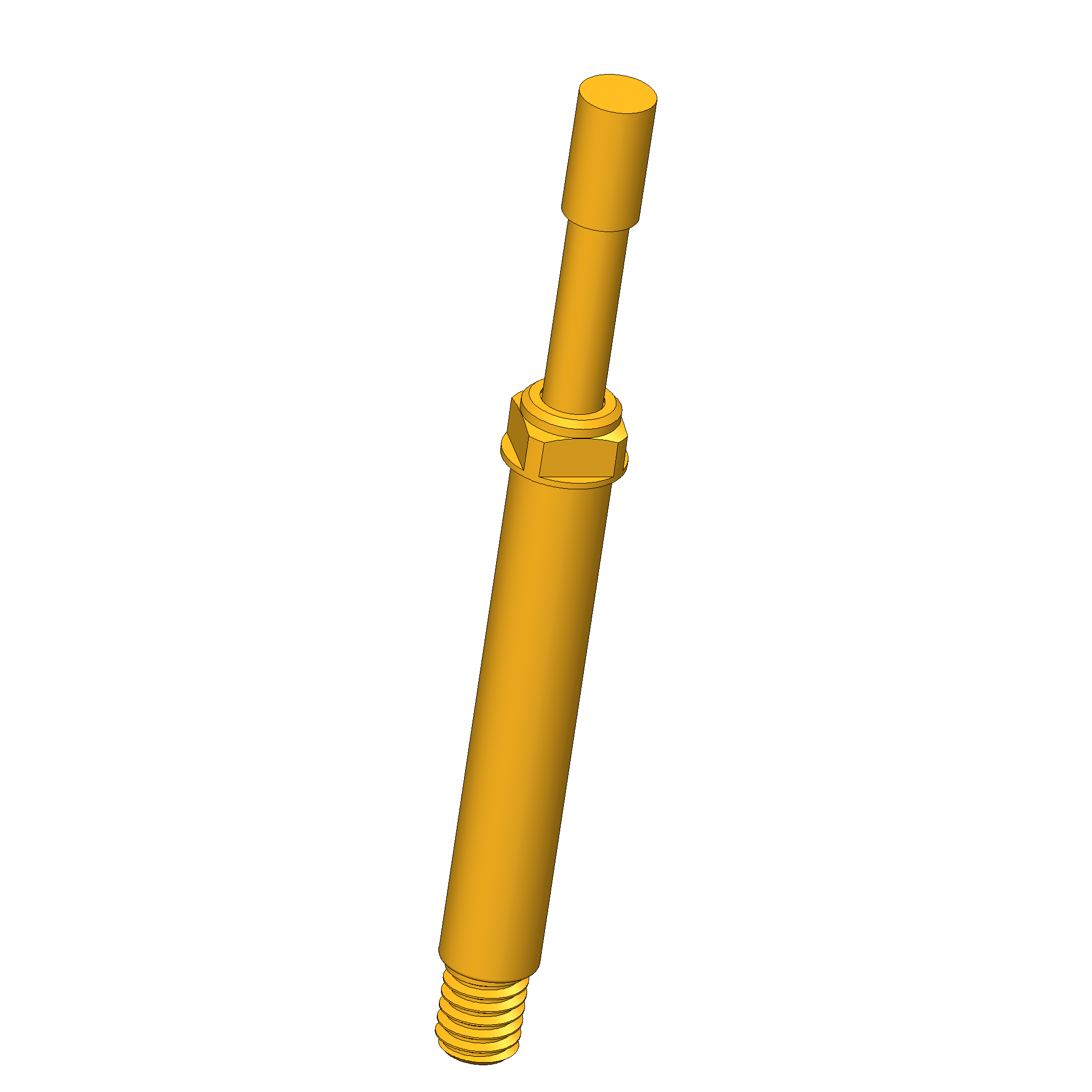

| Series: | GKS-103, GKS-103 M screw-in |
| Spring force at working stroke: | 5 N [17.9 ozf] |
| Spring pre-load: | 1.47 N [5.28 ozf] |
| Sub-product group: | Screw-in test probe |

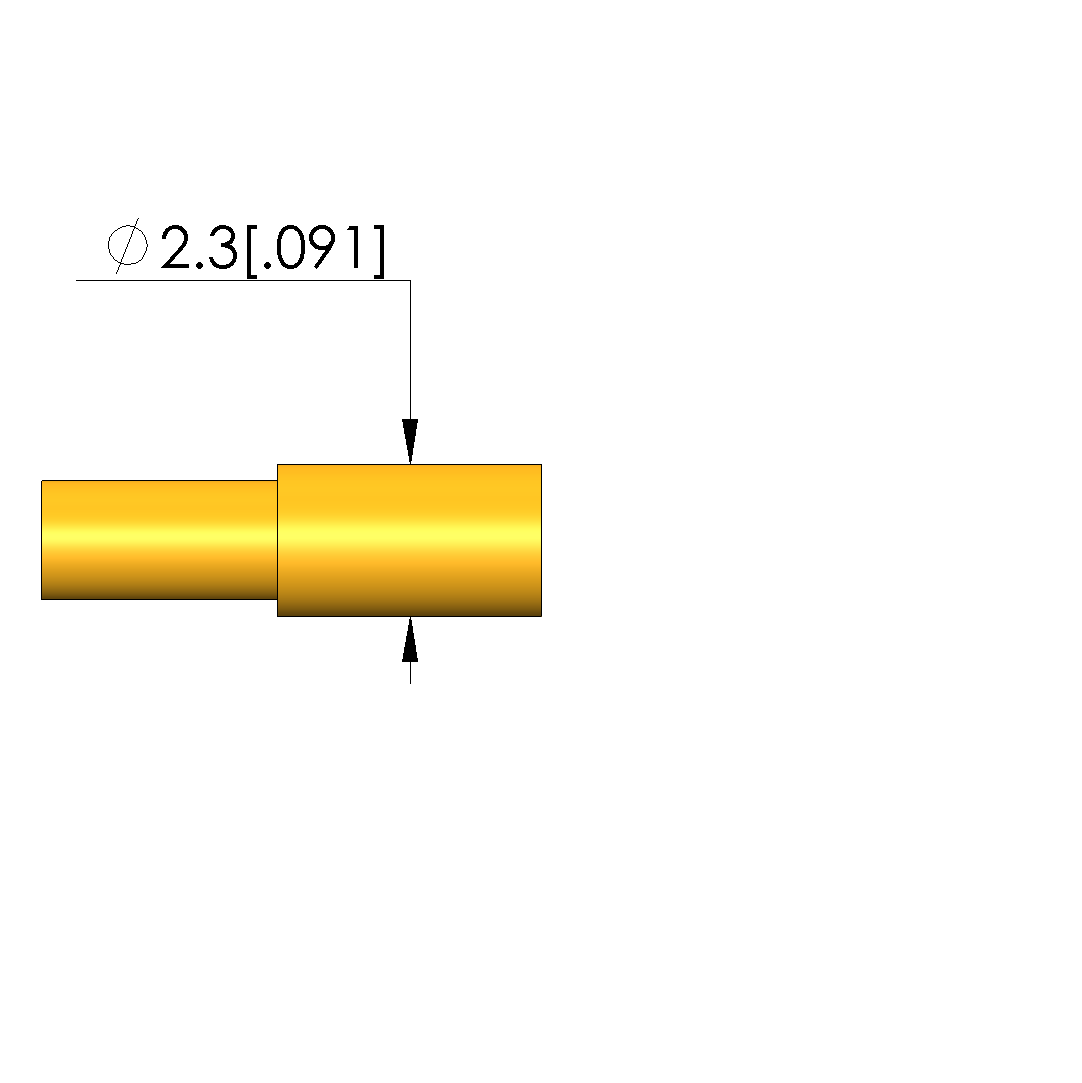

| Tip diameter: | 2.3 mm [.09 in] |

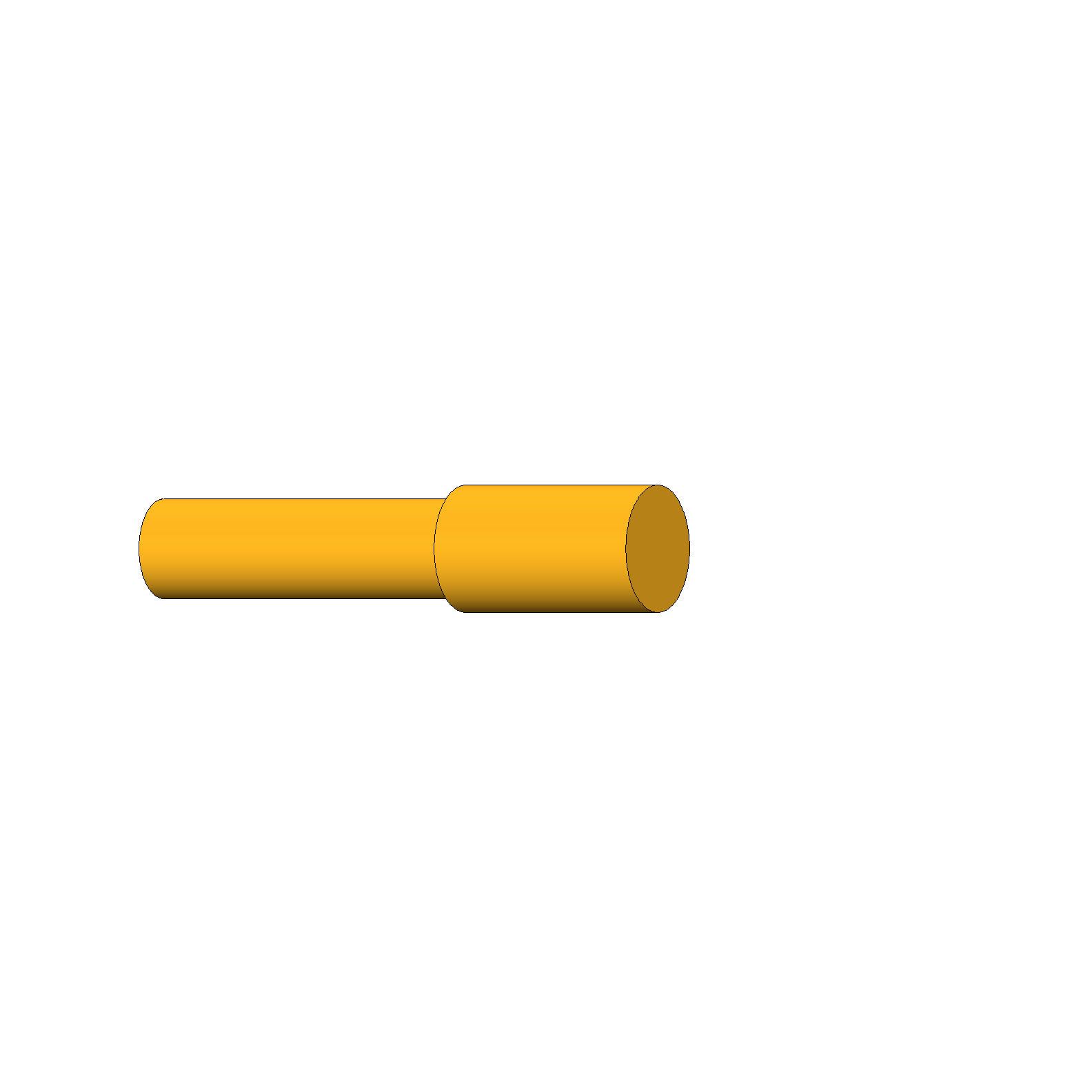

| Tip style: | 02 flat |
| Tip style material: | 1 brass |
| Tip style surface: | A gold |

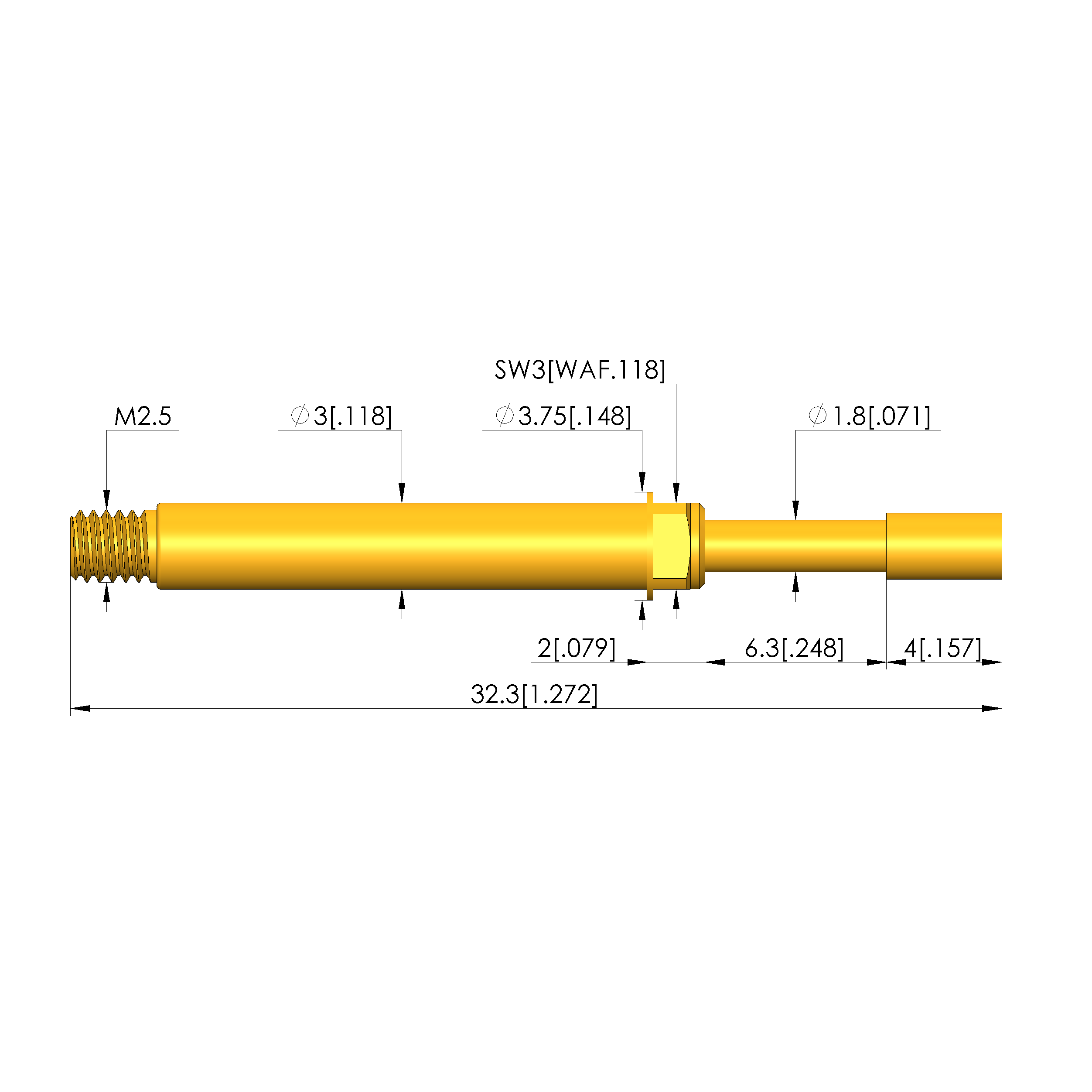

| Total length: | 32.3 mm [1.27 in] |
| Typical resistance (Ri): | 30 mOhm |
| Working stroke: | 4.8 mm [.188 in] |
