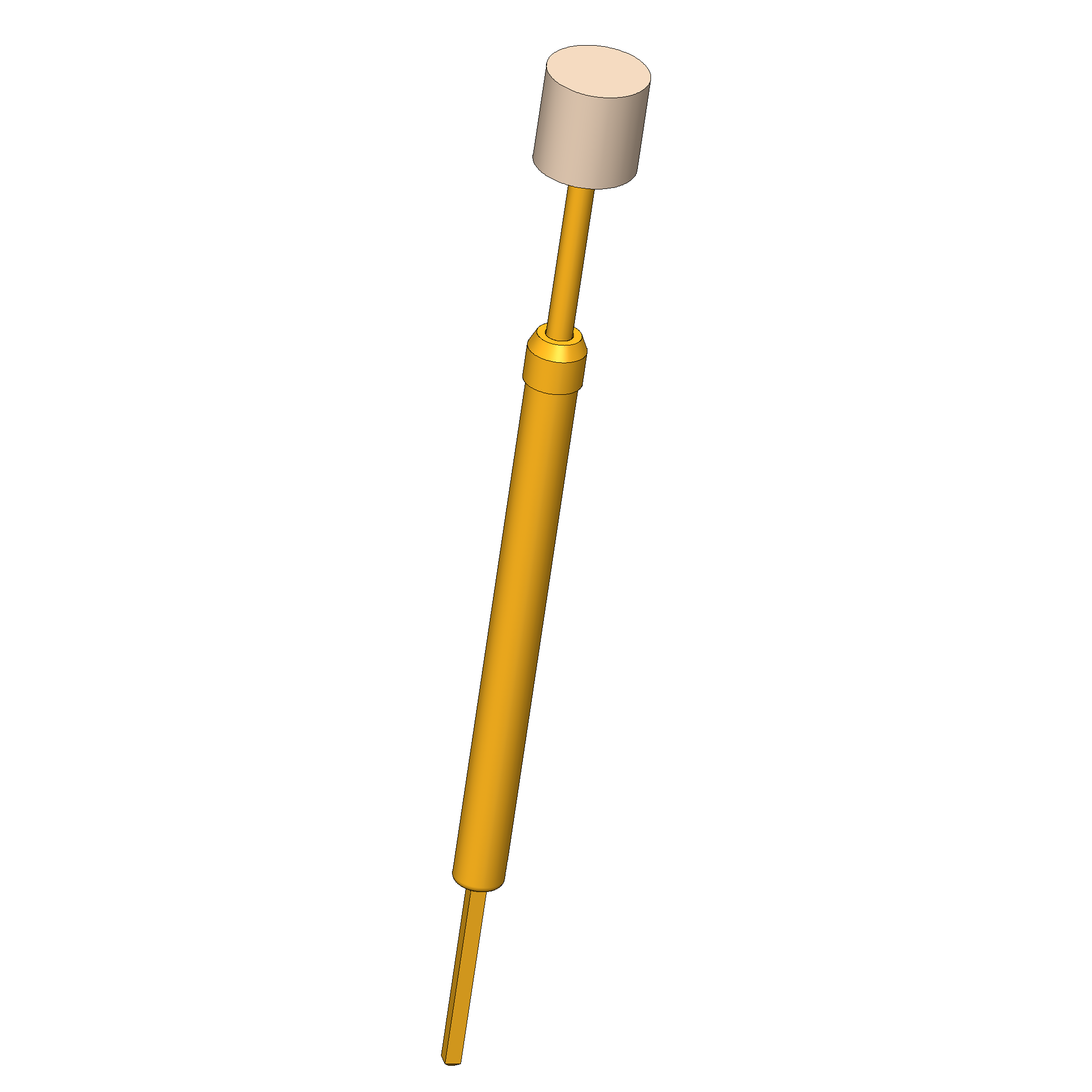

Product information "GKS-102 250 400 P 1502 W"
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 2 mm [.078 in] |
| Collar height: | 2 |
| Compatible receptacle(s): | KS-102 |
| Contacting from: | no name |
| Current load capacity / rated current: | 0 A |
| Grid: | 4.5 mm [177 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 6.5 mm [.255 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | PCB support pins, Accessories (GKS / ADA) |
| Quick-exchange system: | No |
| RoHS-compliant: | Yes |
| Series: | GKS-102, GKS-102 W |
| Spring force at working stroke: | 1.5 N [5.39 ozf] |
| Spring pre-load: | 0.44 N [1.58 ozf] |
| Sub-product group: | PCB support pins |

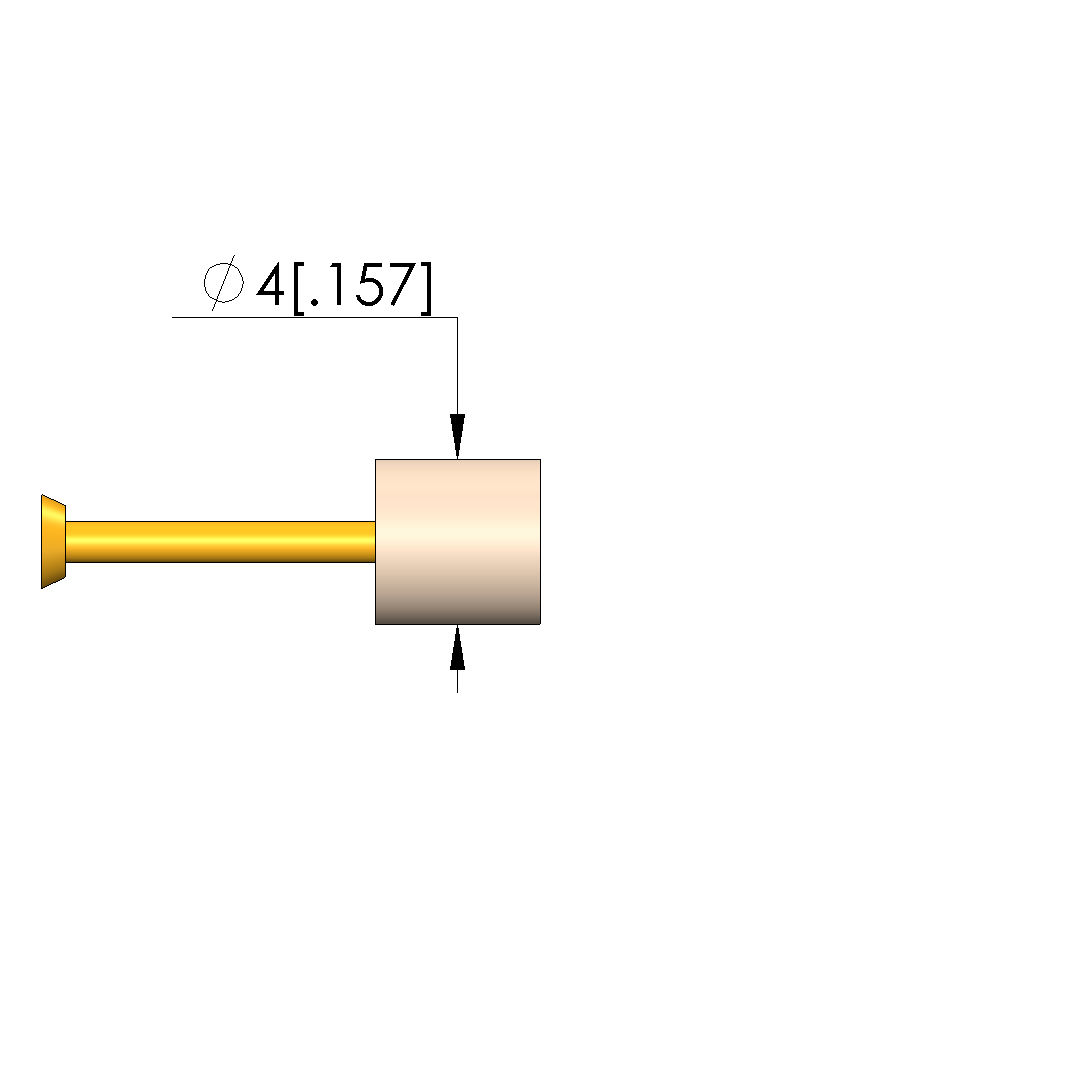

| Tip diameter: | 4 mm [.157 in] |
| Tip style: | 50 flat, PVC, insulated |
| Tip style material: | 2 steel |
| Tip style surface: | P PVC |

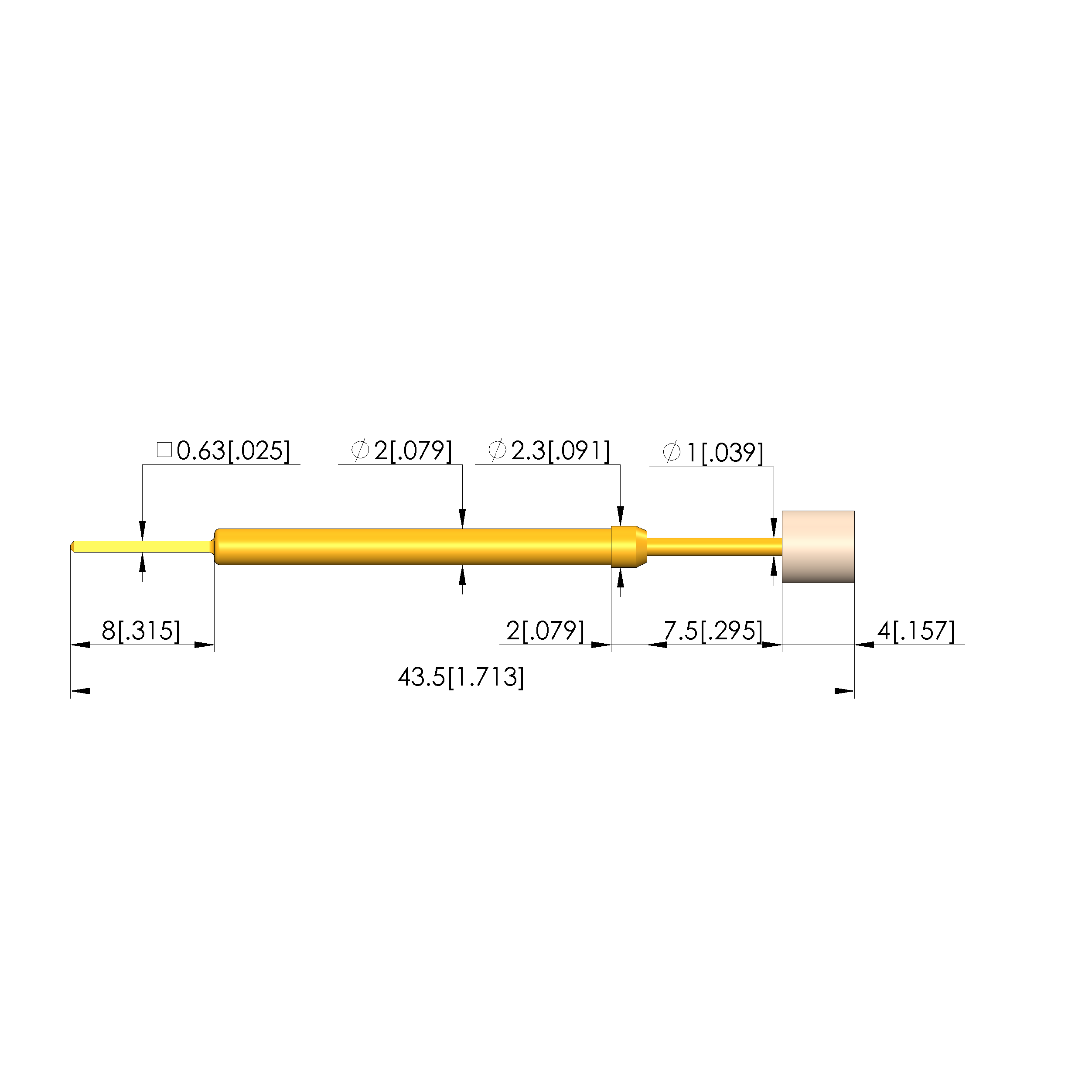

| Total length: | 43.5 mm [1.71 in] |
| Typical resistance (Ri): | 20 mOhm |
| Working stroke: | 4.8 mm [.188 in] |
Login
Other products in this series:
Technical data
General data
- Installation type: Plug-in
- Max. temperature: 80 °C [176 °F]
- Grid: 4.5 mm [177 mil]
- Non-rotating: No
- Adjustable installation height: No
- Compatible receptacle(s): KS-102
- Contacting from: no name
- Series: GKS-102 W
- RoHS-compliant: Yes
- Min. temperature: -40 °C [-40 °F]
- Product group: PCB support pins
- Series: GKS-102
- Magnetic: Yes
- Sub-product group: PCB support pins
- Product group: Accessories (GKS / ADA)
- Quick-exchange system: No
Tip style data

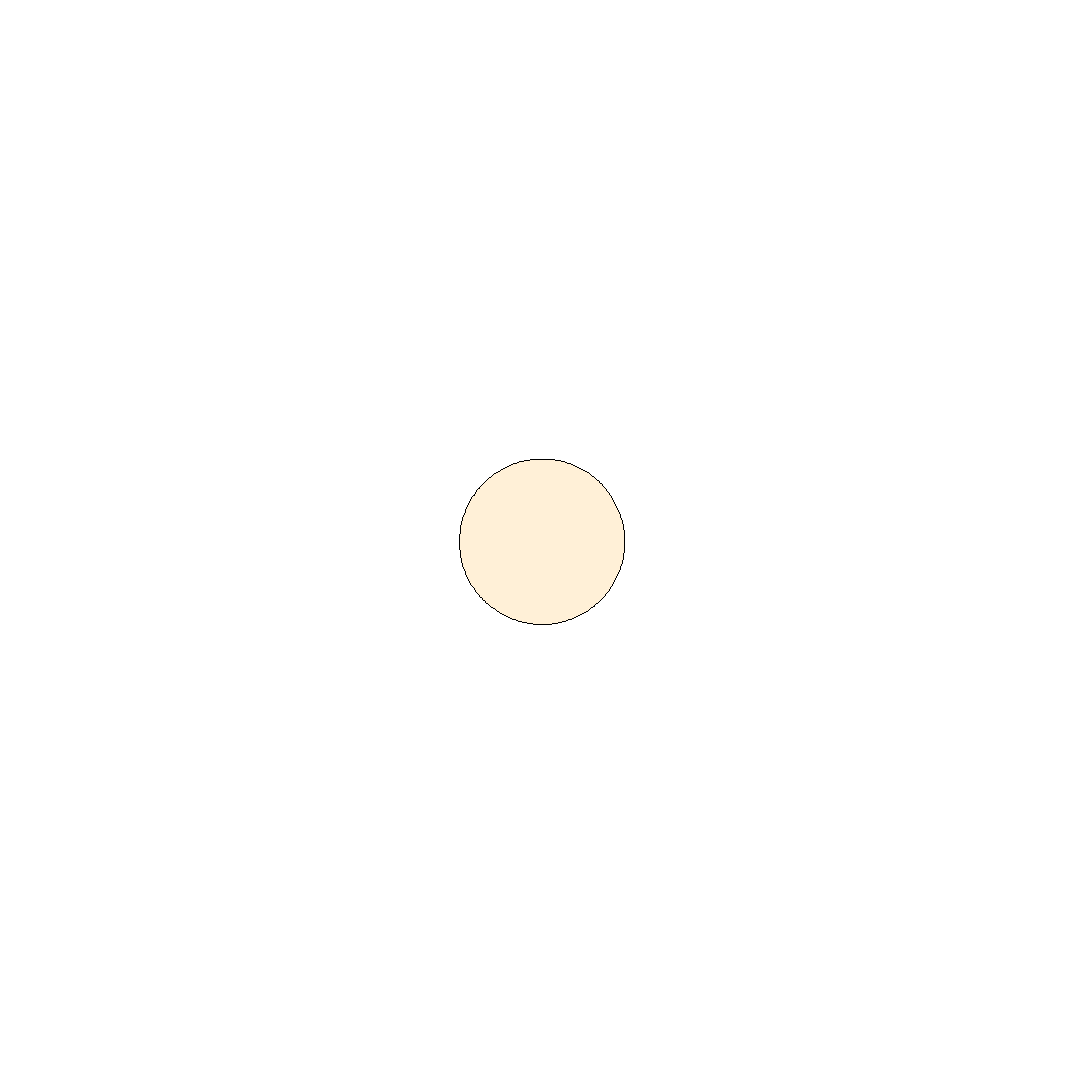

- Tip diameter: 4 mm [.157 in]

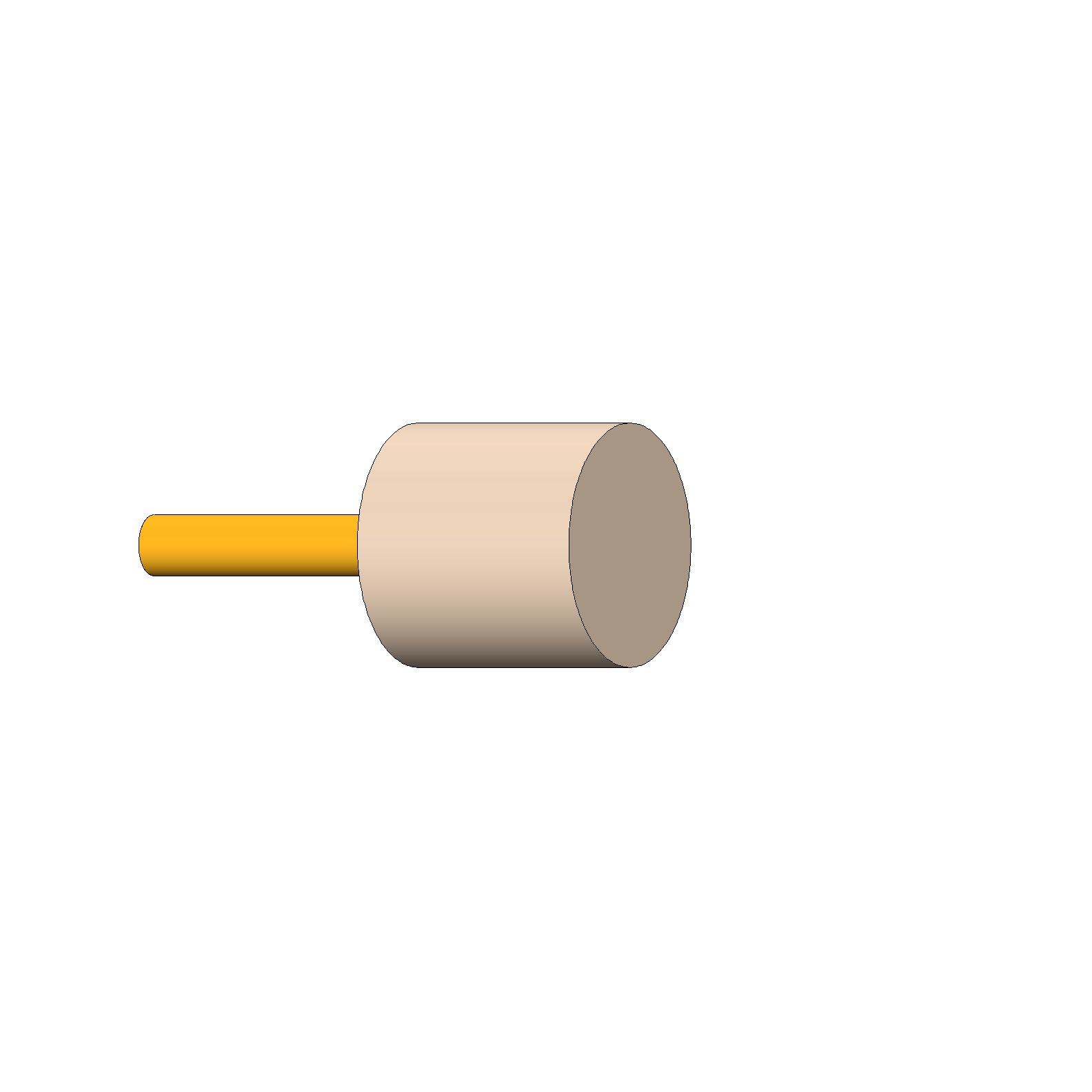

- Tip style: 50 flat, PVC, insulated
- Tip style surface: P PVC
- Tip style material: 2 steel
Mechanical data
- Barrel diameter: 2 mm [.078 in]
- Spring force at working stroke: 1.5 N [5.39 ozf]
- Maximum stroke: 6.5 mm [.255 in]
- Collar height: 2
- Spring pre-load: 0.44 N [1.58 ozf]
- Total length: 43.5 mm [1.71 in]
- Working stroke: 4.8 mm [.188 in]
Electrical data
- Current load capacity / rated current: 0 A
- Typical resistance (Ri): 20 mOhm
