Product information "GKS-100 307 170 A 1000 LH"
- Well-established test probes for contacting PCBs
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 1.37 mm [.053 in] |
| Collar height: | no name |
| Compatible receptacle(s): | KS-100 |
| Contacting from: | Pad, Via |
| Current load capacity / rated current: | 5 A |
| Grid: | 2.54 mm [100 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 6.35 mm [.25 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | ICT / FCT (in-circuit test and function test , Standard stroke test probe |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |

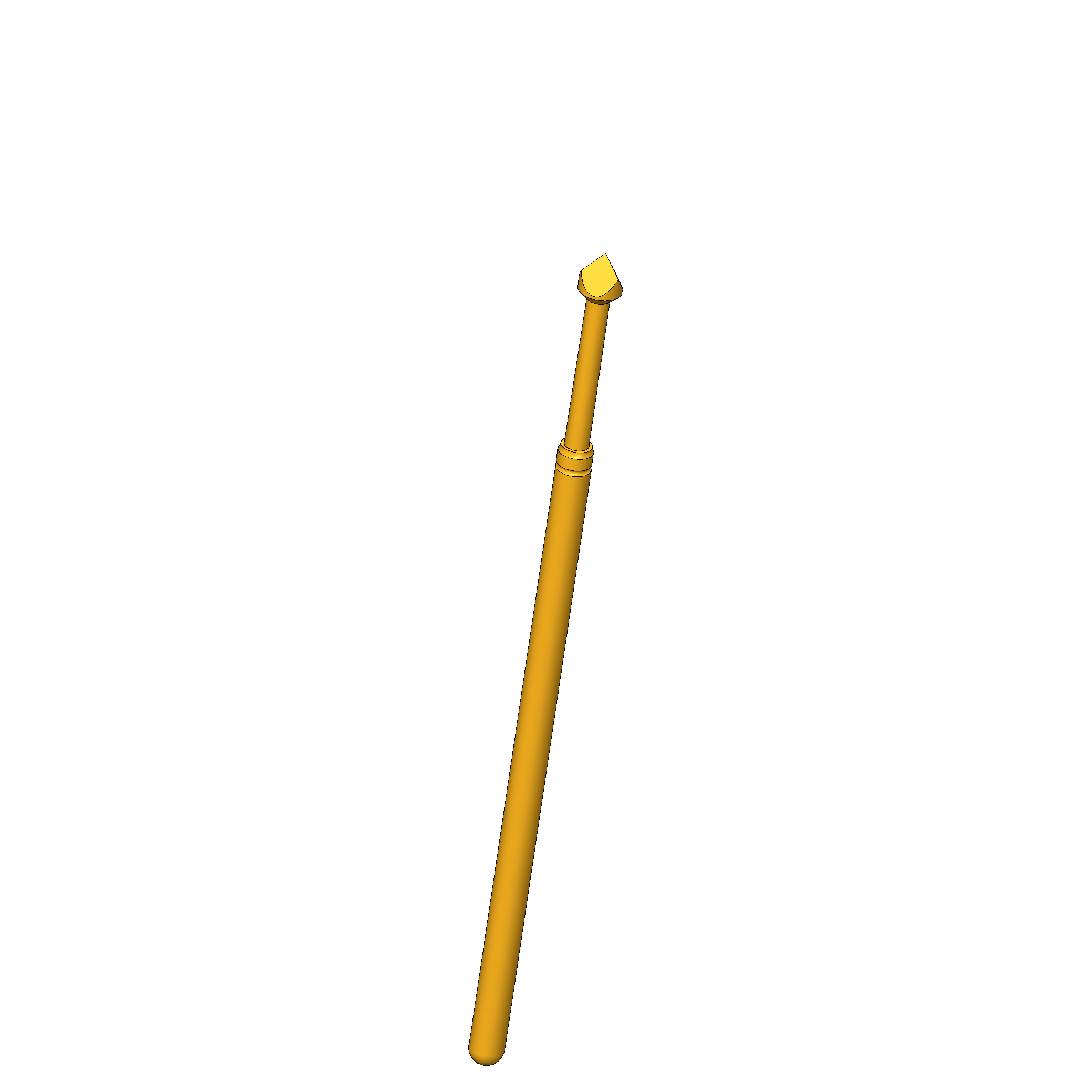

| Series: | GKS-100, GKS-100 LH long version |
| Spring force at working stroke: | 1 N [3.59 ozf] |
| Spring pre-load: | 0.28 N [1 ozf] |
| Sub-product group: | Standard stroke test probe |

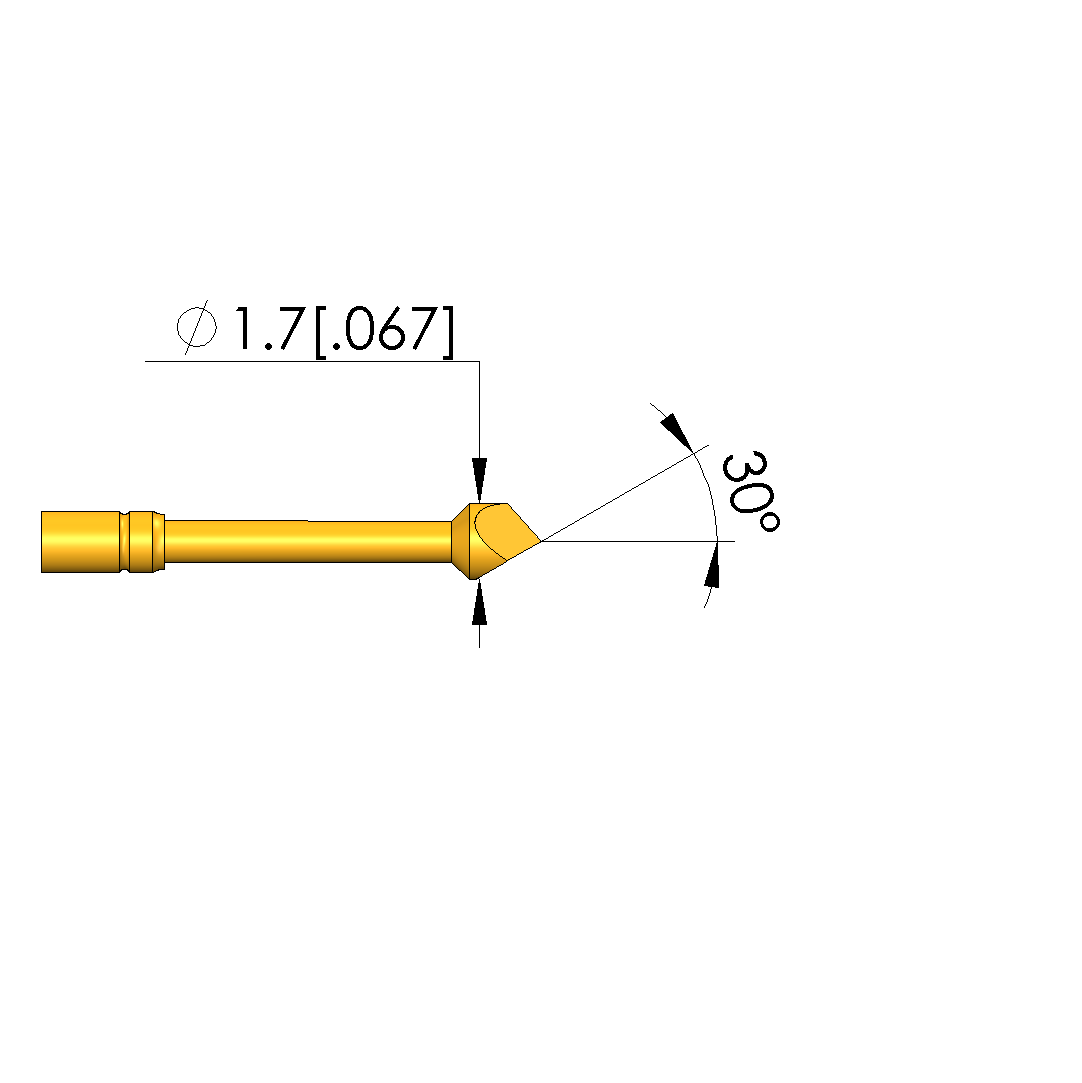

| Tip diameter: | 1.7 mm [.066 in] |

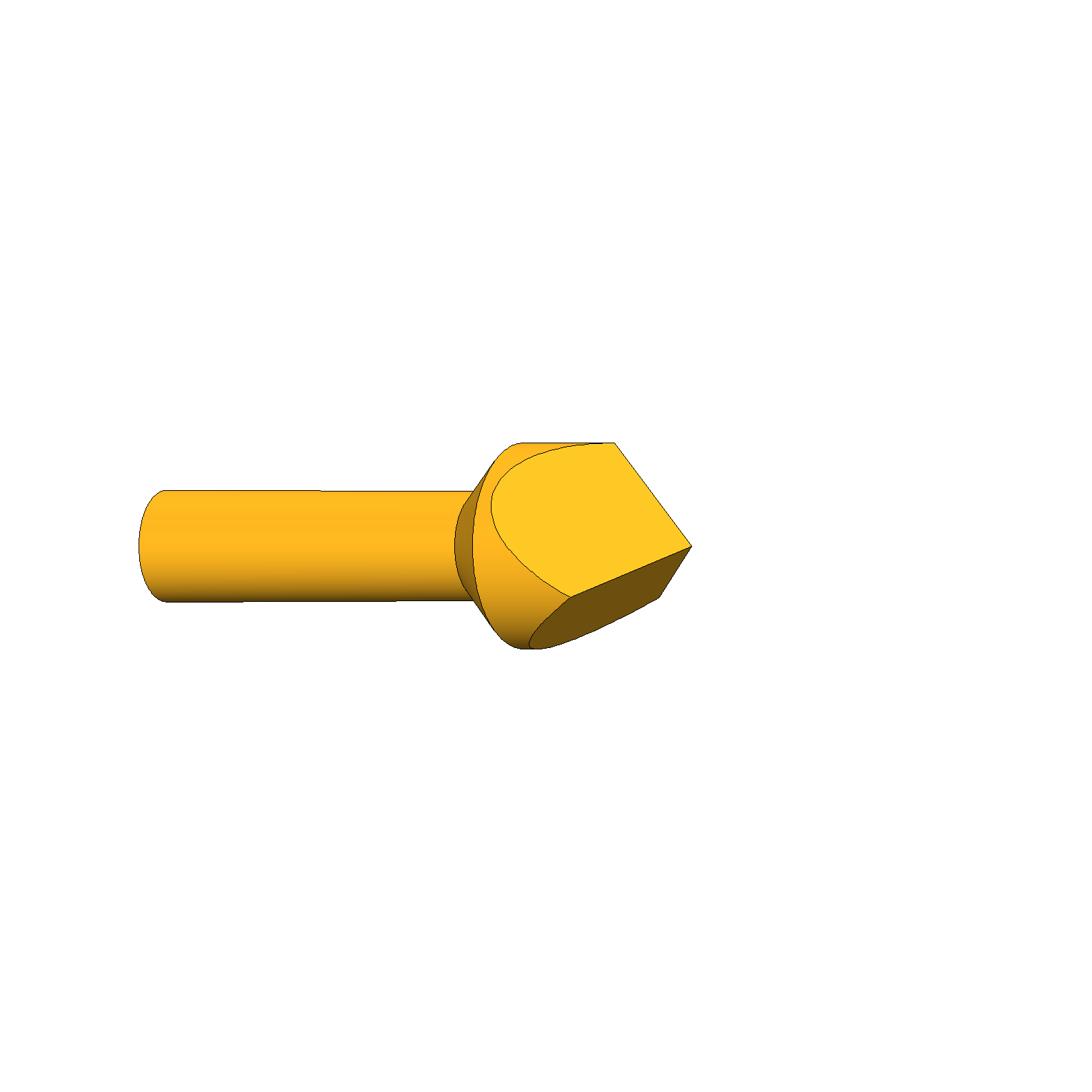

| Tip style: | 07 90° 3-edged chisel, self-cleaning |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |

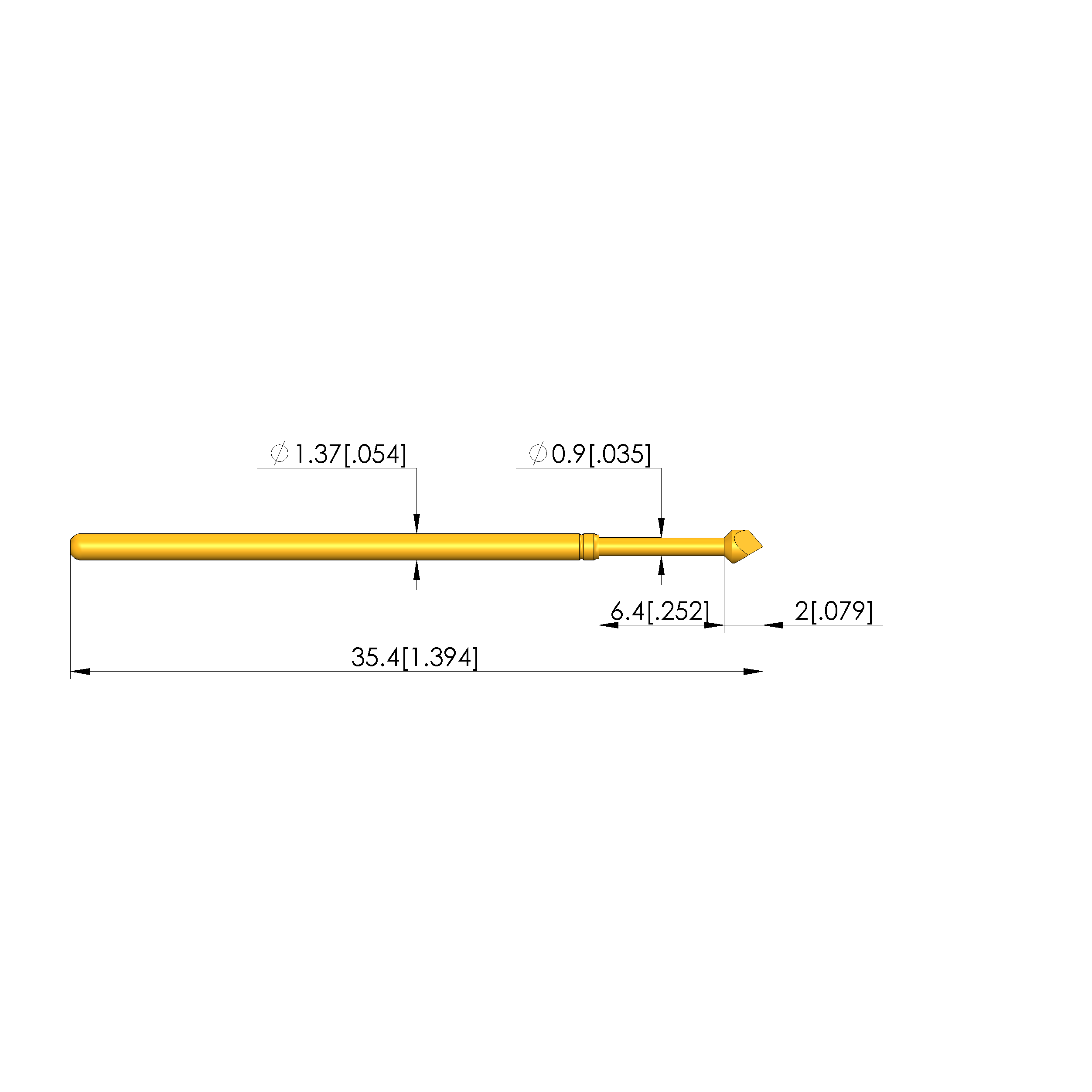

| Total length: | 35.4 mm [1.39 in] |
| Typical resistance (Ri): | 20 mOhm |
| Working stroke: | 4.3 mm [.169 in] |
Login
Product Details
- Well-established test probes for contacting PCBs
Other products in this series:
Technical data
Electrical data
- Current load capacity / rated current: 5 A
- Typical resistance (Ri): 20 mOhm
General data
- Installation type: Plug-in
- Max. temperature: 80 °C [176 °F]
- Series: GKS-100
- Non-rotating: No
- Adjustable installation height: No
- Series: GKS-100 LH long version
- Product group: Standard stroke test probe
- Compatible receptacle(s): KS-100
- Grid: 2.54 mm [100 mil]
- Sub-product group: Standard stroke test probe
- RoHS-compliant: Yes
- Min. temperature: -40 °C [-40 °F]
- Quick-exchange system: Yes
- Product group: ICT / FCT (in-circuit test and function test
- Magnetic: Yes
- Contacting from: Pad
- Contacting from: Via
Mechanical data
- Maximum stroke: 6.35 mm [.25 in]
- Spring pre-load: 0.28 N [1 ozf]
- Total length: 35.4 mm [1.39 in]
- Collar height: no name
- Barrel diameter: 1.37 mm [.053 in]
- Spring force at working stroke: 1 N [3.59 ozf]
- Working stroke: 4.3 mm [.169 in]
Tip style data
- Tip style material: 3 CuBe
- Tip style: 07 90° 3-edged chisel, self-cleaning
- Tip diameter: 1.7 mm [.066 in]
- Tip style surface: A gold
