Product information "GKS-098 329 300 070 A 3002 ML"
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 3 mm [.118 in] |
| Collar height: | 02 |
| Compatible receptacle(s): | KS-098 M |
| Contacting from: | Female connector |
| Current load capacity / rated current: | 10 A |
| Grid: | 5.08 mm [200 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 200 °C [392 °F] |
| Maximum stroke: | 5 mm [.196 in] |
| Min. temperature: | -100 °C [-148 °F] |
| Non-rotating: | Yes |
| Product group: | Screw-in test probe, Non-rotating test probes |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Screw-in torque: | 10 – 20 cNm [.885 – 1.77 lbf·in] |
| Screw-in torque max.: | 20 cNm [1.77 lbf·in] |
| Screw-in torque min.: | 10 cNm [.885 lbf·in] |
| Series: | GKS-098, GKS-098 ML screw-in |
| Spade length: | 6.5 mm [.255 in] |
| Spade width: | 0.7 mm [.027 in] |

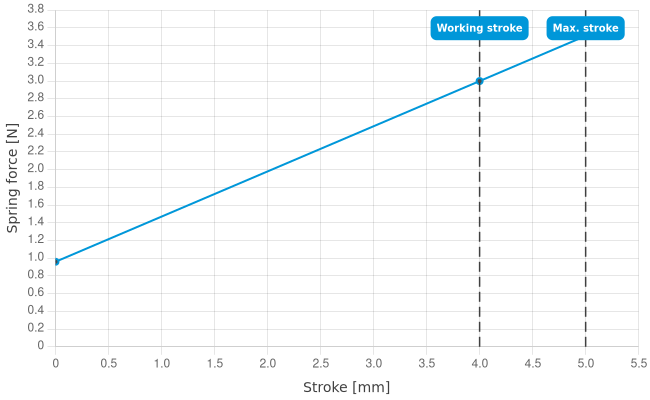

| Spring force at working stroke: | 3 N [10.7 ozf] |
| Spring pre-load: | 0.96 N [3.45 ozf] |
| Sub-product group: | Non-rotating test probes |
| Tip diameter: | 3 mm [.118 in] |
| Tip style: | 29 spade, flat with flat head |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 40 mm [1.57 in] |
| Typical resistance (Ri): | 100 mOhm |
| Working stroke: | 4 mm [.157 in] |
Login
Other products in this series:
Technical data
General data
- Screw-in torque min.: 10 cNm [.885 lbf·in]
- Screw-in torque max.: 20 cNm [1.77 lbf·in]
- Product group: Non-rotating test probes
- Product group: Screw-in test probe
- Sub-product group: Non-rotating test probes
- Series: GKS-098
- Series: GKS-098 ML screw-in
- Grid: 5.08 mm [200 mil]
- Contacting from: Female connector
- Magnetic: Yes
- Installation type: Screw-in
- Quick-exchange system: Yes
- Adjustable installation height: No
- Non-rotating: Yes
- Screw-in torque: 10 – 20 cNm [.885 – 1.77 lbf·in]
- Compatible receptacle(s): KS-098 M
- Min. temperature: -100 °C [-148 °F]
- Max. temperature: 200 °C [392 °F]
- RoHS-compliant: Yes
Mechanical data
- Total length: 40 mm [1.57 in]
- Barrel diameter: 3 mm [.118 in]
- Maximum stroke: 5 mm [.196 in]
- Spring pre-load: 0.96 N [3.45 ozf]
- Collar height: 02
- Spring force at working stroke: 3 N [10.7 ozf]
- Working stroke: 4 mm [.157 in]
Electrical data
- Current load capacity / rated current: 10 A
- Typical resistance (Ri): 100 mOhm
Tip style data
- Tip style: 29 spade, flat with flat head
- Tip diameter: 3 mm [.118 in]
- Tip style surface: A gold
- Tip style material: 3 CuBe
- Spade width: 0.7 mm [.027 in]
- Spade length: 6.5 mm [.255 in]
