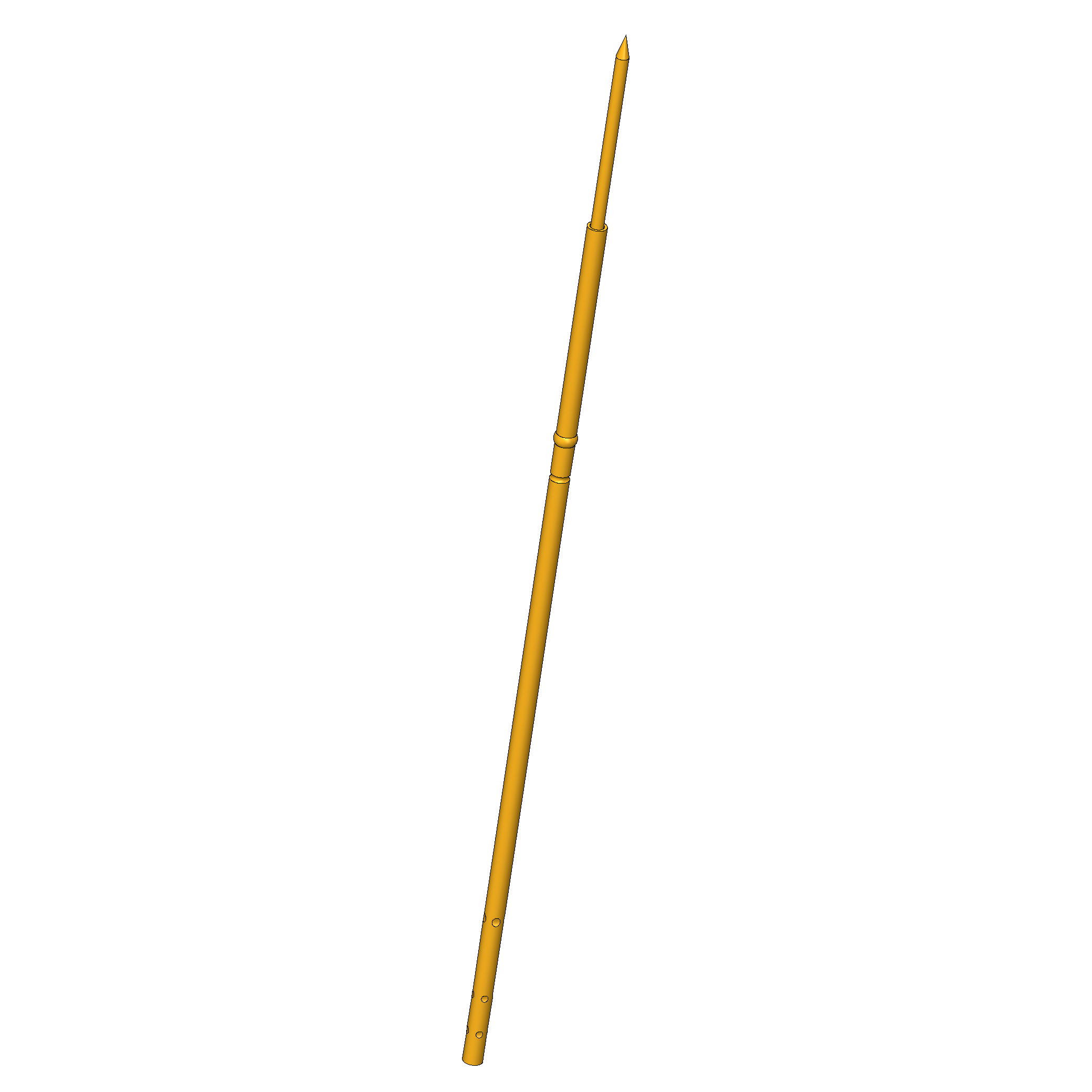

Product information "GKS-081 351 050 A 0808"
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 0.7 mm [.027 in] |
| Collar height: | 08 |
| Compatible connector(s): | SE-081 |
| Contacting from: | Pad |
| Current load capacity / rated current: | 3 A |
| Grid: | 1 mm [39.3 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 7.5 mm [.295 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | Fine-pitch, ICT / FCT (in-circuit test and function test |
| Quick-exchange system: | No |
| RoHS-compliant: | Yes |
| Series: | GKS-081, GKS-081..0x installation without KS |
| Spring force at working stroke: | 0.8 N [2.87 ozf] |
| Spring pre-load: | 0.2 N [.719 ozf] |
| Sub-product group: | Fine-pitch |
| Tip diameter: | 0.5 mm [.019 in] |
| Tip style: | 51 30° needle tip, special length, self-cleaning |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 40.2 mm [1.58 in] |
| Type of test probe connection: | Plug |
| Typical resistance (Ri): | 30 mOhm |
| Working stroke: | 5.5 mm [.216 in] |
Login
Other products in this series:
Technical data
General data
- Product group: Fine-pitch
- Product group: ICT / FCT (in-circuit test and function test
- Sub-product group: Fine-pitch
- Series: GKS-081
- Series: GKS-081..0x installation without KS
- Grid: 1 mm [39.3 mil]
- Contacting from: Pad
- Magnetic: Yes
- Installation type: Plug-in
- Quick-exchange system: No
- Type of test probe connection: Plug
- Adjustable installation height: No
- Non-rotating: No
- Compatible connector(s): SE-081
- Min. temperature: -40 °C [-40 °F]
- Max. temperature: 80 °C [176 °F]
- RoHS-compliant: Yes
Electrical data
- Current load capacity / rated current: 3 A
- Typical resistance (Ri): 30 mOhm
Mechanical data

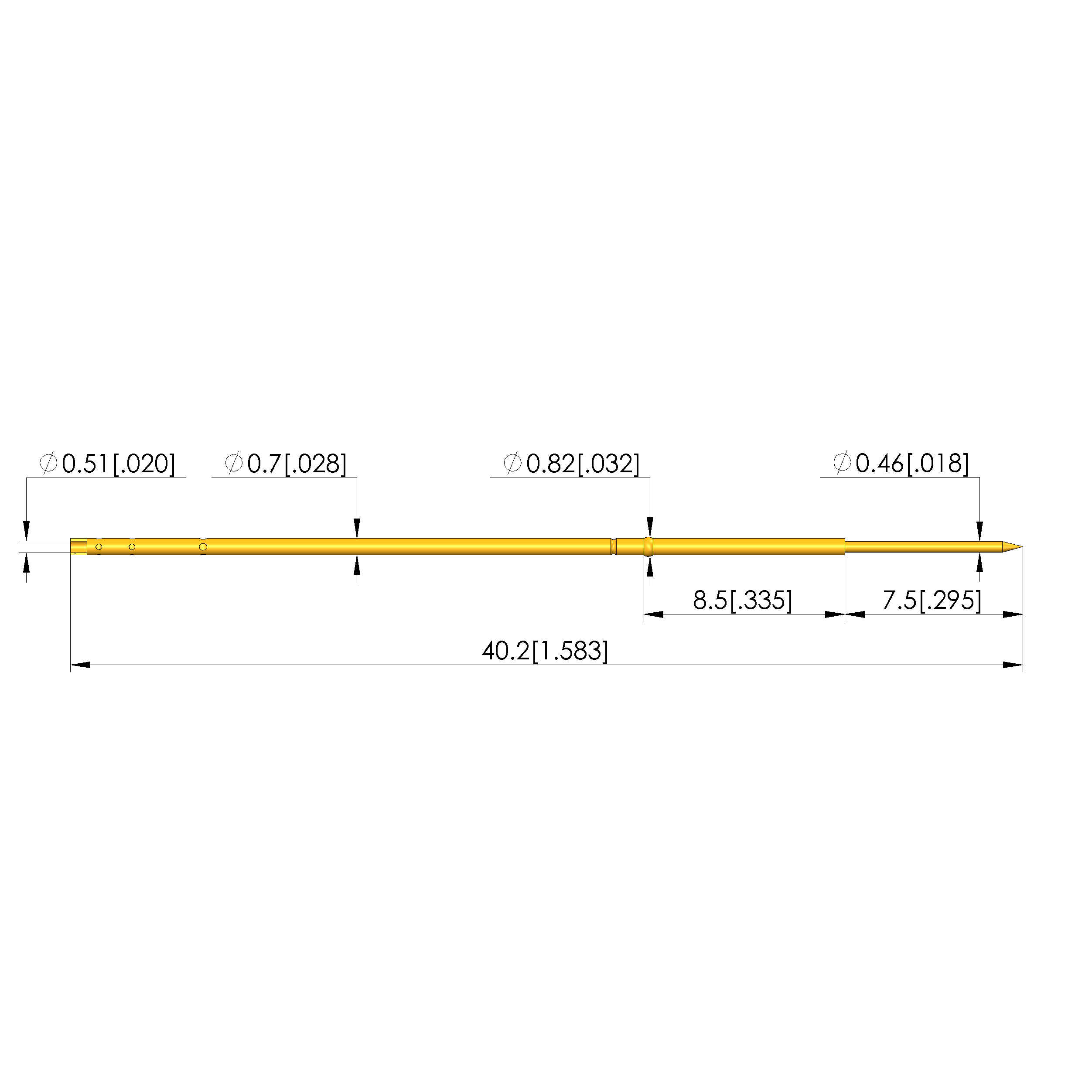

- Total length: 40.2 mm [1.58 in]
- Barrel diameter: 0.7 mm [.027 in]
- Maximum stroke: 7.5 mm [.295 in]
- Spring pre-load: 0.2 N [.719 ozf]
- Collar height: 08
- Spring force at working stroke: 0.8 N [2.87 ozf]
- Working stroke: 5.5 mm [.216 in]
Tip style data

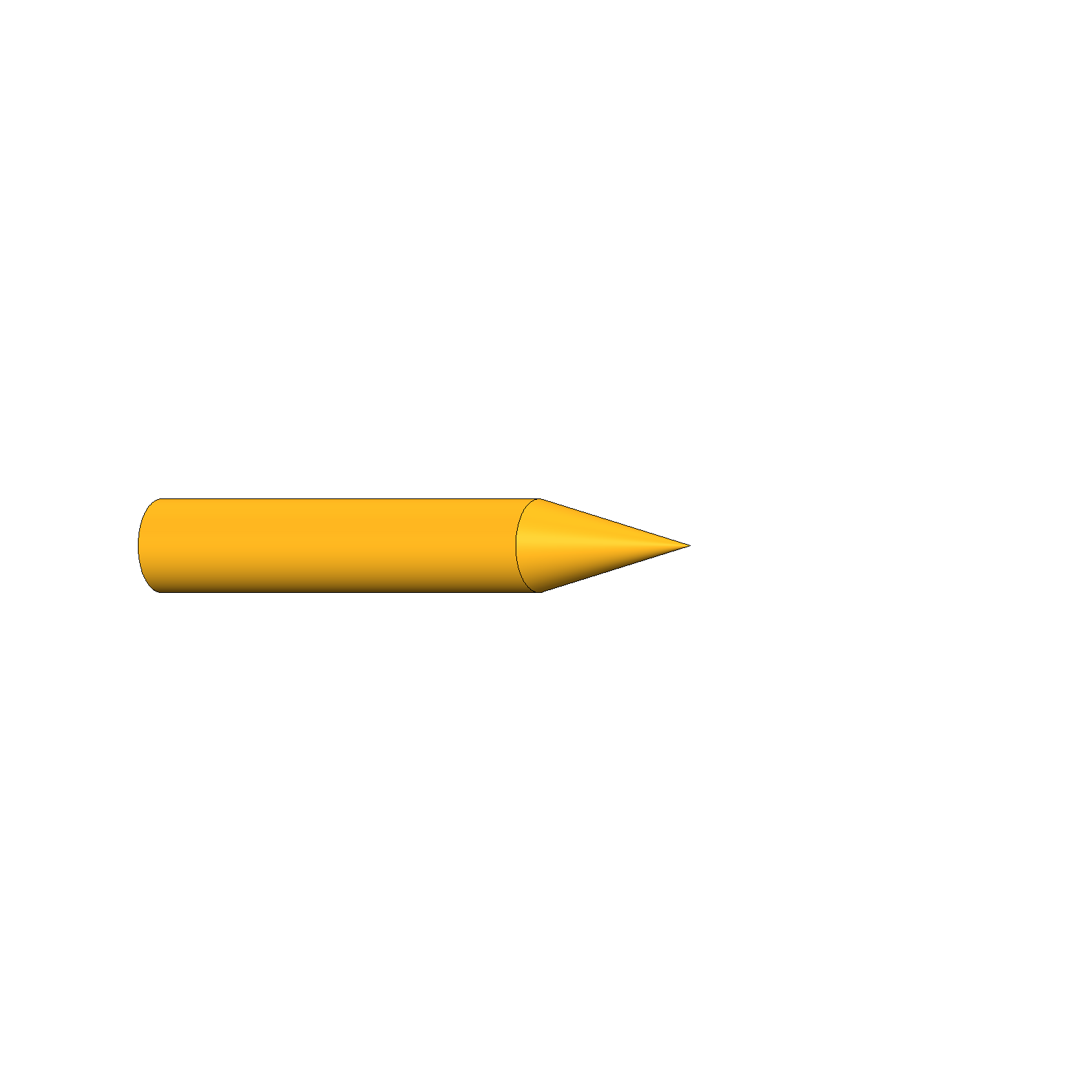

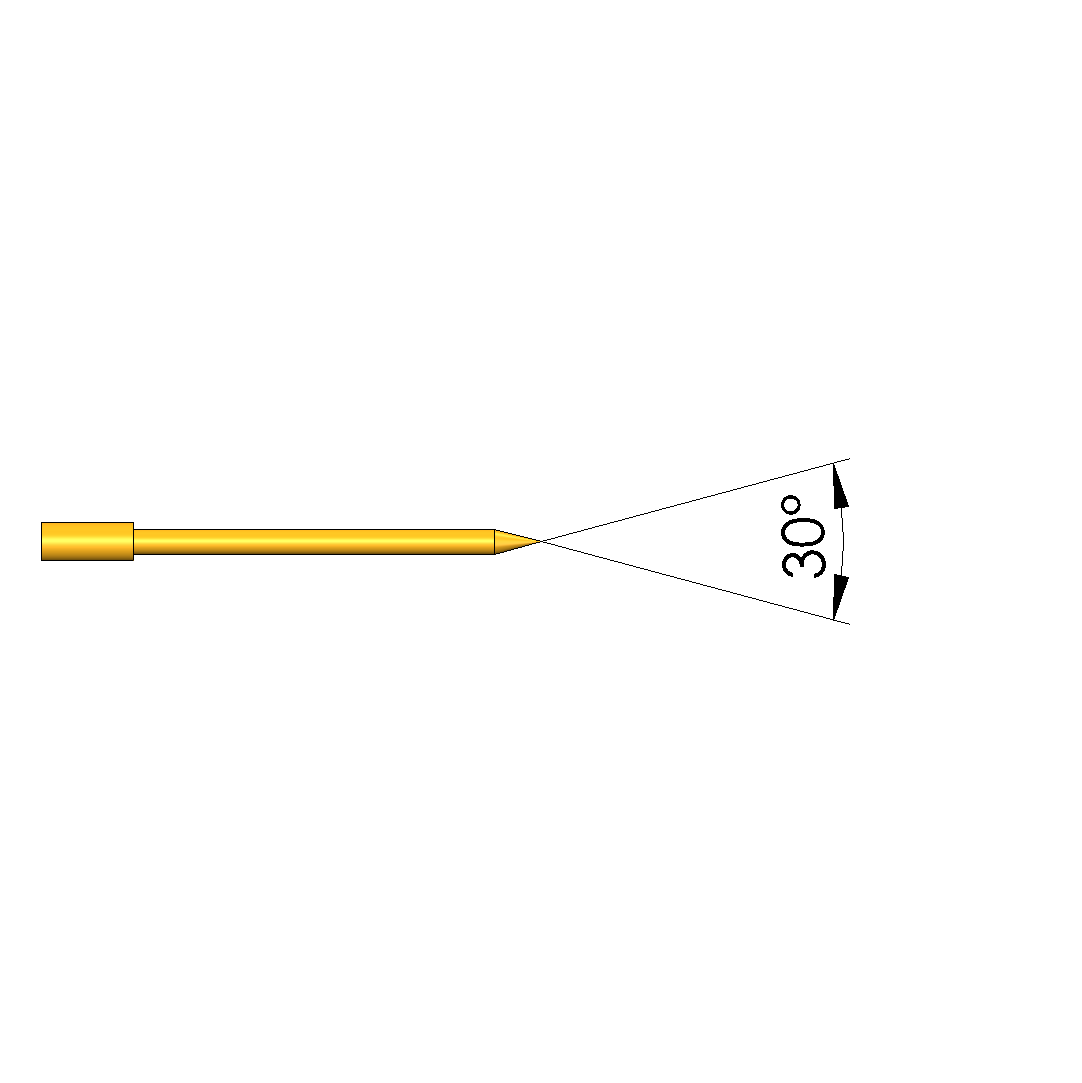

- Tip style: 51 30° needle tip, special length, self-cleaning
- Tip diameter: 0.5 mm [.019 in]
- Tip style surface: A gold
- Tip style material: 3 CuBe
