Product information "GKS-069 306 090 A 1000 B"
- Test probe with formed barrel for secure hold in receptacle with signs of wear
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 0.69 mm [.027 in] |
| Collar height: | no name |
| Compatible receptacle(s): | KS-069 |
| Contacting from: | Flat contact, Post, Pin |
| Current load capacity / rated current: | 3 A |
| Grid: | 1.27 mm [50 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 2.8 mm [.11 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | Fine-pitch, ICT / FCT (in-circuit test and function test |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |

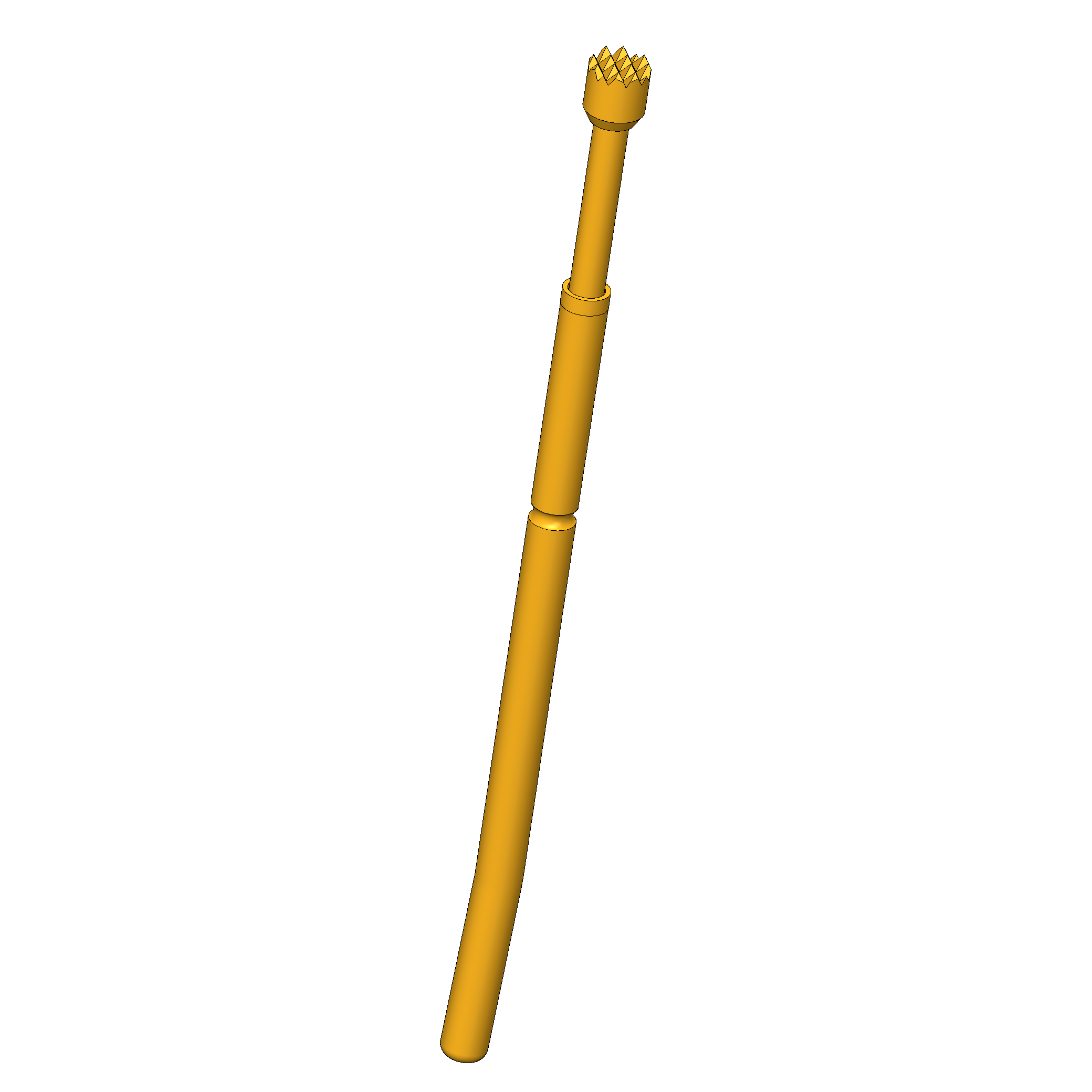

| Series: | GKS-069, GKS-069 B bent barrel end |
| Spring force at working stroke: | 1 N [3.59 ozf] |
| Spring pre-load: | 0.29 N [1.04 ozf] |
| Sub-product group: | Fine-pitch |

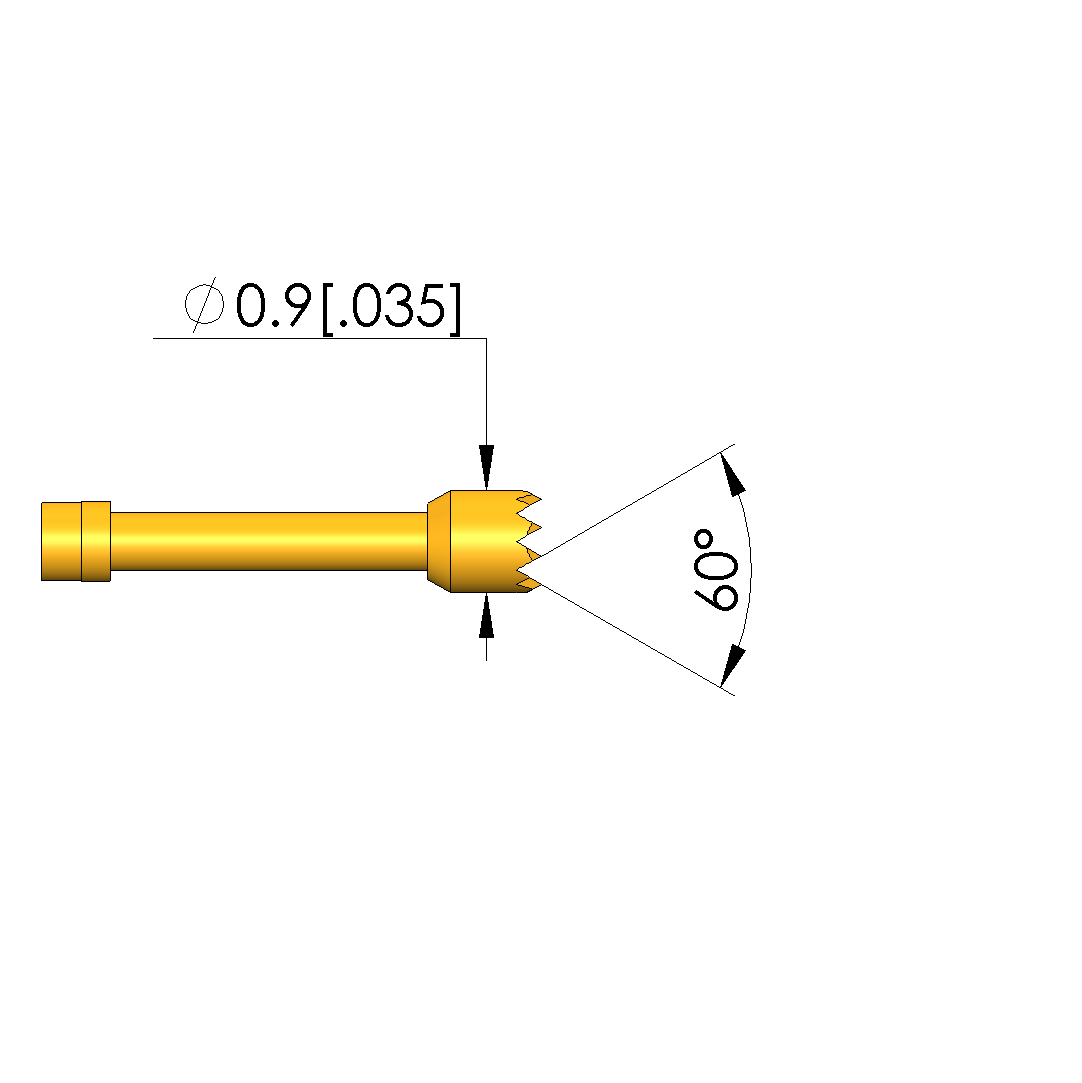

| Tip diameter: | 0.9 mm [.035 in] |

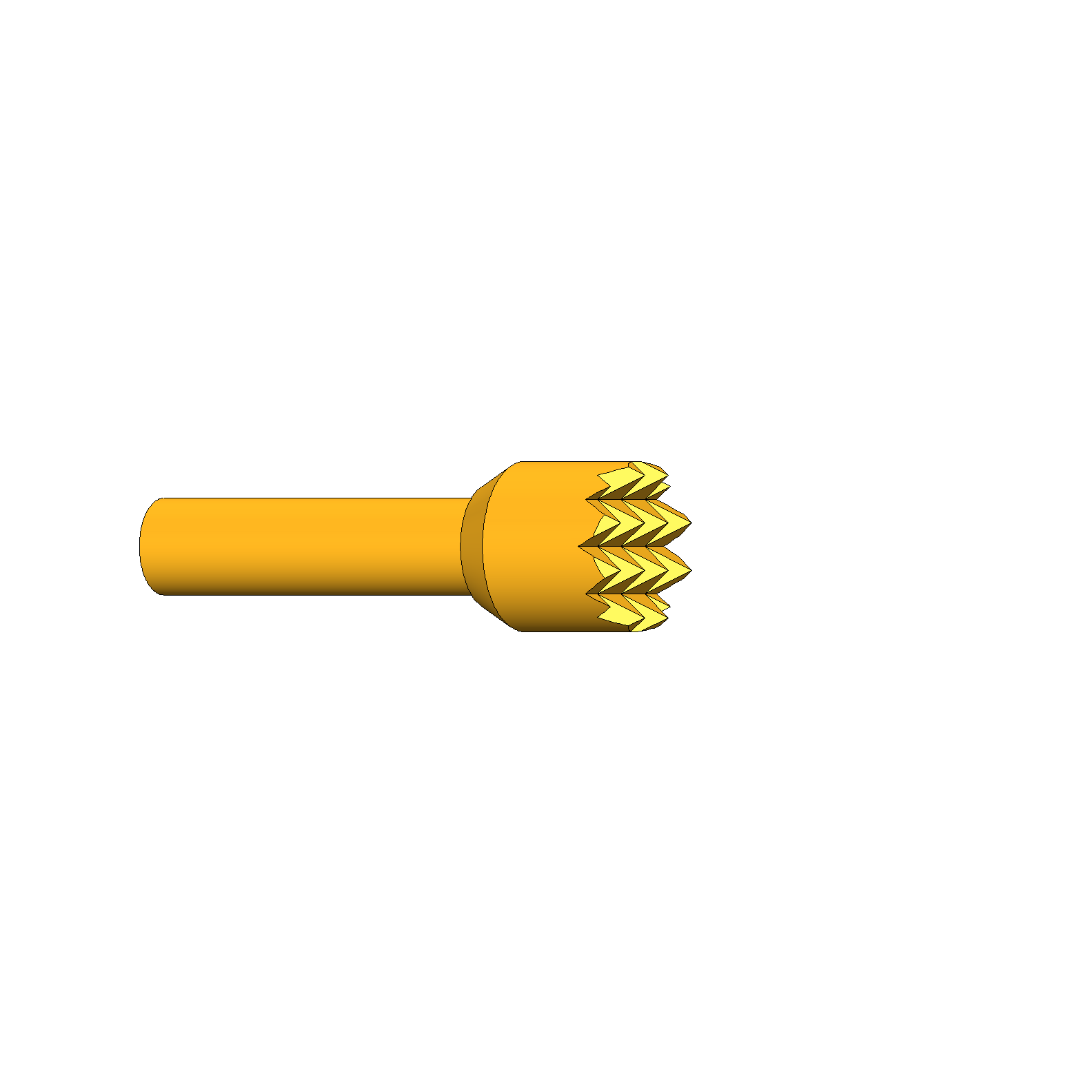

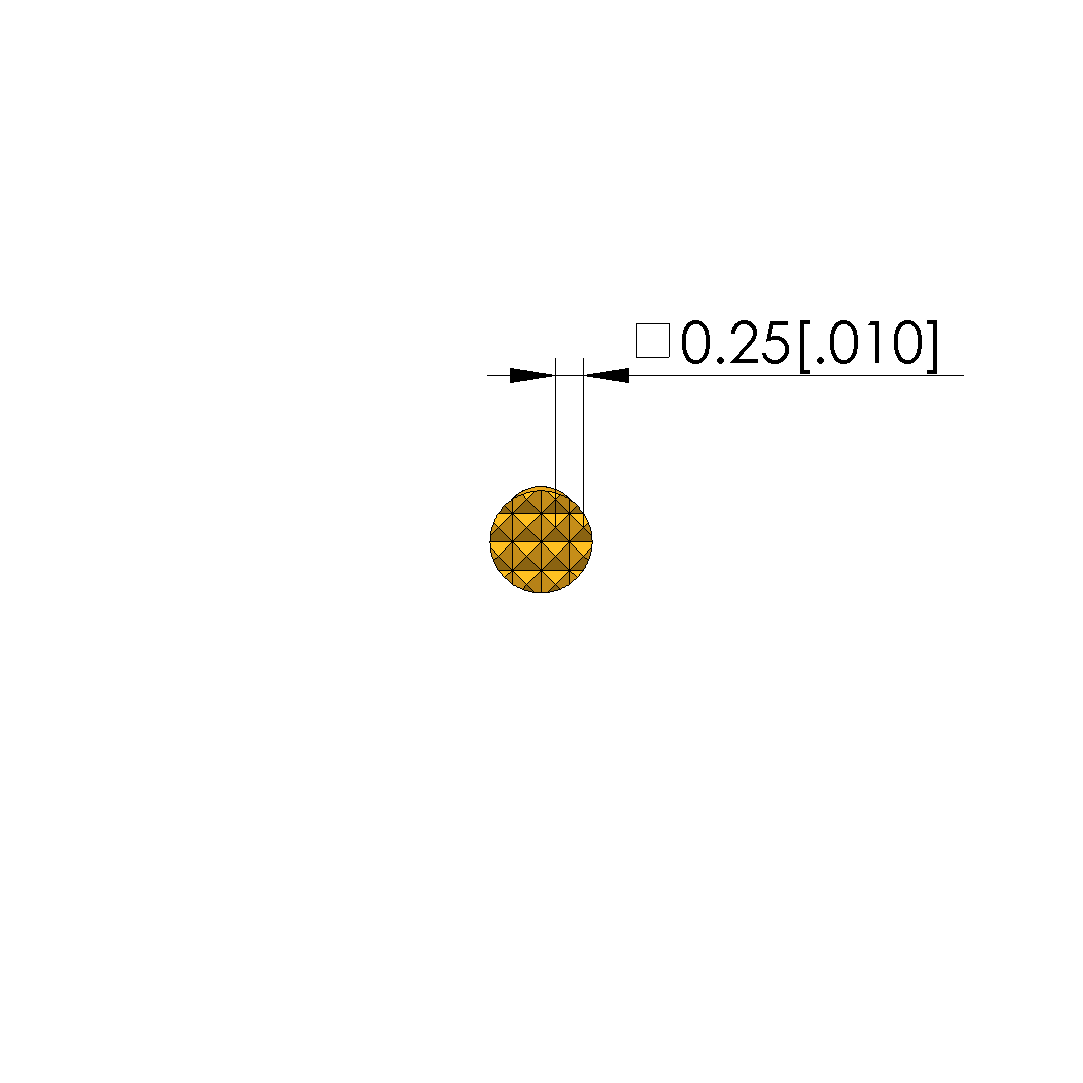

| Tip style: | 06 serrated |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 16.5 mm [.649 in] |
| Typical resistance (Ri): | 20 mOhm |
| Working stroke: | 2.2 mm [.086 in] |
Login
Product Details
- Test probe with formed barrel for secure hold in receptacle with signs of wear
Other products in this series:
Technical data
General data
- Installation type: Plug-in
- Sub-product group: Fine-pitch
- Max. temperature: 80 °C [176 °F]
- Contacting from: Pin
- Product group: Fine-pitch
- Grid: 1.27 mm [50 mil]
- Non-rotating: No
- Adjustable installation height: No
- Series: GKS-069
- RoHS-compliant: Yes
- Series: GKS-069 B bent barrel end
- Min. temperature: -40 °C [-40 °F]
- Quick-exchange system: Yes
- Contacting from: Flat contact
- Contacting from: Post
- Product group: ICT / FCT (in-circuit test and function test
- Magnetic: Yes
- Compatible receptacle(s): KS-069
Electrical data
- Current load capacity / rated current: 3 A
- Typical resistance (Ri): 20 mOhm
Tip style data
- Tip style: 06 serrated
- Tip diameter: 0.9 mm [.035 in]
- Tip style material: 3 CuBe
- Tip style surface: A gold
Mechanical data

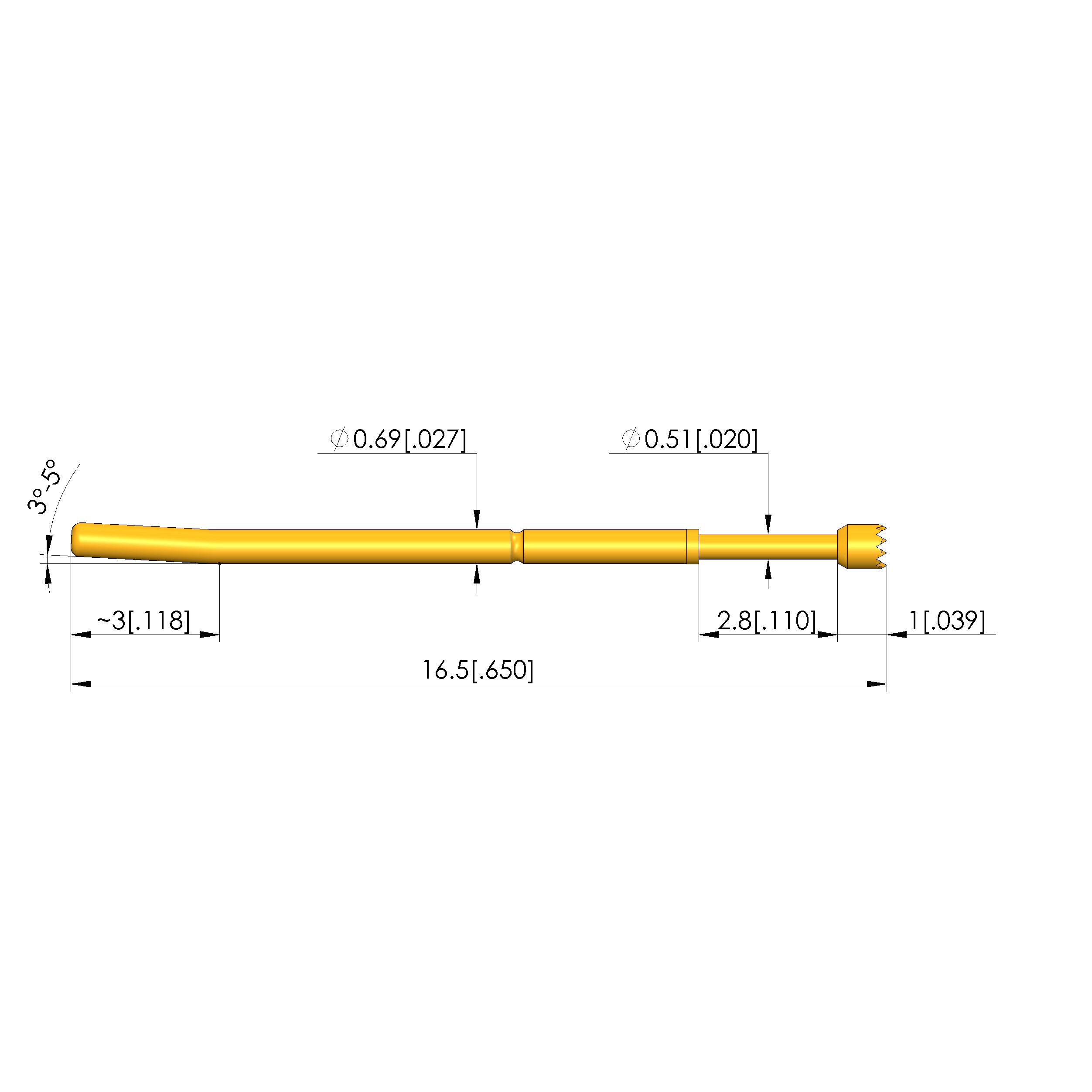

- Total length: 16.5 mm [.649 in]
- Maximum stroke: 2.8 mm [.11 in]
- Collar height: no name
- Spring pre-load: 0.29 N [1.04 ozf]
- Spring force at working stroke: 1 N [3.59 ozf]
- Working stroke: 2.2 mm [.086 in]
- Barrel diameter: 0.69 mm [.027 in]
