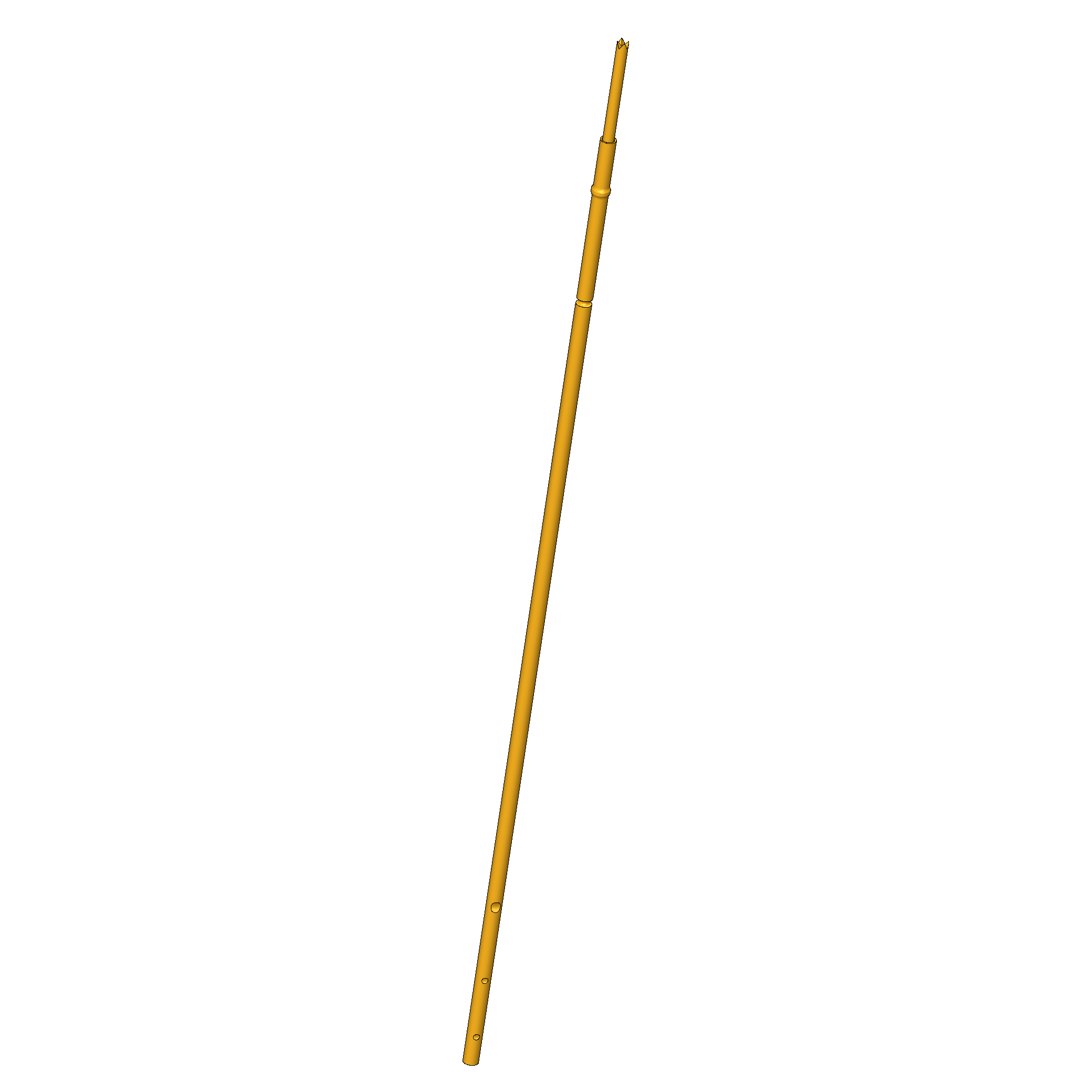

Product information "GKS-061 304 035 A 0602"
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 0.5 mm [.019 in] |
| Collar height: | 02 |
| Compatible connector(s): | SE-061 |
| Contacting from: | Pad, Post, Pin |
| Current load capacity / rated current: | 2 A |
| Grid: | 0.8 mm [31.4 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 3.5 mm [.137 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | Fine-pitch, ICT / FCT (in-circuit test and function test |
| Quick-exchange system: | No |
| RoHS-compliant: | Yes |
| Series: | GKS-061 |
| Spring force at working stroke: | 0.6 N [2.15 ozf] |
| Spring pre-load: | 0.4 N [1.43 ozf] |
| Sub-product group: | Fine-pitch |
| Tip diameter: | 0.35 mm [.013 in] |
| Tip style: | 04 4-point crown |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 36.2 mm [1.42 in] |
| Type of test probe connection: | Plug |
| Typical resistance (Ri): | 50 mOhm |
| Working stroke: | 2.5 mm [.098 in] |
Login
Other products in this series:
Technical data
General data
- Product group: Fine-pitch
- Product group: ICT / FCT (in-circuit test and function test
- Sub-product group: Fine-pitch
- Series: GKS-061
- Grid: 0.8 mm [31.4 mil]
- Contacting from: Pin
- Contacting from: Post
- Contacting from: Pad
- Magnetic: Yes
- Installation type: Plug-in
- Quick-exchange system: No
- Type of test probe connection: Plug
- Adjustable installation height: No
- Non-rotating: No
- Compatible connector(s): SE-061
- Min. temperature: -40 °C [-40 °F]
- Max. temperature: 80 °C [176 °F]
- RoHS-compliant: Yes
Mechanical data

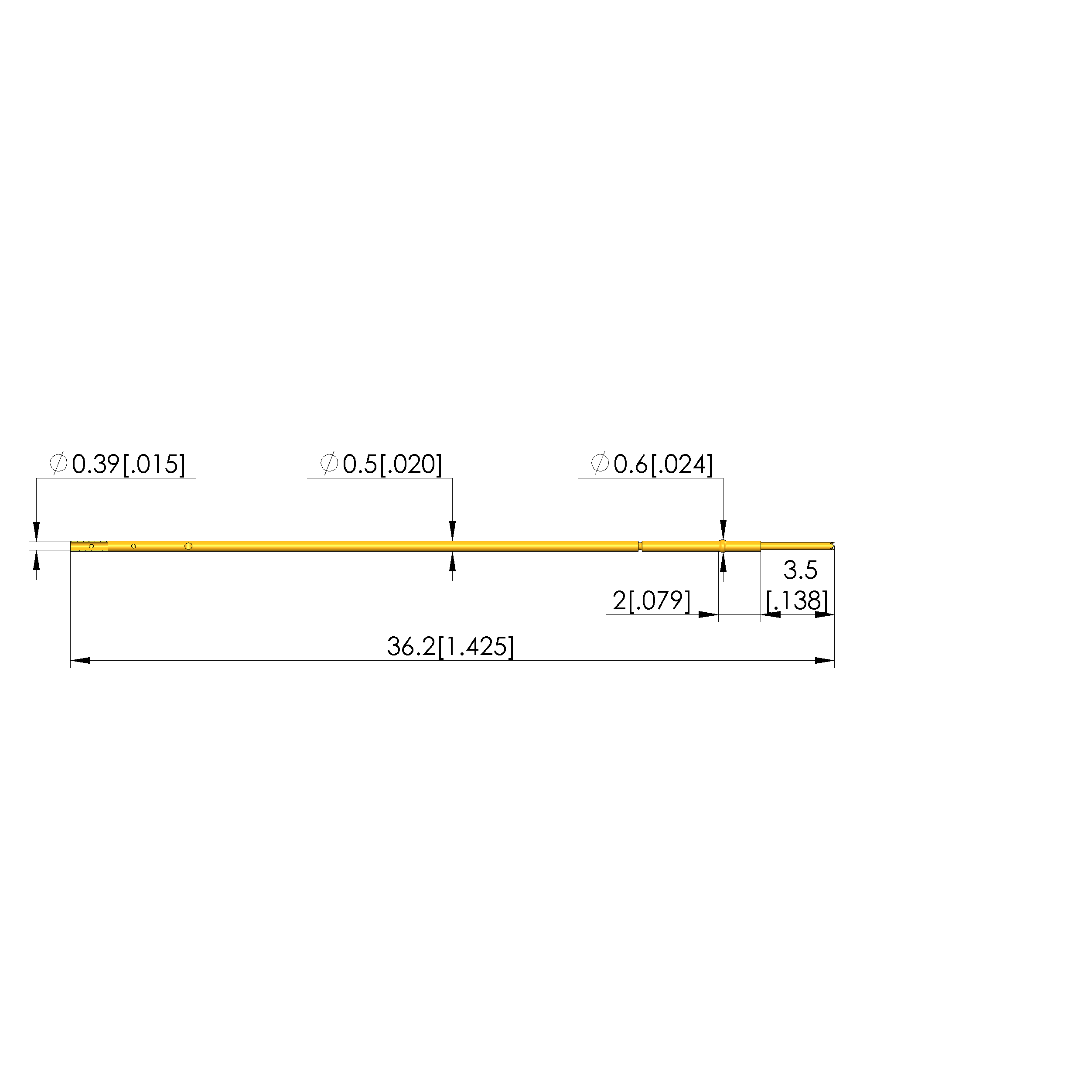

- Total length: 36.2 mm [1.42 in]
- Barrel diameter: 0.5 mm [.019 in]
- Maximum stroke: 3.5 mm [.137 in]
- Spring pre-load: 0.4 N [1.43 ozf]
- Collar height: 02
- Spring force at working stroke: 0.6 N [2.15 ozf]
- Working stroke: 2.5 mm [.098 in]
Tip style data

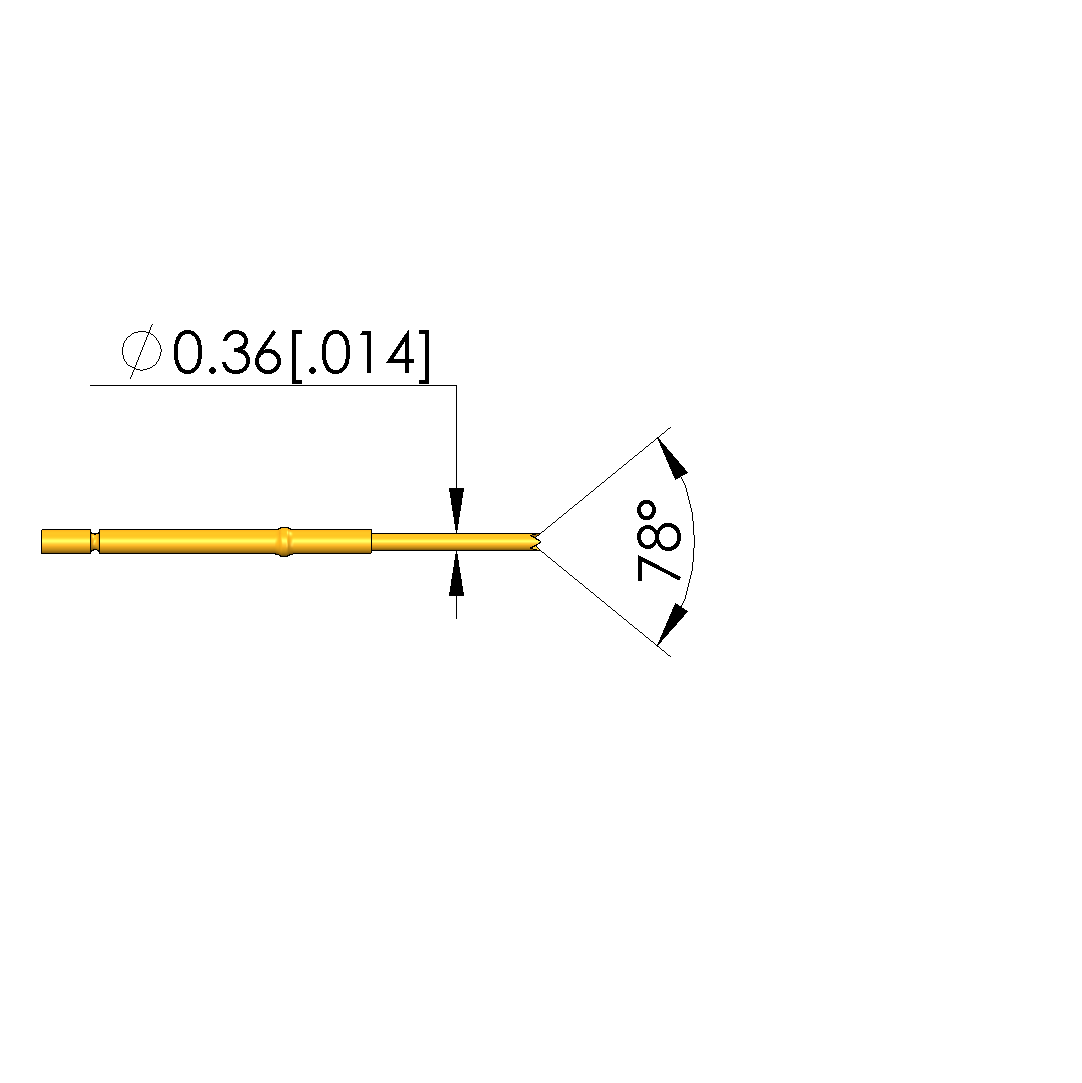

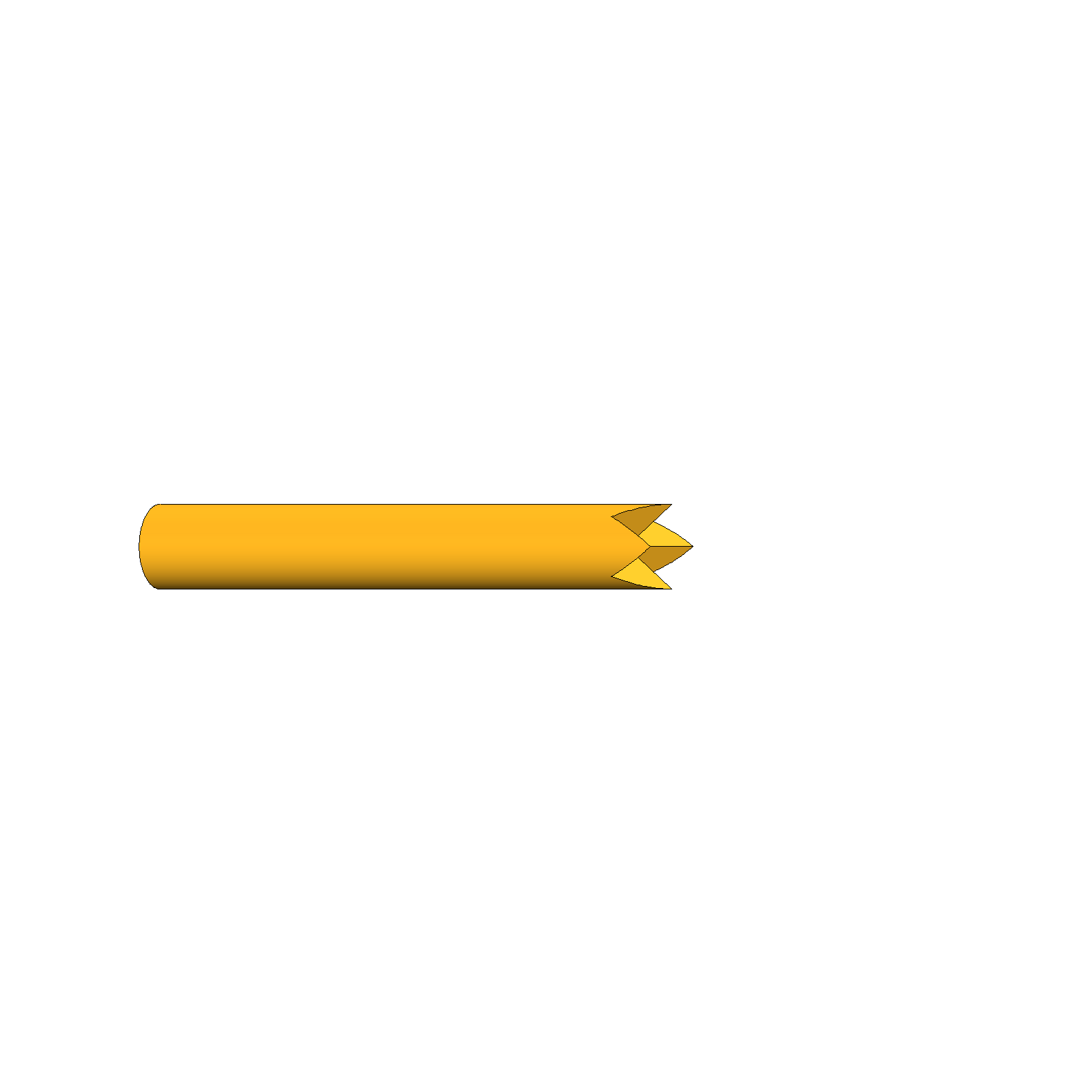

- Tip style: 04 4-point crown
- Tip diameter: 0.35 mm [.013 in]
- Tip style surface: A gold
- Tip style material: 3 CuBe
Electrical data
- Current load capacity / rated current: 2 A
- Typical resistance (Ri): 50 mOhm
