Product information "GKS-051 305 051 A 2000 K3 MS06"
- Inner conductor for RF test probes (HFS)
- Can be used for service or repair
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 0.75 mm [.029 in] |
| Collar height: | 00 |
| Contacting from: | Pad, Female connector |
| Current load capacity / rated current: | 2 A |
| Grid: | 1.27 mm [50 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 1.1 mm [.043 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | RF inner conductor , Accessories (GKS / ADA) |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Series: | GKS-051 |
| Spring force at working stroke: | 2 N [7.19 ozf] |
| Spring pre-load: | 1.55 N [5.57 ozf] |
| Sub-product group: | RF inner conductor |
| Tip diameter: | 0.51 mm [.02 in] |
| Tip style: | 05 bullet-nosed (full radius) |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 22.1 mm [.872 in] |
| Typical resistance (Ri): | 20 mOhm |
| Working stroke: | 0.7 mm [.027 in] |
Login
Product details
- Inner conductor for RF test probes (HFS)
- Can be used for service or repair
Other products in this series:
Technical data
General data
- Product group: RF inner conductor , Accessories (GKS / ADA)
- Sub-product group: RF inner conductor
- Series: GKS-051
- Grid: 1.27 mm [50 mil]
- Contacting from: Female connector, Pad
- Magnetic: Yes
- Installation type: Plug-in
- Quick-exchange system: Yes
- Adjustable installation height: No
- Non-rotating: No
- Min. temperature: -40 °C [-40 °F]
- Max. temperature: 80 °C [176 °F]
- RoHS-compliant: Yes
Mechanical data

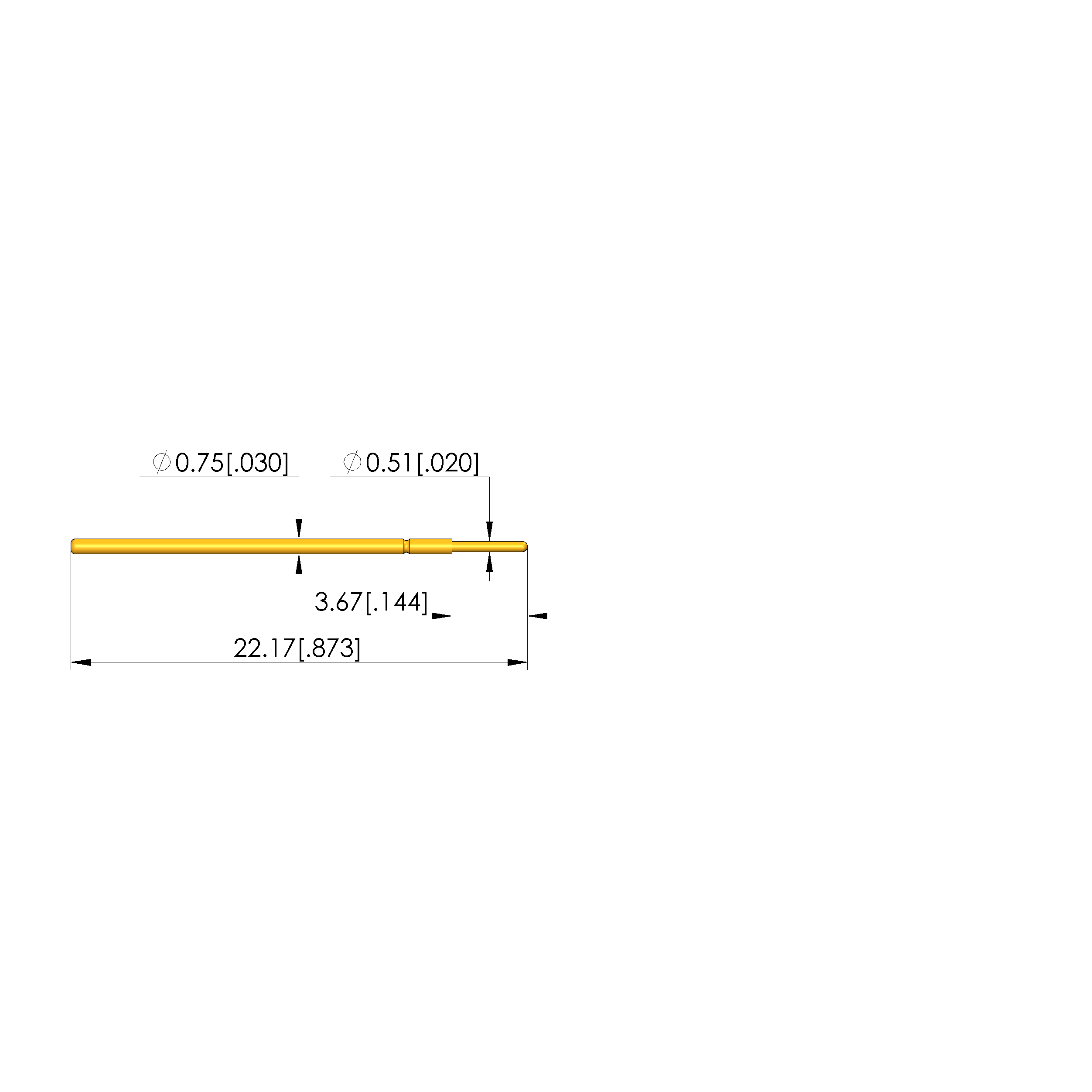

- Total length: 22.1 mm [.872 in]
- Barrel diameter: 0.75 mm [.029 in]
- Maximum stroke: 1.1 mm [.043 in]

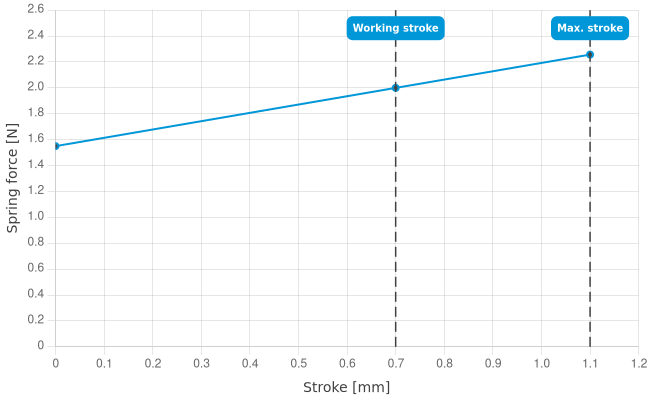

- Spring pre-load: 1.55 N [5.57 ozf]
- Collar height: 00
- Spring force at working stroke: 2 N [7.19 ozf]
- Working stroke: 0.7 mm [.027 in]
Tip style data

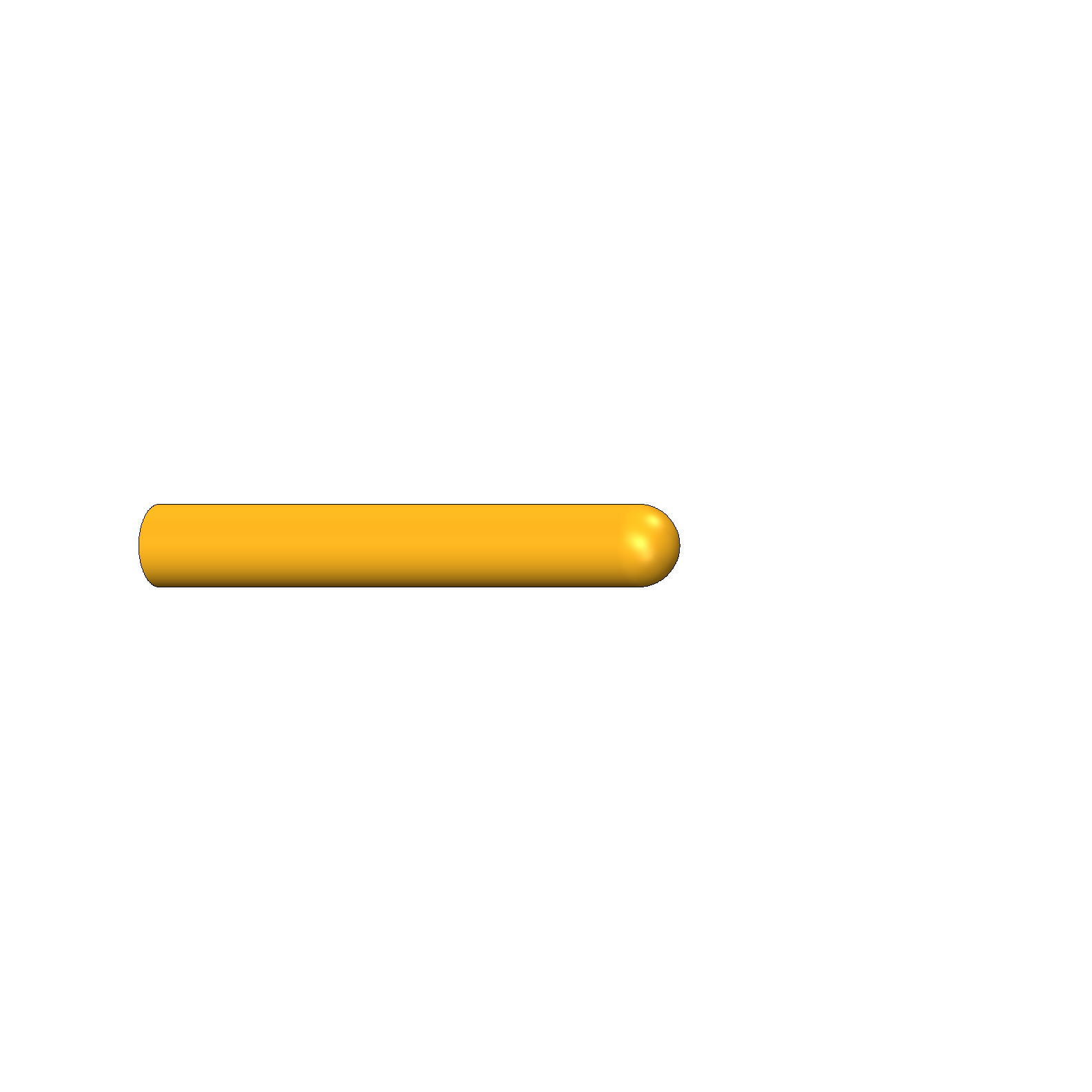

- Tip style: 05 bullet-nosed (full radius)
- Tip diameter: 0.51 mm [.02 in]
- Tip style surface: A gold
- Tip style material: 3 CuBe
Electrical data
- Current load capacity / rated current: 2 A
- Typical resistance (Ri): 20 mOhm
