Product information "GKS-050 291 050 A 2000 LPC"
- Well-established test probes for contacting PCBs
- For optimal contact to the test points (e.g. pads, vias, and pins), various tip styles with various diameters and finishes are available.
- Various spring forces available as well as versions with stainless steel springs suitable for high temperatures
- Used for setting the optimum stroke conditions in the test fixture, various installation heights can be achieved by combining test probes and receptacles
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 0.78 mm [.03 in] |
| Collar height: | 00 |
| Compatible receptacle(s): | KS-050 |
| Contacting from: | Pad, Via |
| Current load capacity / rated current: | 2 A |
| Grid: | 1.27 mm [50 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 200 °C [392 °F] |
| Maximum stroke: | 6.35 mm [.25 in] |
| Min. temperature: | -100 °C [-148 °F] |
| Non-rotating: | No |
| Product group: | xxx, Standard stroke test probe |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Series: | GKS-050, GKS-050 LP long version |

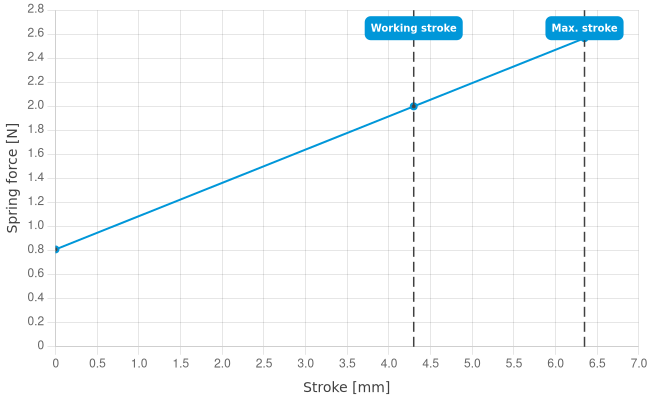

| Spring force at working stroke: | 2 N [7.19 ozf] |
| Spring pre-load: | 0.81 N [2.91 ozf] |
| Sub-product group: | Standard stroke test probe |
| Tip diameter: | 0.5 mm [.019 in] |
| Tip style: | 91 dagger, self-cleaning |
| Tip style material: | 2 steel |
| Tip style surface: | A gold |
| Total length: | 45.2 mm [1.77 in] |
| Typical resistance (Ri): | 100 mOhm |
| Working stroke: | 4.3 mm [.169 in] |
Login
Product Details
- Well-established test probes for contacting PCBs
- For optimal contact to the test points (e.g. pads, vias, and pins), various tip styles with various diameters and finishes are available.
- Various spring forces available as well as versions with stainless steel springs suitable for high temperatures
- Used for setting the optimum stroke conditions in the test fixture, various installation heights can be achieved by combining test probes and receptacles
Other products in this series:
Technical data
General data
- Product group: xxx
- Product group: Standard stroke test probe
- Sub-product group: Standard stroke test probe
- Series: GKS-050
- Series: GKS-050 LP long version
- Grid: 1.27 mm [50 mil]
- Contacting from: Pad
- Contacting from: Via
- Magnetic: Yes
- Installation type: Plug-in
- Quick-exchange system: Yes
- Adjustable installation height: No
- Non-rotating: No
- Compatible receptacle(s): KS-050
- Min. temperature: -100 °C [-148 °F]
- Max. temperature: 200 °C [392 °F]
- RoHS-compliant: Yes
Mechanical data
- Total length: 45.2 mm [1.77 in]
- Barrel diameter: 0.78 mm [.03 in]
- Maximum stroke: 6.35 mm [.25 in]
- Spring pre-load: 0.81 N [2.91 ozf]
- Collar height: 00
- Spring force at working stroke: 2 N [7.19 ozf]
- Working stroke: 4.3 mm [.169 in]
Electrical data
- Current load capacity / rated current: 2 A
- Typical resistance (Ri): 100 mOhm
Tip style data
- Tip style: 91 dagger, self-cleaning
- Tip diameter: 0.5 mm [.019 in]
- Tip style surface: A gold
- Tip style material: 2 steel
