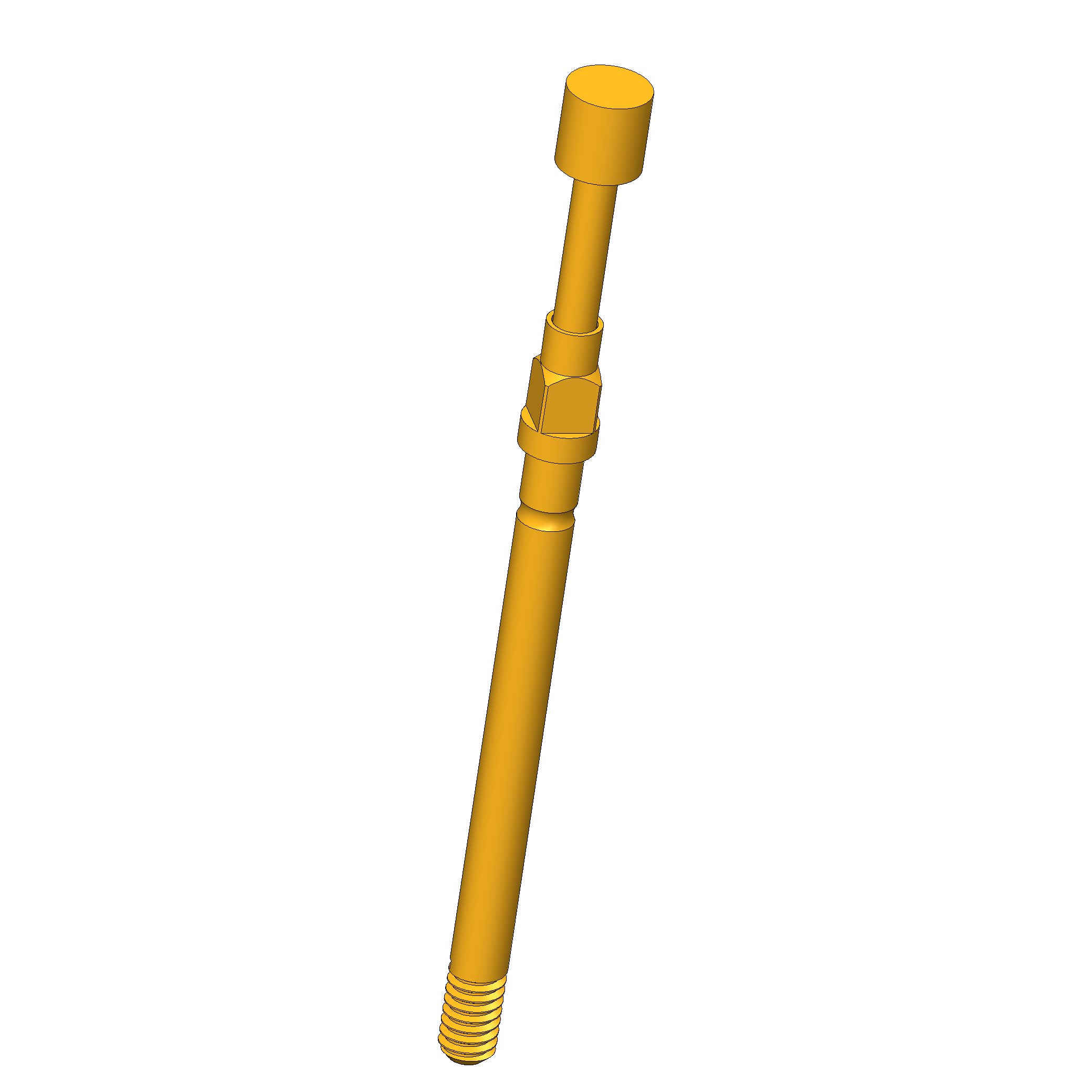

Product information "GKS-001 302 150 A 1502 M"
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 1 mm [.039 in] |
| Collar height: | 2 |
| Compatible receptacle(s): | KS-001 M |
| Contacting from: | Bead, Flat contact, Post, Pin |
| Current load capacity / rated current: | 4 A |
| Grid: | 1.91 mm [75.1 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 3 mm [.118 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | Screw-in test probe , Screw-in test probe |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Screw-in torque: | .5 – 1 cNm [.044 – .088 lbf·in] |
| Series: | GKS-001, GKS-001 M |
| Spring force at working stroke: | 1.5 N [5.39 ozf] |
| Spring pre-load: | 0.47 N [1.69 ozf] |
| Sub-product group: | Screw-in test probe |
| Tip diameter: | 1.5 mm [.059 in] |
| Tip style: | 02 flat |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 19 mm [.748 in] |
| Typical resistance (Ri): | 20 mOhm |
| Working stroke: | 2.4 mm [.094 in] |
Login
Other products in this series:
Technical data

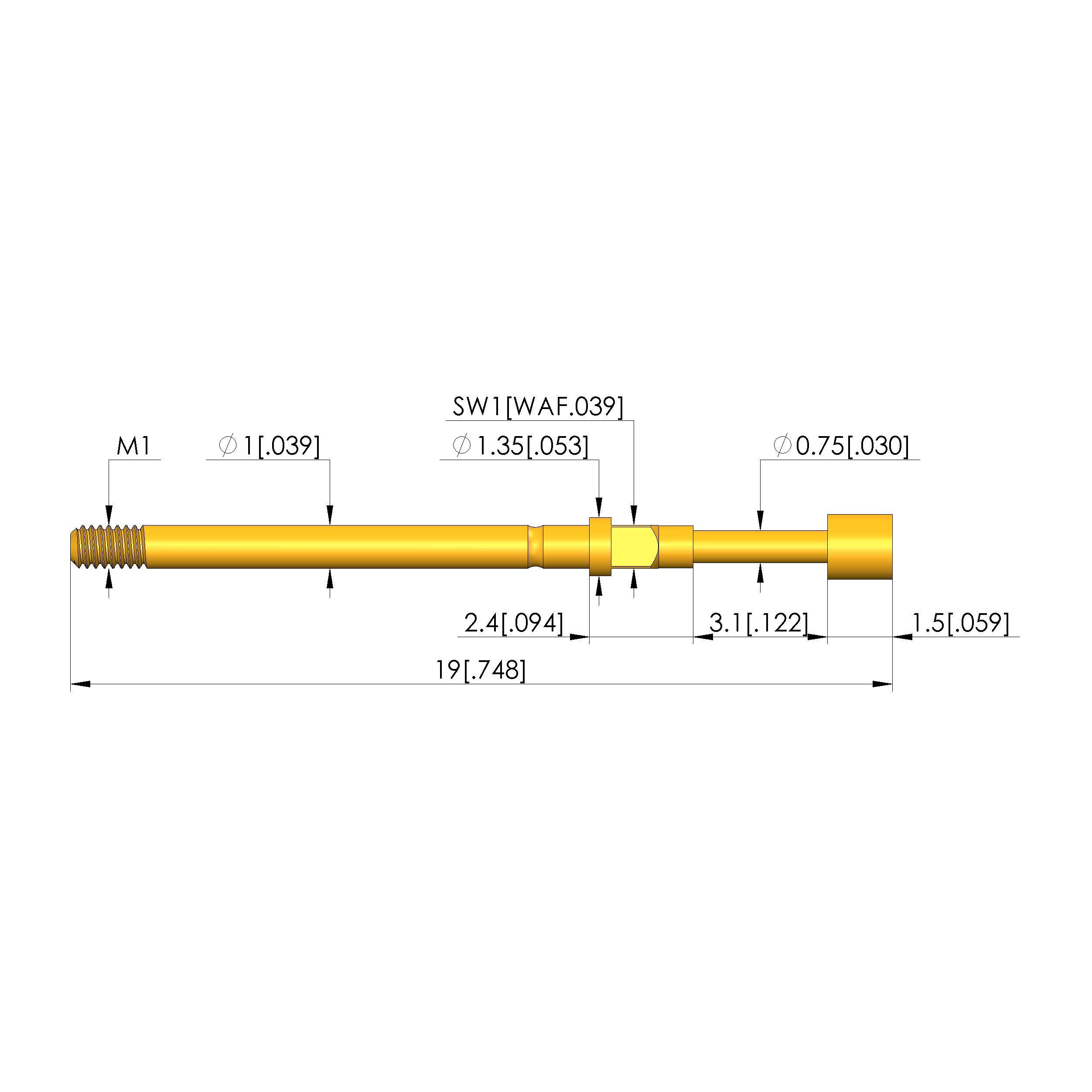

Mechanical data
- Barrel diameter: 1 mm [.039 in]
- Spring force at working stroke: 1.5 N [5.39 ozf]
- Collar height: 2
- Total length: 19 mm [.748 in]
- Working stroke: 2.4 mm [.094 in]
- Maximum stroke: 3 mm [.118 in]
- Spring pre-load: 0.47 N [1.69 ozf]
General data
- Contacting from: Bead
- Sub-product group: Screw-in test probe
- Max. temperature: 80 °C [176 °F]
- Grid: 1.91 mm [75.1 mil]
- Contacting from: Pin
- Non-rotating: No
- Product group: Screw-in test probe
- Product group: Screw-in test probe
- Adjustable installation height: No
- Screw-in torque: .5 – 1 cNm [.044 – .088 lbf·in]
- Series: GKS-001
- Compatible receptacle(s): KS-001 M
- RoHS-compliant: Yes
- Series: GKS-001 M
- Installation type: Screw-in
- Min. temperature: -40 °C [-40 °F]
- Quick-exchange system: Yes
- Contacting from: Flat contact
- Contacting from: Post
- Magnetic: Yes
Electrical data
- Current load capacity / rated current: 4 A
- Typical resistance (Ri): 20 mOhm

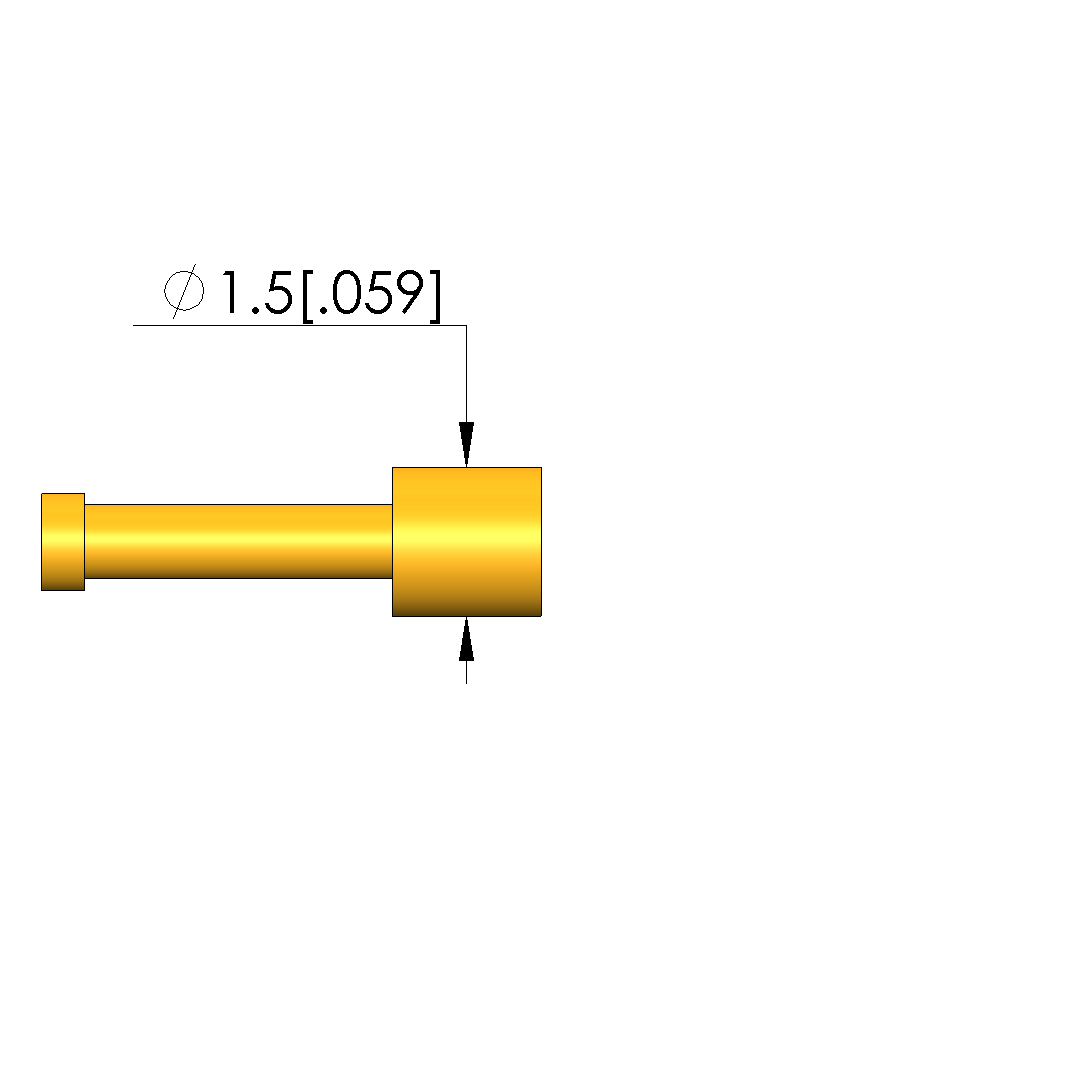

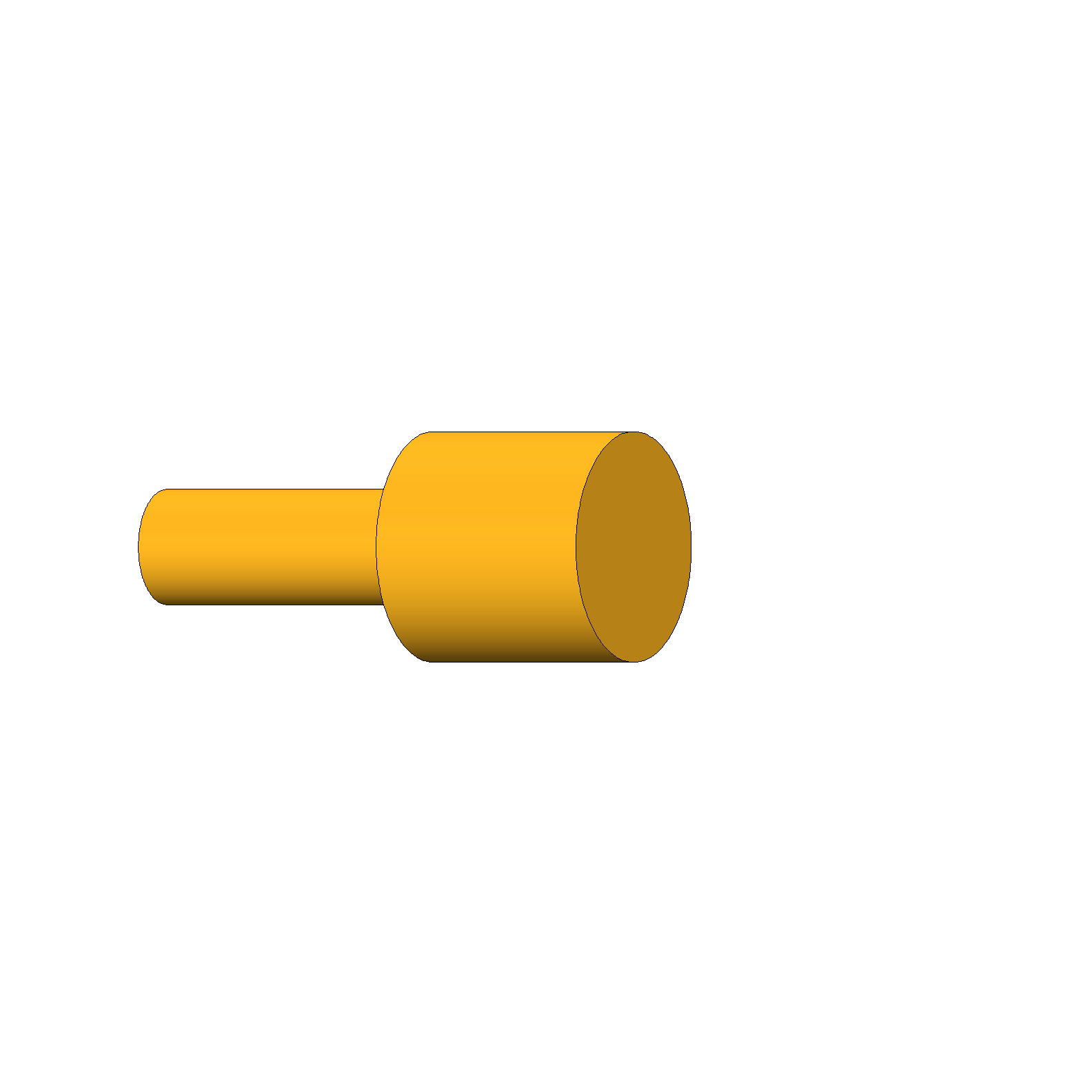

Tip style data
- Tip style: 02 flat
- Tip style material: 3 CuBe
- Tip style surface: A gold
- Tip diameter: 1.5 mm [.059 in]
