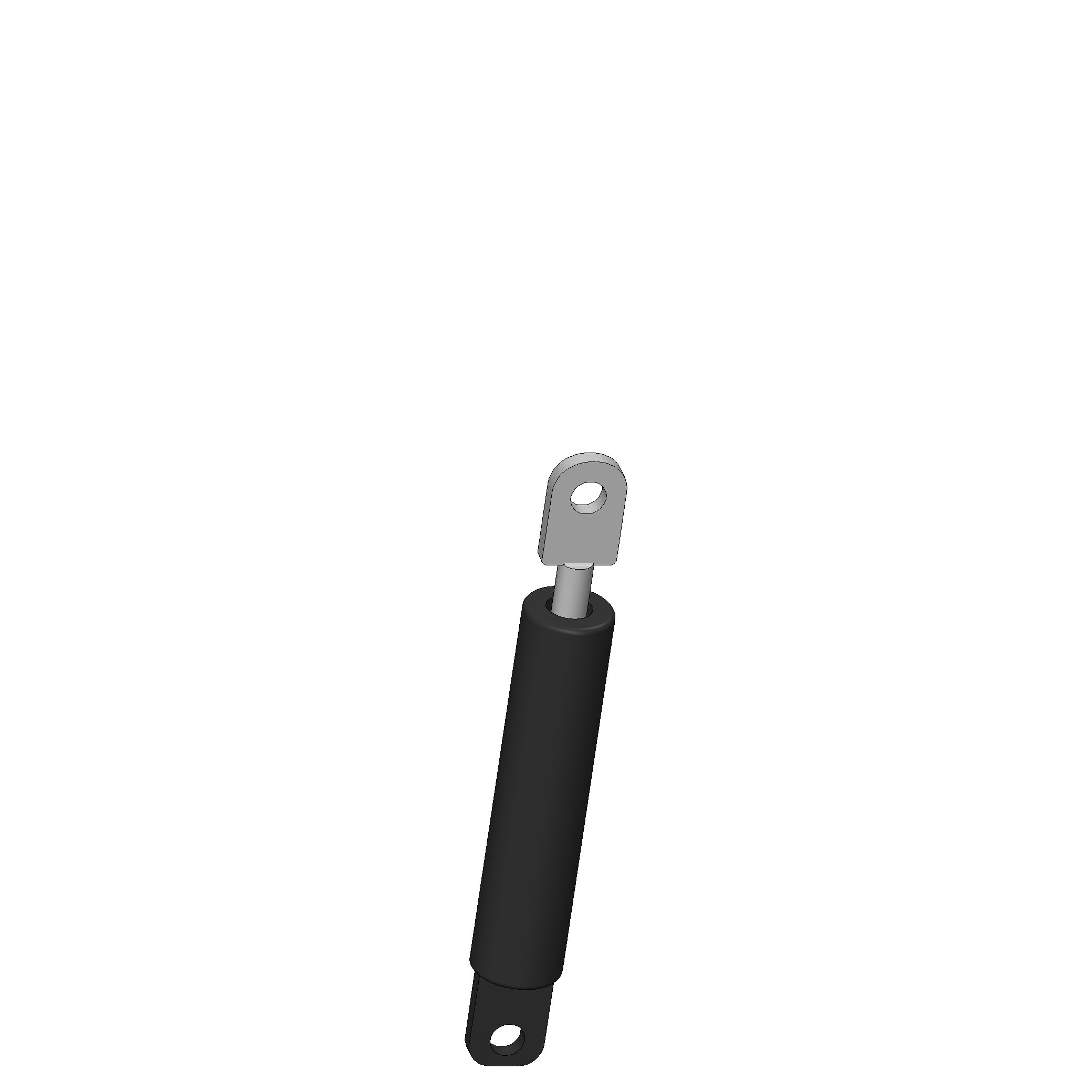

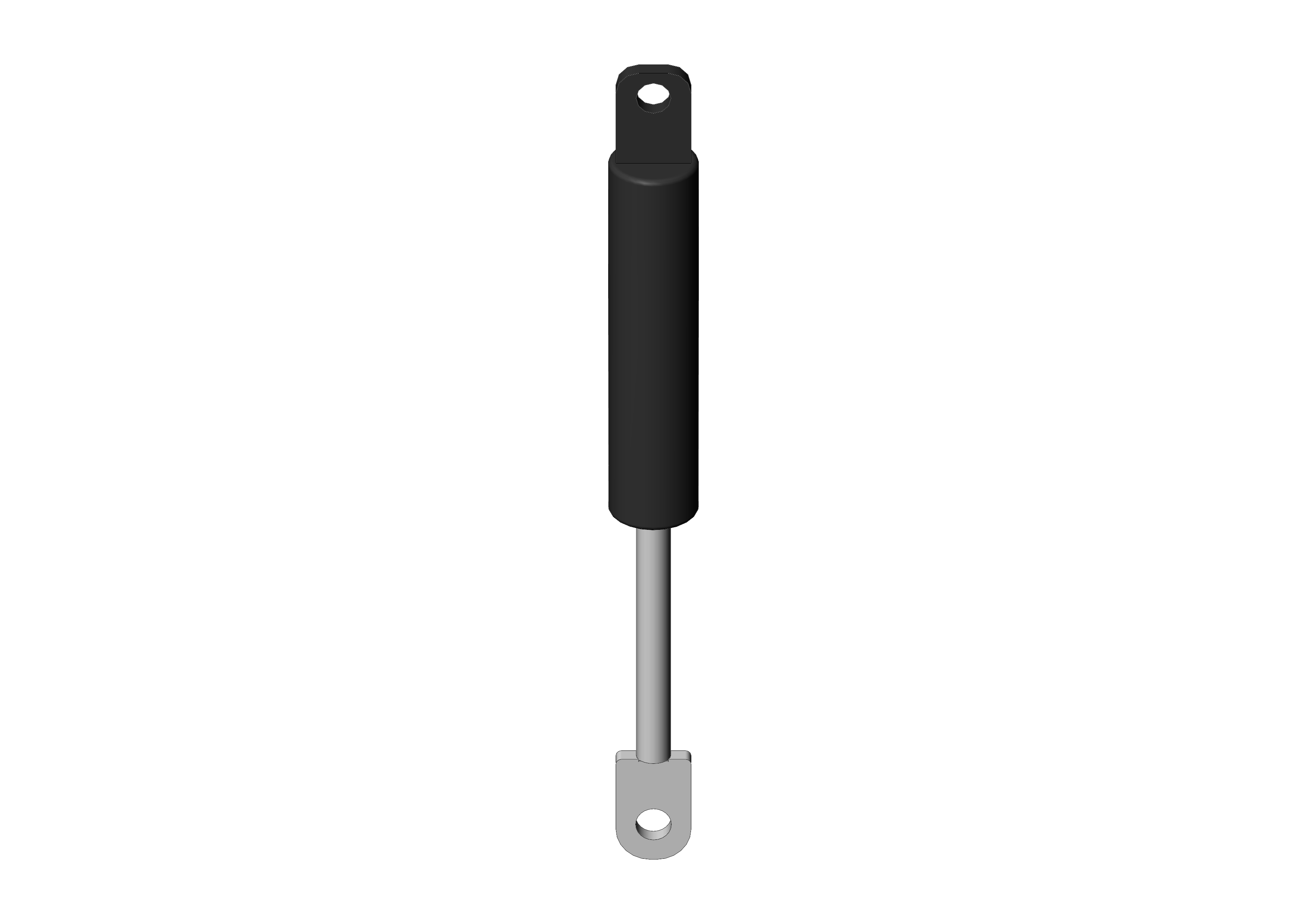

Product information "GDF-145-40-100N-A6-A6"
- Trusted gas springs from the market leader
- Store with the piston rod facing downwards
| Accessory type: | Spare parts |
|---|---|

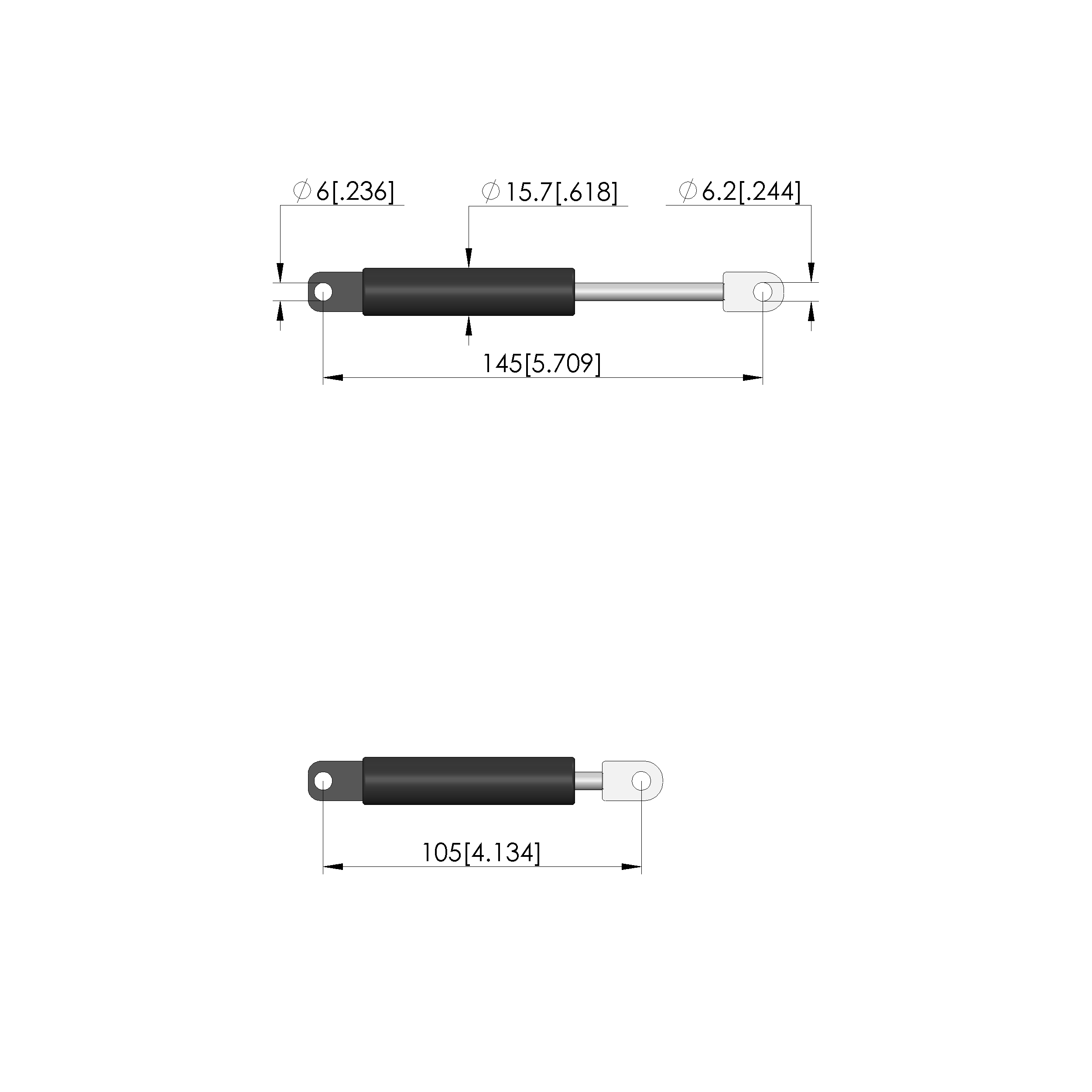

| Force: | 100 N [359 ozf] |
| Gas pressure spring length, home position: | 105 mm [4.13 in] |
| Installation 1 diameter: | 6 mm [.236 in] |
| Installation 2 diameter: | 6.2 mm [.244 in] |
| Length: | 145 mm [5.7 in] |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Plunger length, home position: | 49 mm [1.92 in] |
| Product group: | Gas springs |
| RoHS-compliant: | Yes |
| Series: | GDF |
| Stroke: | 40 mm [1.57 in] |
| Type: | Gas spring |
| Version: | Standard, attenuated |
Login
Product Details
- Trusted gas springs from the market leader
- Store with the piston rod facing downwards
Other products in this series:
Technical data
Technical data
- Stroke: 40 mm [1.57 in]
- Force: 100 N [359 ozf]
- Length: 145 mm [5.7 in]
- Gas pressure spring length, home position: 105 mm [4.13 in]
- Plunger length, home position: 49 mm [1.92 in]
- Installation 1 diameter: 6 mm [.236 in]
- Installation 2 diameter: 6.2 mm [.244 in]
General data
- Product group: Gas springs
- Series: GDF
- Type: Gas spring
- Version: Standard, attenuated
- Accessory type: Spare parts
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
